Dongfeng Tianjin 4X2 lifting weight 8 ton tow truck
- 1.Wheelbase(mm):5600
- 2.Tyre specification:9.00R20
- 3.Transmission:6 forward gear,1 reverse gear(manual)
- 4.Max lifting capacity(kg):8000
- 5.Bracket arm flexible stroke(mm):1250
- 6.Max hoisting capacity(kg):12000
- 7.Max hoisting height(mm):4830
- 8.Rated traction for each winch(kN):100
- 9.Steel wire rope length(m):30
Technical Specification
|
Main specification |
|||||||||
|
Product model and name |
CSC5160TQZDT4 Wrecker truck |
||||||||
|
Gross weight(Kg) |
16000 |
Drive type |
4X2 |
||||||
|
Curb weight(Kg) |
10805 |
Overall dimension(mm) |
8650×2480×3060 |
||||||
|
Approach/departure angle(°) |
20/18 |
Cab seats |
3 |
||||||
|
Axle No. |
2 |
Front/rear hang(mm) |
1430/1620 |
||||||
|
Axle load(Kg) |
6000/10000 |
Wheelbase(mm) |
5600 |
||||||
|
Max speed(Km/h) |
90 |
|
|
||||||
|
Chassis specification |
|||||||||
|
Chassis model |
DFL5160XXYBX1A |
Manufacturer |
Dongfeng Commercial Vehicle Co.,Ltd |
||||||
|
Brand name |
Dongfeng |
Dimension(mm) |
9600×2370×2760 |
||||||
|
Tyre specification |
9.00R20 |
Tyre No. |
6 |
||||||
|
Steel spring number |
7/9+6 |
Front track base(mm) |
1880 |
||||||
|
Fuel type |
Diesel |
Rear track base(mm) |
1800 |
||||||
|
Emission standard |
Euro 4 |
Transmission |
6 forward gear,1 reverse gear |
||||||
|
Cab |
D530 flat,one and half row flat cab, electric window regulator, central control door lock, PXD-B dashboard with air condition. |
||||||||
|
Engine model |
Engine manufacturer |
Displacement(ml) |
Power(Kw) |
||||||
|
ISB180 40 |
Dongfeng Cummins Engine Co.,Ltd |
5900 |
132 |
||||||
|
Performance |
|||||||||
|
Lifting system |
Max lifting capacity(kg) |
8000 |
|||||||
|
Fully extended max lifting capacity(kg) |
5000 |
||||||||
|
Effective length of the bracket arm(mm) |
1170--2420 |
||||||||
|
Bracket arm flexible stroke(mm) |
1250 |
||||||||
|
Hoisting system |
Max hoisting capacity(kg) |
12000 |
|||||||
|
Farthest hoisting capacity(kg) |
5750 |
||||||||
|
Max hoisting height(mm) |
4830 |
||||||||
|
Winch |
QTY(Piece) |
2 |
|||||||
|
Rated traction for each(kN) |
100 |
||||||||
|
Steel wire rope diameter(mm) |
16 |
||||||||
|
Steel wire rope length(m) |
30 |
||||||||
|
Instruction |
|||||||||
|
The wrecker truck is equipped with lifting, pulling and hoisting etc. on the basis of special purpose chassis.It has the function of lifting, pulling, hoisting , lift platform and load transportation and others.It is mainly used for road fault vehicles,city peccancy vehicles and emergency rescue etc.The wrecker truck is widely used in highway,the traffic police, airport, wharf, auto repair industry and highway departments etc.It can be used to clean up the accident, fault, violation vehicles etc .timely and quickly. |
|||||||||
Dongfeng Tianjin 4X2 lifting weight 8 ton tow truck

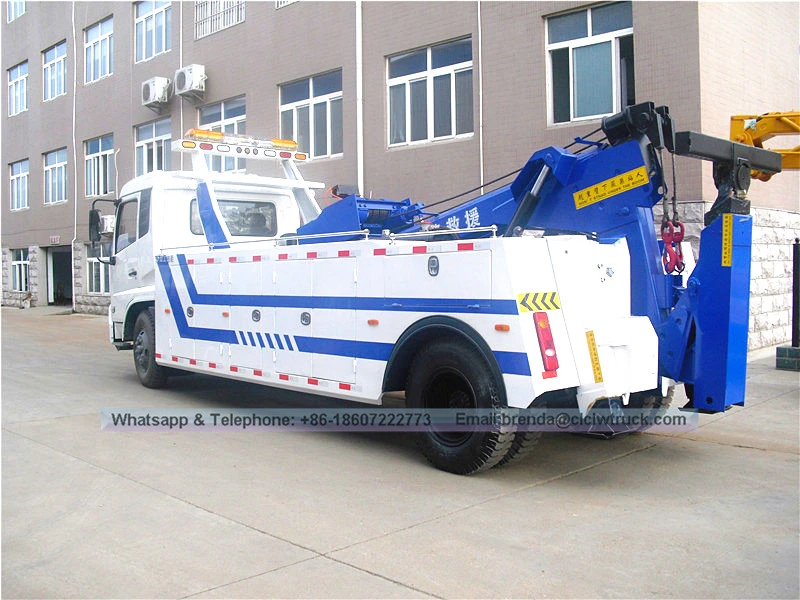

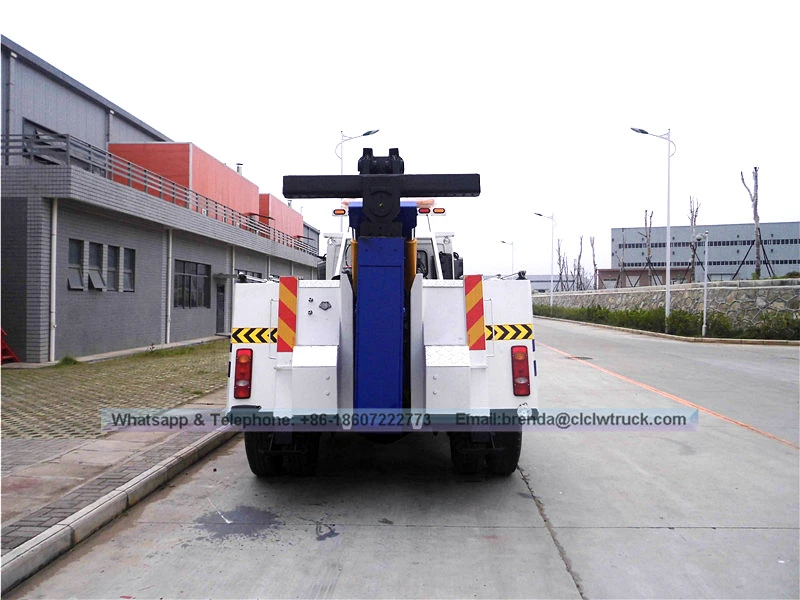

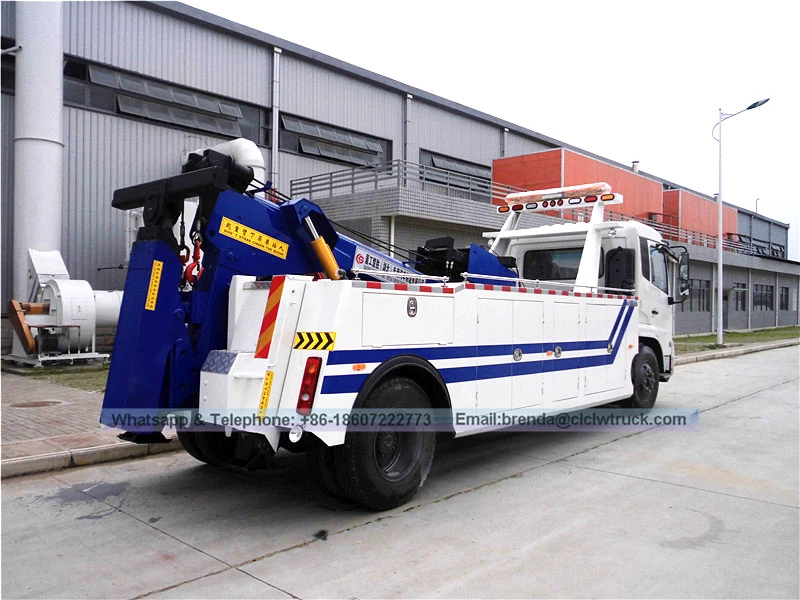

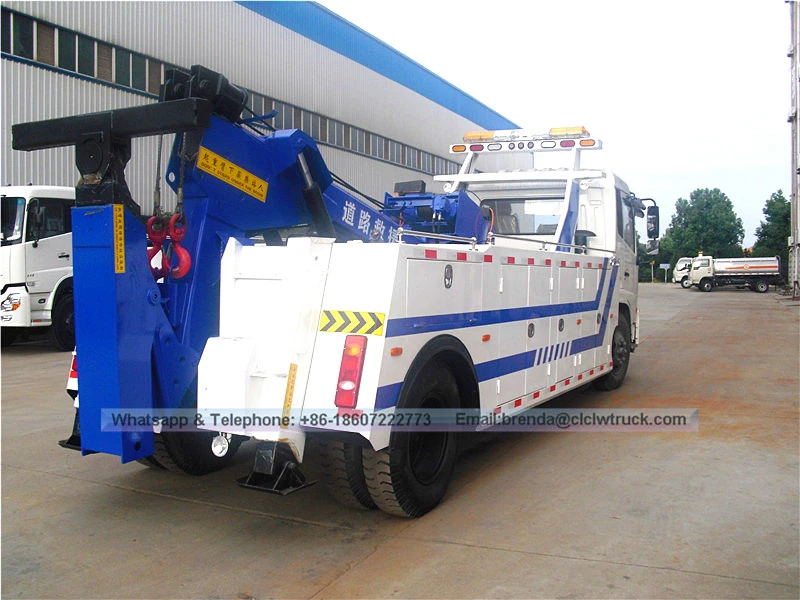

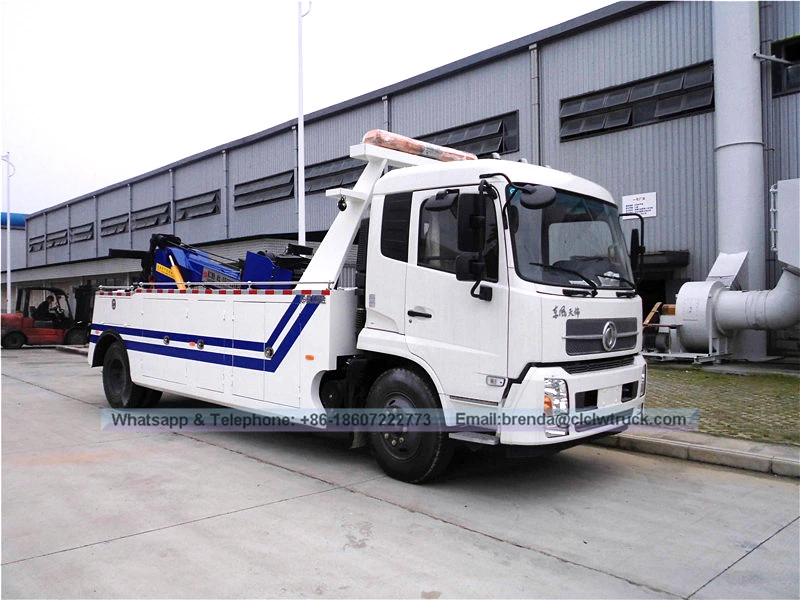

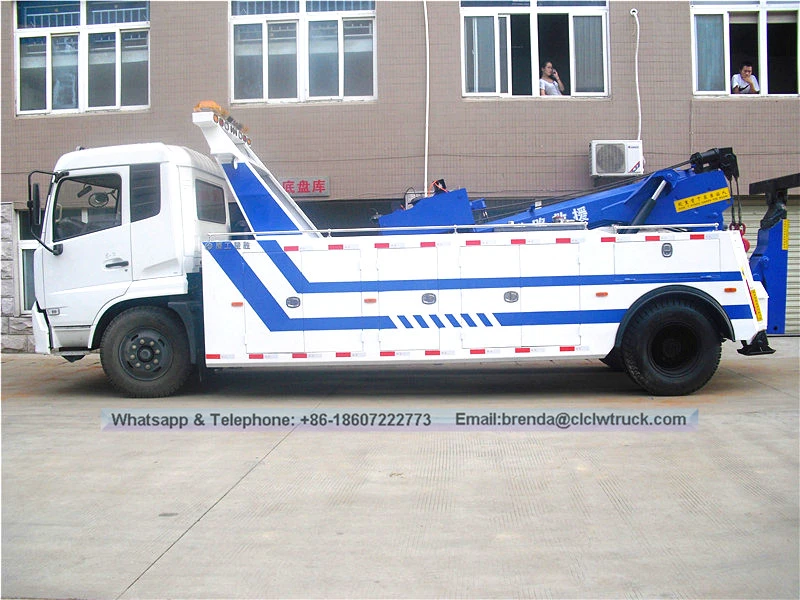

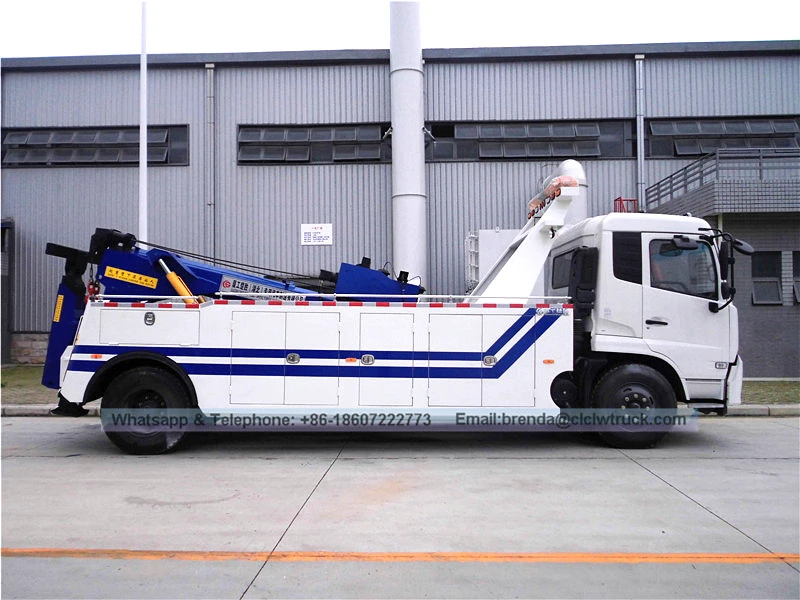

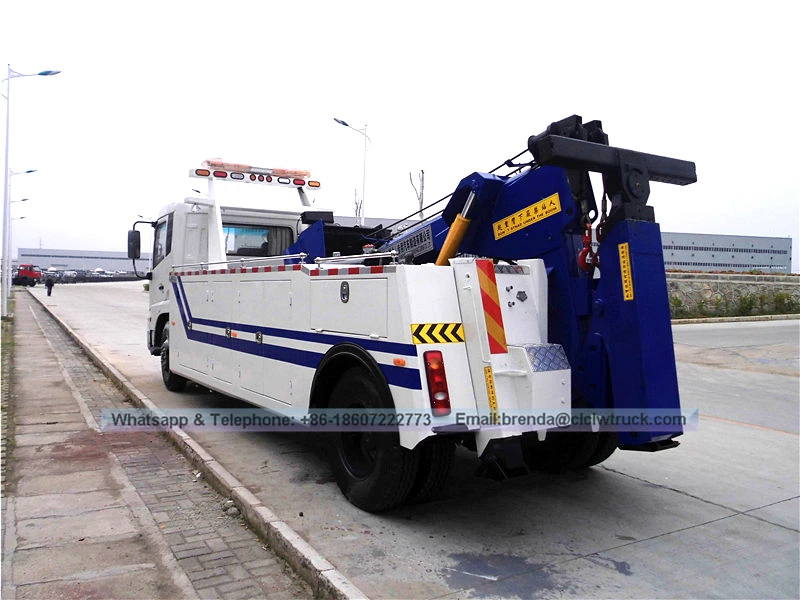

Tow Truck Image
