Main specification

Product model and name

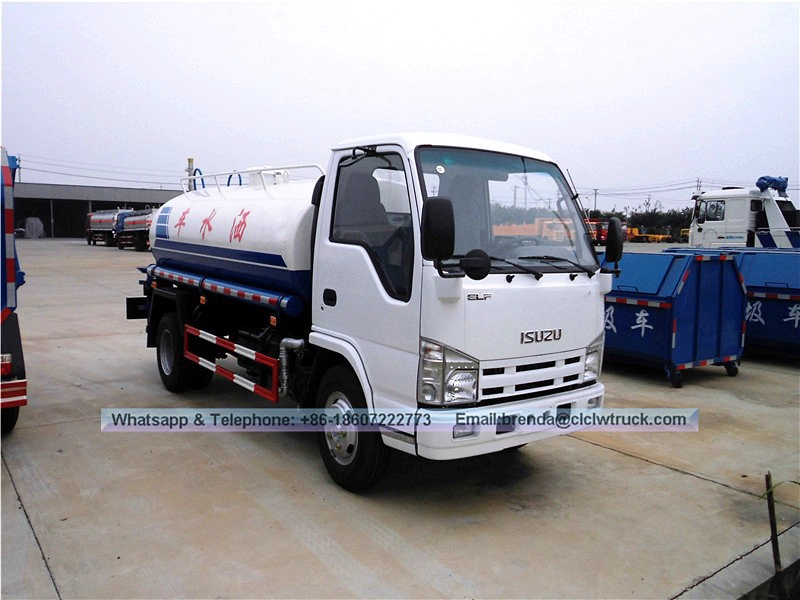

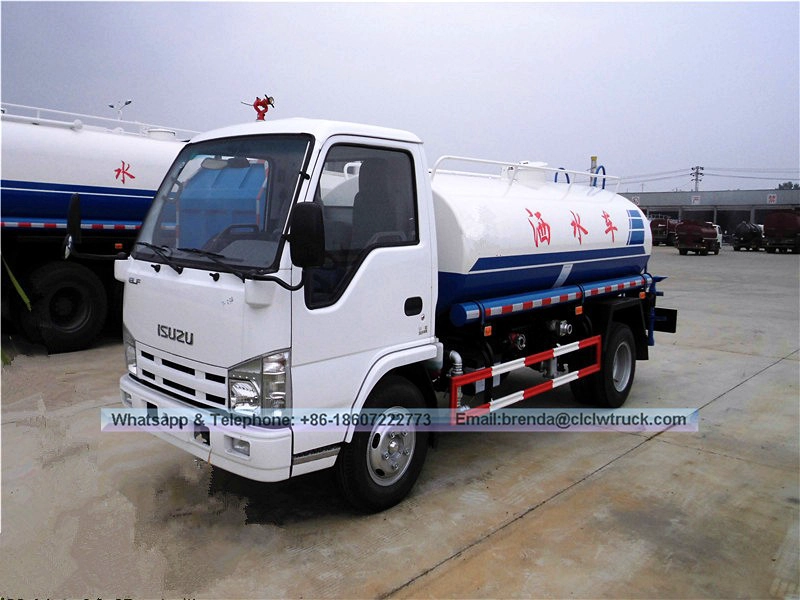

QL10703HARY  water truck

Gross weight(Kg)

7300

Drive type

4X2

Payload(Kg)

4200

Overall dimension(mm)

5990x1900x2250

Curb weight(Kg)

2970

Cab seats

2

Approach/departure angle(°)

24/16

Front/rear hang(mm)

1015/1615

Axle No.

2

Wheelbase(mm)

3360

Axle load(Kg)

2580/4720

Max speed(Km/h)

95

Chassis specification

Chassis model

QL10703HARY

Manufacturer

Qingling Motor Co., Ltd

Brand name

ISUZU

Dimension(mm)

5900x1880x2220

Tyre specification

7.00-16

Tyre No.

6

Steel spring number

8/6+5

Front track base(mm)

1504

Fuel type

Diesel

Rear track base(mm)

1425

Emission standard

Euro 4

Transmission

5 forward gear,1 reverse gear(MSB)

Cab

Single row, Air condition and power steering with USB interface radio.

Engine model

Engine manufacturer

Displacement(ml)

Power(Kw)

4JB1CN

Qingling ISUZU Engine Co.,Ltd

2771

72

Performance

Tank volume（m³）

3 to 5(3000 to 5000liters)

Tank material

Carbon steel Q235

Water pump model

65QZ40/45

Water pump flow(m³/h)

40

Watering width(M)

≥14

Water cannon range (M)

≥28

Feature and Application

1).Equipped with high power self-suction water pump that characterized by high-pressure and fast speed suction.

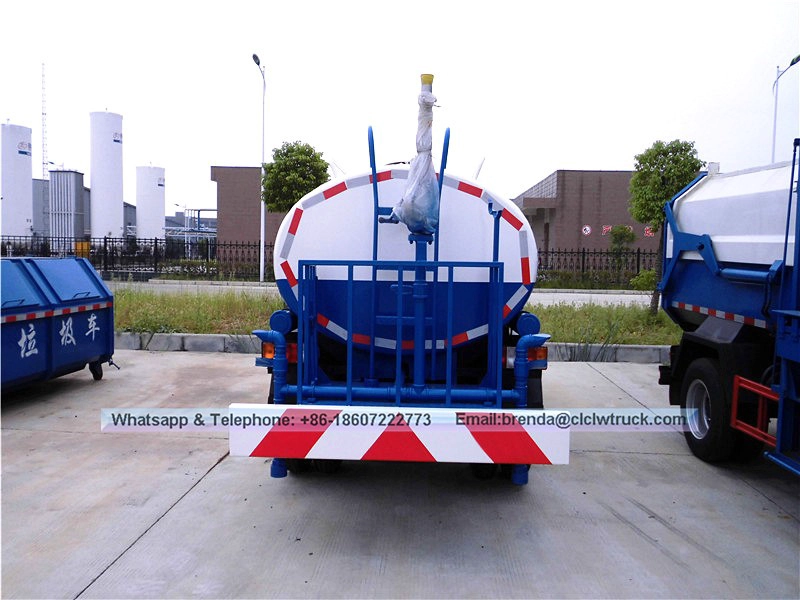

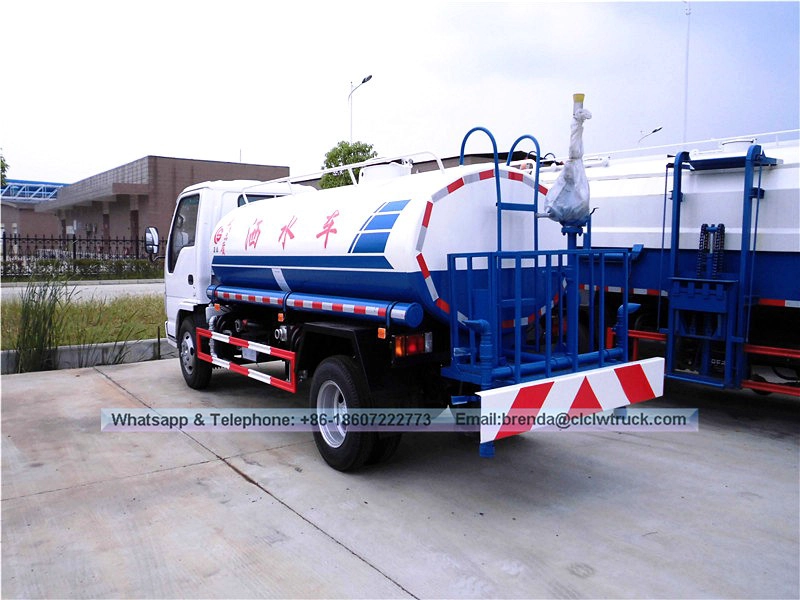

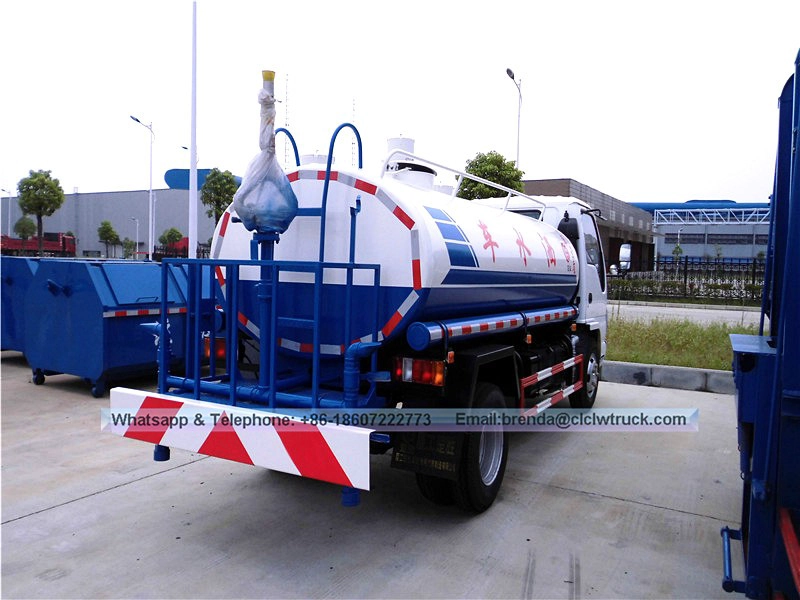

2).Equipped with front, rear and side sprinklers and high position sprinkler, and rear working platform.

3).The water cannon which is installed on the working platform can rotate by 360 degree and the water flow can be adjusted into various rain shape. There are straight shape, heavy rain, moderate rain and drizzle etc. The max range can reach 30M.

4).Equipped with fire coupling, flow valves, filter screen and water level gauge.

5).According to customers’ request, the crane, high working platform and spraying machine also can be equipped.

6).Mainly used for washing on urban roads, watering and greening on trees, green belts and lawn and dust full of construction sites. And also used for drinking water delivery and fire fighting function etc.
