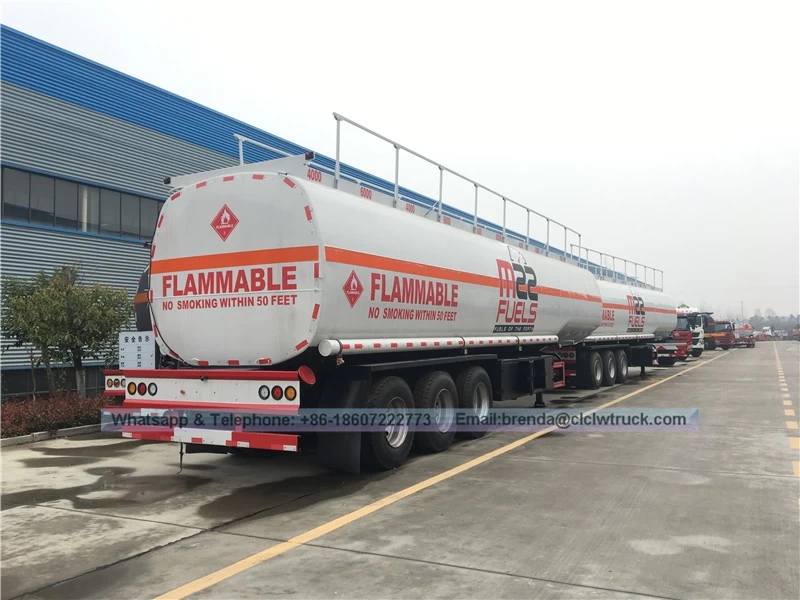

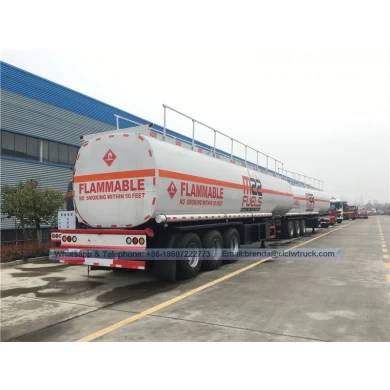

45000 Liters Fuel Tanker Trailer
- 1.Total weight(Kg):39800
- 2.Curb weight(Kg):11800
- 3.Wheelbase(mm):7200+1310+1310
- 4.Tank material:Q235B carbon steel
- 5.Axle:Fuhua13T（Fuhua15T、16T or BPW12T、14T optional）
- 6.Support leg:28T
- 7.Tow point:90#
|
I.Main specifications |
|||
|
Product model、name |
CLW9400GYY fuel tank trailer( Chemical truck) |
||
|
Total weight(Kg) |
39800 |
Overall dimension (mm) |
12980×2500×3820 |
|
Payload (Kg) |
28000 |
Front/rear hang(mm) |
-/1860 |
|
Curb weight(Kg) |
11800 |
Wheelbase(mm) |
7200+1310+1310 |
|
Tank volume( m3) |
44 |
Approach/departure angle (°) |
-/16 |
|
Number of axles |
3 |
Axle load(Kg) |
-/23850 (three-axis ) |
|
Tank material |
Q235B carbon steel |
Tank thickness |
|
|
Axle |
Fuhua13T（Fuhua15T、16T or BPW12T、14T optional） |
||
|
Support leg |
28T |
||
|
Tow point |
90# |
||
|
II.Others |
Truck equipped with Euro standard tank mouth, anti-slipping ladder, safety walkway, handrail, water box, electrostatic belt, fire extinguisher, toolbox, spare tire rack and so on. |
||
|
III.Instructions |

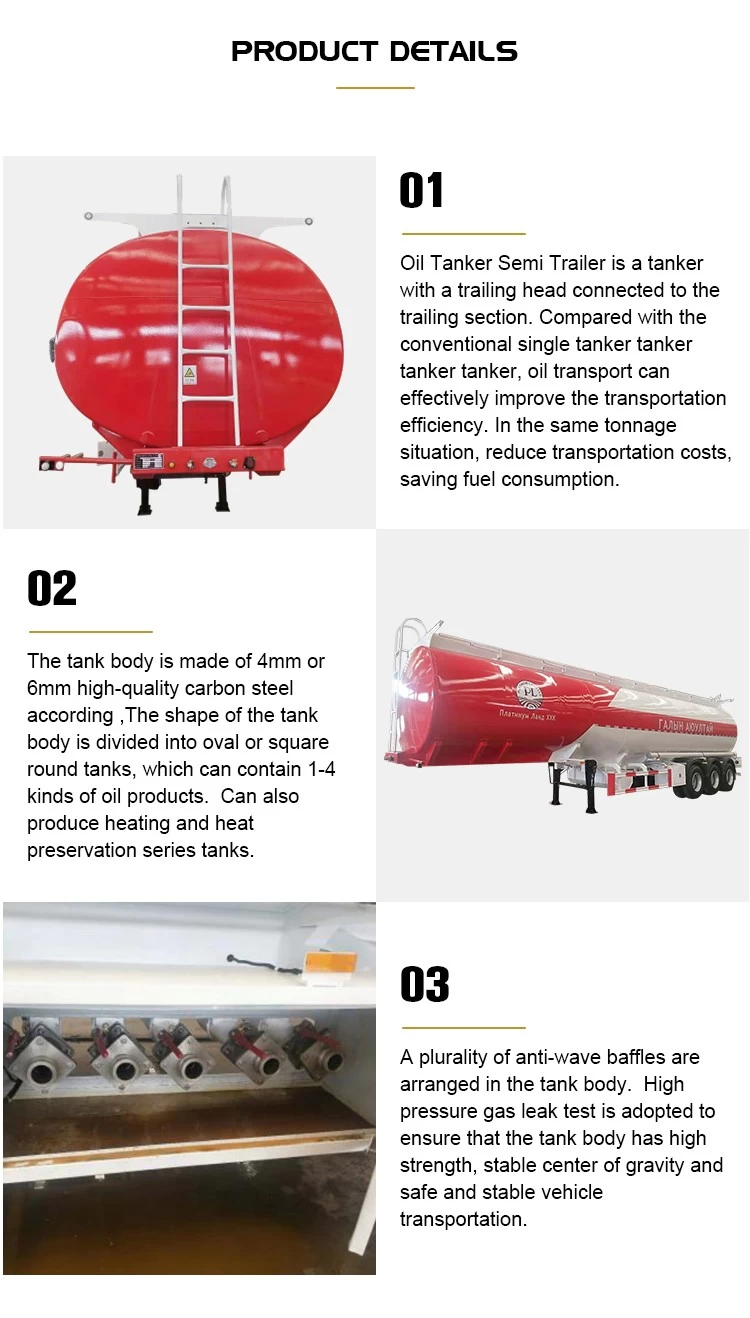

Equipped with multiple wave-proof plates, the tank has the characteristics of high strength, excellent stability, safe transportation.. According to the requirements of clients, the tank can be divided into many compartments for different oils；In addition，oil pump、 flow meter,、liquid level indicator、bottom valve 、heating pipe、insulation layer and other devices are optional。What’s more, 1-3 self-flow mouths or more can be installed on the the back and the side of the tank.It depends on customers’ requirements. |
||
|
IIII.Applications |
For transport oil |
||
