4x2 DFAC 5CBM Hook Lift Garbage Truck
- 1.Product model、name: CLW5080ZXXD4 Garbage Truck With Removable Box
- 2.Gross weight(Kg):8275
- 3.Overall dimension (mm):5830×2100×2440
- 4.Chassis model:DFA1080SJ12D3 (DFAC)
- 5.Body capacity(m3):5
- 6.Body material:Q235 carbon steel
- 7.Engine model:CY4102-CE4C( 3856ml/91kw )
- 8.Discharge Method:Rear dump
- 9.Control system:Manual + Automatic
|
Main specifications |
|||||||||
|
Product model、name |
CLW5080ZXXD4 Garbage Truck With Removable Box |
||||||||
|
Gross weight(Kg) |
8275 |
Driving type |
4×2 |
||||||
|
Payload (Kg) |
4380 |
Overall dimension (mm) |
5830×2100×2440 |
||||||
|
Curb weight(Kg) |
3700 |
cab seats (man) |
3 |
||||||
|
Approach/departure angle (°) |
24/28 |
Front/rear hang(mm) |
1210/820 |
||||||
|
Axle No. |
2 |
Wheelbase (mm) |
3300 |
||||||
|
Axle load(Kg) |
3310/4965 |
Max speed(Km/h) |
99 |
||||||
|
Chassis specifications |
|||||||||
|
Chassis model |
DFA1080SJ12D3 |
Manufacture |
Dongfeng Automobile Company |
||||||
|
Brand name |
Dongfeng |
Overall dimension (mm) |
6815×2080×2440 |
||||||
|
Tire specification |
7.50R16 |
Tires No. |
6+1 |
||||||
|
Steel spring number |
8/10+7,11/9+7 |
Front track(mm) |
1770 |
||||||
|
Fuel type |
Diesel |
Rear track(mm) |
1586 |
||||||
|
Emission standard |
Euro 4 |
Gear box |
5 forward |
||||||
|
Engine model |
Engine manufacture |
displacement(ml) |
Power(Kw) |
||||||
|
CY4102-CE4C |
Dongfeng chaoyang chaochai power company |
3856 |
91 |
||||||
|
Performance |
|||||||||
|
Body capacity（m³） |
5 |
Body material |
Q235 carbon steel |
||||||
|
Discharge Method |
Rear dump |
Operation control system |
Manuel + electric |
||||||
|
Characteristic |
|||||||||
|
1、Detachable Container Garbage Truck also called pull arm garbage truck ； 2、Using full hydraulic control , the operator can do the waste bin lifting, discharging and dumping both in the driving room or out of the room, and all the operations can be performed by one driver in the cab； 3、The truck compartment using fully enclosed design,there is no water leakage while transportation, that is avoid the secondary pollution problem, make it more environmental friendly； 4、The truck can equipped with several garbage box, one truck can maintain multiple garbage collection point operation, high efficiency。 |
|||||||||
4x2 DFAC 5CBM Hook Lift Garbage Truck

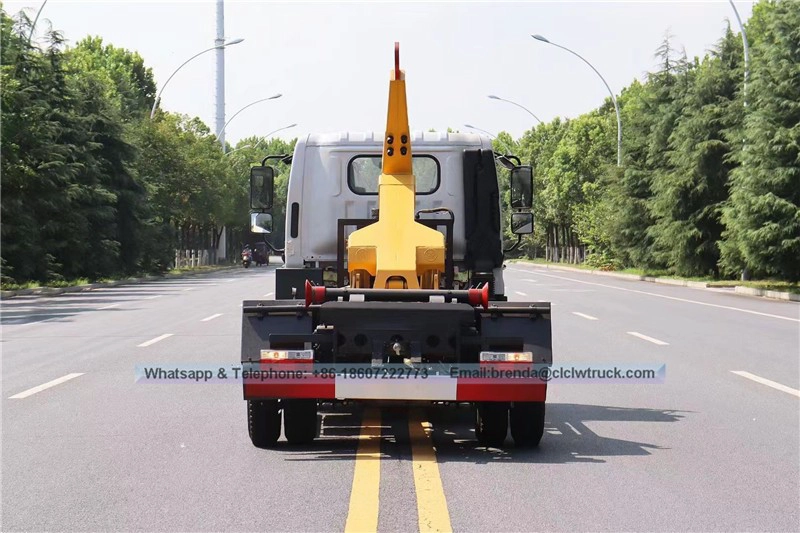

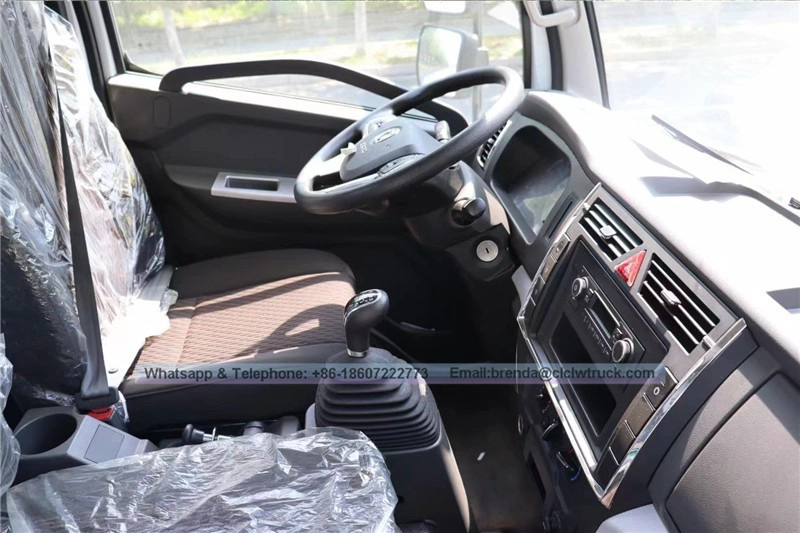

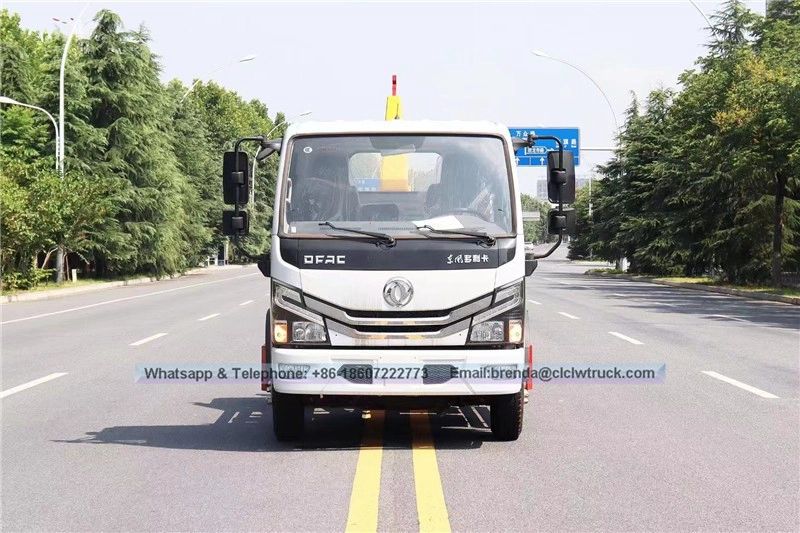

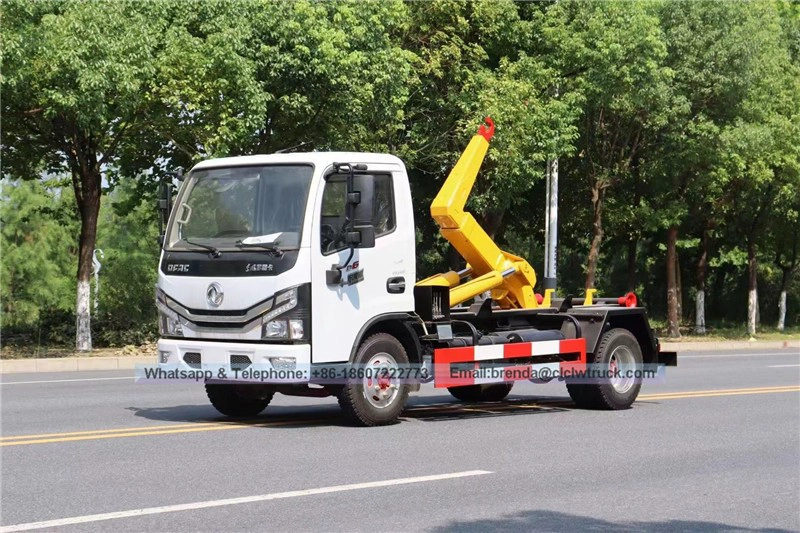

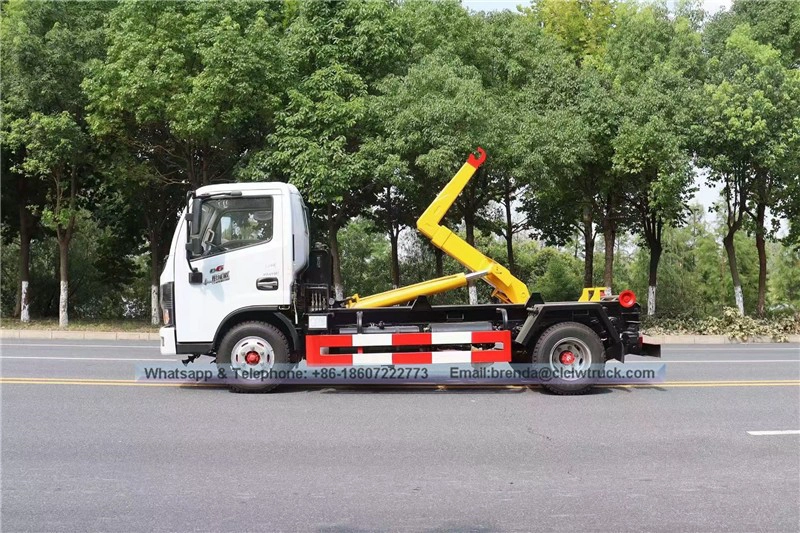

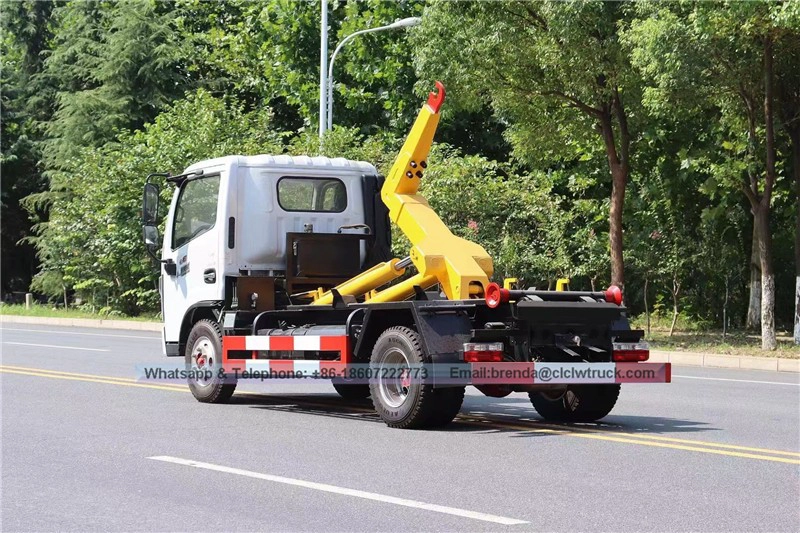

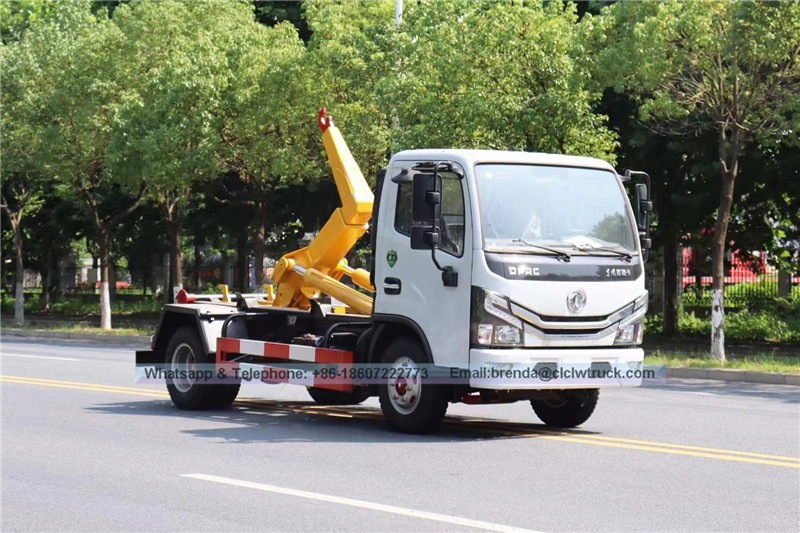

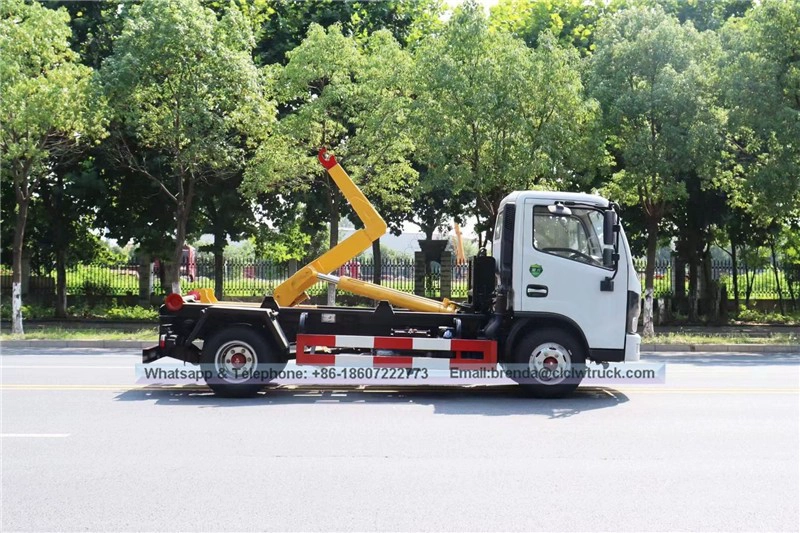

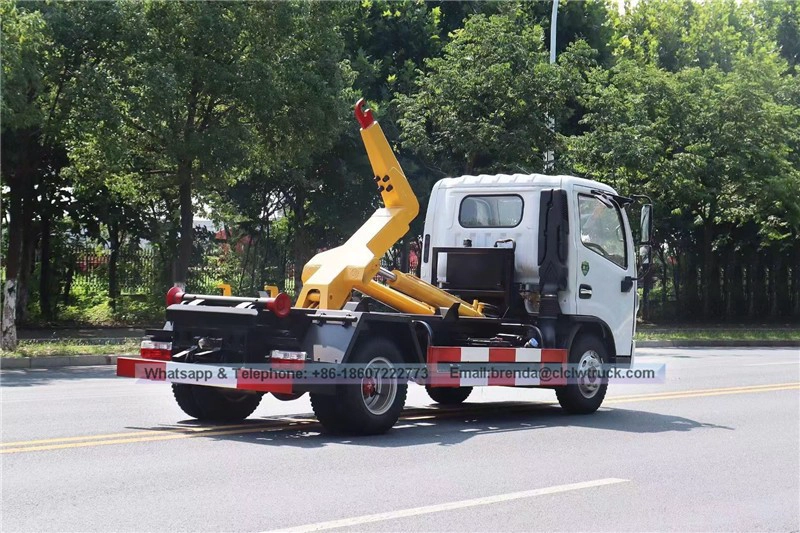

Product Image:
