4x2 Foton Forland 5000 kgs Lorry Crane Hydraulic Boom Crane Truck
- 1.Product Model / Name: BJ5122V4PBB-A1 Truck With Crane
- 2.Overall dimension (mm):7295×2490×3500
- 3.Chassis model: BJ1122V4PBB-A1 (Foton)
- 4.Engine model: YN33CR-4 ( 3298ml/ 93kw)
- 5.Crane Max lifting weigh(kg):5000
- 6.Crane Max ligting heigh(m):9.8
- 7. Crane Working Radiu(m):8.5
Technical Specification
|
【Main specifications】 |
|||||||
|
Product model、name |
BJ5122V4PBB-A1 Truck With Crane |
||||||
|
Gross vehicle weight(kg) |
11665 |
Drive type |
4 X 2 |
||||
|
Payload(kg) |
4390 |
cab seats (man) |
3 |
||||
|
Curb weight(Kg) |
7080 |
Overall dimension (mm) |
7295×2490×3500 |
||||
|
Approach/departure angle (°) |
29/21 |
Box internal dimension(mm) |
4300×2100×520 |
||||
|
Number of axles |
2 |
Front/rear hang(mm) |
1255/2140 |
||||
|
Axle load(Kg) |
4100/7565 |
Wheelbase(mm) |
3900 |
||||
|
Max speed(Km/h) |
80 |
|
|
||||
|
【Chassis specifications】 |
|||||||
|
Chassis model |
BJ1122V4PBB-A1 |
Brand name |
Foton |
||||
|
Manufacturer |
BeiqiFoton Motor Co. , Ltd. |
Tires No. |
6 |
||||
|
Approach/departure angle (°) |
29/22 |
Tire specification |
8.25-20 |
||||
|
Steel spring number |
9/11+8 |
Front track(mm) |
1750 |
||||
|
Fuel type |
Diesel |
Rear track(mm) |
1654 |
||||
|
Emission standard |
Euro III |
Transmission |
5 forward gear, 1 reverse gear |
||||
|
Cabin |
1860mm width cabin, with luxurious interior trim ,seat and sleeper, heater steering. Air conditioning can be equiped according to the customerrequirement. |
||||||
|
Engine model |
Engine manufacturer |
Displacement(ml) |
Power(Kw) |
||||
|
YN33CR-4 |
Kunming Yunnei Power Co., Ltd |
3298 |
93 |
||||
|
【Crane specification】 |
|||||||
|
Crane model |
SQS125 |
Crane brand |
XCMG |
||||
|
Type of Crane |
Telescopic boom crane |
Crane weight (kg) |
2480 |
||||
|
Max lifting weight（kg） |
5000 |
Max lift height（m） |
10.5 / 12.5 |
||||
|
Working radius(m) |
8.7 / 11 |
Operation method |
High seat control / Side control |
||||
|
Number of arms |
3 / 4 |
Outrigger (pcs) |
2 / 4 |
||||
|
【Functions】 |
|||||||
|
The truck consists of chassis, box, power take-off and crane, achieving cargo lifting and moving through hydraulic lifting and telescopic system. In general, H-type outrigger is equipped to realize its stability. To be further strengthened stability of the truck, rear outrigger also can be equipped if the customer require. The truck can 360 ° continuously rotate. |
|||||||
4x2 Foton Forland 5000 kgs Lorry Crane Hydraulic Boom Crane Truck
Food truck suppliers China

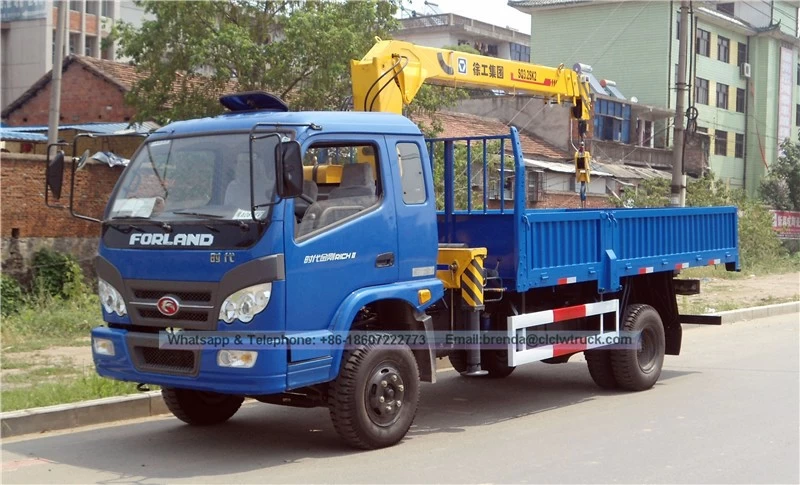

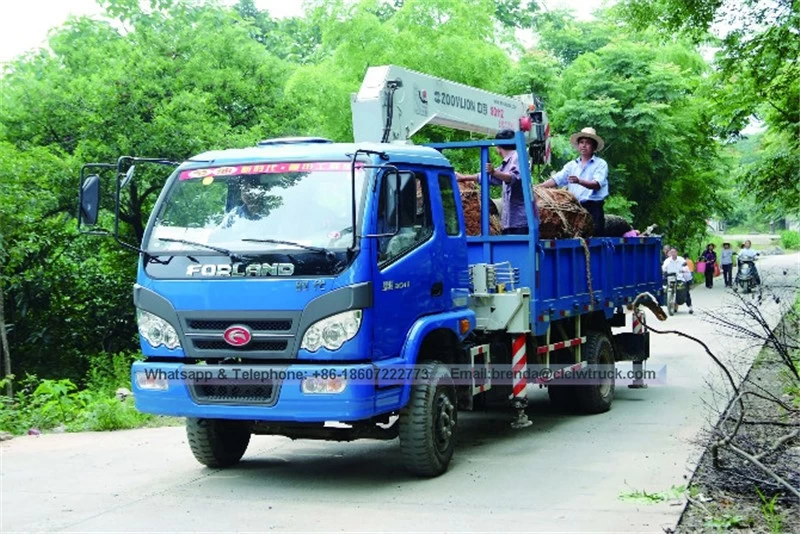

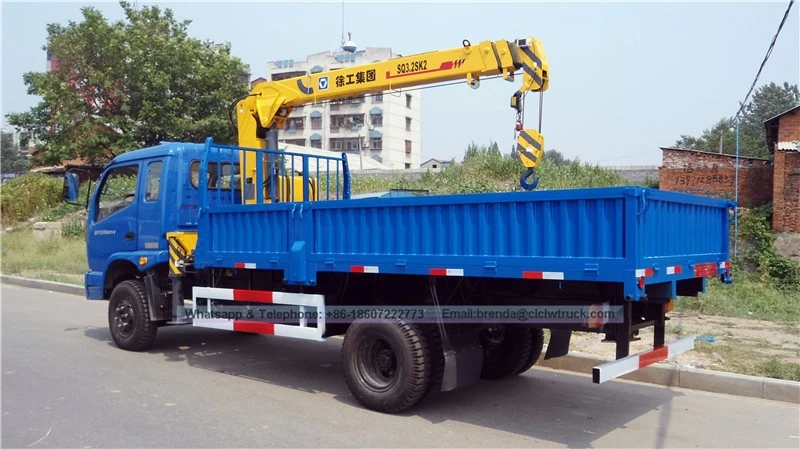

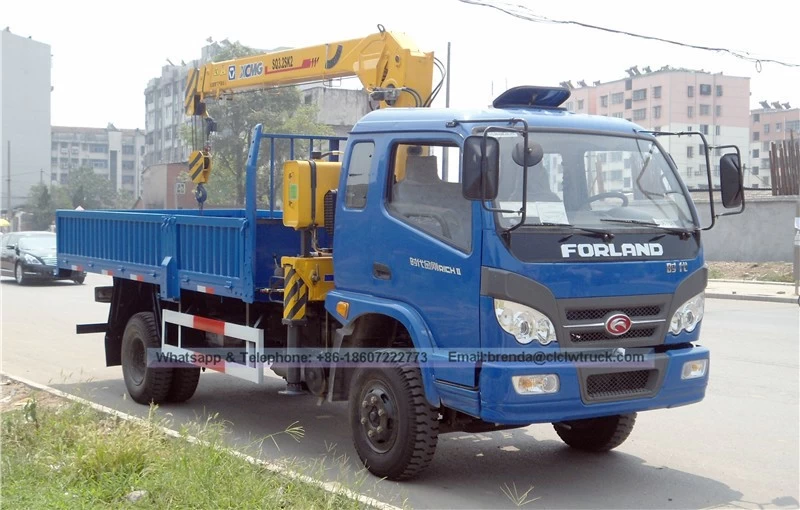

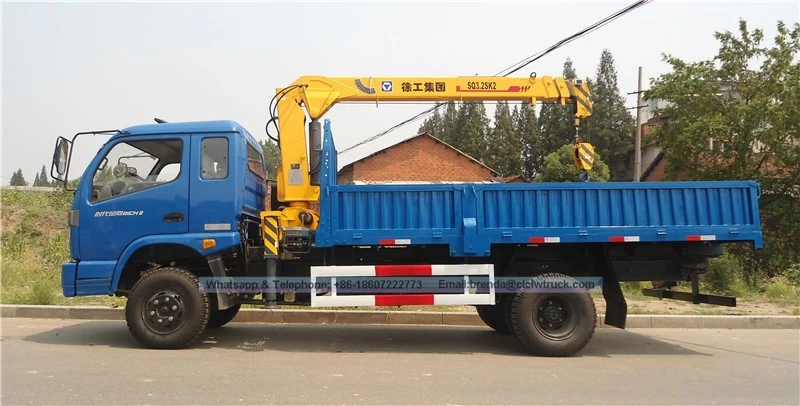

Product Image:
