6x2 Foton Auman 8-10 ton Hydraulic Boom Crane Truck
- 1.Product Model / Name: CLW5253JSQB3 CRANE TRUCK
- 2.Overall dimension (mm):11200×2490×3800
- 3.Chassis model: BJ5253ZKPJJ (Auman)
- 4.Engine model:ISDe210 30 ( 6700ml/ 155kw)
- 5.Crane Max lifting weigh(kg):8000, 10000
- 6.Crane Max ligting heigh(m):13.5 / 14
- 7. Crane Working Radiu(m):11.5 / 12
Technical Specifications
|
I.Main specifications |
|||||||
|
Product model、name |
CLW5253JSQB3 CRANE TRUCK |
||||||
|
Total weight(Kg) |
25000 |
Driving type |
6 x 2 |
||||
|
Payload (Kg) |
14880,15000 |
Overall dimension (mm) |
11200×2490×3800 |
||||
|
Curb weight(Kg) |
9925,9805 |
Box internal dimension(mm) |
7800,7600×2294×550,800 |
||||
|
cab seats (man) |
3 |
Front/rear hang(mm) |
1365/3035 |
||||
|
Approach/departure angle (°) |
20/10 |
Wheelbase(mm) |
2000+4800 |
||||
|
Number of axles |
3 |
Max speed(Km/h) |
85 |
||||
|
Axle load(Kg) |
6720/6800/11480 |
|
|
||||
|
II.Crane specification |
|||||||
|
Crane model |
SQ8S,SQ10S |
Crane brand |
XCMG |
||||
|
Max lifting weight（kg） |
8000, 10000 |
Max lift height（m） |
13.5,14 |
||||
|
Working radius(m) |
11.4,13.2 |
Supporting leg |
2PCS |
||||
|
III.Chassis specifications |
|||||||
|
Chassis model |
BJ5253ZKPJJ |
Chassis category |
the truck classis (class 2) |
||||
|
Brand name |
Auman |
Manufacture |
Beijing foton Daimler automotive co., LTD |
||||
|
Overall dimension(mm) |
10855×2440×2800 |
Tires No. |
8 |
||||
|
Approach/departure angle (°) |
20/11 |
Tire specification |
10.00-20,10.00R20,9.00-20,9.00R20 |
||||
|
Steel spring number |
10/10/10+9 |
Front track(mm) |
1900/1900 |
||||
|
Type of fuel |
Diesel |
Rear track(mm) |
1847 |
||||
|
Emission standard |
GB17691-2005,GB3847-2005, Euro III |
||||||
|
Engine model |
Engine manufacture |
Displacement(ml) |
Power(Kw) |
||||
|
ISDe210 30 |
Dongfeng Cummins Engine Co., Ltd |
6700 |
155 |
||||
|
IV.Functions |
|||||||
|
Special used for cargo lifting and transportation at stations、warehouse、docks、construction sites and filed resuce. |
|||||||

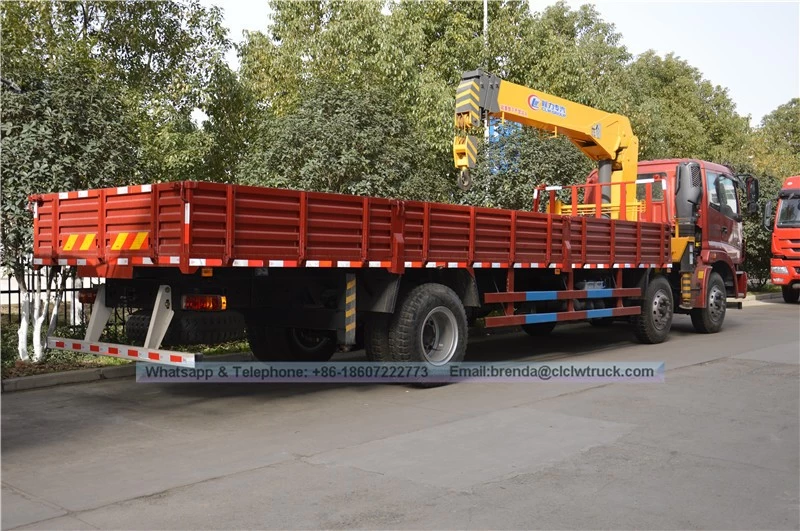

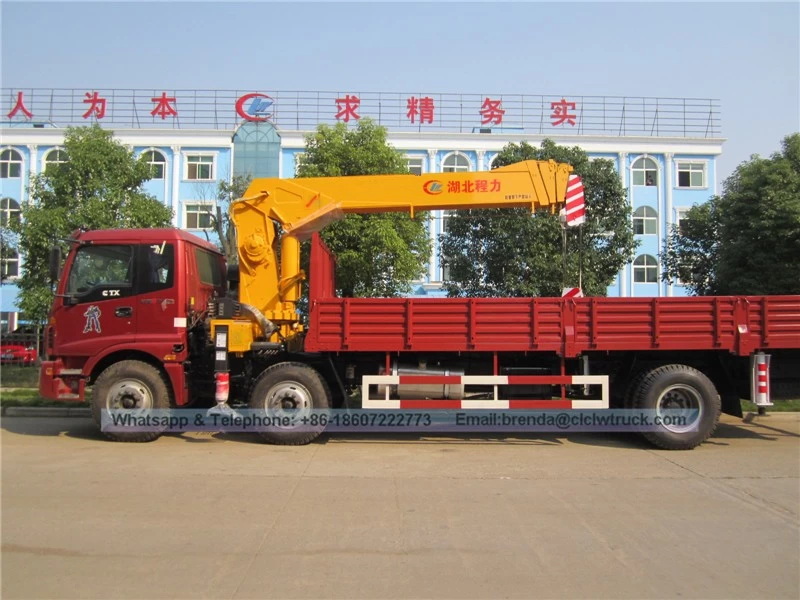

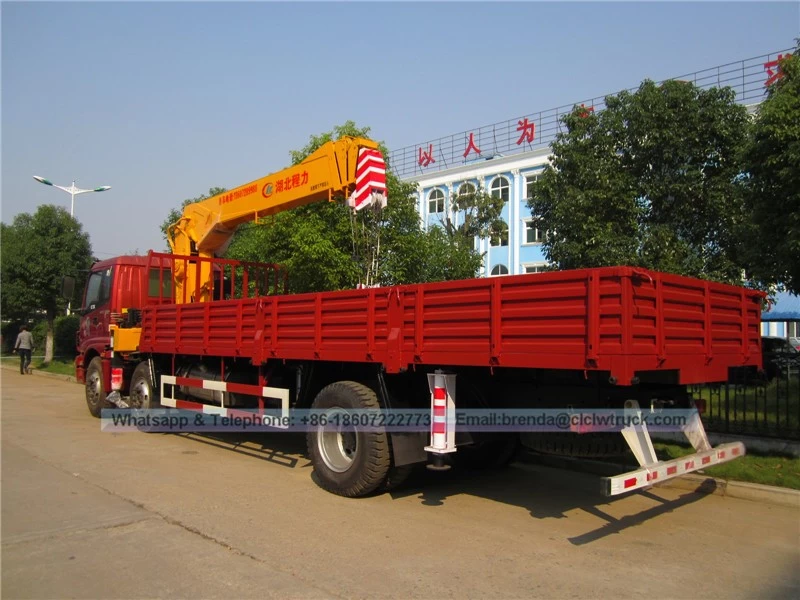

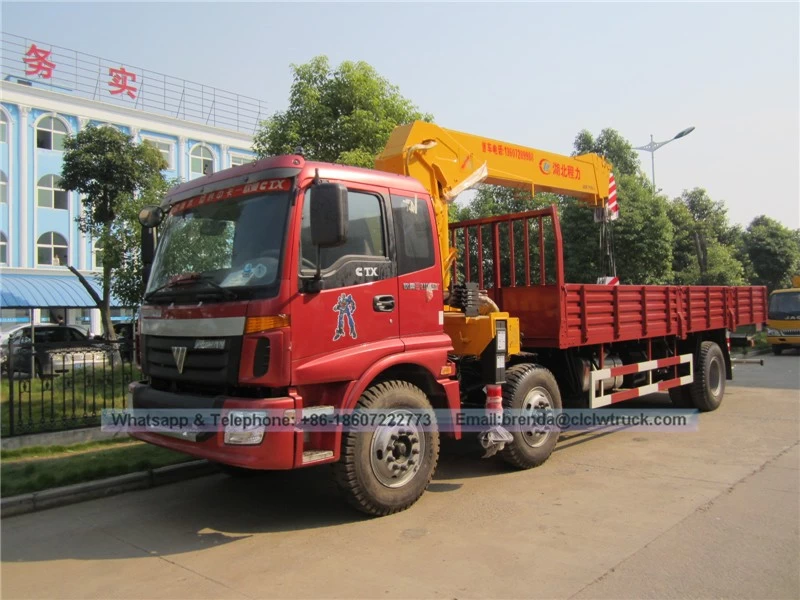

Product Image:
truck crane manufacturer china
