8000 Liters 2100 Gal DONGFENG Sewer Tanker Truck
- Suction sewage truck, also called vacuum sewage, sewage pollution models, is to collect, clean up the transport, sewage sludge, and avoid the secondary pollution of sanitation vehicles, new car pollution can be self-priming since the row, working speed, large capacity, transportation is convenient, applicable to collect feces, mud, oil and other liquid material transport. Pollution car adopts the advanced technology of pollution vacuum pump, the suction, suction cjay, especially suitable for the drain suction of warp, the loading and unloading, especially can suck a drain mud, mud, stones, bricks and other large objects.
Sewer Fecal Suction Truck, also called Sewer Flushing and Cleaning Truck, High Pressure Jetting Truck, High Pressure Jetting and Flushing Truck, High Pressure Flusher Truck, High Pressure Water Jetting Truck.
High-pressure water jetting is an efficient, economical, and environmentally safe way to clean drain and sewer pipes. Using high pressure pump and flexible hoses, ordinary water is propelled under varying amounts of pressure into the sewer line. Grease, sludge, sand and debris are the main causes of commercial drain line blockages. Our high-pressure water jetting and flushing truck can help you clear this sediment.
Common septic pumper truck vacuum pump brands include Chinese brands Yifeng and Weilong, other brands Battioni & Pagani vacuum pumps,Masport vacuum pumps, Moro vacuum pumps, Jurop vacuum pumps, etc.
For sewage tank volume, we can make it from 3000L to 30,000L
Technical Specification
|
Main specifications |
||||||||||
|
Product model、name |
ALA5110GXWE3 Sewage suction truck |
|||||||||
|
Gross weight(Kg) |
11495 |
Driving type |
4*2 |
|||||||
|
Payload (Kg) |
5300 |
Overall dimension (mm) |
7200×2480×3150 |
|||||||
|
Curb weight(Kg) |
6000 |
Cab seats (man) |
3 |
|||||||
|
Approach/departure angle (°) |
3 |
Front/rear hang(mm) |
1250/2000 |
|||||||
|
Axle No. |
33/12 |
Wheelbase (mm) |
3950 |
|||||||
|
Axle load(Kg) |
2 |
Max speed(Km/h) |
90 |
|||||||
|
Chassis specifications |
||||||||||
|
Chassis model |
EQ1110GLJ |
Manufacture |
Dongfeng Automobile Co,.Ltd |
|||||||
|
Brand name |
Dongfeng brand |
Overall dimension (mm) |
7120×2462×2710 |
|||||||
|
Tire specification |
7120×2462×2710 |
Tires No. |
6 |
|||||||
|
Steel spring number |
33/22 |
Front track(mm) |
9.00-20 |
|||||||
|
Fuel type |
Diesel |
Rear track(mm) |
1900,1810 |
|||||||
|
Emission standard |
Euro Ⅲ |
Gear box |
6 |
|||||||
|
Cab |
Single row, luxurious interior and seat, with power steering, optional air conditioning |
|||||||||
|
Engine model |
Engine manufacture |
Displacement(ml) |
Power(Kw) |
|||||||
|
B170 33 |
Dongfeng Chaoyang Chaochai Power Co.,Ltd |
5900 |
125 |
|||||||
|
Tank body |
||||||||||
|
Tank capacity（m³） |
8 |
Tank material |
Q235 carbon steel |
|||||||
|
Main Characteristic |
||||||||||
|
The truck is equipped with high-powered vacuum suction pump and high quality hydraulic system. With rear lid of the tank opened hydraulically, and double cylinders on both sides of the tank lifting up, the truck can dump the sewage directly through the rear lid out of the tank. Characterized by high vacuum, large capacity, high efficiency and good seal, the truck is widely used. Full tank pumping time: ≤ 5min; suction width: ≥ 8m.Very suitable for sucking sewer sediments, such as mud, silt, stones, bricks and other big objects. |
||||||||||
8000 Liters 2100 Gal DONGFENG Sewer Tanker Truck

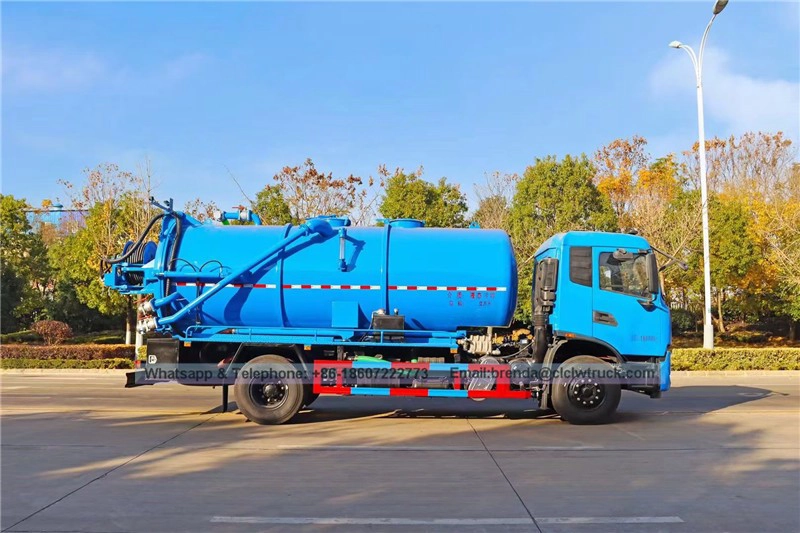

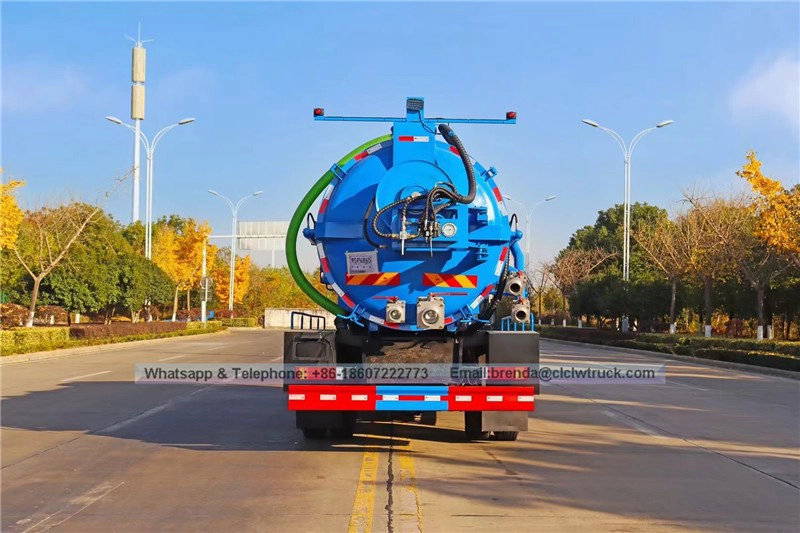

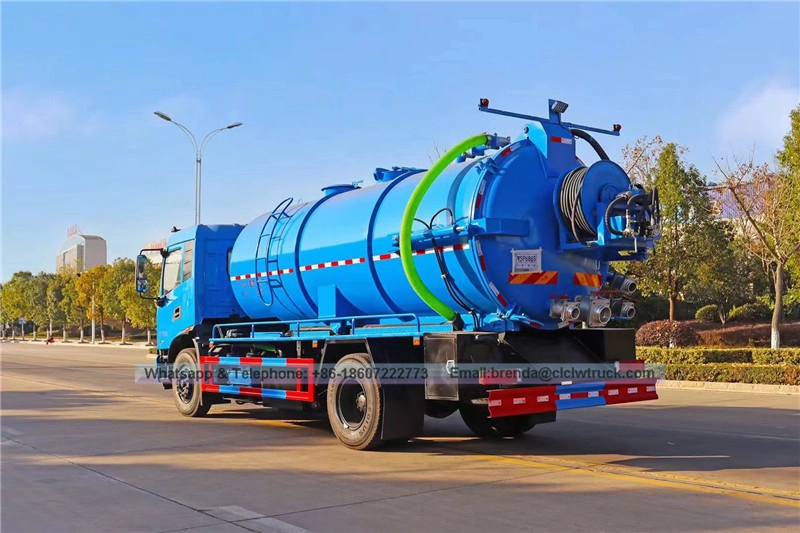

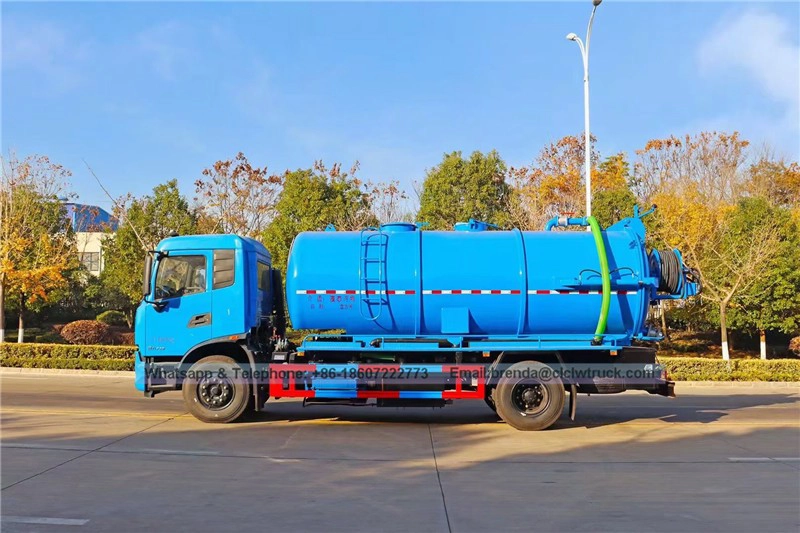

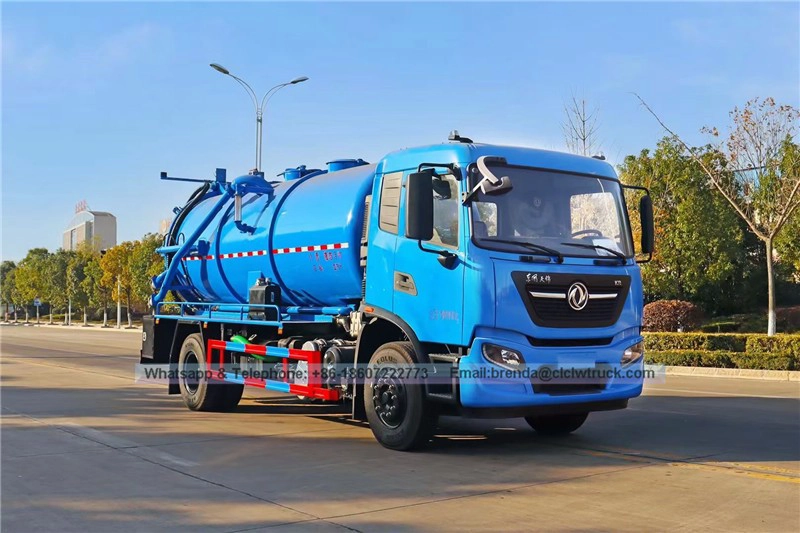

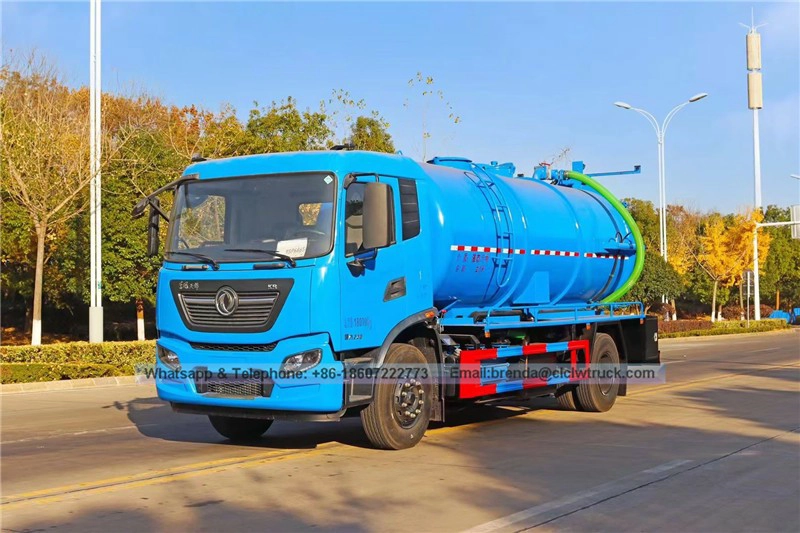

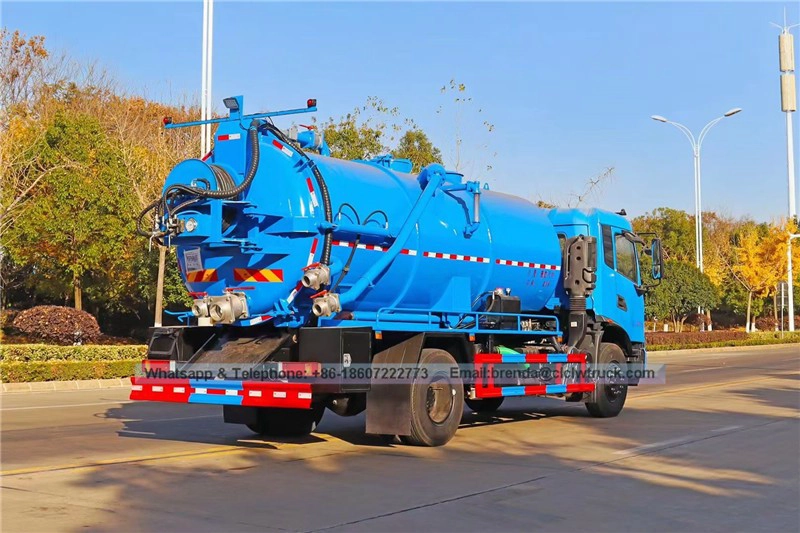

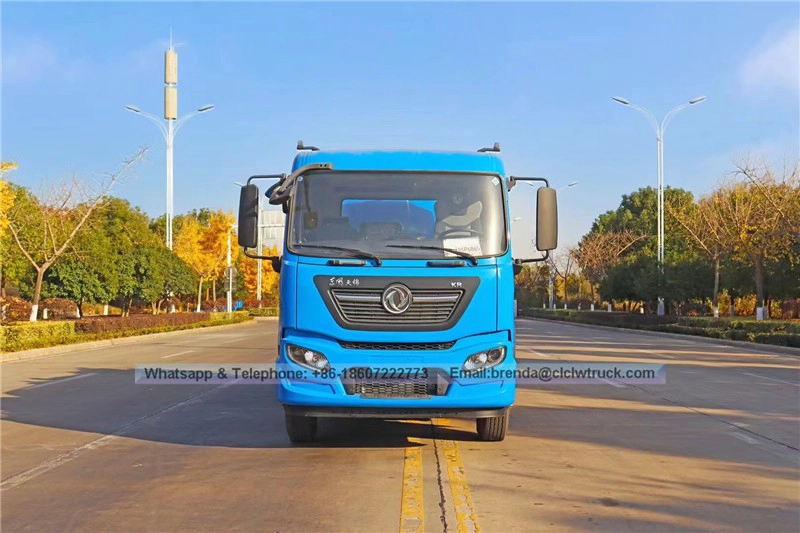

Product Image:
