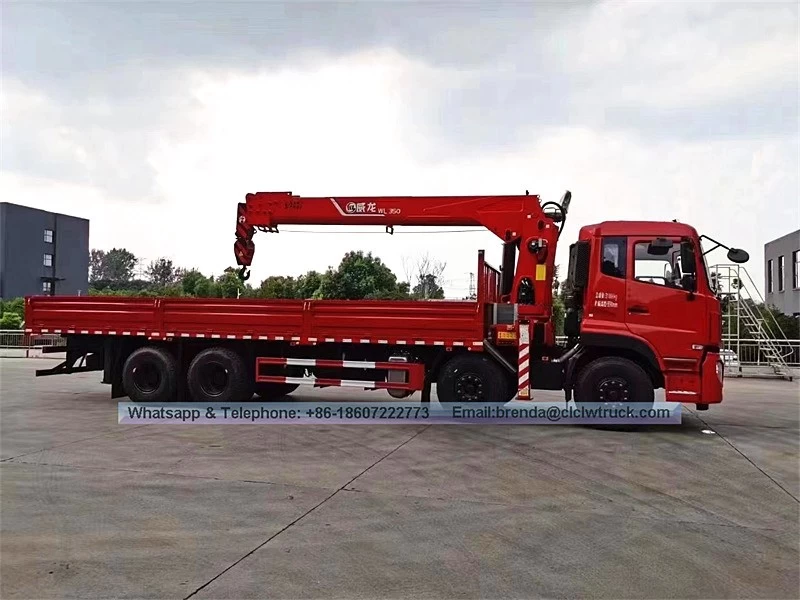

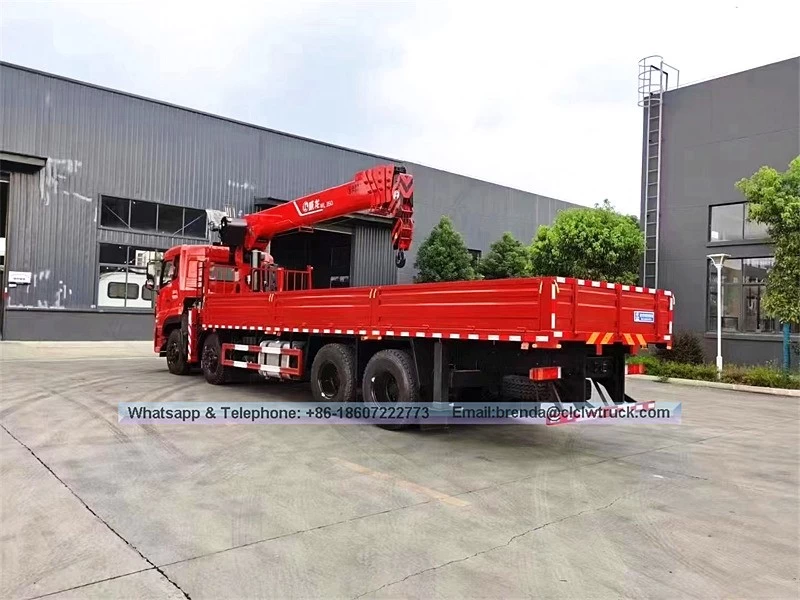

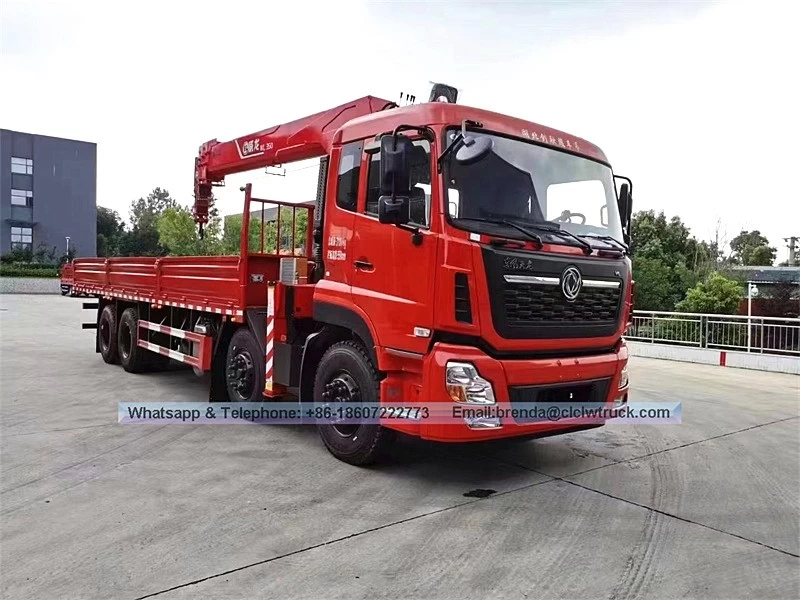

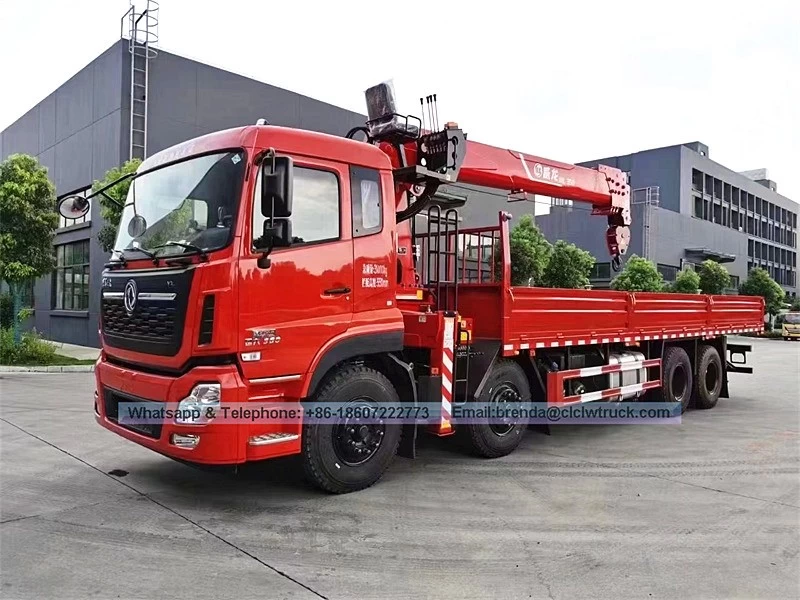

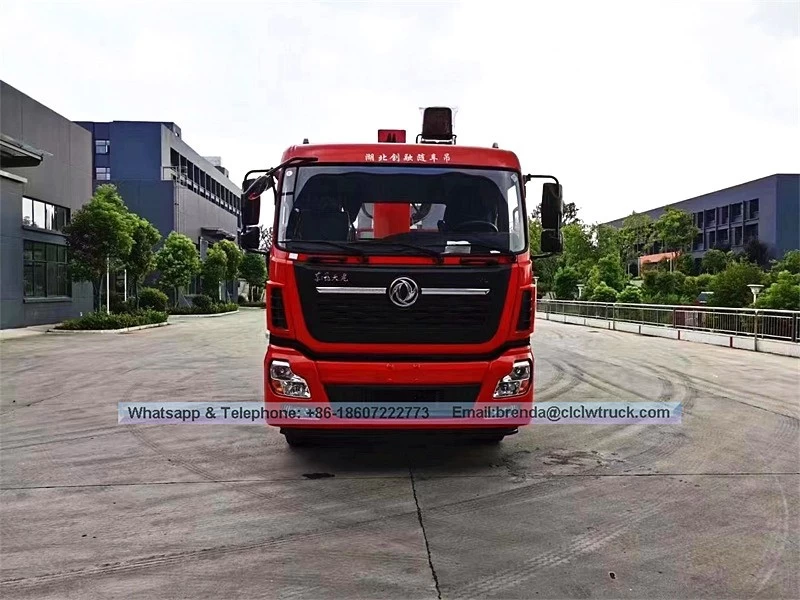

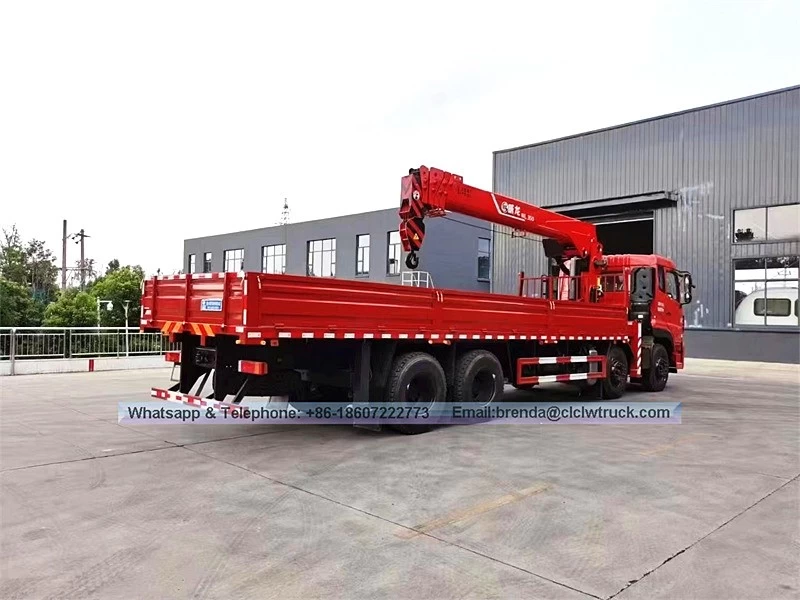

8x4 Dongfeng Kinland 14-16 Ton Boom Truck with Crane
- 1.Product Model / Name: EQ5310JSQT Truck With Crane
- 2.Overall dimension (mm):11990×2500×3910
- 3.Chassis model: DFL1311A3 (Dongfeng)
- 4.Engine model:C260 33 ( 8300ml/ 191kw)
- 5.Crane Max lifting weigh(kg):16000
- 6.Crane Max ligting heigh(m):20
- 7. Crane Working Radiu(m):18.5
|
【Main specifications】 |
||||||||
|
Product model、name |
EQ5310JSQT Truck With Crane |
|||||||
|
Gross vehicle weight(kg) |
31000 |
Drive type |
8 X 4 |
|||||
|
Payload(kg) |
12100 |
cab seats (man) |
3 |
|||||
|
Curb weight(Kg) |
18705 |
Overall dimension (mm) |
11990×2500×3910 |
|||||
|
Approach/departure angle (°) |
28/11 |
Box internal dimension(mm) |
8500×2294×550 |
|||||
|
Number of axles |
4 |
Front/rear hang(mm) |
1460/2780 |
|||||
|
Axle load(Kg) |
6500/6500/18000 |
Wheelbase(mm) |
1950+4500+1300 |
|||||
|
Max speed(Km/h) |
90 |
|
|
|||||
|
【Chassis specifications】 |
||||||||
|
Chassis model |
DFL1311A3 |
Brand name |
Dongfeng |
|||||
|
Manufacturer |
Dongfeng Motor Corporation |
Tires No. |
12 |
|||||
|
Approach/departure angle (°) |
28/12 |
Tire specification |
11.00-20 |
|||||
|
Steel spring number |
8/8/10,3/3/4,9/9/10 |
Front track(mm) |
2040/2040 |
|||||
|
Fuel type |
Diesel |
Rear track(mm) |
1860/1860 |
|||||
|
Emission standard |
Euro III |
Transmission |
9 gears |
|||||
|

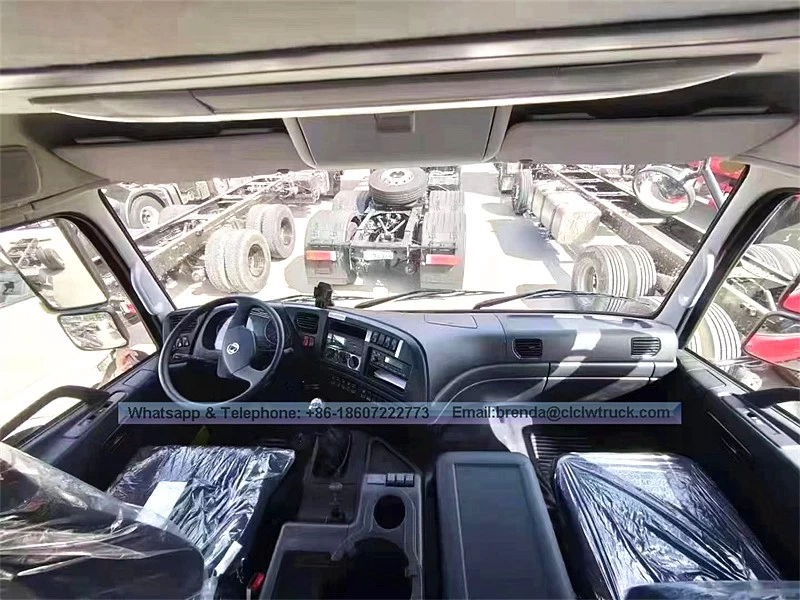

Cabin |
D310 flat standard cab, airbag shock absorber driver seat, channel dashboard, with air conditioning |
|||||||
|
Engine model |
Engine manufacturer |
Displacement(ml) |
Power(Kw) |
|||||
|
C260 33 |
Dongfeng Cummins Engine Co. ,Ltd |
8300 |
191 |
|||||
|
【Crane specification】 |
||||||||
|
Crane model |
SQS400 |
Crane brand |
XCMG |
|||||
|
Type of Crane |
Telescopic boom Crane |
Crane weight (kg) |
6200 |
|||||
|
Max lifting weight（kg） |
16000 |
Max lift height（m） |
20 |
|||||
|
Working radius(m) |
18.5 |
Operation method |
High Seat Control |
|||||
|
Number of arms |
5 |
Outrigger (pcs) |
4 |
|||||
|
【Functions】 |
||||||||
|
The truck consists of chassis, box, power take-off and crane, achieving cargo lifting and moving through hydraulic lifting and telescopic system. In general, H-type outrigger is equipped to realize its stability. To be further strengthened stability of the truck, rear outrigger also can be equipped if the customer require. The truck can 360 ° continuously rotate. |
||||||||
8x4 Dongfeng Kinland 14-16 Ton Boom Truck with Crane
