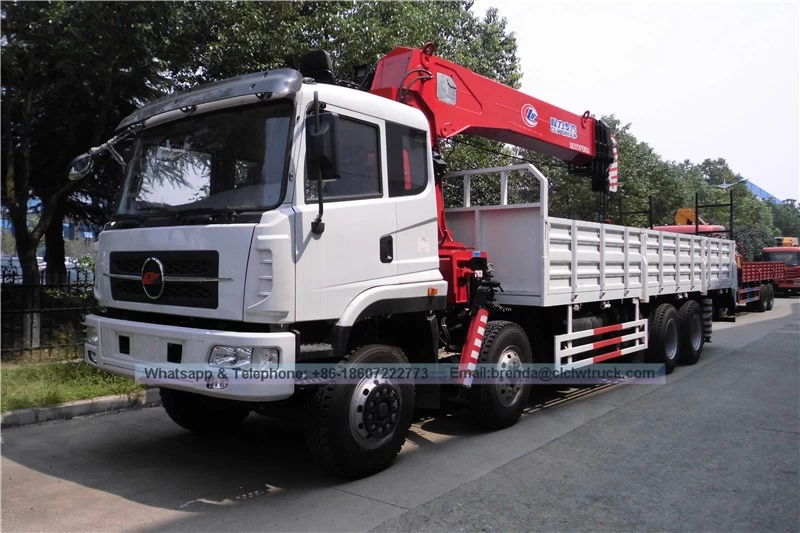

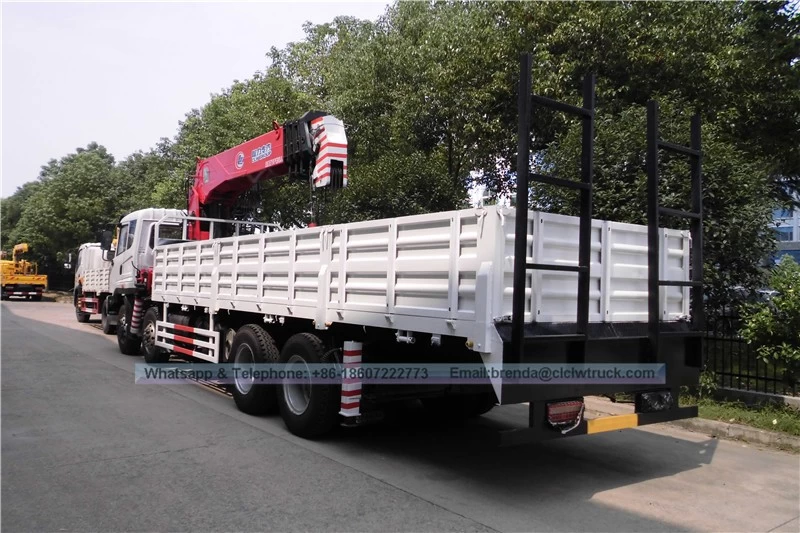

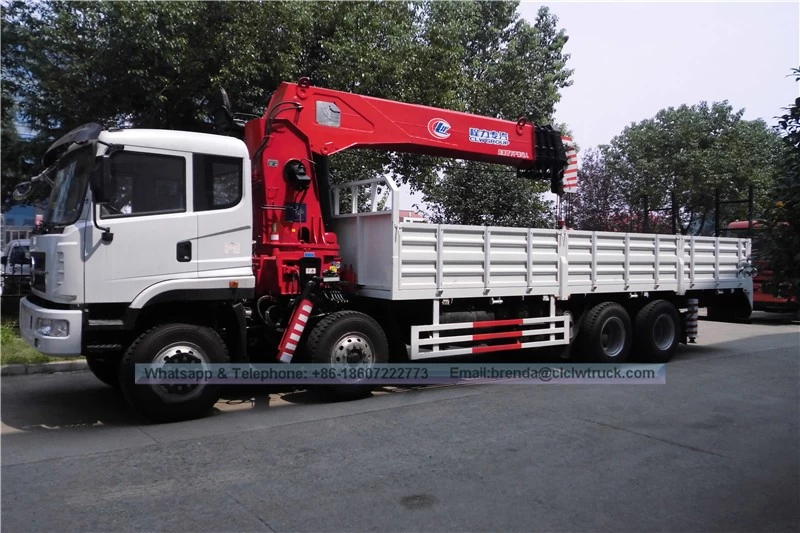

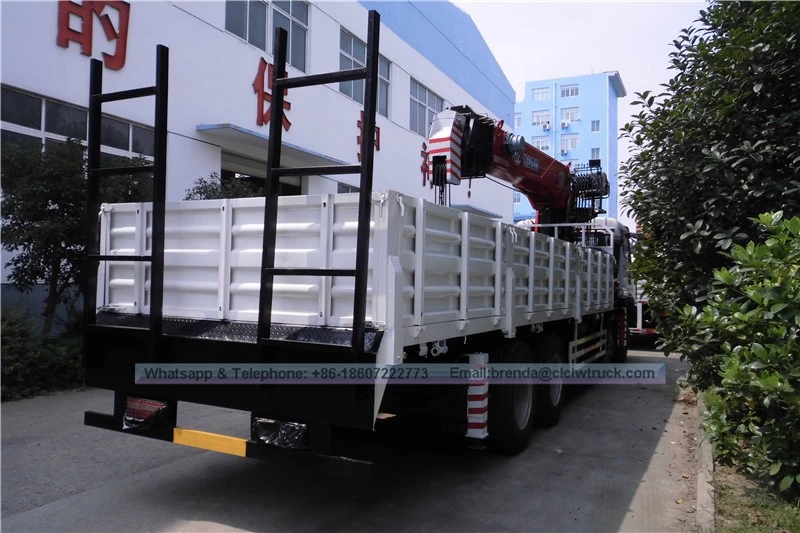

8x4 Flatbed Truck Mounted Crane China Manufacturer
- 1.Product Model / Name: HQG5310JSQGD4 Flatbed truck with crane
- 2.Overall dimension (mm):12000×2500×3950
- 3.Chassis model:HQG1310GD4
- 4.Engine model: YC6L280-41 ( 8424ml/ 206kw)
- 5.Crane Max lifting weigh(kg):10000,12000
- 6.Crane Max ligting heigh(m): 13,13
- 7.Working radius(m): 9.75 , 9.78
|
I.Main specifications |
||||||||
|
Product model、name |
HQG5310JSQGD4 Flatbed truck with crane |
|||||||
|
Total weight(Kg) |
31000 |
Driving type |
8 X 4 |
|||||
|
Payload (Kg) |
15200,14900 |
Overall dimension (mm) |
12000×2500×3950 |
|||||
|
Curb weight(Kg) |
15605,15905 |
Box internal dimension(mm) |
8000×2300×800 |
|||||
|
cab seats (man) |
3 |
Front/rear hang(mm) |
1160/304 |
|||||
|
Approach/departure angle (°) |
32/13 |
Wheelbase(mm) |
1950+4500+1350 |
|||||
|
Number of axles |
4 |
Max speed(Km/h) |
90 |
|||||
|
Axle load(Kg) |
6150/6900/17950 |
|
|
|||||
|

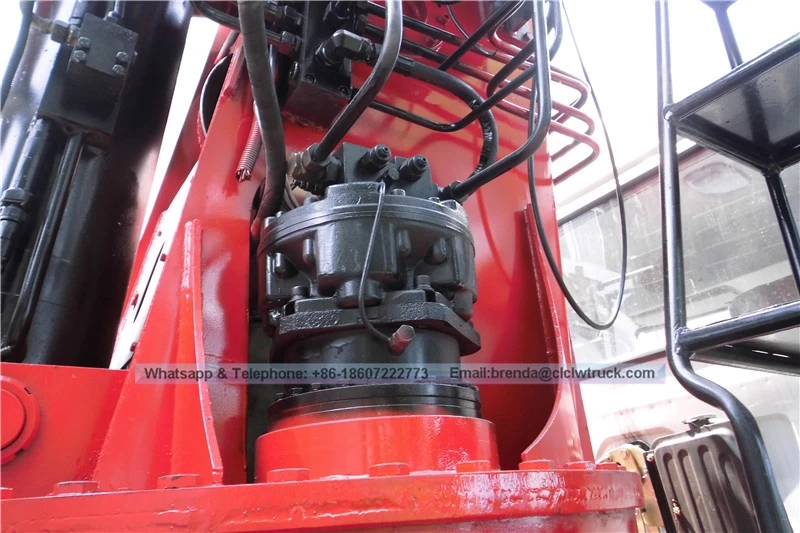

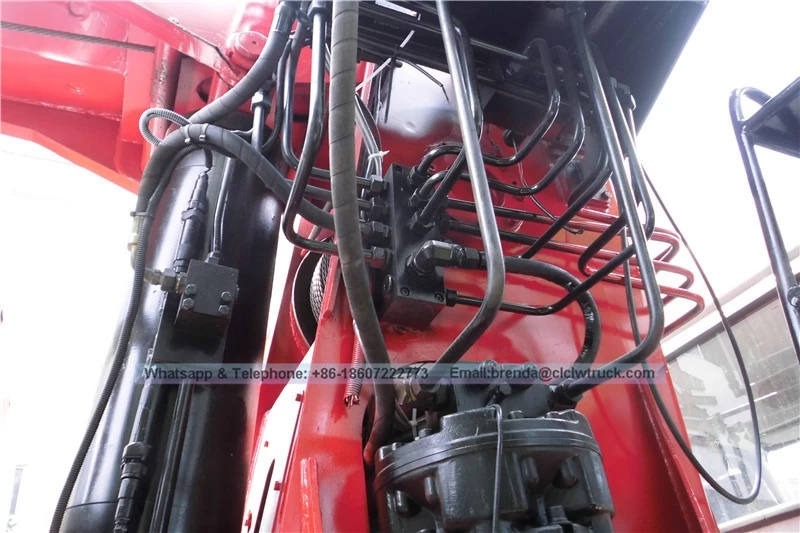

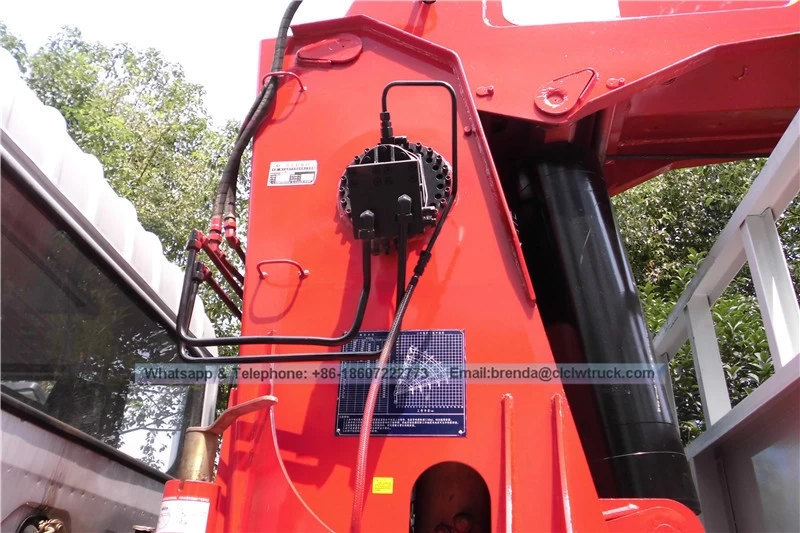

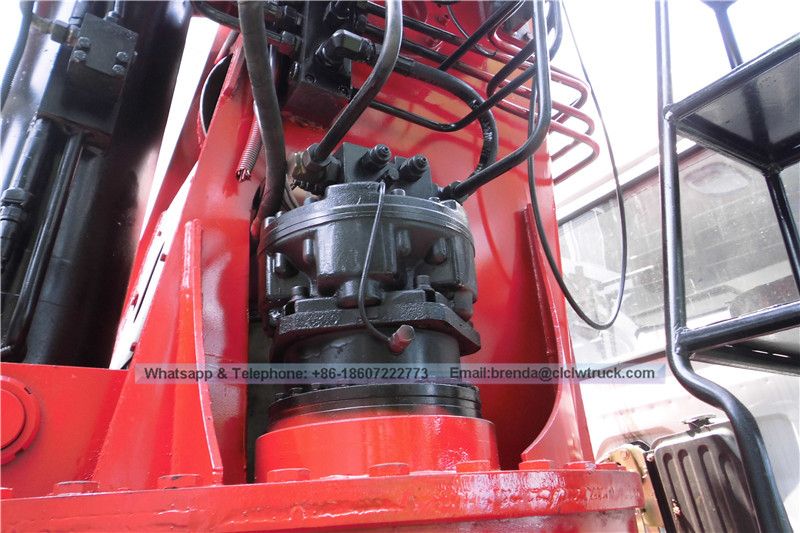

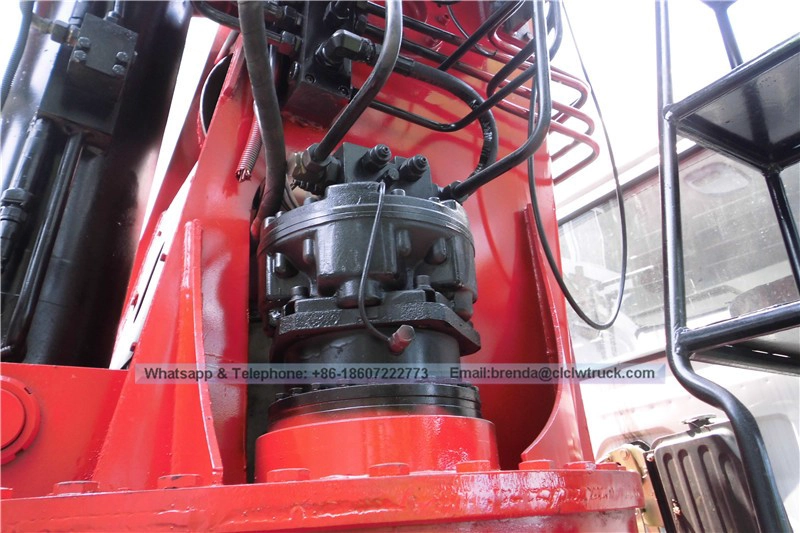

II.Crane specification |
||||||||
|
Crane model |
SQS300 / SQS250 |
Crane brand |
XCMG |
|||||
|
Max lifting weight（kg） |
12000 / 10000 |
Max lift height（m） |
14.5 / 14 |
|||||
|
Working radius(m) |
12.5 / 12 |

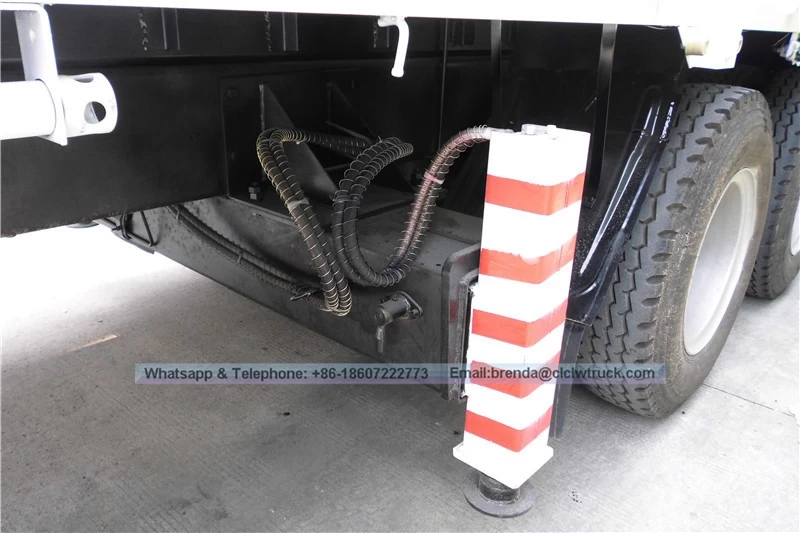

Supporting leg(PCS) |
2 / 4 |
|||||
|
Number of arms |
4 |

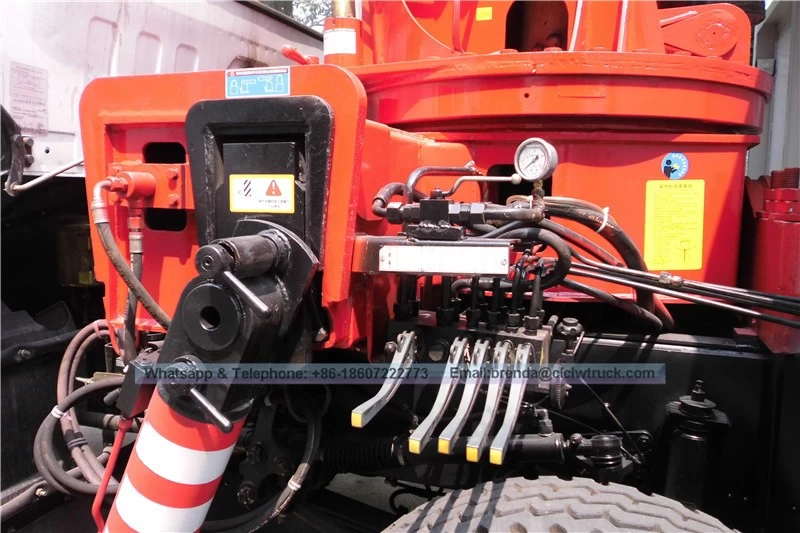

Operation method |
High seat control / side control |
|||||
|
III.Chassis specifications |
||||||||
|
Chassis model |
HQG1310GD4 |
Brand name |
Chufeng |
|||||
|
Manufacture |
Hubei New ChuFeng Auto Co., LTD |
|||||||
|
Tires No. |
12 |
Tire specification |
10.00R20 |
|||||
|
Approach/departure angle (°) |
32/11 |
Steel spring number |
9/9/10 |
|||||
|
Front track(mm) |
1950/1950 |
Rear track(mm) |
1860/1860 |
|||||
|
Type of fuel |
Diesel |
Emission standard |
Euro IV |
|||||
|
Engine model |
Engine manufacture |
Displacement(ml) |
Power(Kw) |
|||||
|
YC6L280-41 |
Guangxi Yuchai Machinery Co., LTD |
8424 |
206 |
|||||
|
Cab |
Flat cab, tiltable luxurious interior trim, seat, and sleeper. with power steering, air conditioning can be equiped if customer requires. |
|||||||
|
IV.Functions |
||||||||
|
Special used for cargo lifting and transportation of the larger wheel loaders or crawler loaders. The Cargo platform can extend to 3m. |
||||||||
