Brand new 4x2 Changan 3 cubic meter mini hook arm lifting garbage truck, 3CBM detachable garbage truck
- Gross weight(Kg) 2675
- Drive type 4*2
- Rate loading(Kg) 1300
- oversize(mm) 4160×1520×1900
- Curb weight(Kg) 1245
- Drive seat(man) 2
- approach/departure angle(°) 24/28
- front/rear hang(mm) 895/895
- Axle no. 2
- wheelbase(mm) 2370
- Axle weight(Kg) 1335/1340
- Max speed(Km/h) 90
|
3cbm Carbon Steel Arm Lift Garbage Truck |
|||
|
Vehicle Parameters |
|||
|
General |
Vehicle Model |
YZR5030ZXXS |
|
|
Vehicle Brand |
XDR |
||
|
Chassis Brand |
Changan (SC1031GDD52) |
||
|
Overall Dimension(mm) |
4160×1520×1930 |
||
|
GVW/Curb Weight/Rated loading weight (kg) |
2840/1280/1430 |
||
|
Chassis Parameters |
|||
|
Cab |
Cab Seat |
2 |
|
|
Air Conditioner |
Optional |
||
|
Engine |
Fuel Type |
Gasoline |
|
|
Engie Model |
Dk12-10 |
||
|
Engine Brand |
Chongqing xiaokang |
||
|
Power(kw/hp) |
65/88 |
||
|
Displacement(cc) |
1240 |
||
|
Emmission Standard |
Euro5 |
||
|
Chassis |
Drive Type |
4*2 |
|
|
Transmission |
5 speed, Manual |
||
|
Wheelbase(mm) |
2700 |
||
|
Tyre Specification |
165R14LT |
||
|
Tyre No.(pcs) |
4 |
||
|
Max Speed(km/h) |
90 |
||
|
Paint |
Customized |
||
|
Garbage Tank Structure Parameters |
|||
|
Tank Volume |
3cbm |
Tank Material |
Carbon Steel |
|
Tank Thickness |
2/3mm |
Max. Lifting Force |
1-1.5ton |
|
Lifting Up Time |
≤15s |
Lifting down Time |
≤10 |
|
Dumping time |
≤10s |
Operation mode |
Manual |
|
Characteristic |
1.compact design and structure 2.three modes of operation: electrical,manual,combined 3. oil filter equipped on fuel tank 4.high |
||
The above information is for reference only. We can produce according to your needs. Please add my WhatsApp at 0086-18607222773(phone number as same).

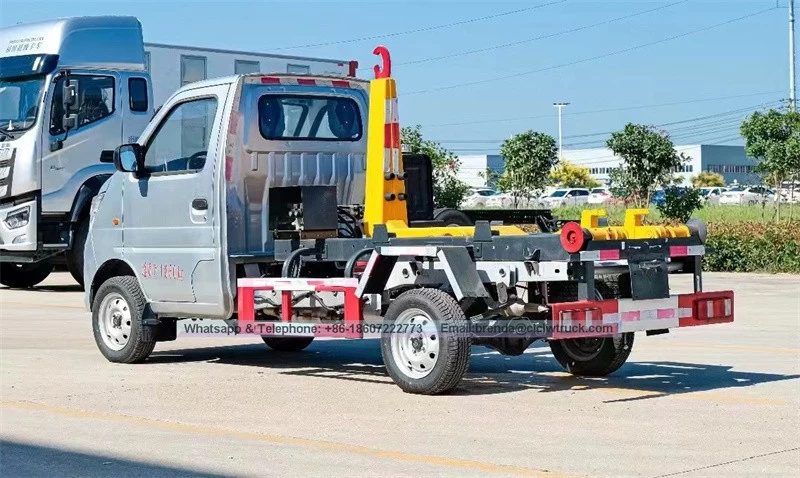

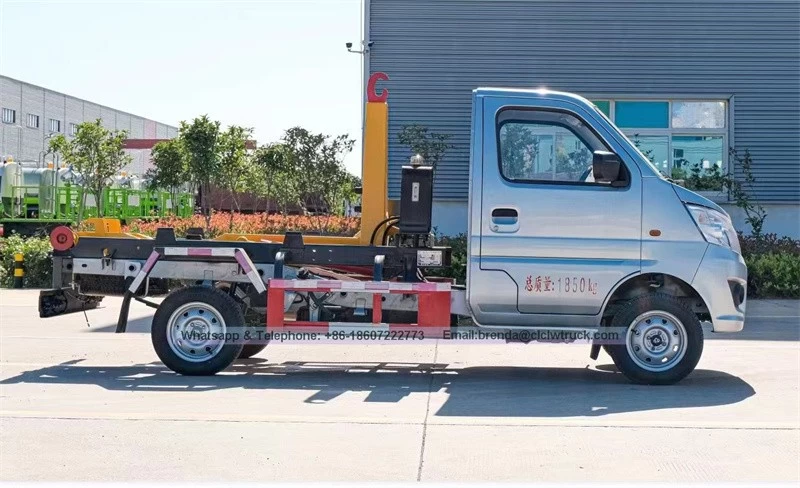

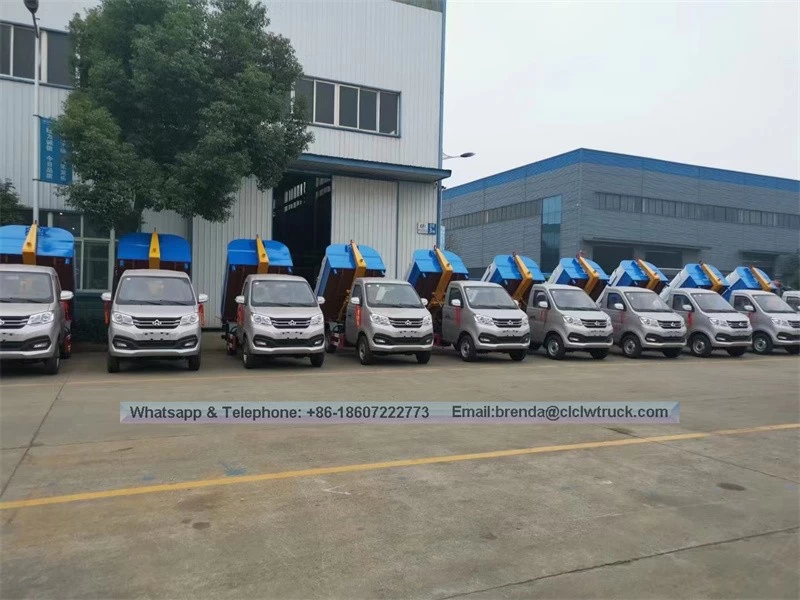

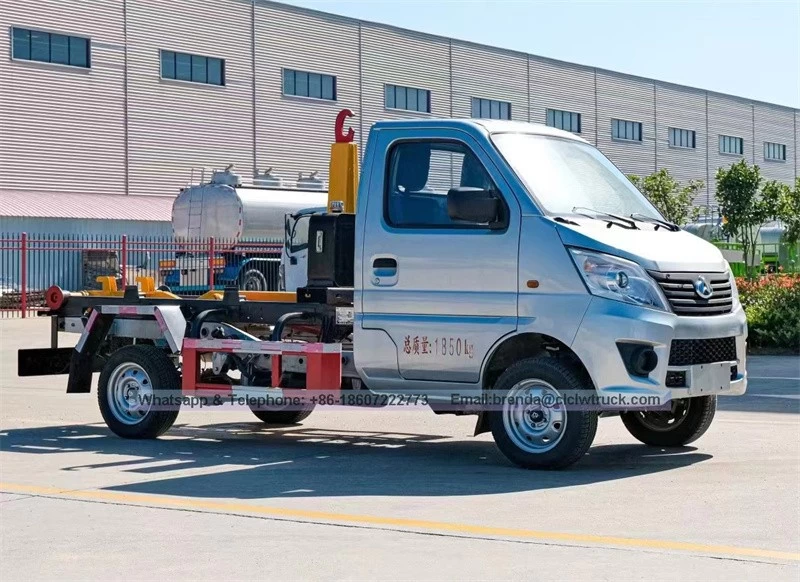

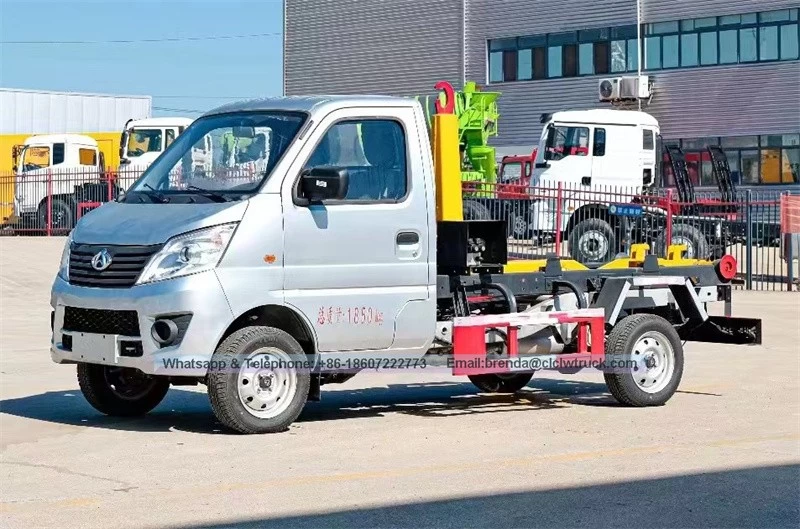

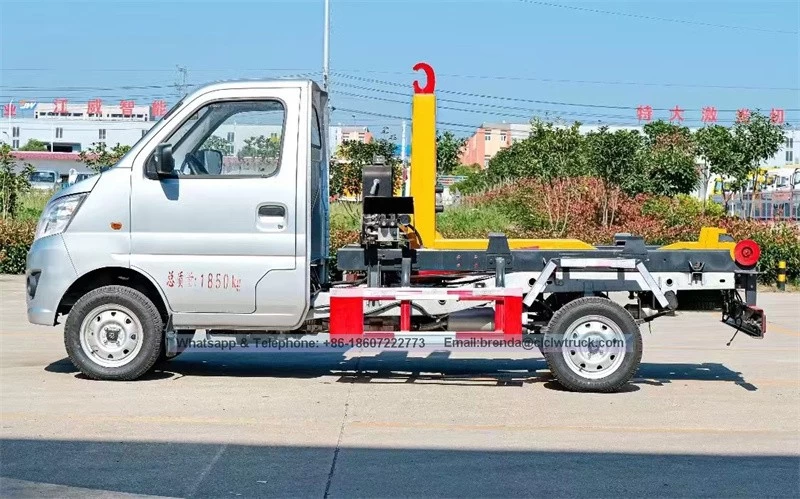

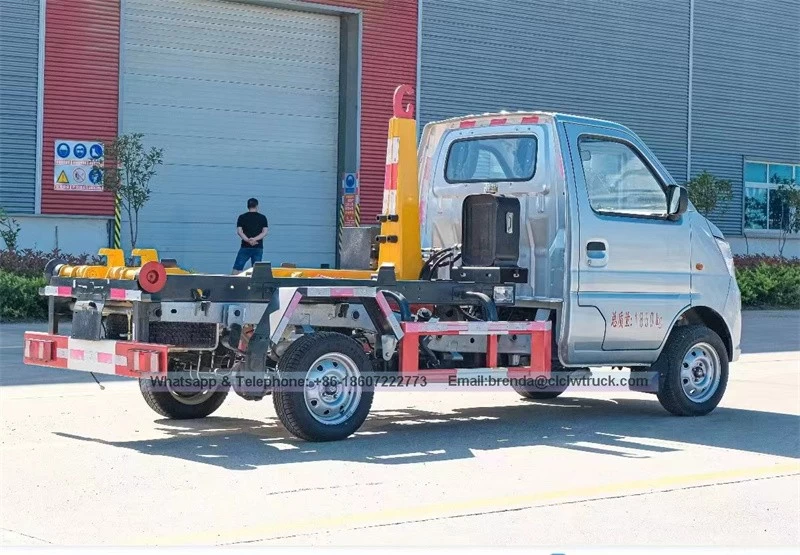

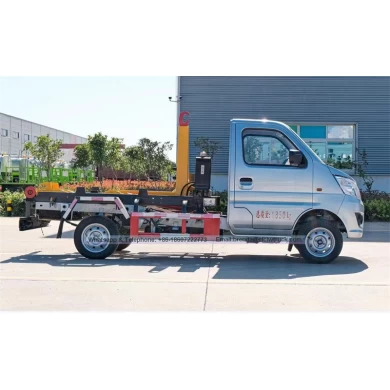

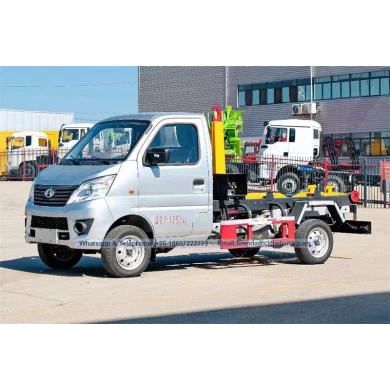

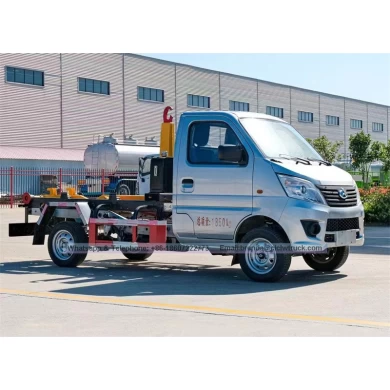

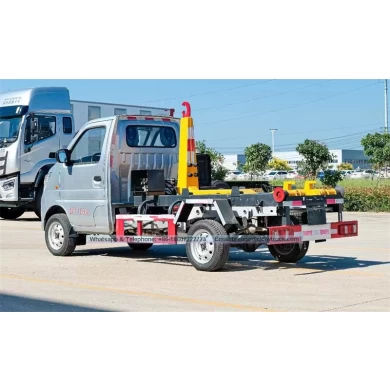

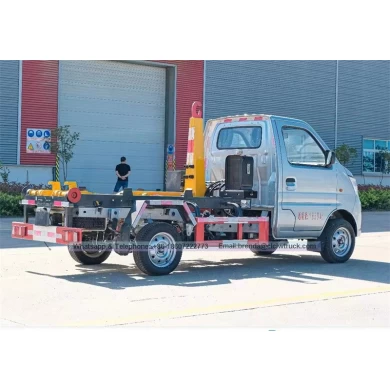

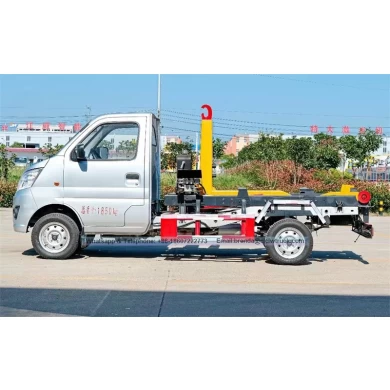

Reference pictures：
