China Dongfeng 10-12 ton Hydraulic Truck Mounted Crane, Telescopic Boom Crane Truck Supplier
- 1.Product Model / Name: EQ5258JSQF2 Truck With Crane
- 2.Overall dimension (mm):8200,8500x2300,2400×550,800
- 3.Chassis model:EQ1258VFJ1
- 4.Engine model: ISB210 40 ( 5900ml/ 155kw)
- 5.Crane Max lifting weigh(kg):10000,12000
- 6.Crane Max ligting heigh(m): 13,13
- 7.Working radius(m): 9.75 , 9.78
|
【Main specifications】 |
||||||||
|
Product model、name |
EQ5258JSQF2 Truck With Crane |
|||||||
|
Gross vehicle weight(kg) |
24900 |
Drive type |
6*4 |
|||||
|
Curb weight(Kg) |
9105 |
cab seats (man) |
3 |
|||||
|
Approach/departure angle (°) |
15600 |
Overall dimension (mm) |
11900,12000×2500×3850 |
|||||
|
Number of axles |
3 |
Box internal dimension(mm) |
8200,8500x2300,2400×550,800 |
|||||
|
Axle load(Kg) |
7000/17900 |
Front/rear hang(mm) |
1250/3500, 1450/3400 |
|||||
|
Max speed(Km/h) |
90 |
Wheelbase(mm) |
5850+1300 |
|||||
|
【Chassis specifications】 |
||||||||
|
Chassis model |
EQ1258VFJ1 |
Brand name |
Dongfeng |
|||||
|
Manufacturer |
Dongfeng Motor Corporation |
Tires No. |
10 |
|||||
|
Approach/departure angle (°) |
23/18,20/18 |
Tire specification |
10.00R20 |
|||||
|
Steel spring number |
9/10 |
Front track(mm) |
1960,1980 |
|||||
|
Fuel type |
Diesel |
Rear track(mm) |
1860/1860 |
|||||
|
Emission standard |
Euro IV |
Transmission |
8 gears |
|||||
|
Cabin |
D913 Flat cab, tiltable luxurious interior trim, seat, and sleeper. with power steering, air conditioning can be equiped if customer requires |
|||||||
|
Engine model |
Engine manufacturer |
Displacement(ml) |
Power(Kw) |
|||||
|
ISB210 40 |
Dongfeng Cummins Engine Co., Ltd |
5900 |
155 |
|||||
|
【Crane specification】 |
||||||||
|
Crane model |
SQZ200, SQZ300 |
Crane brand |
XCMG |
|||||
|
Type of Crane |
folding boom Crane |
Crane weight (kg) |
3477, 4130 |
|||||
|
Max lifting weight（kg） |
10000, 12000 |
Max lift height（m） |
13 , 13 |
|||||
|
Working radius(m) |
9.75 , 9.78 |
Operation method |
High seat control / Side control |
|||||
|
Number of arms |
4 |
Outrigger (pcs) |
2 or 4 |
|||||
|
【Functions】 |
||||||||
|
The truck consists of chassis, box, power take-off and crane, achieving cargo lifting and moving through hydraulic lifting and telescopic system. In general, H-type outrigger is equipped to realize its stability. To be further strengthened stability of the truck, rear outrigger also can be equipped if the customer require. The truck can 360 ° continuously rotate. |
||||||||
China Dongfeng 10-12 ton Hydraulic Truck Mounted Crane, Telescopic Boom Crane Truck Supplier

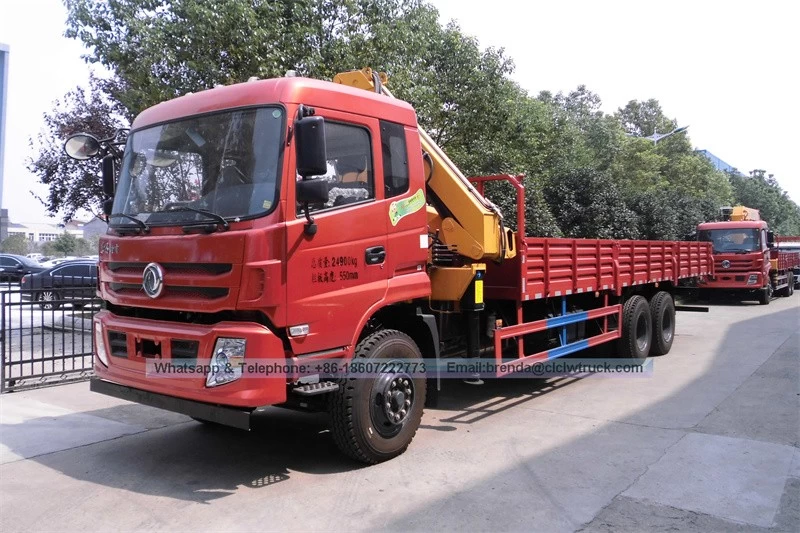

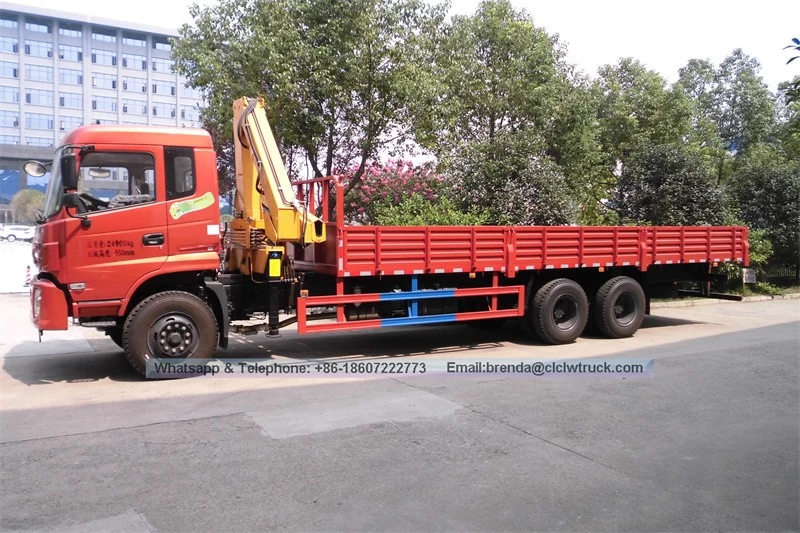

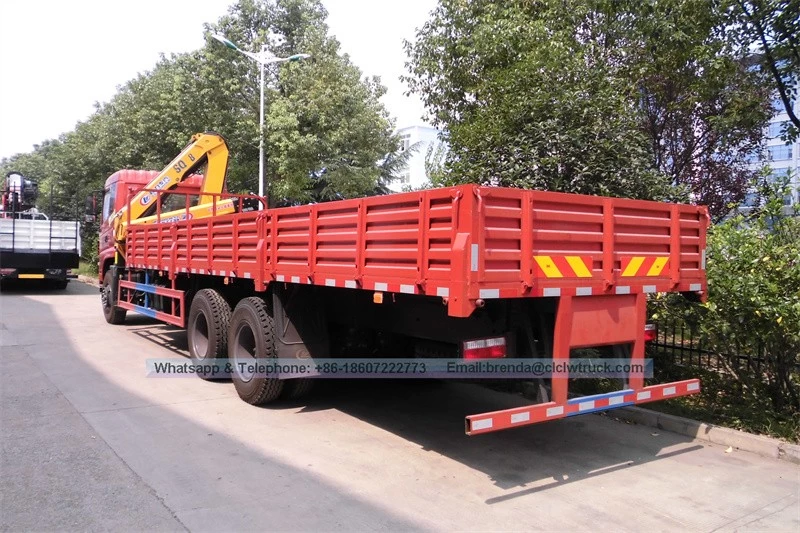

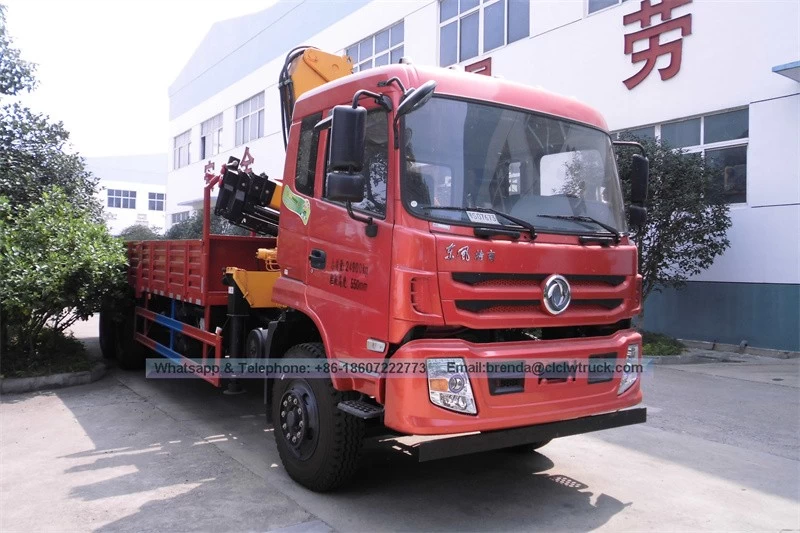

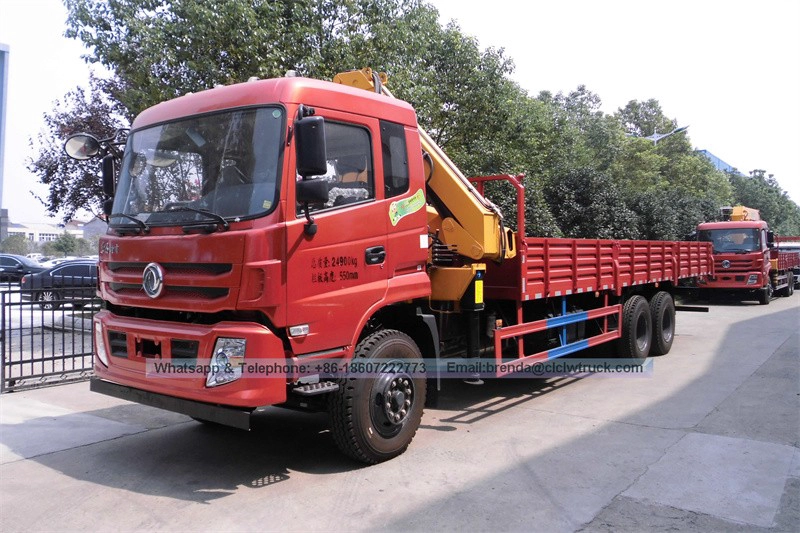

Product Images:
