China Dongfeng 12-16 Meters High-altitude Operation Truck
- 1.Product name: CSC5050JGK3 Aerial Platform Vehicle
- 2. Chassis Brand / Model: Dongfeng EQ1050NJ20D3
- 3. Engine Model:CY4102-C3F ( 3856ml / 70kw)
- 4. Tire specification:7.00R16
- 5.Max working height:12-16m
|
Item |
Unit |
Specification |
|
|
Product name |
|
CSC5050JGK3 Aerial Platform Vehicle |
|
|
Chassis model |
|
EQ1050NJ20D3 |
|
|
Steering type |
|
Right-hand drive / Left-hand drive |
|
|
Cab seat |
|
2+3 |
|
|
Cabin |
|
Single cab, luxurious interior trim and seat. with power steering, air conditioning can be equiped if customer requires. |
|
|
|
Total weight |
kg |
5375 |
|
Curb weight |
5050 |
||
|
Overall dimension |
mm |
7350×1980×3100 |
|
|
wheelbase |
3300 |
||
|
Approach/departure angle |
° |
19/15 |
|
|
Engine mode |
|
CY4102-C3F |
|
|
Engine manufacturer |
|
Dongfeng Chaoyang Diesel Co.,Ltd |
|
|
Transmission |
|
5 forward gears, 1 reverse gear |
|
|
Emission standard |
|
Euro III |
|
|
Displacement / Power |
ml/kw |
3856 / 70 |
|
|
Tire specification / Number |
pcs |
7.00R16 / 6+1 (spare tyre) |
|
|
Max speed |
km/h |
95 |
|
|
Max working height |
m |
12 - 16 |
|
|
Rated platform load |
kg |
200 |
|
|
Rated manned platform |
man |
2 |
|
|
Slewing angle（Left、Right） |
° |
360 |
|
|
Outrigger type / Q’ty |
pcs |
H-type, 4 pcs |
|
|
Remark |
The whole truck is operated through upper and lower hydraulic operation, equipped with hook. |
||
China Dongfeng 12-16 Meters High-altitude Operation Truck

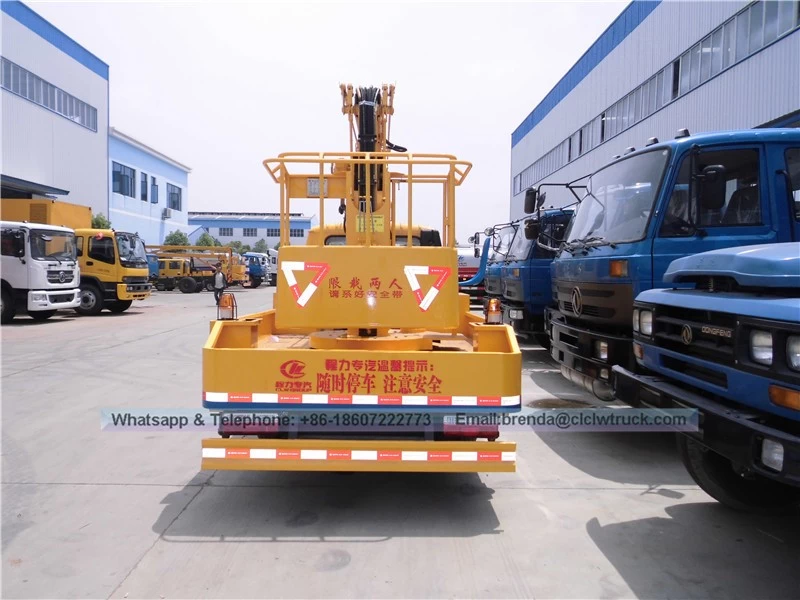

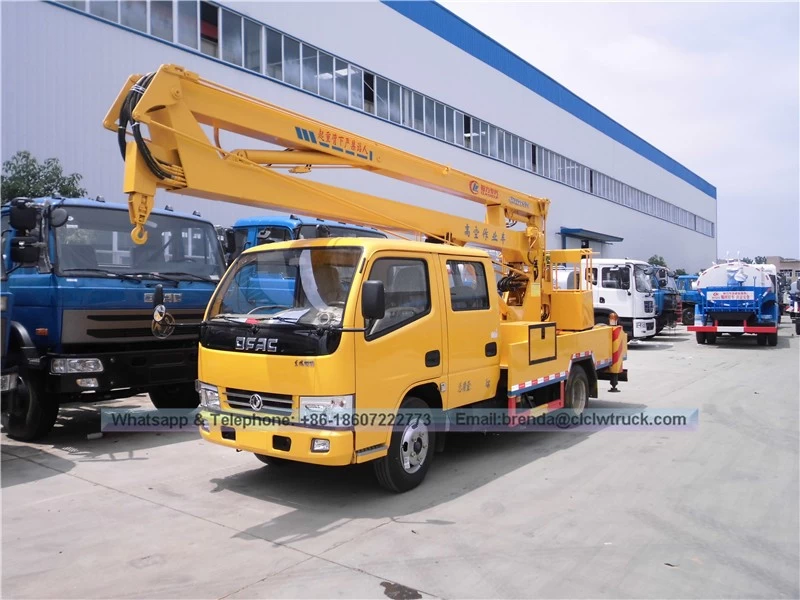

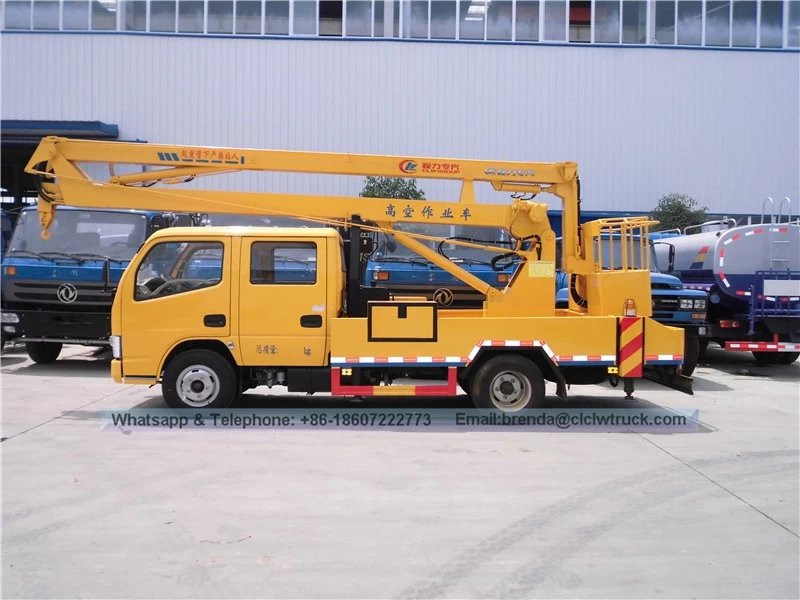

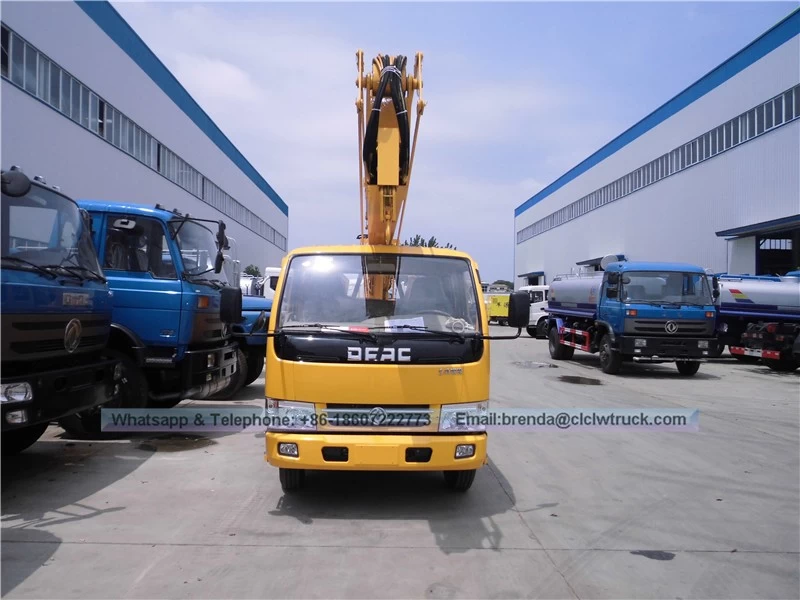

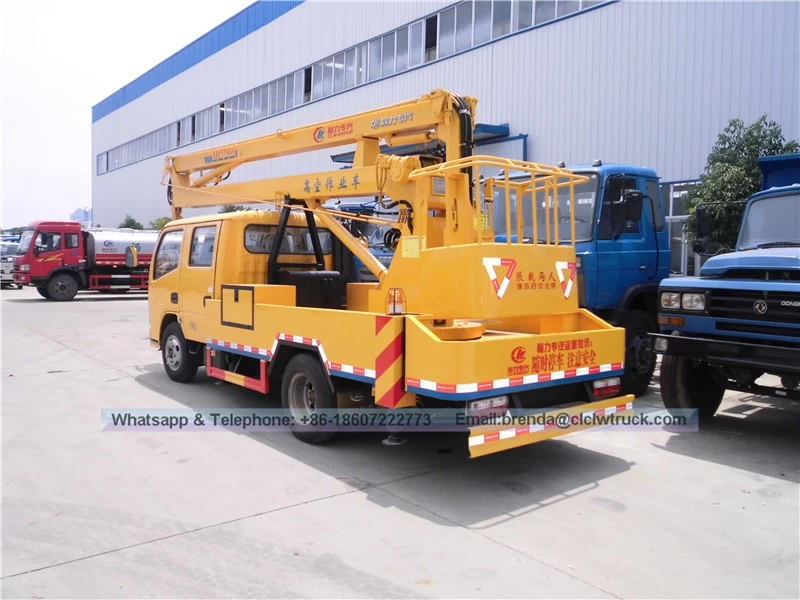

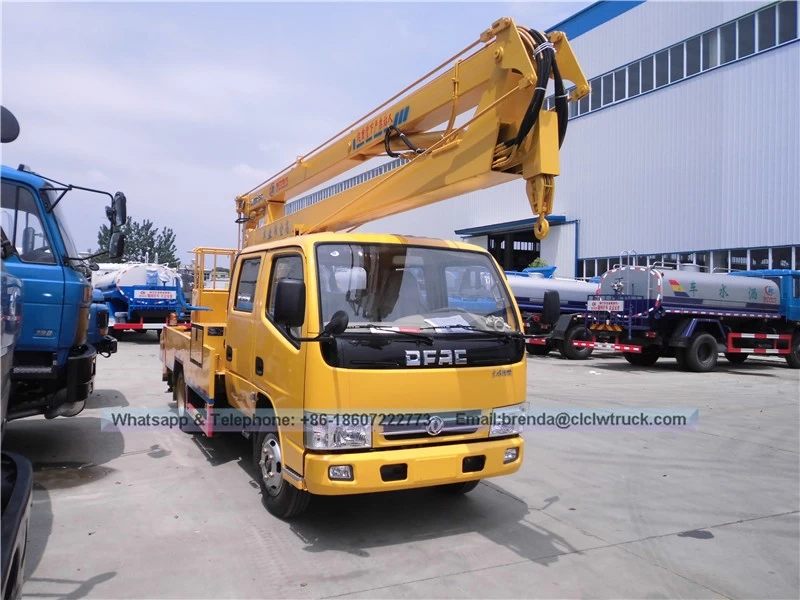

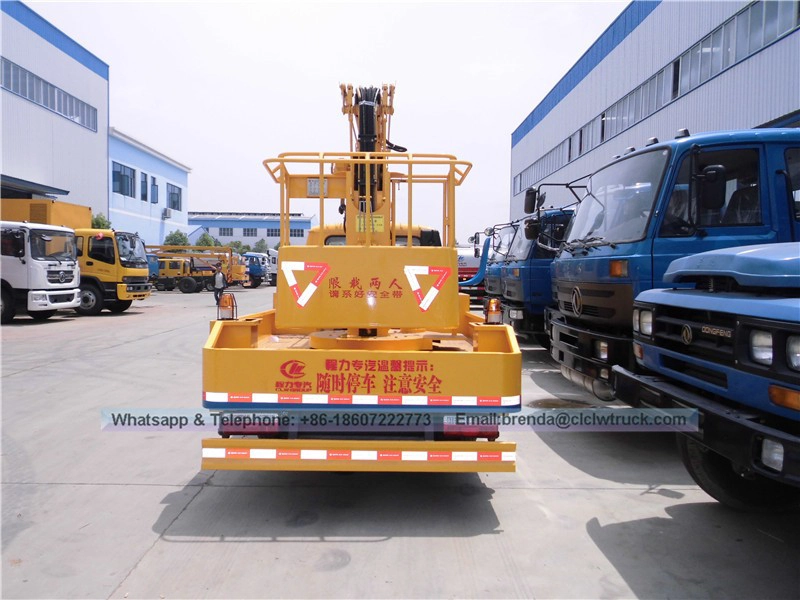

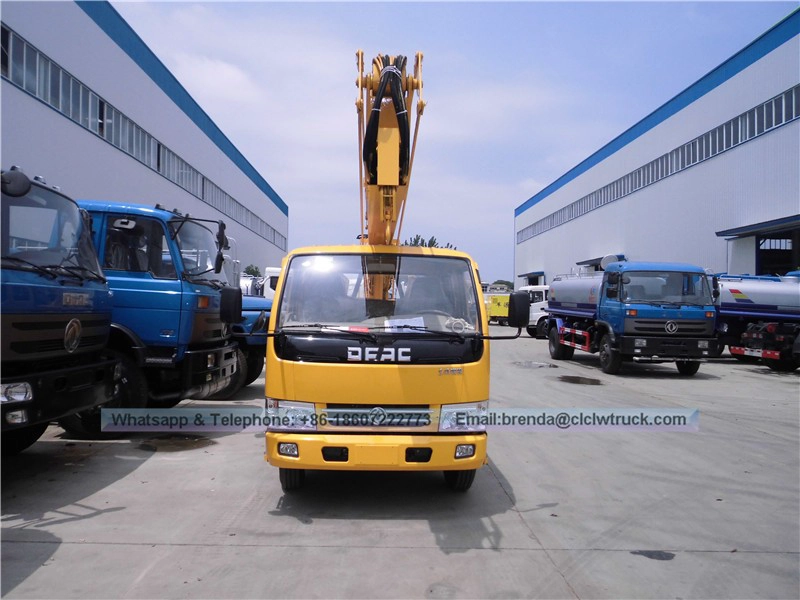

Product Image:
