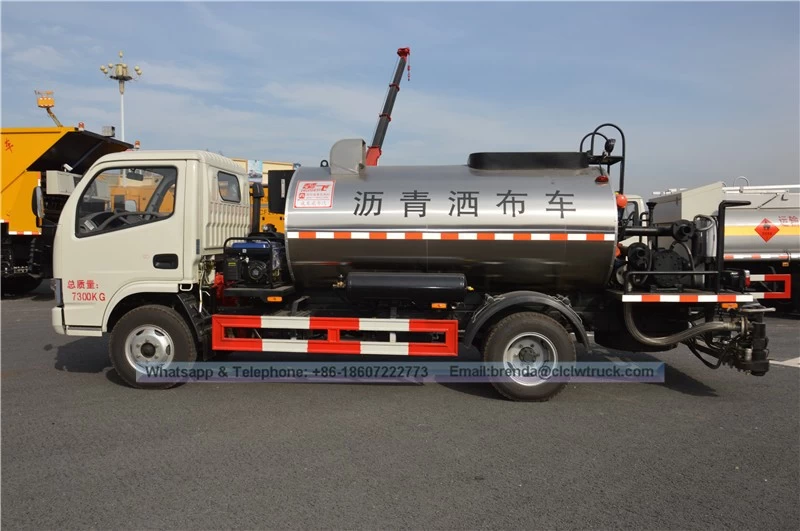

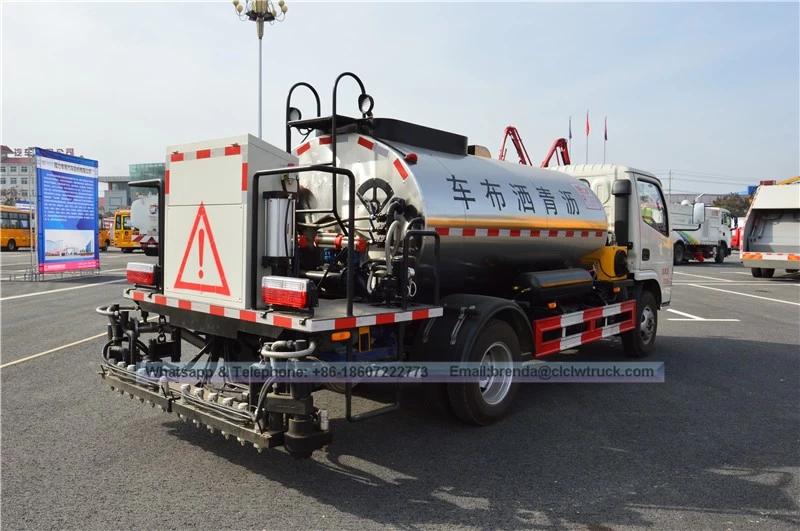

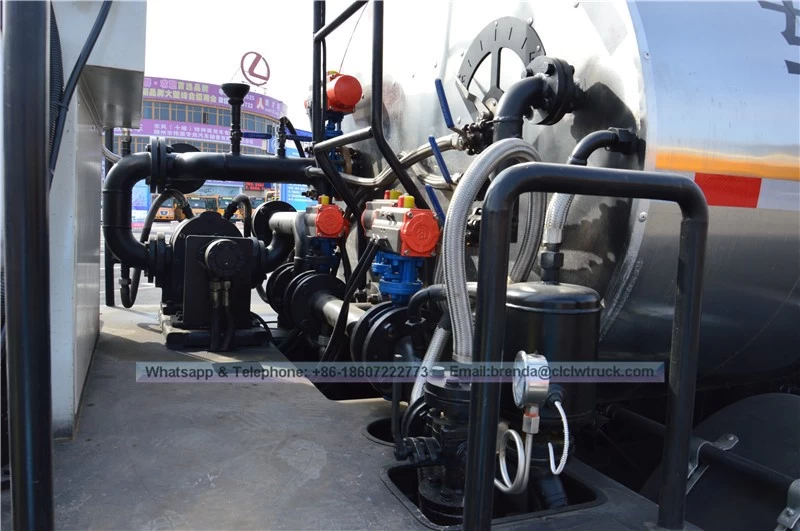

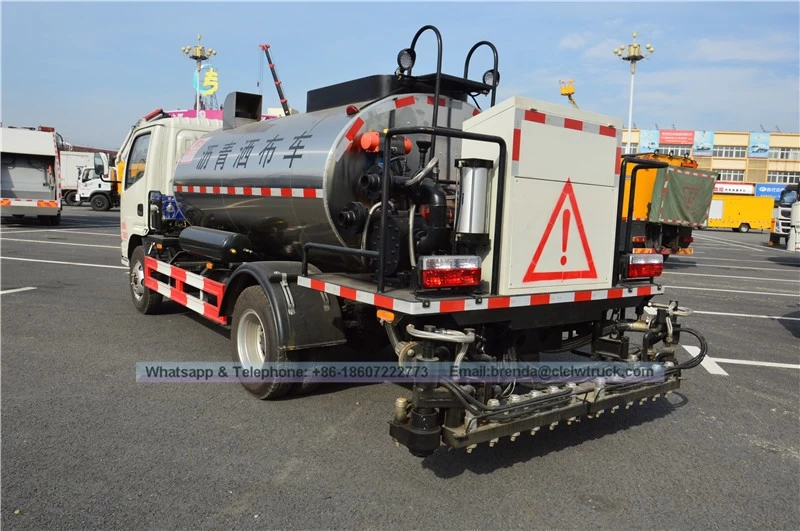

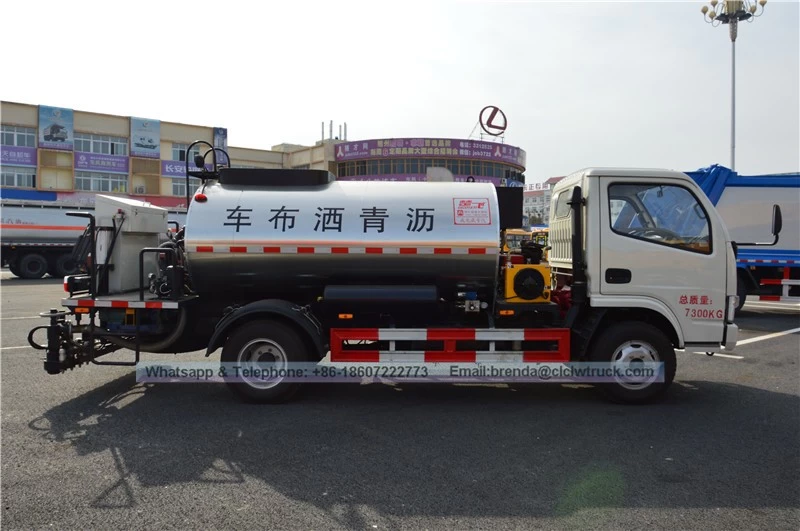

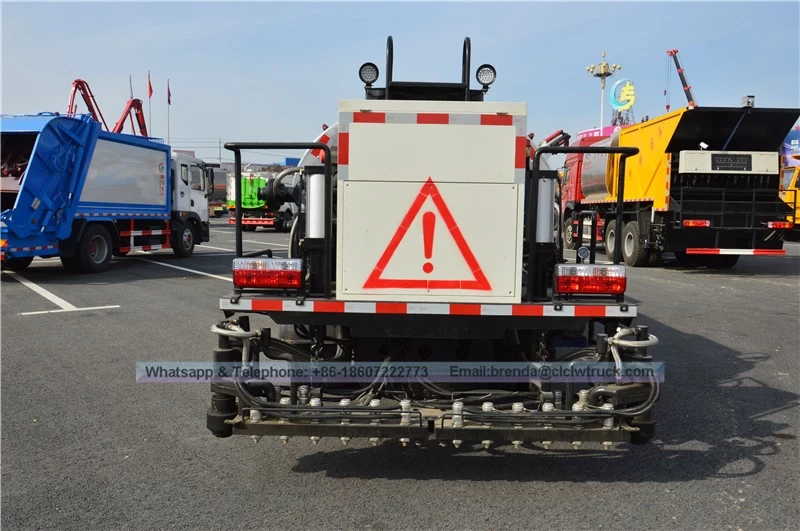

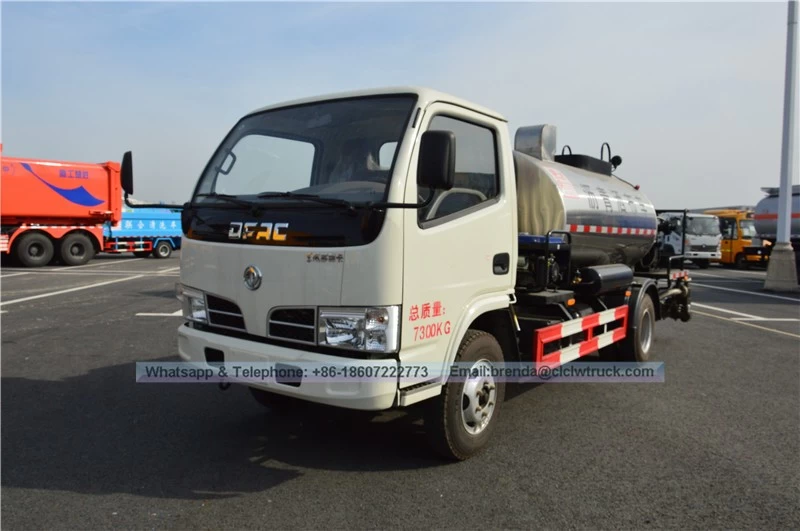

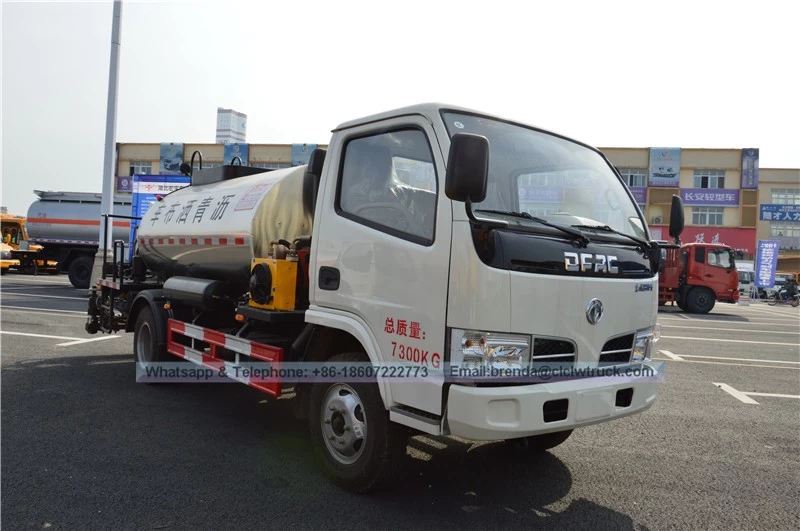

China Manufacture Asphalt Road Maintainer, DFAC Asphalt Sprayer Supplier in China, 4000 Liters Bitumen Distributor Supplier
- 1.Overall Dimension(mm):6390×1980×2650
- 2.Tank Volume (L):3000-4000
- 3.Curb Weight(kg):19500
- 4.Wheelbase(mm):3365
- 5.Engine Model:CY4100-E3F( 3707ml / 73kw)
- 6.Spray Width(mm):4500
- 7.Nozzle Quantity(pcs):48
Technical Specification
|
No. |
Item |
Unit |
Specification |
|
1 |
Vehicle Name |
|
Bitumen Spray Truck |
|
2 |
Driving type |
|
4x2 |
|
3 |
Tank Volume |
M³（L） |
3-4 |
|
4 |
Overall Dimension |
mm |
6390×1980×2650 |
|
5 |
Gross Weight |
kg |
6495 |
|
6 |
Payload |
kg |
3000 |
|
7 |
Curb Weight |
kg |
3365 |
|
8 |
Axle No. |
|
2595/3900 |
|
9 |
Wheelbase |
mm |
3300 |
|
10 |
Max speed |
Km/h |
90 |
|
11 |
Chassis Model |
|
EQ1060TJ20D3 |
|
12 |
Chassis Brand |
|
Dongfeng |
|
13 |
Chassis Manufacturer |
|
Dongfeng Automobile Company |
|
14 |
Chassis Category |
|
Cargo truck chassis |
|
15 |
Engine Model |
|
CY4100-E3F |
|
16 |
Engine Manufacturer |
|
Dongfeng chaoyang forward power co., LTD |
|
17 |
Displacement / Power |
ml/kw |
3707 / 73 |
|
18 |
Emission Standard |
|
Euro III |
|
19 |
Fuel Type |
|
Diesel |
|
20 |
Tire specification / Number |
|
7.00R16 / 6+1 |
|
21 |
Transmission |
|
5 forward gears, 1 reverse gear |
|
22 |
Front Axle /Rear Axle |
T |
2 T / 4 T |
|
23 |
Cab |
Flat single cab,luxurious interior trim and sea. with power steering, air conditioning can be equipped if customer requires. |
|
|
24 |
Cab Seats |
man |
2 |
|
25 |
Spray Width |
mm |
4500 |
|
26 |
Nozzle Quantity |
pcs |
11 |
