China Manufacturer Dongfeng 8 ton Multi-purpose Mobile Crane Truck
- 1.Product Model / Name: CLQ5161JSQ4 Truck With Crane
- 2.Overall dimension (mm):9000×2480×3300
- 3.Chassis model:EQ1160ZZ4GJ1
- 4.Engine model: ISDe185 40 ( 6700ml/ 136kw)
- 5.Crane Max lifting weigh(kg):8000
- 6.Crane Max ligting heigh(m): 10
- 7.Working radius(m): 8
|
I.Main specifications |
||||||||
|
Product model、name |
CLQ5161JSQ4Truck With Crane |
|||||||
|
Total weight(Kg) |
16000 |
Driving type |
4 x 2 |
|||||
|
Payload (Kg) |
7900 |
Overall dimension (mm) |
9000×2480×3300 |
|||||
|
Curb weight(Kg) |
7905 |
Box internal dimension(mm) |
|
|||||
|
cab seats (man) |
3 |
Front/rear hang(mm) |
1205/2795 |
|||||
|
Approach/departure angle (°) |
32/20 |
Wheelbase(mm) |
5150 |
|||||
|
Number of axles |
2 |
Max speed(Km/h) |
80 |
|||||
|
Axle load(Kg) |
6000/10000 |
|||||||
|
II.Crane specification |
||||||||
|
Crane model |
SQ5SK2Q |
Crane brand |
CLW |
|||||
|
Max lifting weight（kg） |
5000kg |
Max lift height（m） |
10 |
|||||
|
Working radius(m) |
8 |
Outrigger (pcs) |
2 |
|||||
|
III.Chassis specifications |
||||||||
|
Chassis model |
EQ1160ZZ4GJ1 |
Chassis category |
the truck classis (class 2) |
|||||
|
Brand name |
Dongfeng |
Manufacture |
Dongfeng Motor company |
|||||
|
Overall dimension(mm) |
8705×2460×2610 |
Tires No. |
6 |
|||||
|
Approach/departure angle (°) |
28/21 |
Tire specification |
10.00-20,10.00R20 |
|||||
|
Steel spring number |
9/11+8 |
Front track(mm) |
1940 |
|||||
|
Type of fuel |
Diesel |
Rear track(mm) |
1860 |
|||||
|
Emission standard |
GB3847-2005,GB17691-2005 Euro Ⅳ |
|||||||
|
Engine model |
Engine manufacture |
Displacement(ml) |
Power(Kw) |
|||||
|
ISDe185 40 |
Dongfeng cummins engine co., LTD |
6700 |
136 |
|||||
|
IV.Functions |
||||||||
|
Special used for cargo lifting and transportation at stations、warehouse、docks、construction sites and filed resuce. |
||||||||

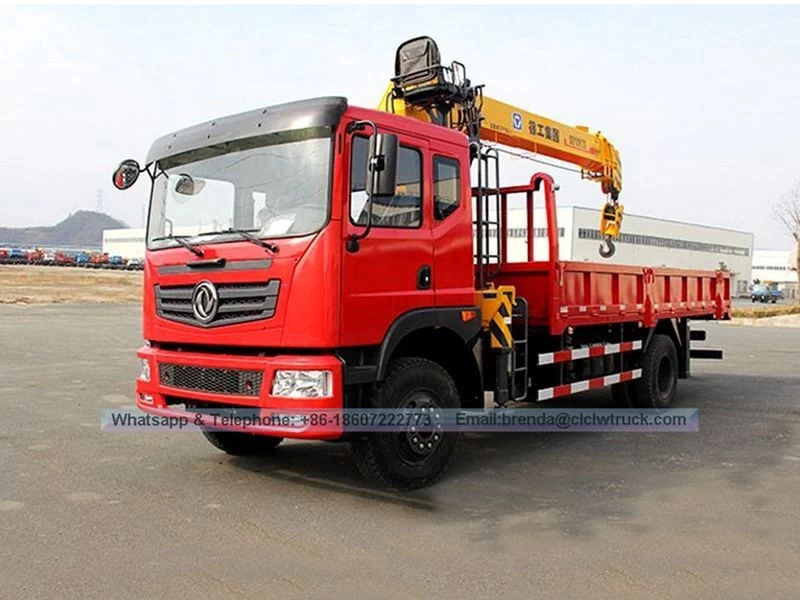

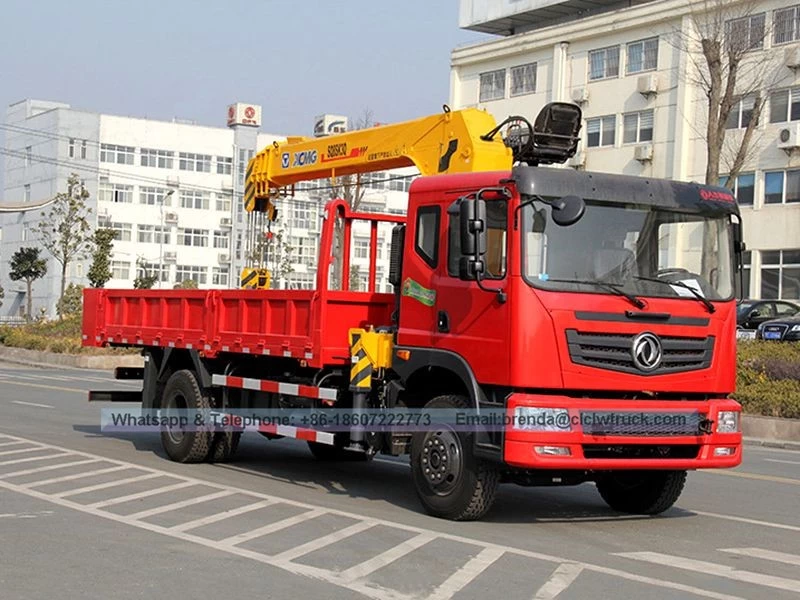

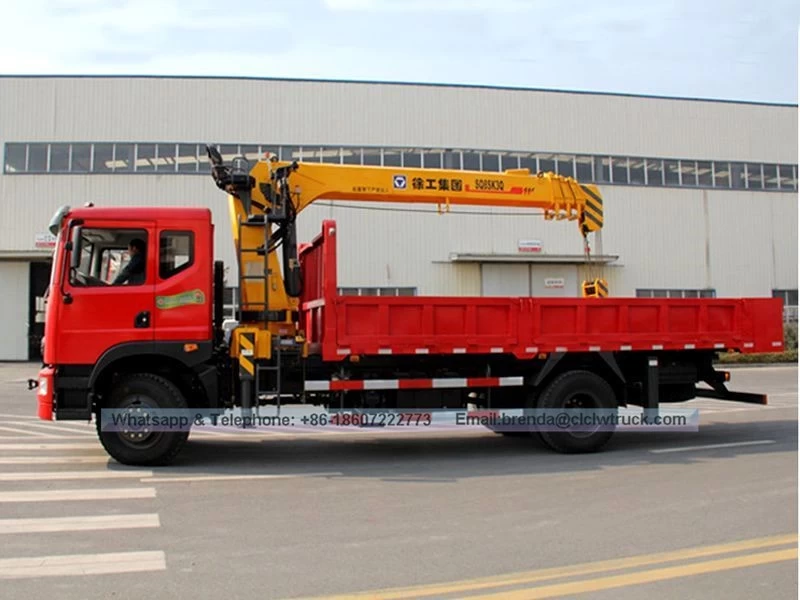

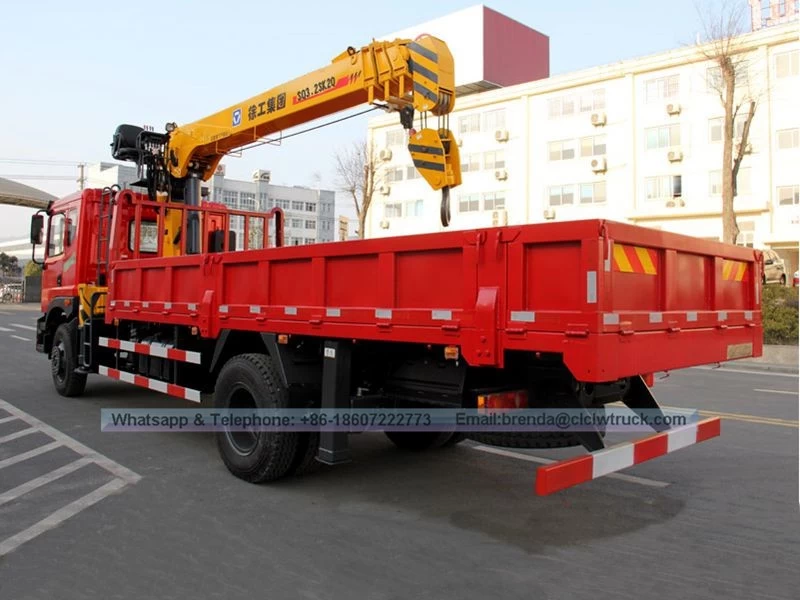

Product Image:
