China Mini 5 ton Crane Truck, Hydraulic Truck Loader Crane Truck Supplier
- 1.Product Model / Name: DFZ5160JSQBX7 Truck With Crane
- 2.Overall dimension (mm):9000×2460×3450
- 3.Chassis model: DFL1160BX7 (Dongfeng)
- 4.Engine model: EQH160-30 ( 4752ml/ 118kw)
- 5.Crane Max lifting weigh(kg):5000
- 6.Crane Max ligting heigh(m):9.8
- 7. Crane Working Radiu(m):8.5
Technical Specification
|
【Main specifications】 |
|||||||
|
Product model、name |
DFZ5160JSQBX7 Truck With Crane |
||||||
|
Gross vehicle weight(kg) |
16000 |
Drive type |
4 X 2 |
||||
|
Payload(kg) |
5770 |
cab seats (man) |
3 |
||||
|
Curb weight(Kg) |
10035 |
Overall dimension (mm) |
9000×2460×3450 |
||||
|
Approach/departure angle (°) |
20/12 |
Box internal dimension(mm) |
5400×2294×600 |
||||
|
Number of axles |
2 |
Front/rear hang(mm) |
1430/2870,1430/2570 |
||||
|
Axle load(Kg) |
6000/10000 |
Wheelbase(mm) |
4700 |
||||
|
Max speed(Km/h) |
98 |
|
|
||||
|
【Chassis specifications】 |
|||||||
|
Chassis model |
DFL1160BX7 |
Brand name |
Dongfeng |
||||
|
Manufacturer |
Dongfeng Motor Corporation |
Tires No. |
6 |
||||
|
Approach/departure angle (°) |
20/13 |
Tire specification |
8.25-16 |
||||
|
Steel spring number |
11/11+10 |
Front track(mm) |
1815 |
||||
|
Fuel type |
Diesel |
Rear track(mm) |
1800 |
||||
|
Emission standard |
Euro III |
Transmission |
6 gears |
||||
|
Cabin |
One and half row flat cab, electric window regulator,central control door lock, PXD-B dashboard with air condition. |
||||||
|
Engine model |
Engine manufacturer |
Displacement(ml) |
Power(Kw) |
||||
|
EQH160-30 |
Dongfeng Motor Corporation |
4752 |
118 |
||||
|
【Crane specification】 |
|||||||
|
Crane model |
SQ5SA2 |
Crane brand |
XCMG |
||||
|
Type of Crane |
Telescopic boom crane |
Crane weight (kg) |
2480 |
||||
|
Max lifting weight（kg） |
5000 |
Max lift height（m） |
9.8 |
||||
|
Working radius(m) |
8.5 |
Operation method |
High seat control / Side control |
||||
|
Number of arms |
3 |
Outrigger (pcs) |
2 / 4 |
||||
|
【Functions】 |
|||||||
|
The truck consists of chassis, box, power take-off and crane, achieving cargo lifting and moving through hydraulic lifting and telescopic system. In general, H-type outrigger is equipped to realize its stability. To be further strengthened stability of the truck, rear outrigger also can be equipped if the customer require. The truck can 360 ° continuously rotate. |
|||||||
China Mini 5 ton Crane Truck, Hydraulic Truck Loader Crane Truck Supplier

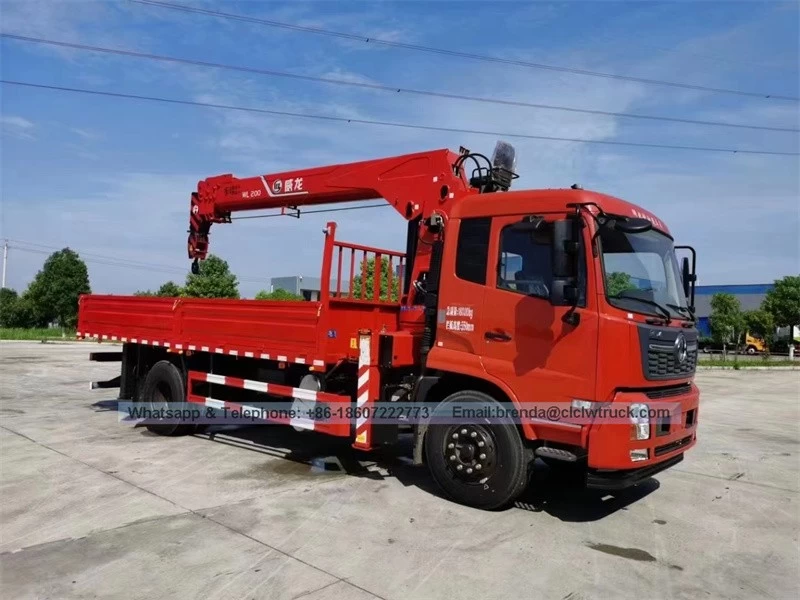

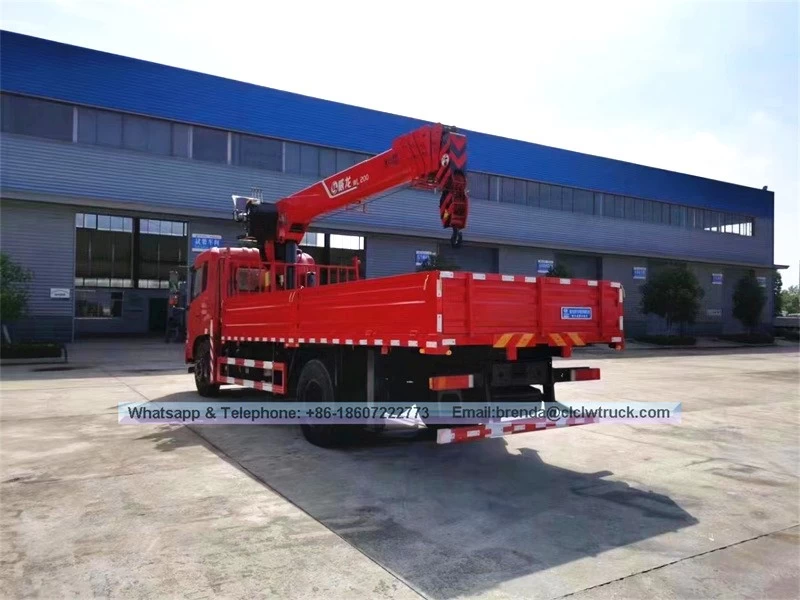

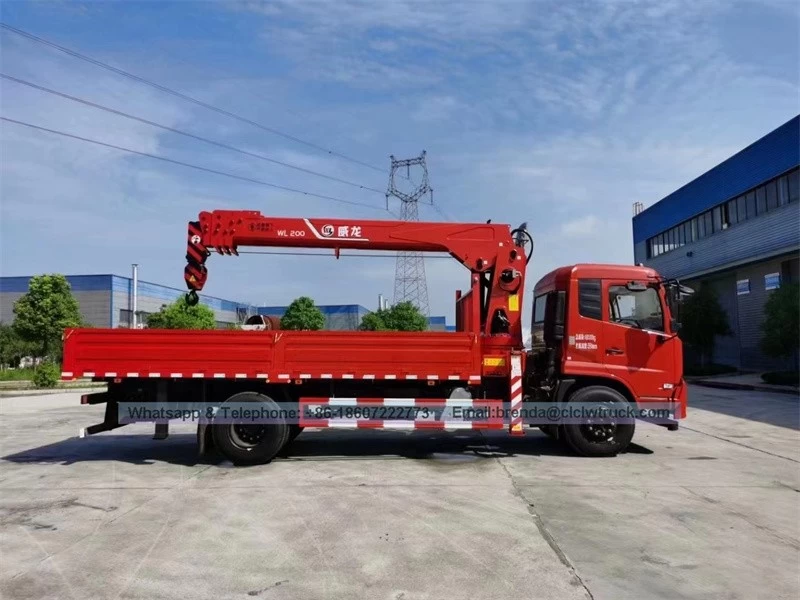

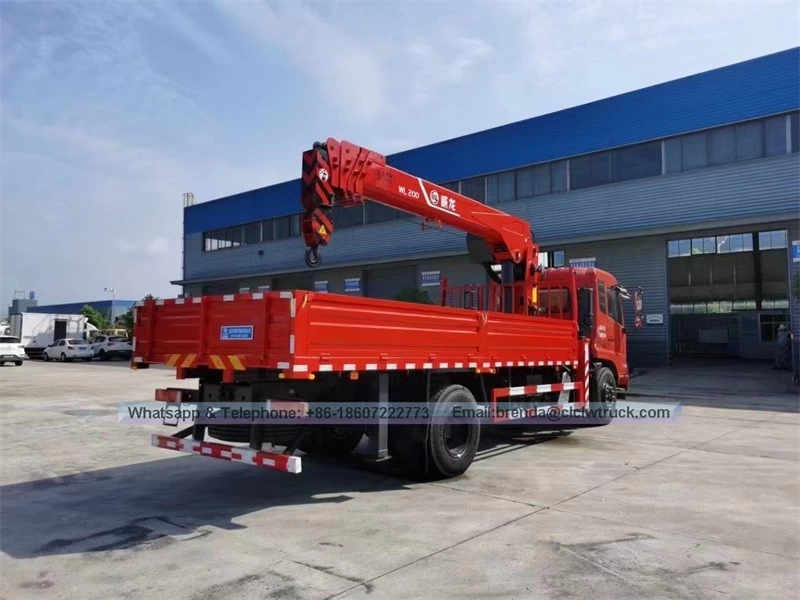

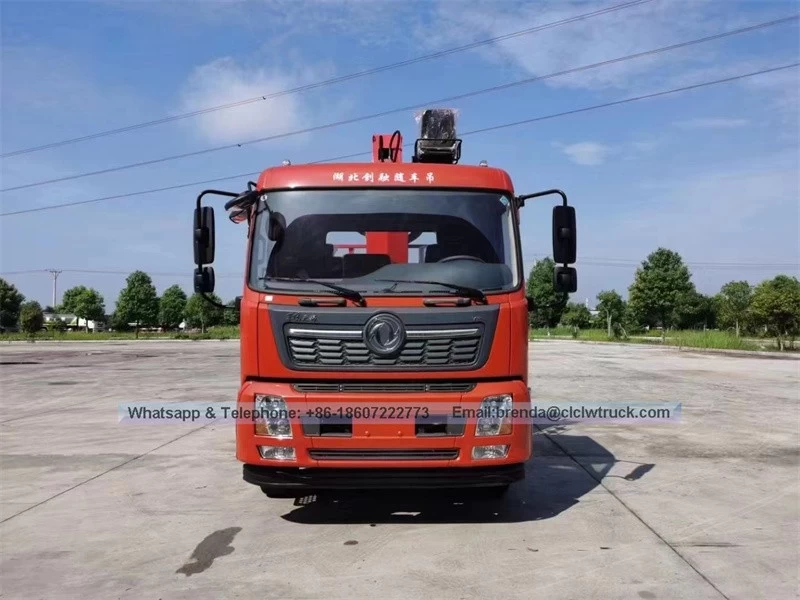

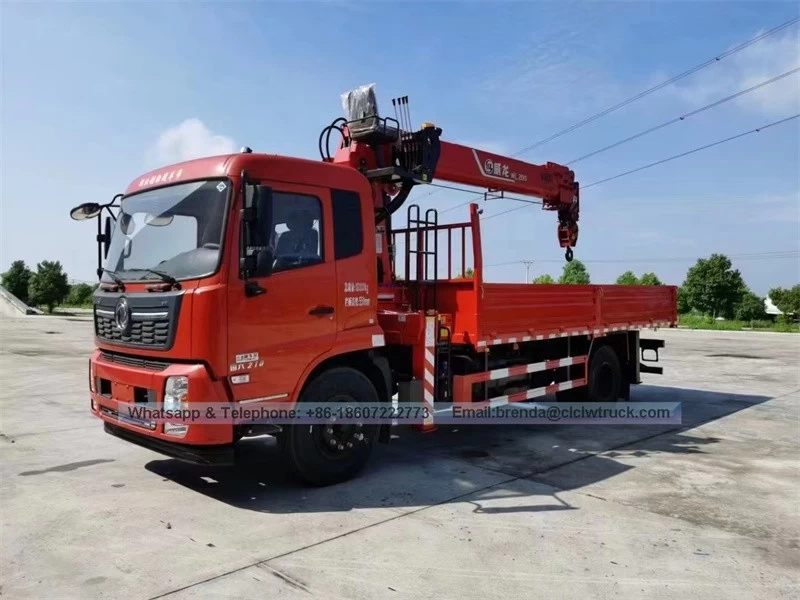

Product Image:
