Chinese Dongfeng Manufacturer 8x4 12-14 tons Truck Cargo Crane
- 1.Product Model / Name: EQ5311JSQF Truck With Crane
- 2.Overall dimension (mm):11980×2490×3850
- 3.Chassis model: EQ5311GFJ (Dongfeng)
- 4.Engine model:YC6A260-31 ( 7255ml/ 191kw)
- 5.Crane Max lifting weigh(kg):12000, 14000
- 6.Crane Max ligting heigh(m):14.5 / 17.8
- 7. Crane Working Radiu(m):12.5 / 15.8
|
【Main specifications】 |
|||||||
|
Product model、name |
EQ5311JSQF Truck With Crane |
||||||
|
Gross vehicle weight(kg) |
30900 |
Drive type |
8 x 4 |
||||
|
Payload(kg) |
14105 |
cab seats (man) |
3 |
||||
|
Curb weight(Kg) |
16600 |
Overall dimension (mm) |
11980×2490×3850 |
||||
|
Approach/departure angle (°) |
34/11 |
Box internal dimension(mm) |
8500×2294×550 |
||||
|
Number of axles |
4 |
Front/rear hang(mm) |
1205/3275 |
||||
|
Axle load(Kg) |
6450/6450/18000 |
Wheelbase(mm) |
2140+4060+1300 |
||||
|
Max speed(Km/h) |
90 |
|
|
||||
|
【Chassis specifications】 |
|||||||
|
Chassis model |
EQ5311GFJ |
Brand name |
Dongfeng |
||||
|
Manufacturer |
Dongfeng Motor Corporation |
Tires No. |
12 |
||||
|
Approach/departure angle (°) |
34/18 |
Tire specification |
10.00-20 |
||||
|
Steel spring number |
9/9/10 |
Front track(mm) |
1950/1950 |
||||
|
Fuel type |
Diesel |
Rear track(mm) |
1860/1860 |
||||
|
Emission standard |
Euro III |
Transmission |
9 gears |
||||
|
Cabin |
Blue（other colors are available）, Flat, luxurious interior trim and seat, with air conditioning. |
||||||
|
Engine model |
Engine manufacturer |
Displacement(ml) |
Power(Kw) |
||||
|
YC6A260-31 |
Guangxi Yuchai Machinery Co.,Ltd |
7255 |
191 |
||||
|
【Crane specification】 |
|||||||
|
Crane model |
SQS300 |
Crane brand |
XCMG |
||||
|
Type of Crane |
Telescopic boom crane |
Crane Weight |
4500 |
||||
|
Max lifting weight（kg） |
12000 |
Max lift height（m） |
14.5 |
||||
|
Working radius(m) |
12.5 |
Operation method |
High seat operation / Side operation |
||||
|
Number of arms |
4 |
Outrigger (pcs) |
2 or 4 |
||||
|
【Functions】 |
|||||||
|
The truck consists of chassis, box, power take-off and crane, achieving cargo lifting and moving through hydraulic lifting and telescopic system. In general, H-type outrigger is equipped to realize its stability. To be further strengthened stability of the truck, rear outrigger also can be equipped if the customer require. The truck can 360 ° continuously rotate. |
|||||||
Chinese Dongfeng Manufacturer 8x4 12-14 tons Truck cargo crane

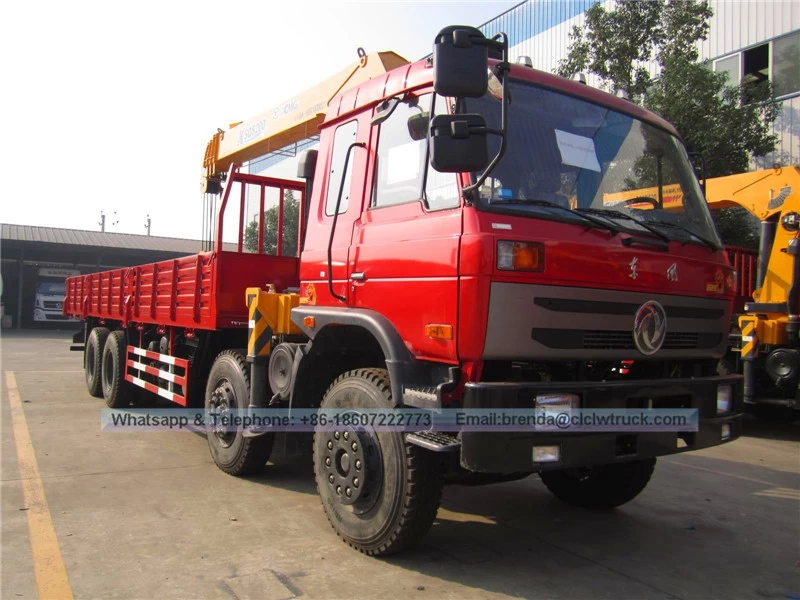

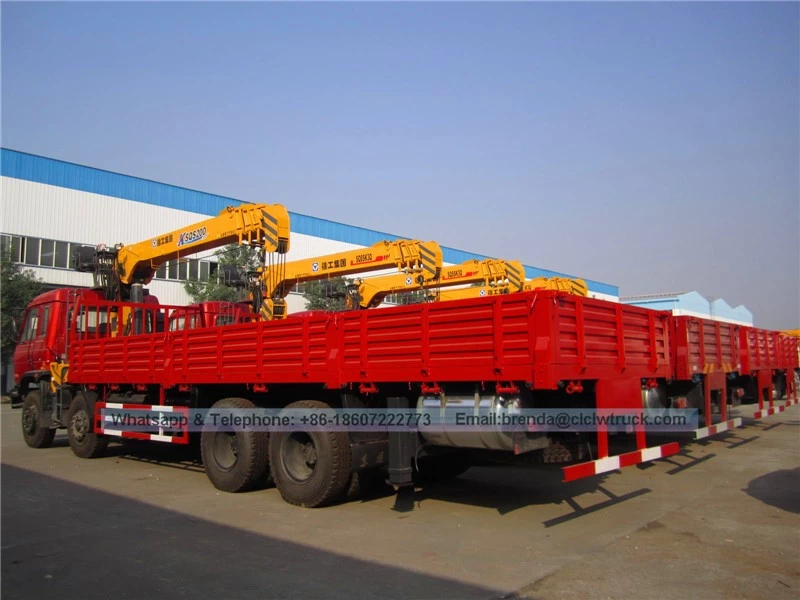

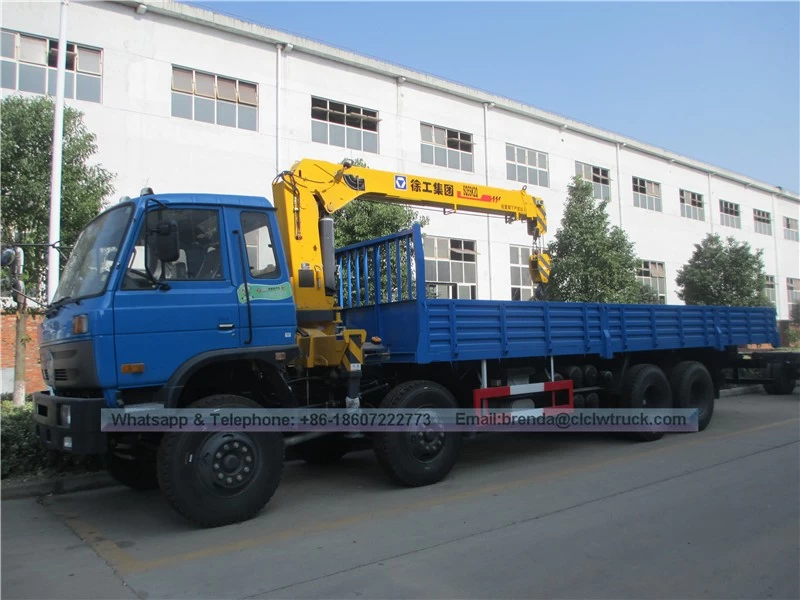

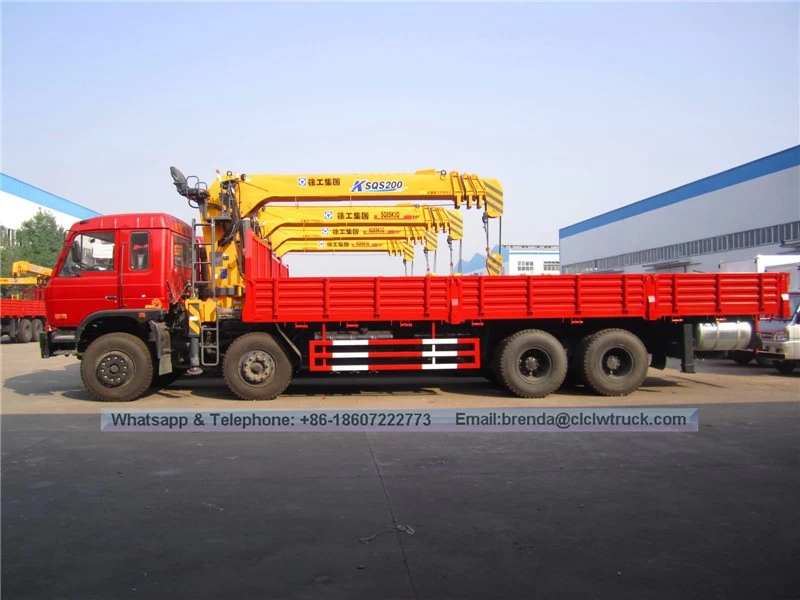

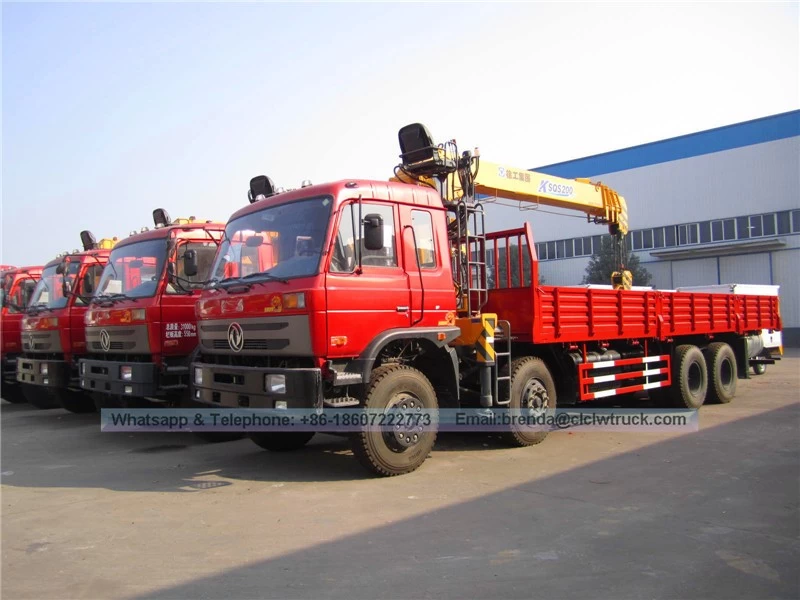

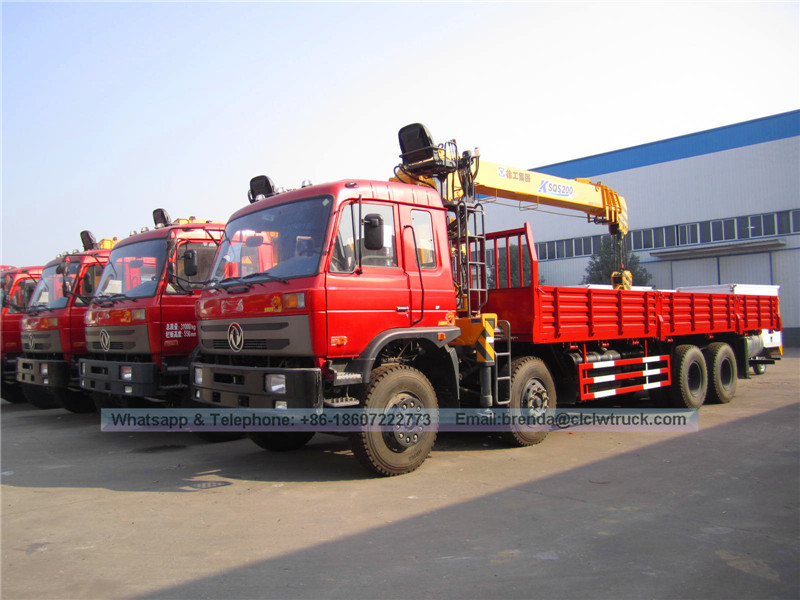

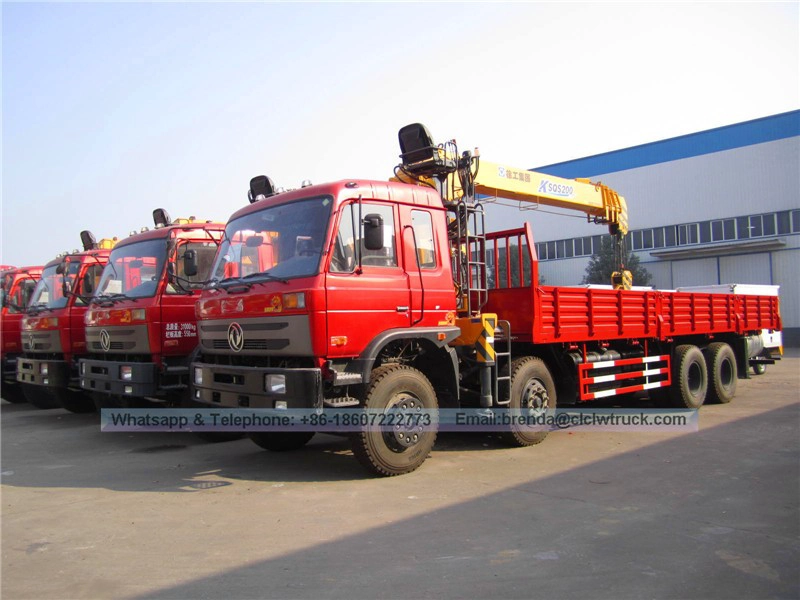

Product Image:
