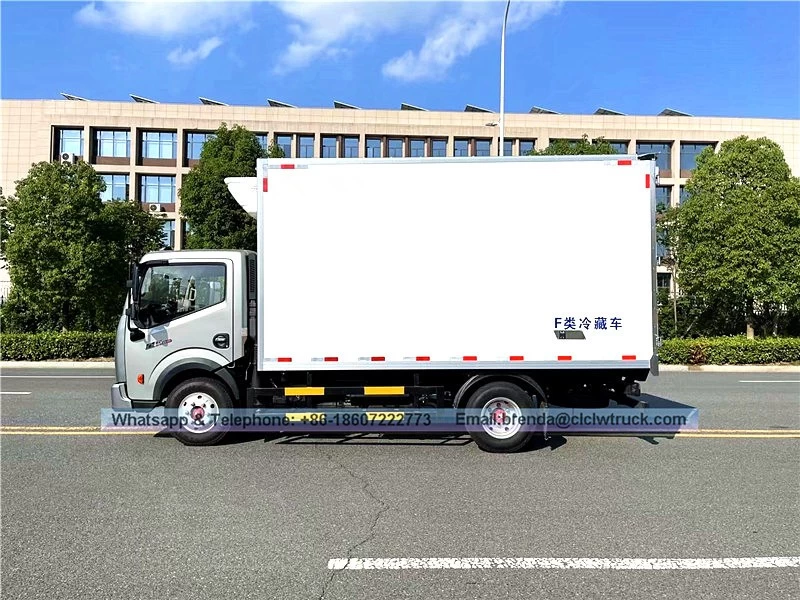

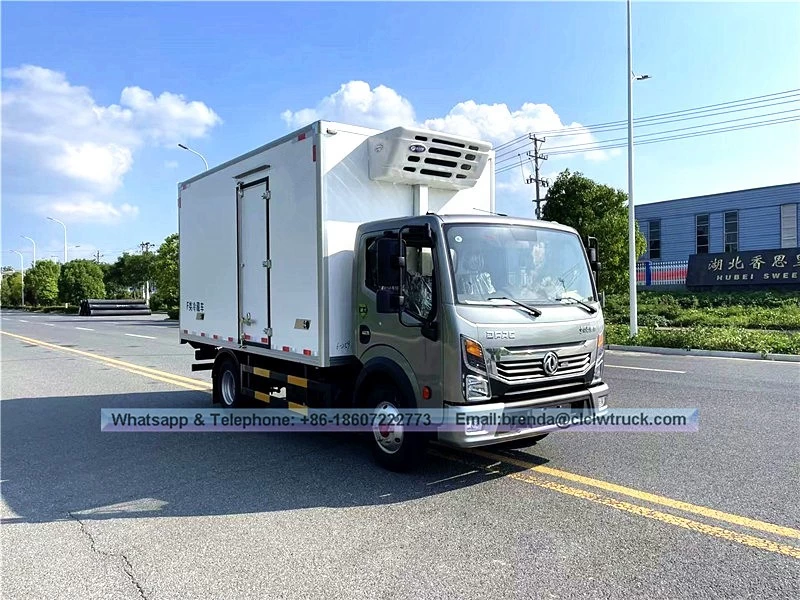

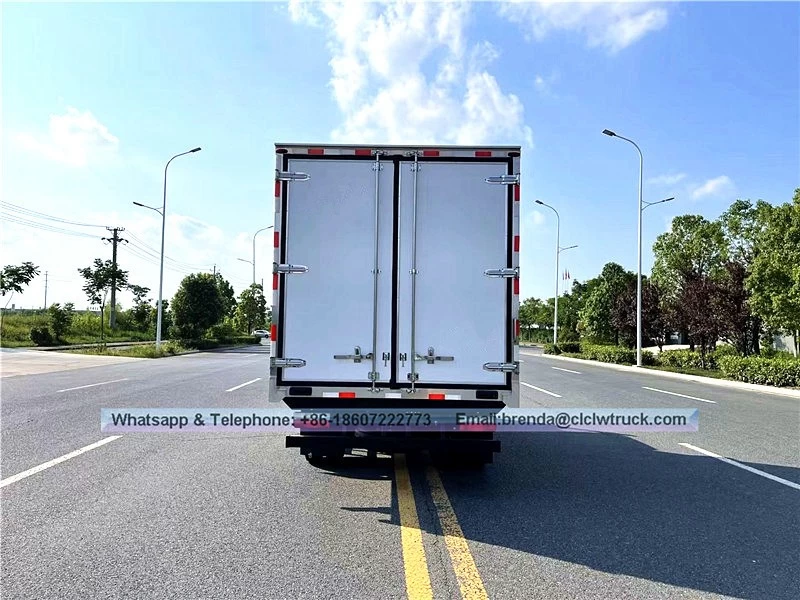

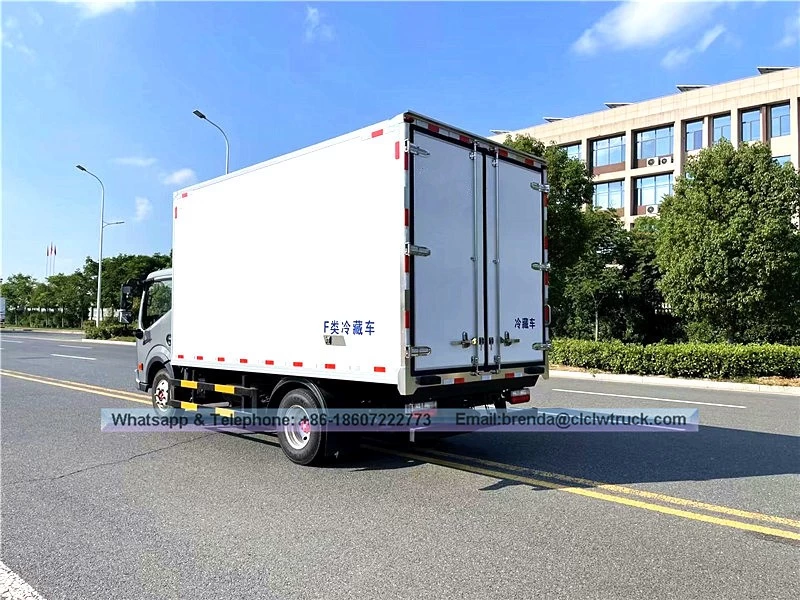

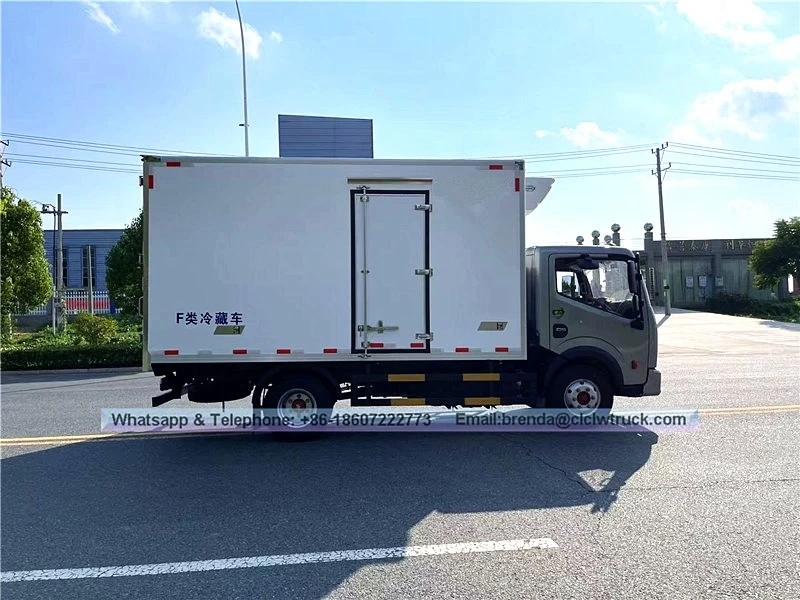

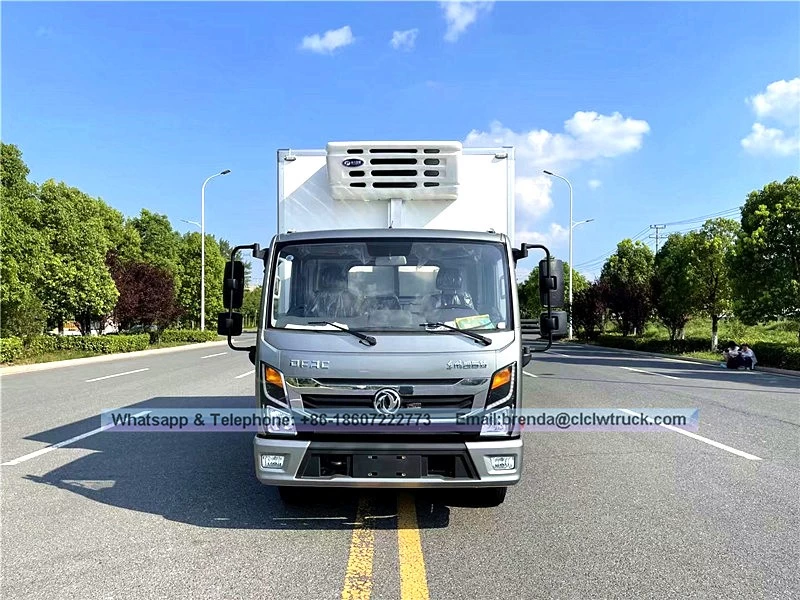

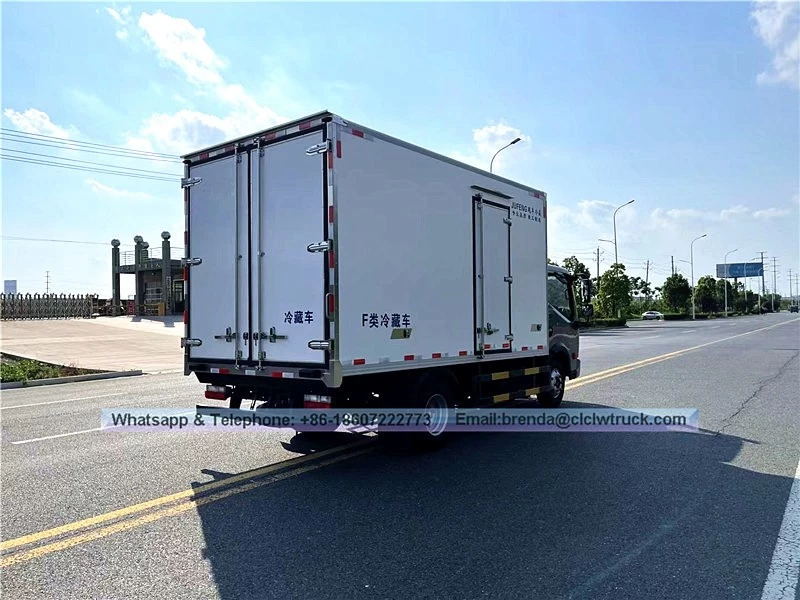

DFAC 3-6 Ton meat hook refrigerator truck
- Refrigerated trucks are used to transport frozen or fresh goods of the closed van, refrigerated trucks are equipped with refrigeration units and refrigeration equipment, polyurethane insulated car for refrigerated transport vehicles, refrigerated trucks can be by the manufacturer, chassis carrying Ability, type of car to classify.
- 1),Product model and name: HLQ5060XLCE Refrigerator truck
- 2),Approach/departure angle(°):24/14
- 3),Front/rear hang(mm): 1210/2090
- 4),Axle load(Kg):2580/3915
- 5),Chassis model:EQ1060TJ22D3
- 6),Tyre specification:7.50R16
- 7),Emission standard: Euro 3
- 8),Fuel type : Diesel
|
Main specification |
|||||||||||
|
Product model and name |
HLQ5060XLCE Refrigerator truck |
||||||||||
|
Gross weight(Kg) |
6495 |
Drive type |
4x2 |
||||||||
|
Payload(Kg) |
2500 |
Overall dimension(mm) |
7100×2330×3380 |
||||||||
|
Curb weight(Kg) |
3800 |
Cab seats |
3 |
||||||||
|
Approach/departure angle(°) |
24/14 |
Front/rear hang(mm) |
1210/2090 |
||||||||
|
Axle No. |
2 |
Wheelbase(mm) |
3800 |
||||||||
|
Axle load(Kg) |
2580/3915 |
Max speed(Km/h) |
90 |
||||||||
|
Chassis specification |
|||||||||||
|
Chassis model |
EQ1060TJ22D3 |
Manufacturer |
Dongfeng Auto Co.,Ltd |
||||||||
|
Brand name |
Dongfeng |
Dimension(mm) |
6815×2176×2300,2400 |
||||||||
|
Tyre specification |
7.50R16 |
Tyre No. |
6 |
||||||||
|
Steel spring number |
8/10+7,11/9+7 |
Front track base(mm) |
1750,1835 |
||||||||
|
Fuel type |
Diesel |
Rear track base(mm) |
586,1640 |
||||||||
|
Emission standard |
Euro 3 |
Transmission |
5 forward gear,1 reverse gear |
||||||||
|

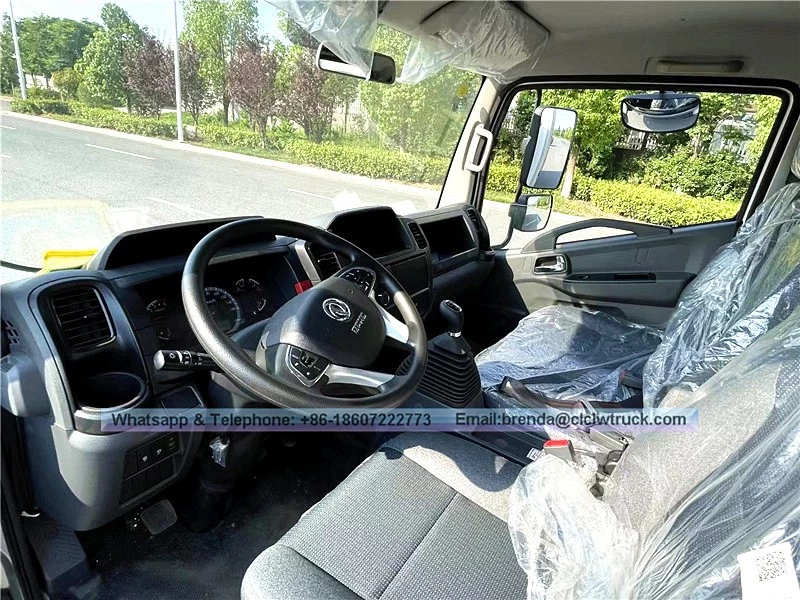

Cab |
Single row, luxurious interiors and seats with power steering. Air condition is optional. |
||||||||||
|
Engine model |
Engine manufacturer |
Displacement(ml) |
Power(Kw) |
||||||||
|
CY4102-E3C |
Dongfeng Chaoyang Diesel Co.,Ltd |
3856 |
91(124hp) |
||||||||
|
B140 33 |
Dongfeng Cummins Engine Co.,Ltd |
3900 |
103(140hp) |
||||||||
|
Performance |
|||||||||||
|
Van body size(mm) |
4900×2100×2100 |
Load capacity(TON) |
5 |
||||||||
|
Lowest refrigeration temperature(℃) |
|
||||||||||
|
Feature and Application |
|||||||||||
|

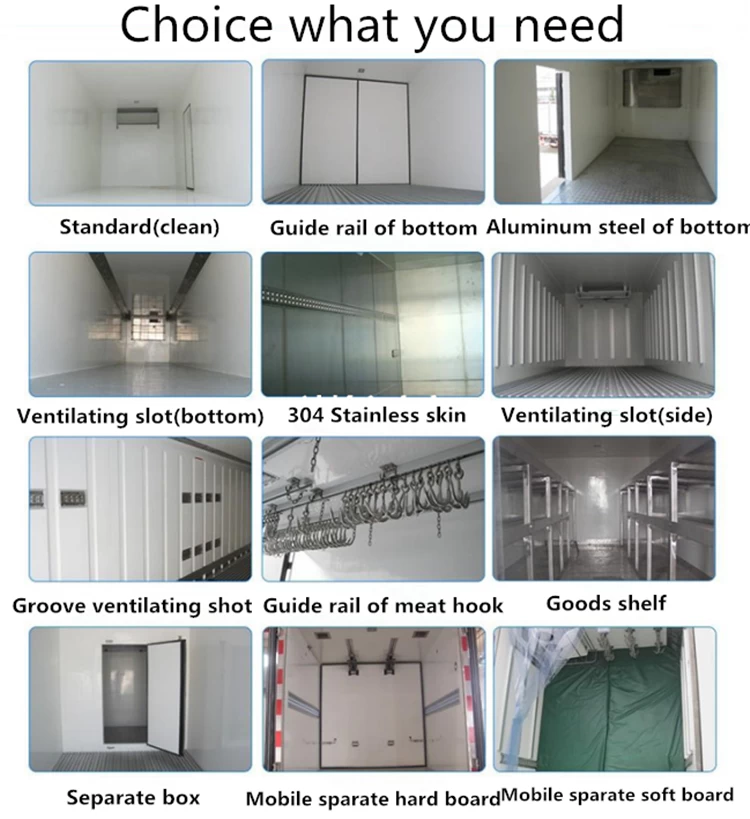

The refrigerator truck is the closed van truck that is used to transport the frozen or fresh goods. This truck is made up of vehicle chassis, Polyurethane insulation van, refrigeration unit and temperature recorder. It is commonly used to transport the frozen food, dairy products, vegetable and fruit and vaccine medicine etc. For the special requirements of trucks,such as the meat transportation, the meat hook, aluminum alloy guide rail and ventilation slots etc. parts can be chosen and installed. |
|||||||||||
