DFAC 4X2 3200 Kgs Truck Mountec Crane, 3.2 ton Lorry Crane
- 1.Product Model / Name: CLW5110JSQ3 Truck With Crane
- 2.Overall dimension (mm):7050×2420×3150
- 3.Chassis model:EQ1110T9ADJ3AC (Dongfeng)
- 4.Engine model:CY4102-E3C ( 3856ml/ 91kw)
- 5.Crane Max lifting weigh(kg):3200
- 6.Crane Max ligting heigh(m):6.8 / 9.5
- 7. Crane Working Radiu(m):5.5 / 7.5
|
【Main specifications】 |
|||||||
|
Product model、name |
CLW5110JSQ3 Truck With Crane |
||||||
|
Gross vehicle weight(kg) |
11495 |
Drive type |
4 x 2 |
||||
|
Payload(kg) |
5970 |
cab seats (man) |
3 |
||||
|
Curb weight(Kg) |
5330 |
Overall dimension (mm) |
7050×2420×3150 |
||||
|
Approach/departure angle (°) |
22/12 |
Box internal dimension(mm) |
4300×2050×550 |
||||
|
Number of axles |
2 |
Front/rear hang(mm) |
1180/2070 |
||||
|
Axle load(Kg) |
4050/7445 |
Wheelbase(mm) |
3800 |
||||
|
Max speed(Km/h) |
90 |
|
|
||||
|
【Chassis specifications】 |
|||||||
|
Chassis model |
EQ1110T9ADJ3AC |
Brand name |
Dongfeng |
||||
|
Manufacturer |
Dongfeng Motor Corporation |
Tires No. |
6 |
||||
|
Approach/departure angle (°) |
22/13 |
Tire specification |
7.50R16 |
||||
|
Steel spring number |
11/9+7,8/10+7 |
Front track(mm) |
1831,1750 |
||||
|
Fuel type |
Diesel |
Rear track(mm) |
1640,1586 |
||||
|
Emission standard |
Euro III |
Transmission |
|
||||
|
Cabin |
White（other colors are available）, Flat, luxurious interior trim and seat, with air conditioning. |
||||||
|
Engine model |
Engine manufacturer |
Displacement(ml) |
Power(Kw) |
||||
|
CY4102-E3C |
Dongfeng chaoyang chaochai power co., LTD |
3856 |
91 |
||||
|
【Crane specification】 |
|||||||
|
Crane model |
SQS68 |
Crane brand |
XCMG |
||||
|
Type of Crane |
Telescopic boom |
Crane weight (kg) |
1150 |
||||
|
Max lifting weight（kg） |
3200 |
Max lift height（m） |
6.8 / 9.5 |
||||
|
Working radius(m) |
5.5 / 7.5 |
Operation method |
High seat operation / floor operation |
||||
|
Number of arms |
2 / 3 |
Outrigger (pcs) |
2 / 4 |
||||
|
【Functions】 |
|||||||
|
The truck consists of chassis, box, power take-off and crane, achieving cargo lifting and moving through hydraulic lifting and telescopic system. In general, H-type outrigger is equipped to realize its stability. To be further strengthened stability of the truck, rear outrigger also can be equipped if the customer require. The truck can 360 ° continuously rotate. |
|||||||

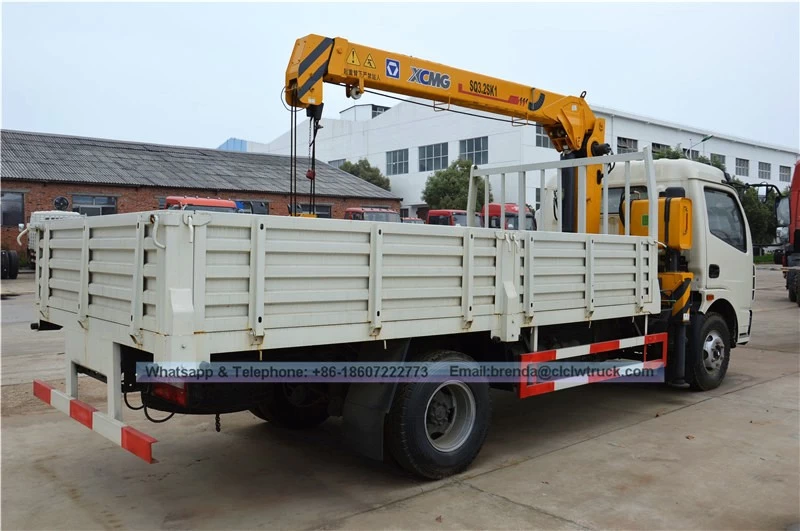

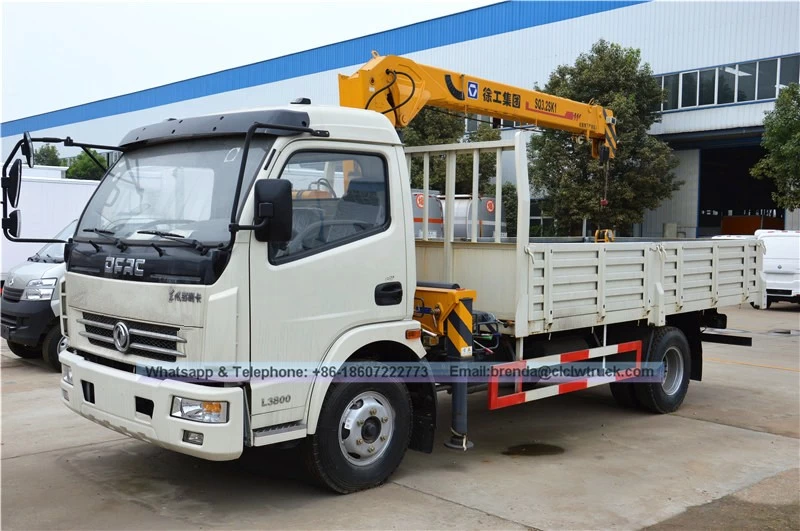

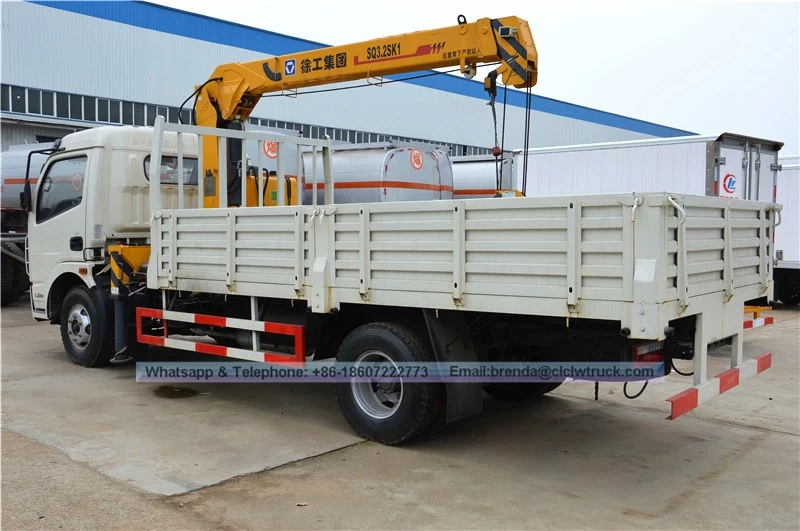

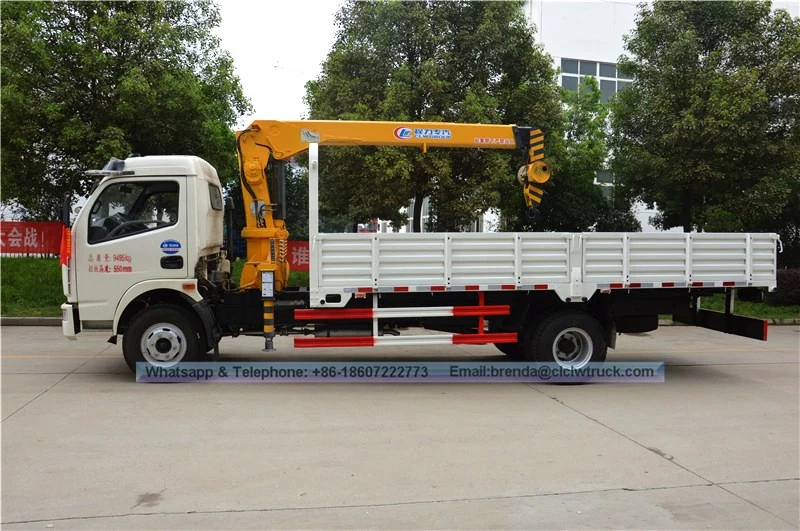

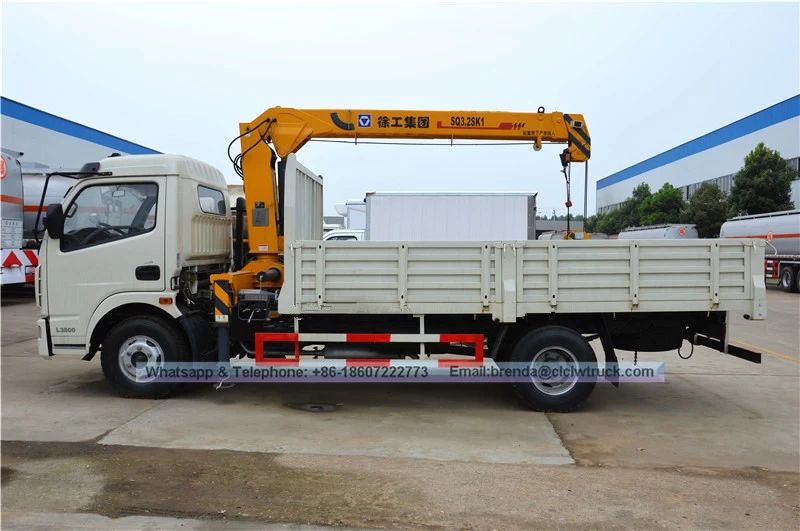

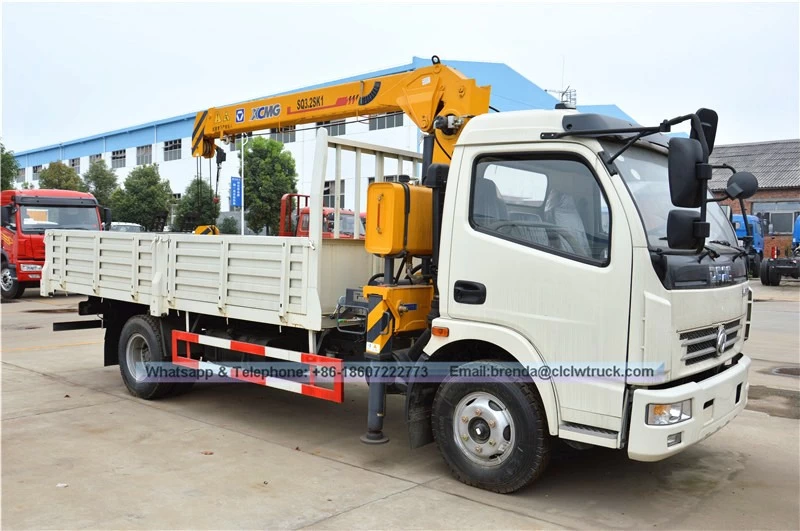

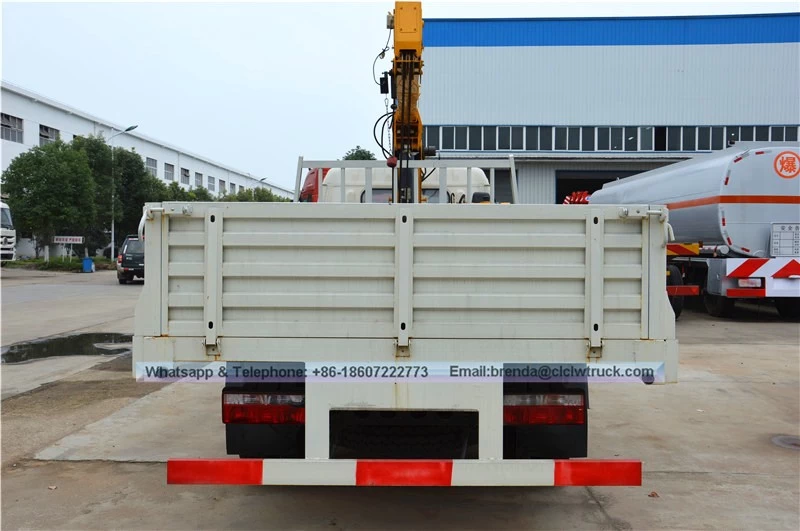

DFAC 4X2 3200 Kgs Truck Mountec Crane, 3.2 ton Lorry Crane
Product Image:
