Main specifications

Product model、name

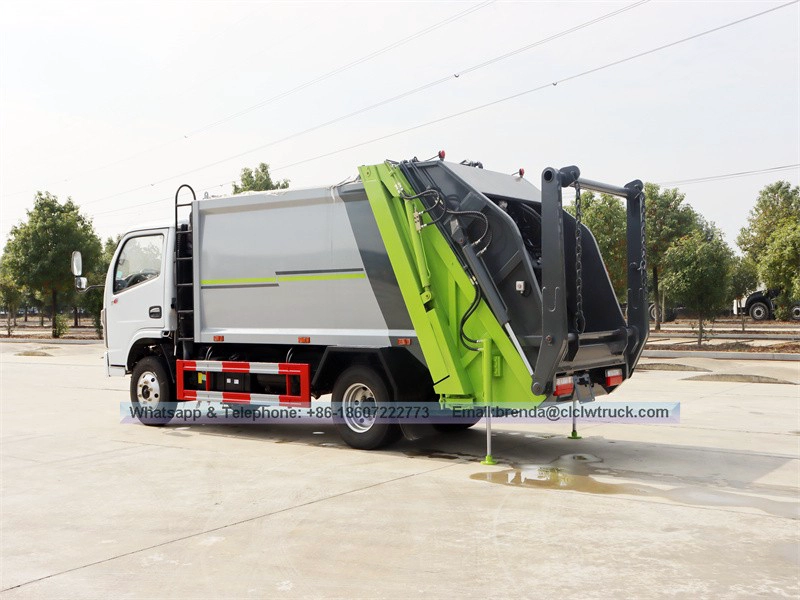

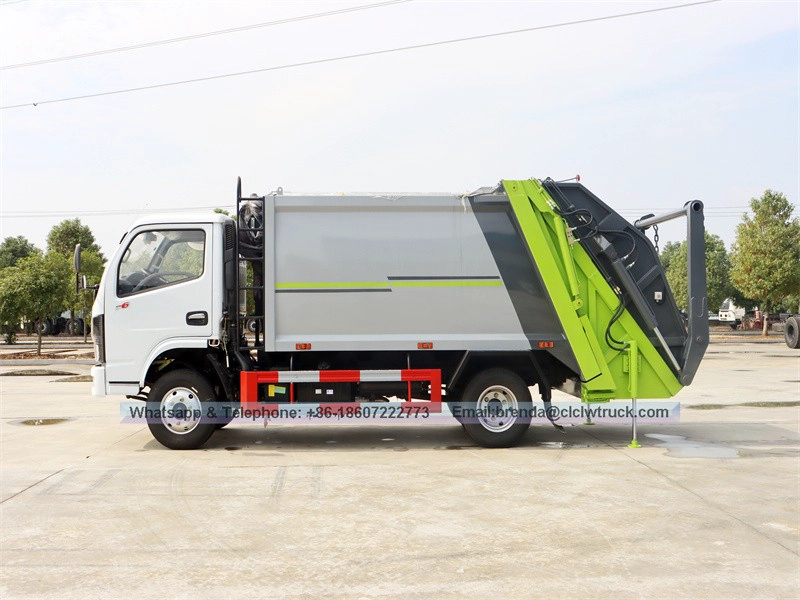

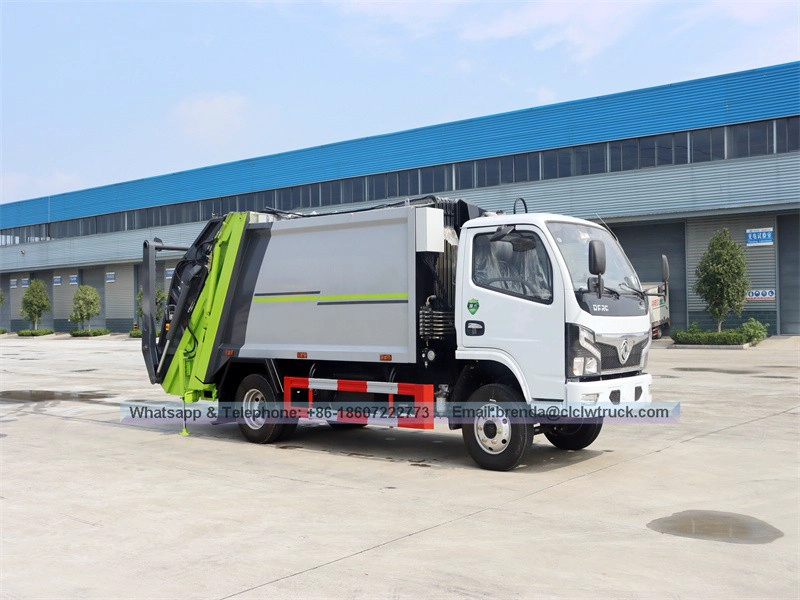

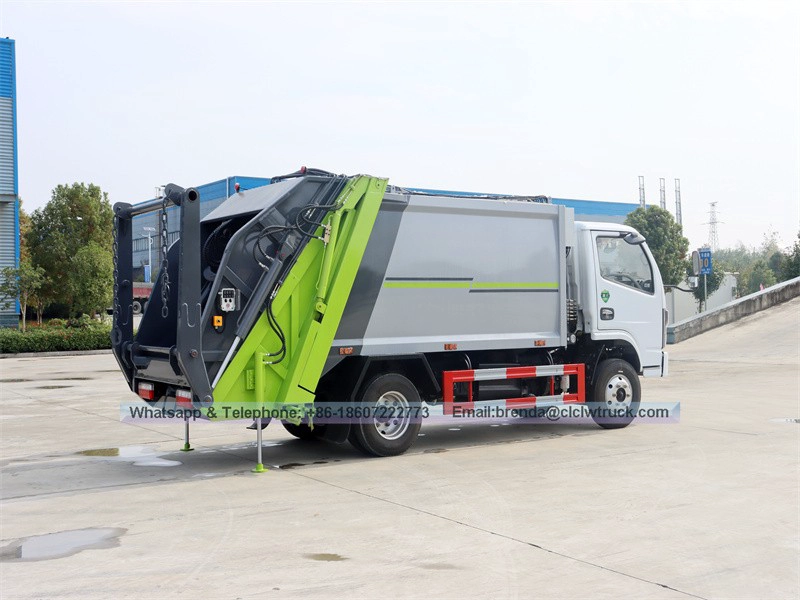

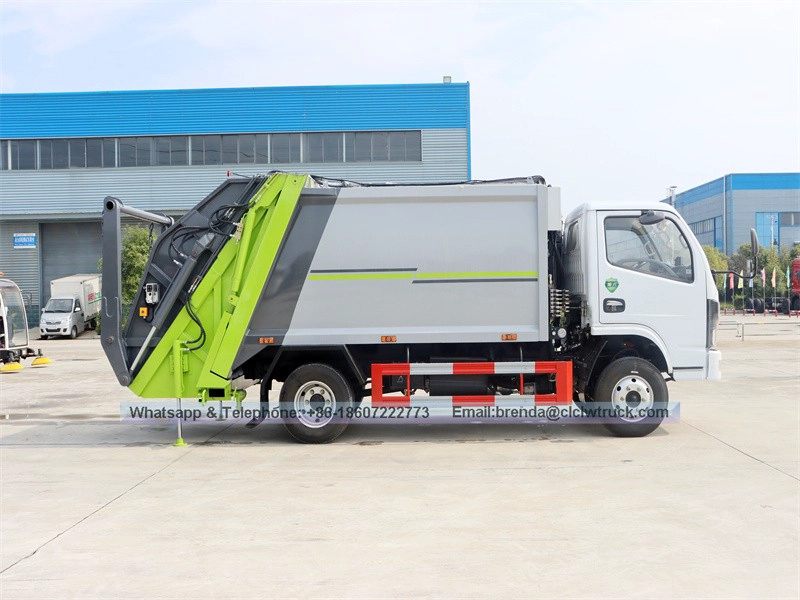

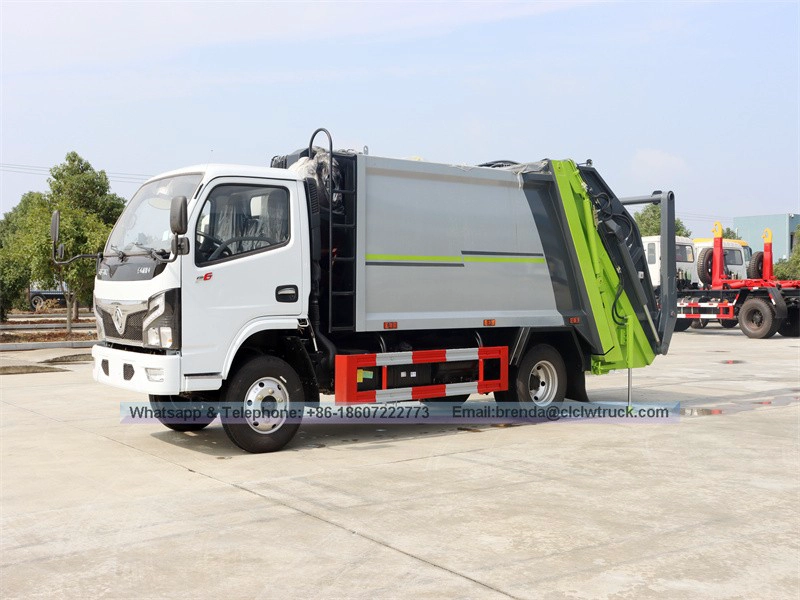

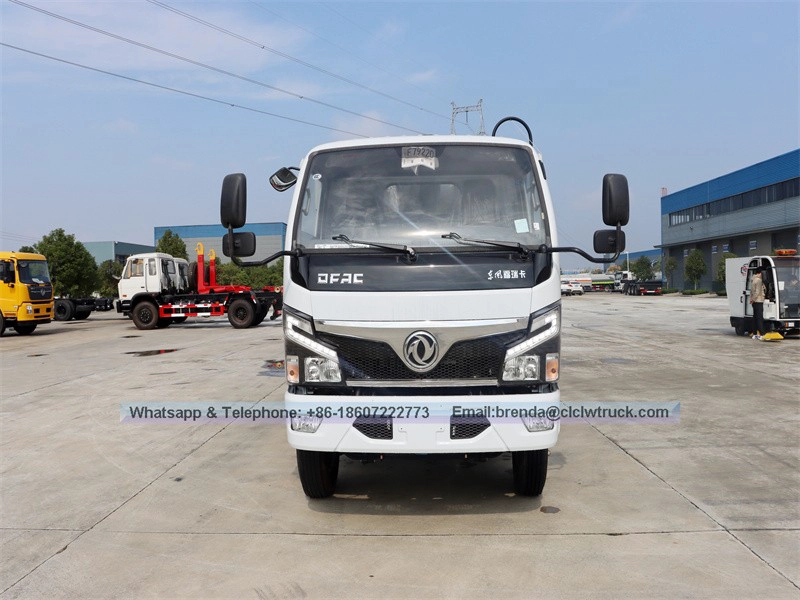

CSC5060ZYS3 Compression Garbage Truck

Gross weight(Kg)

6495

Driving type

4*2

Payload (Kg)

1000

Overall dimension (mm)

6450*2050*2500

Curb weight(Kg)

5365

Cab seats (man)

2

Approach/departure angle (°)

19/10

Front/rear hang(mm)

1032/2118

Axle No.

2

Wheelbase (mm)

3300

Axle load(Kg)

2570/3925

Max speed(Km/h)

95

Chassis specifications

Chassis model

EQ1060TJ20D3

Manufacture

Dongfeng automobile company

Brand name

Dongfeng

Overall dimension (mm)

5820*1940*2080

Tire specification

7.00-16

Tires No.

6+1

Steel spring number

8/9+5

Front track(mm)

1506

Fuel type

Diesel

Rear track(mm)

1466

Emission standard

Euro Ⅲ

Gear box

5 forward

Cab

Flat single cab, luxurious interiors and seats, air conditioning is optional

Engine  model

Engine manufacture

Displacement(ml)

Power(Kw)

CY4102-C3F

Dongfeng chaoyang chaochai power co.,ltd

3856

70

Performance

Body capacity（m³）

4/5

Hopper capacity（m³）

0.8

Compression cycle time（S）

30

Unload garbage time（S）

40

Control system

Manual + Automatic

Main Characteristic

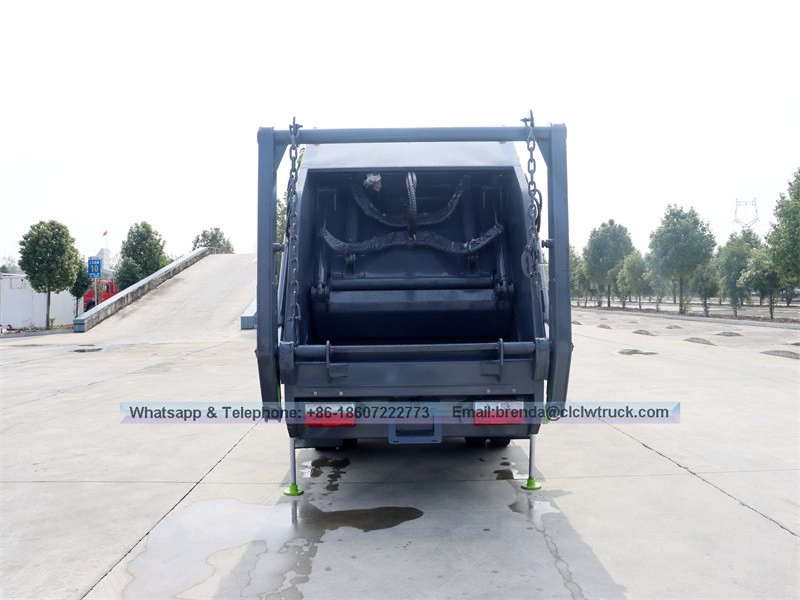

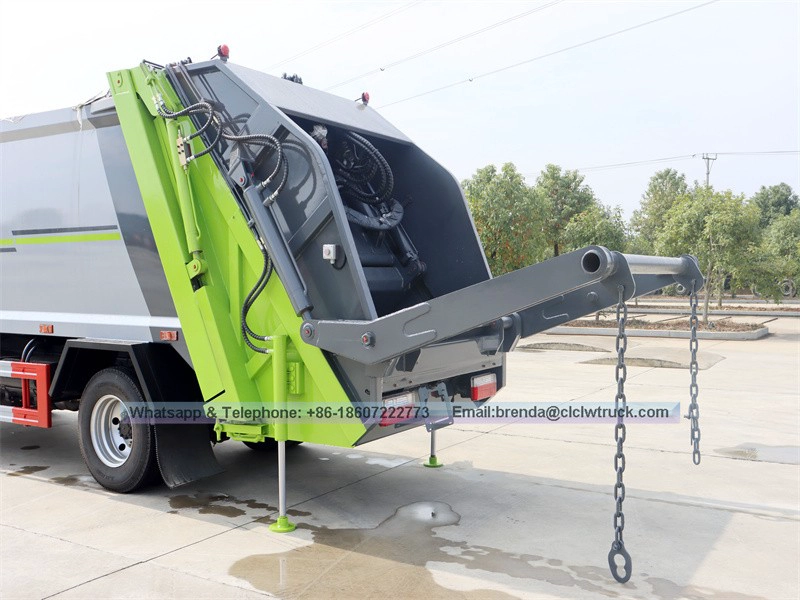

1、Can choose 240L（single bin、double bins）or 360L、660L、1100L standard bin lifting and turnover mechanism，can also choose ground hopper and other kinds of loading mechanism.

2、With manual and automatic two sets of control method, the operator can control in the cabin, in the middle side or the back of the truck , very convenient and efficient.

3、With working device of emergency braking stop button。

4、Garbage body use frame design, elegant, strong structure, large effective capacity.

5、Equipped with special collection box, sewage directly into the sewage tank in the process of compression, that is effectively prevent second pollution caused by sewage leaks.

6、Through hydraulic system design, the truck achieve the function of two-way garbage compression, that is improve the compressibility ,make the compression ratio up to 1:2.5,the garbage can reach more then 600～800kg／m3 after compression.
