Main specifications

Product model、name

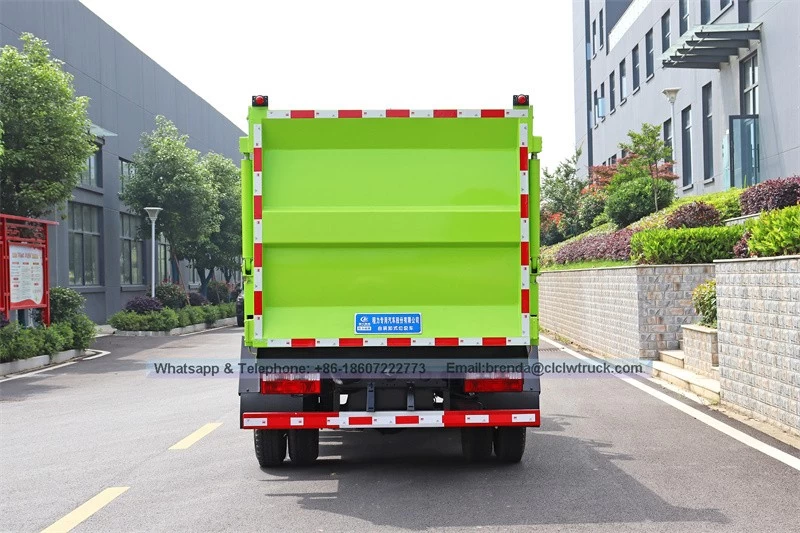

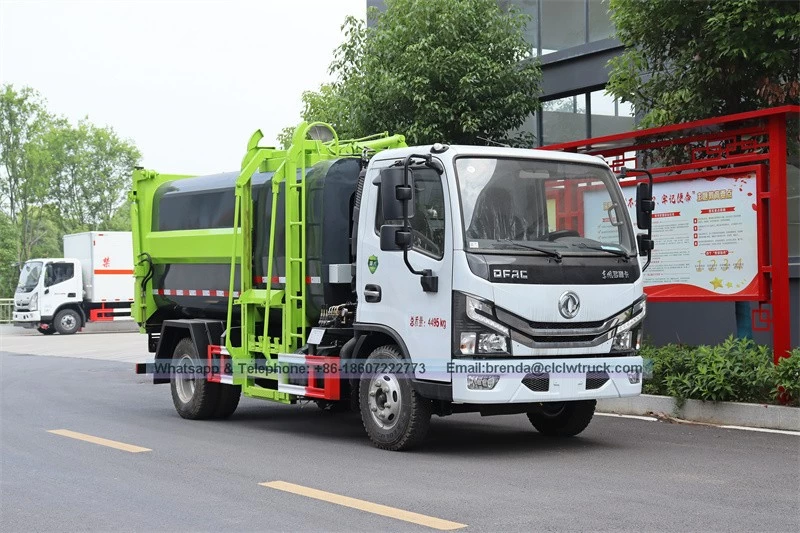

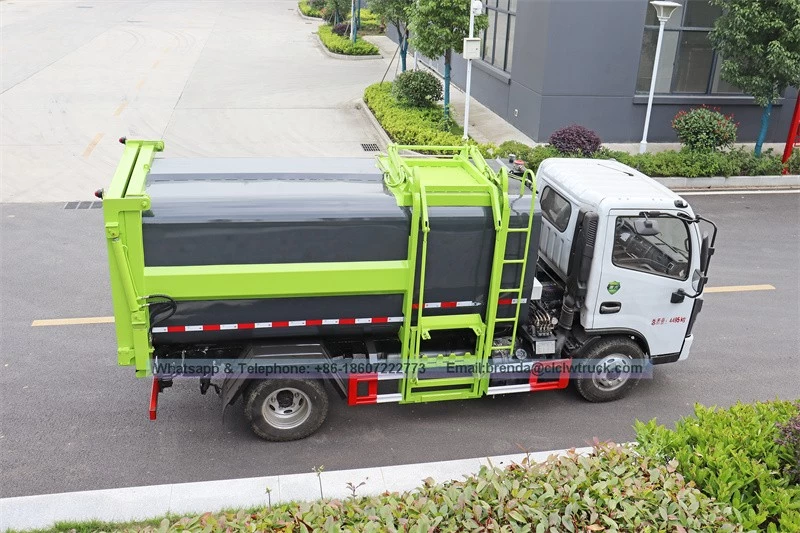

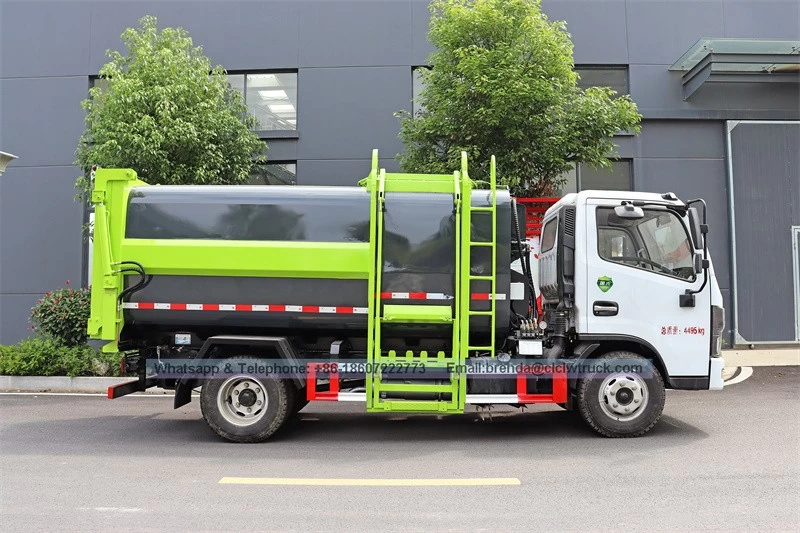

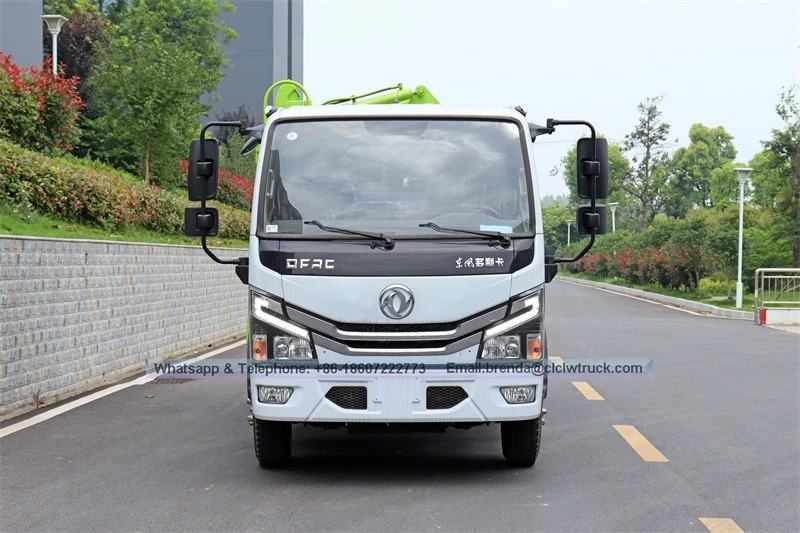

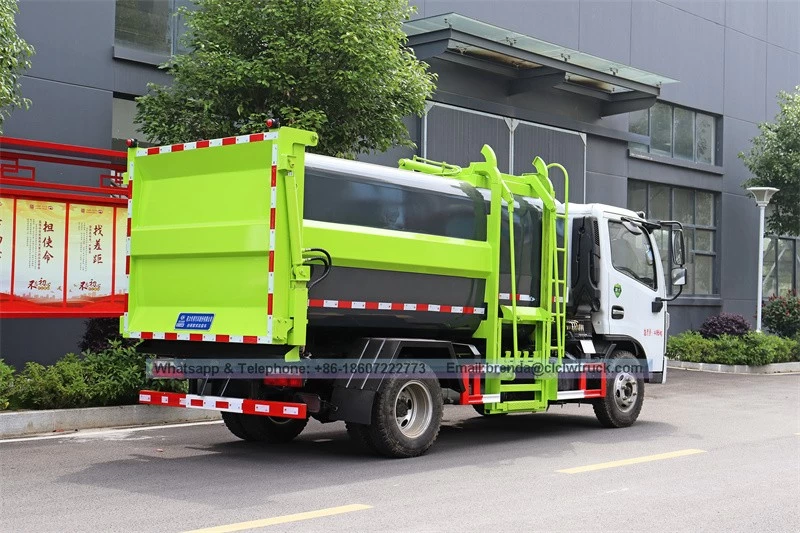

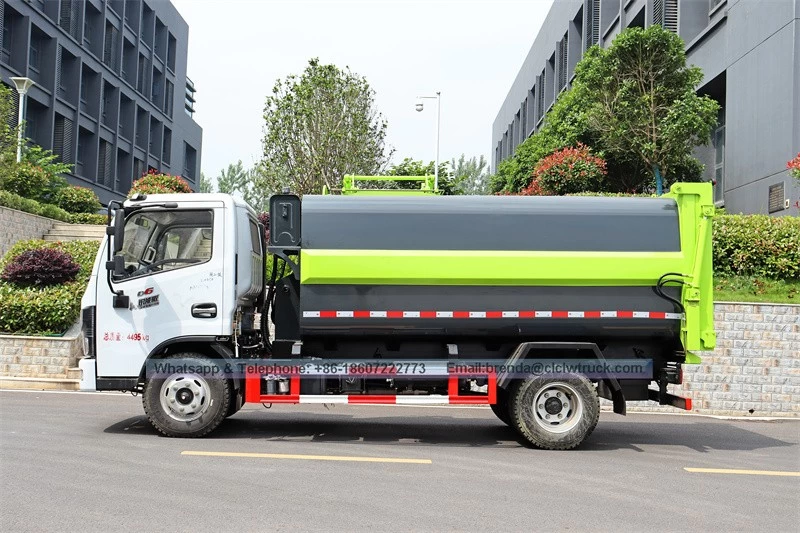

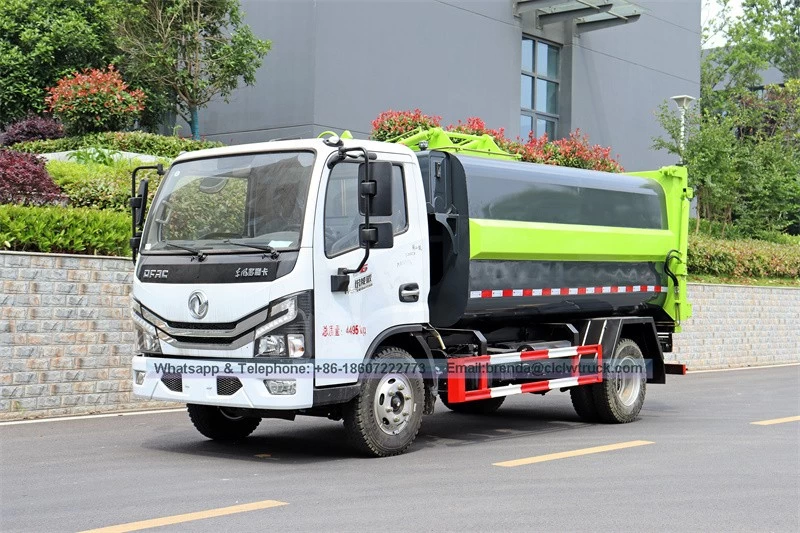

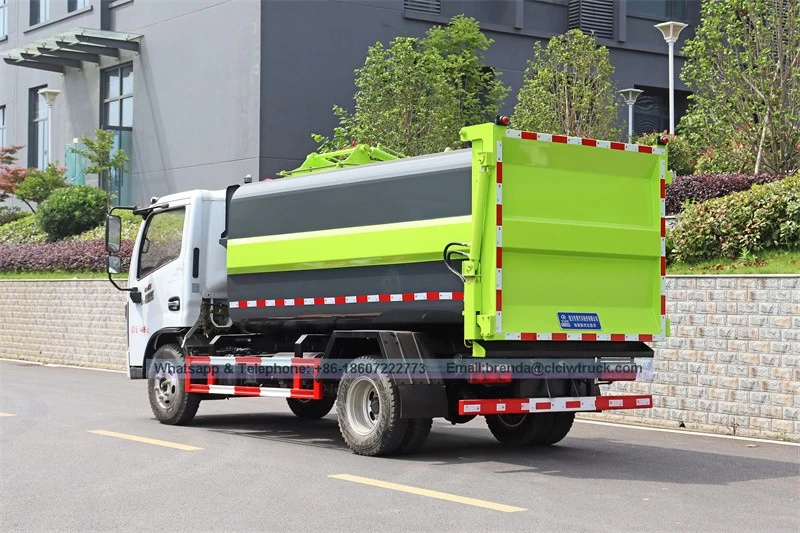

XZL5061ZZZ3 Hydraulic Lifter Garbage truck

Gross weight(Kg)

6495

Driving type

4 x 2

Payload (Kg)

2000

Overall dimension (mm)

5650×1950×2650

Curb weight(Kg)

4300

Cab seats (man)

3

Approach/departure angle (°)

19/15

Front/rear hang(mm)

1032/1318

Axle No.

2

Wheelbase (mm)

3300

Axle load(Kg)

2350/4145

Max speed(Km/h)

90

Chassis specifications

Chassis model

EQ1060TJ20D3

Manufacture

Dongfeng Automobile Co., Ltd

Brand name

DFAC

Fuel type

Diesel

Tire specification

7.00-16

Tires No.

6+1(Spare tire)

Front track(mm)

1506

Rear track(mm)

1466

Emission standard

Euro III

Gear box

5 forward gears, 1 reverse gear

Cab

Flat cab, tiltable luxurious interior trim, seat. with power steering, air conditioning can be equiped if customer requires.

Engine  model

Engine manufacture

Displacement(ml)

Power(Kw)

CY4102-C3F

Dongfeng Chaoyang Chaochai Engine Co., Ltd

3856

70

Performance

Body capacity（m³）

5

Main Characteristic

Hydraulic lifter garbage truck can be mechanized automatic loading and unloading garbage, it consists of sealed garbage box, hydraulic system and operating system, can work with dozens of dust bins which achieve one truck with multiple bins joint operation. The hydraulic lifting device can hang the dust bins up and down , one working cycle time is 50s. The sealed box is environmentally friendly and hygienic, can avoid secondary pollution.
