Main specification

Product model and name

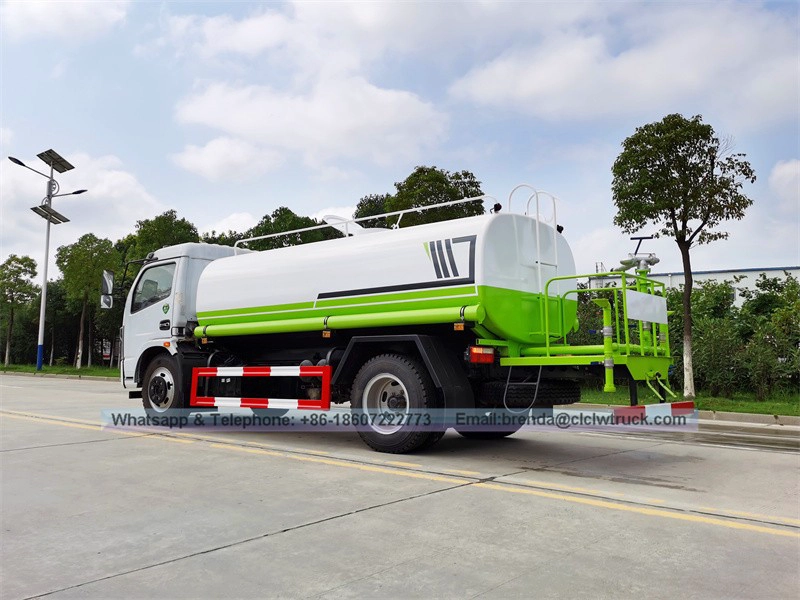

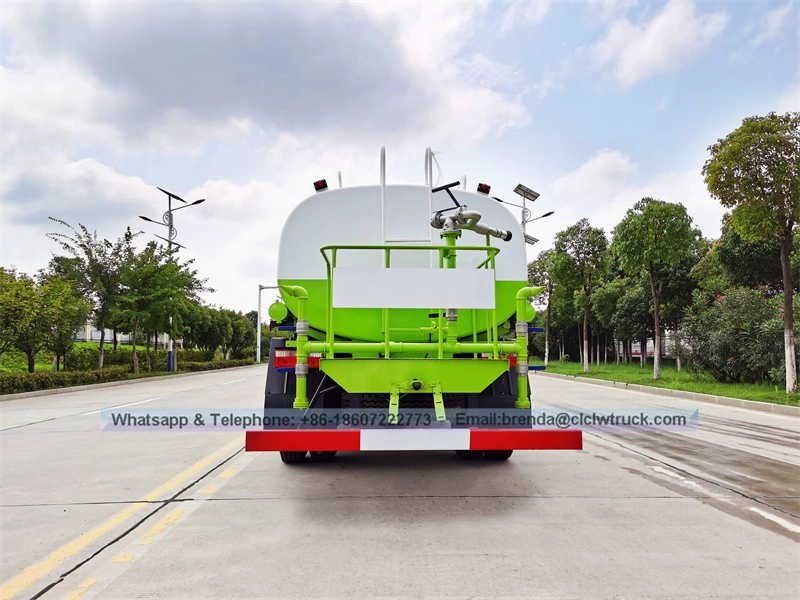

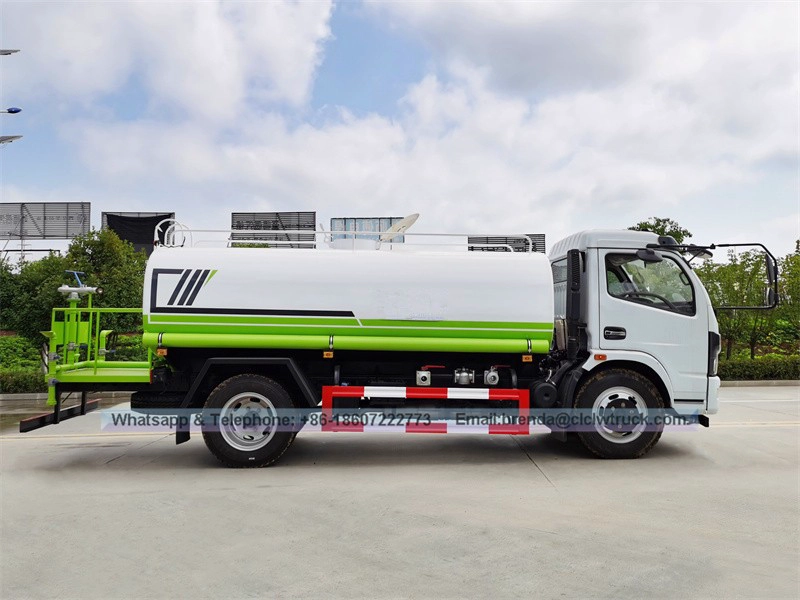

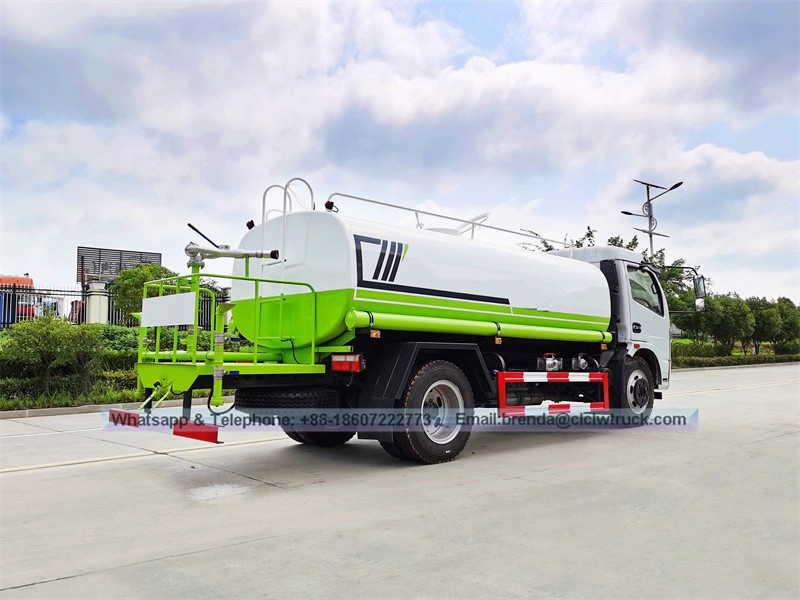

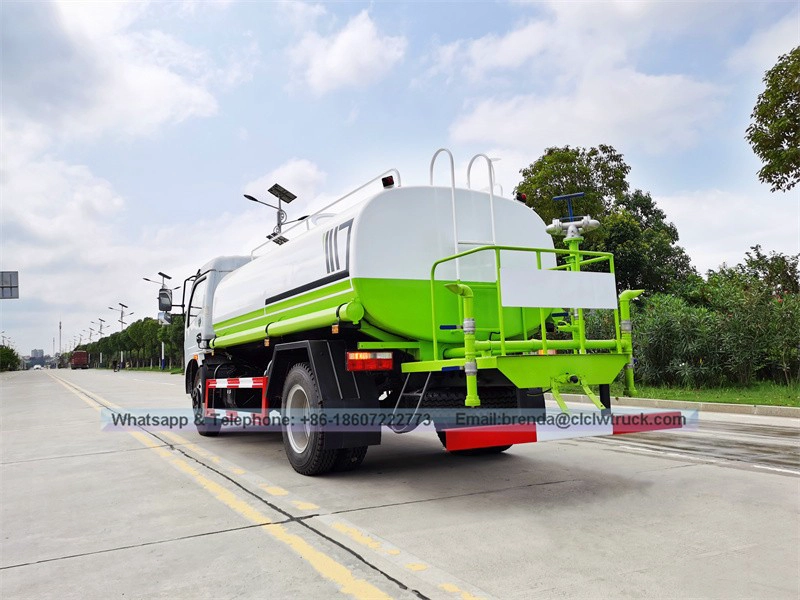

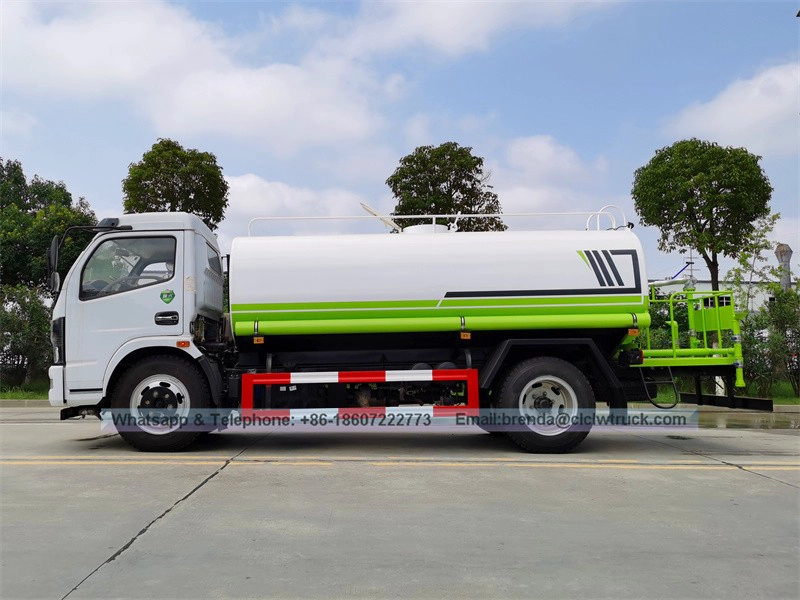

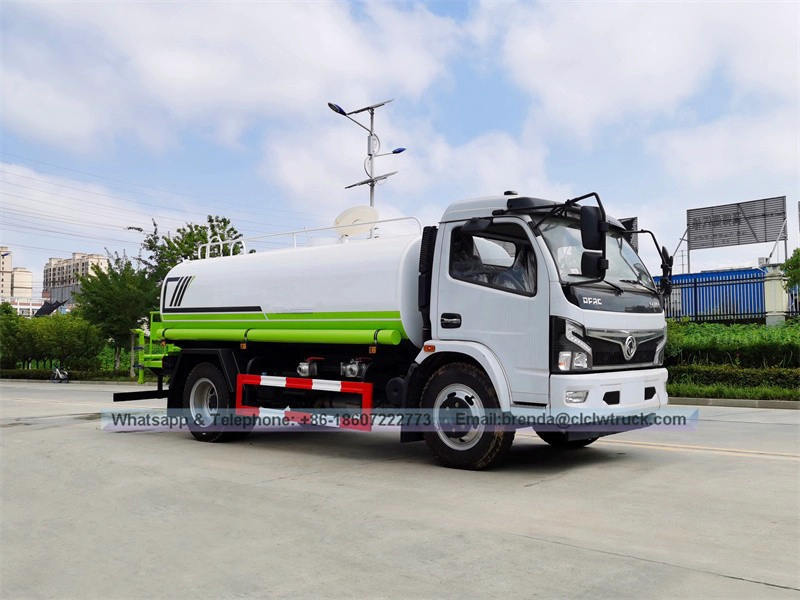

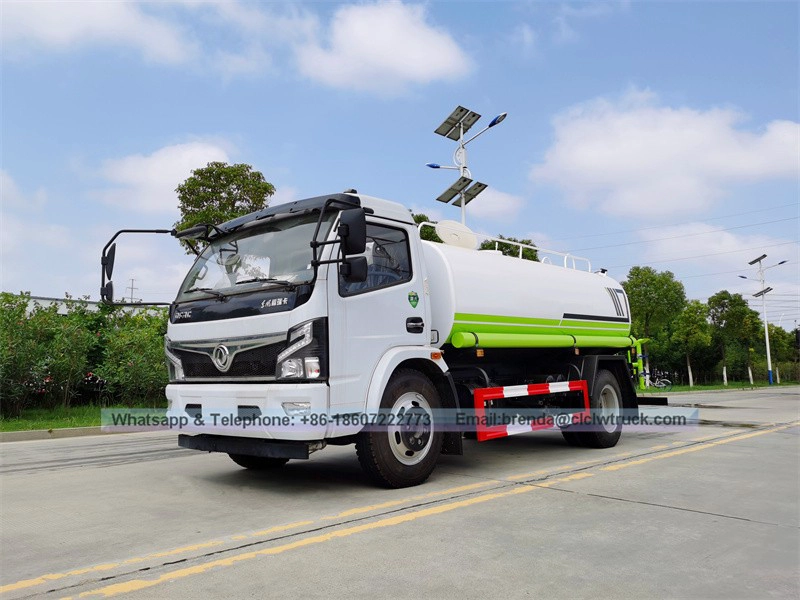

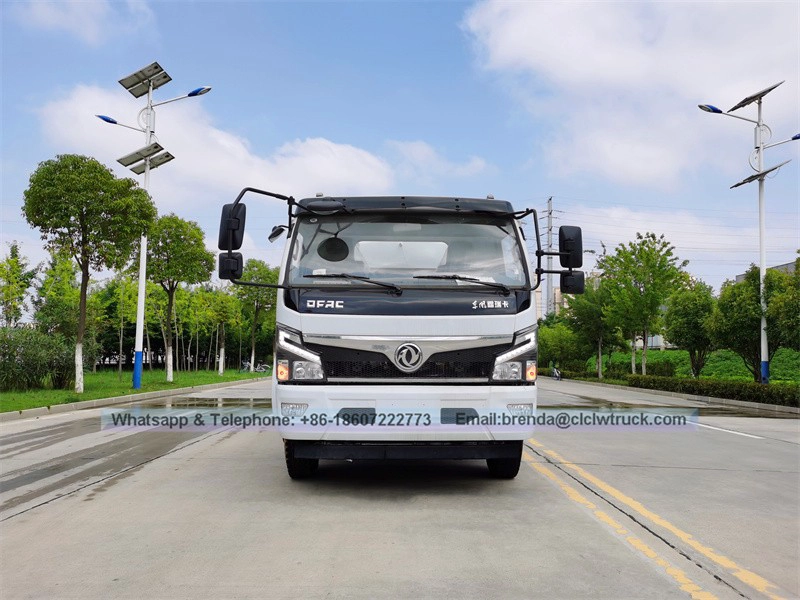

ALA5090GPSE3 water truck

Gross weight(Kg)

9400

Drive type

4X2

Payload(Kg)

5200

Overall dimension(mm)

7000×2300×2750

Curb weight(Kg)

4005

Cab seats

3

Approach/departure angle(°)

20/10

Front/rear hang(mm)

1180/2020

Axle No.

2

Wheelbase(mm)

3800

Axle load(Kg)

3460/5940

Max speed(Km/h)

95

Chassis specification

Chassis model

EQ1090T9ADJ3AC

Manufacturer

Dongfeng Motor Co., Ltd

Brand name

Dongfeng

Dimension(mm)

6695×2285,2180×2350,2480

Tyre specification

7.50R16

Tyre No.

6

Steel spring Number

11/9+7

Front track base(mm)

1831,1750

Fuel type

Diesel

Rear track base(mm)

1640,1586

Emission standard

Euro 3

Transmission

5 forward gear,1 reverse gear

Cab

Single row,Luxurious interior trim with seats.And power steering.Air Condition is optional.

Engine model

Engine manufacturer

Displacement(ml)

Power(Kw)

CY4102-E3C

Dongfeng Chaoyang Chaochai Power Co.,Ltd

3856

91

Performance

Tank volume（m³）

6 to 8

Tank material

Carbon steel Q235

Water pump model

80QZF-60/90N

Water pump flow(m³/h)

60

Watering width(M)

≥14

Water cannon range (M)

≥28

Feature and Application

1).Equipped with high power self-suction water pump that characterized by high-pressure and fast speed suction.

2).Equipped with front, rear and side sprinklers and high position sprinkler, and rear working platform.

3).The water cannon which is installed on the working platform can rotate by 360 degree and the water flow can be adjusted into various rain shape. There are straight shape, heavy rain, moderate rain and drizzle etc. The max range can reach 30M.

4).Equipped with fire coupling, flow valves, filter screen and water level gauge.

5).According to customers’ request, the crane, high working platform and spraying machine also can be equipped.

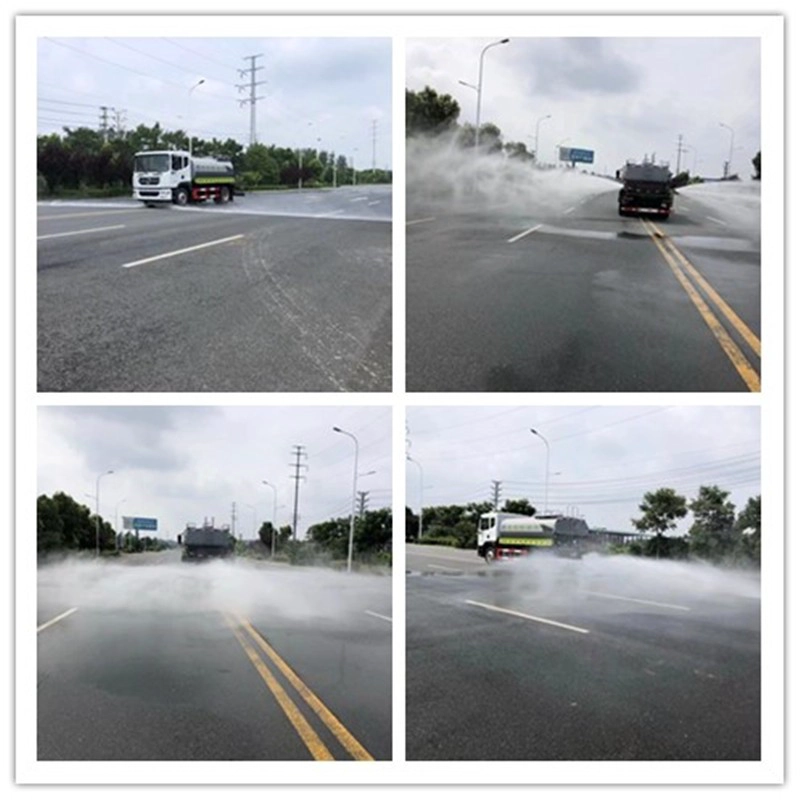

6).Mainly used for washing on urban roads, watering and greening on trees, green belts and lawn and dust full of construction sites. And also used for drinking water delivery and fire fighting function etc.
