Dongfeng 4000Liter fire truck supplier china,4X2 4CBM water tank fire fighting truck manufacturer
- 1.Wheelbase(mm):3800
- 2.Tyre specification:8.25-16
- 3.Transmission:5 forward gear,1 reverse gear
- 4.Fire monitor flow rate:30L/S
- 5.Fire pump flow rate:30L/S
- 6.Fire monitor range≥50m/1.0MPa
- 7.Chassis model:EQ1070TJ9AD3
- 8.Horsepower(HP):124
|
Main specification |
||||||||||
|
Product model and name |
EQ1070TJ9AD3 Water tank fire fighting truck |
|||||||||
|
Gross weight(Kg) |
7450 |
Drive type |
4x2 |
|||||||
|
Payload(Kg) |
2000 |
Overall dimension(mm) |
6850X2285X2930 |
|||||||
|
Curb weight(Kg) |
5000 |
Cab seats |
6 |
|||||||
|
Approach/departure angle(°) |
20/13 |
Front/rear hang(mm) |
1180/1815 |
|||||||
|
Axle No. |
2 |
Wheelbase(mm) |
3800 |
|||||||
|
Axle load(Kg) |
3050/4400 |
Max speed(Km/h) |
90 |
|||||||
|
Chassis specification |
||||||||||
|
Chassis model |
EQ1070TJ9AD3 |
Manufacturer |
Dongfeng Motor Co.,Ltd |
|||||||
|
Brand name |
Dongfeng |
Dimension(mm) |
6695×2285,2180×2350,2475 |
|||||||
|
Tyre specification |
8.25-16 |
Tyre No. |
6 |
|||||||
|
Steel spring number |
11/9+7,8/10+7 |
Front track base(mm) |
1835,1750 |
|||||||
|
Fuel type |
Diesel |
Rear track base(mm) |
1640,1586 |
|||||||
|
Emission standard |
Euro 3 |
Transmission |
5 forward gear,1 reverse gear |
|||||||
|
Cab |
Four opening doors and whole flat cab with double row,whole steel frame and welding structure with optional air condition. |
|||||||||
|
Engine model |
Engine manufacturer |
Displacement(ml) |
Power(Kw) |
Horsepower(HP) |
||||||
|
CY4102-E3C |
Dongfeng Chaoyang Chaochai Power Co.,Ltd |
3856 |
91 |
124 |
||||||
|
Water tank fire fighting truck performance |
||||||||||
|
Water tank volume(L) |
4000 |
|||||||||
|
Fire monitor |
Fire monitor model PS30, level rotation by 360º, Max elevation +45º, Max angle of depression -15º, Flow rate:30L/S,Range≥50m/1.0MPa |
|||||||||
|
Fire pump |
Model:CB10/30 Flow rate: 30L/S Pressure:1.0MPa |
|||||||||
|
Water tank fire truck Feature |
||||||||||
|
A.The water tank fire fighting truck is mainly made up of the cab,water tank,water pump house, equipment boxes,water pump,and inlet and outlet water system, fire monitor, electronic alarm, alarm lamp etc.parts. B.The entire distribution of truck is divided into three parts.The front part is passenger room.The middle part is pump house.The rear part is the truck body.The front part of car body is water tank,the rear part is equipment box. C.It has the feature of high power,high speed and big carrying liquid capacity etc.It is adopted the extended cab.With seat comfortably and centralized operation, simple maintenance, D.it is widely used in the public security fire brigade, the petroleum chemical industry, factories and mines enterprises and ports, terminals and other places to save the large of oil fire and general material fire in large and medium-sized cities.It is the ideal large fire-fighting equipment. |
||||||||||

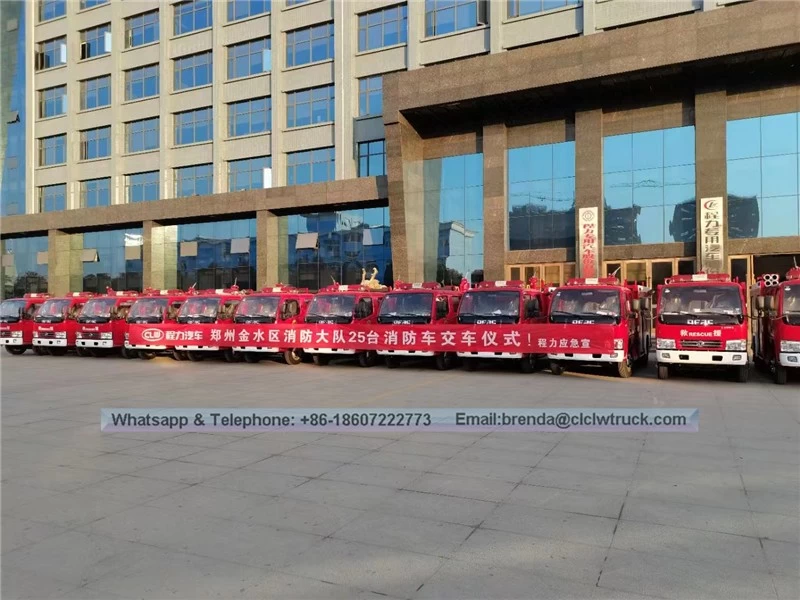

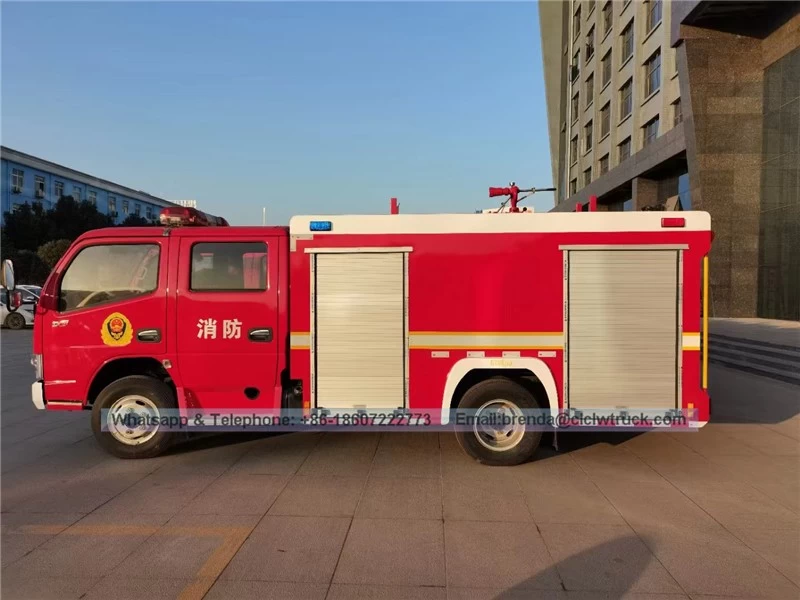

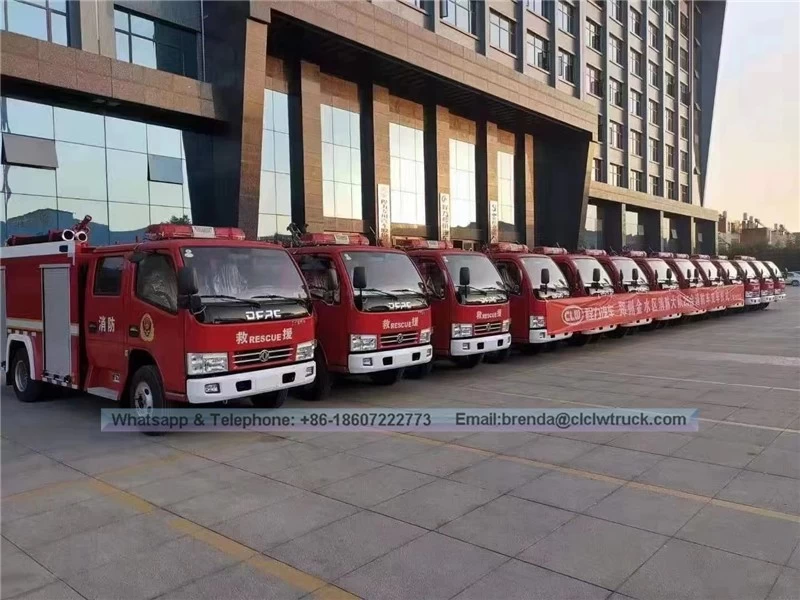

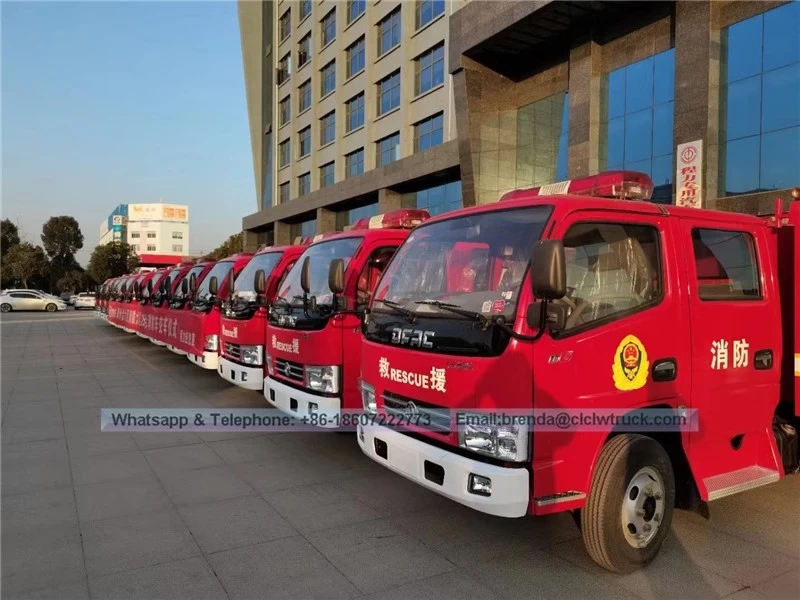

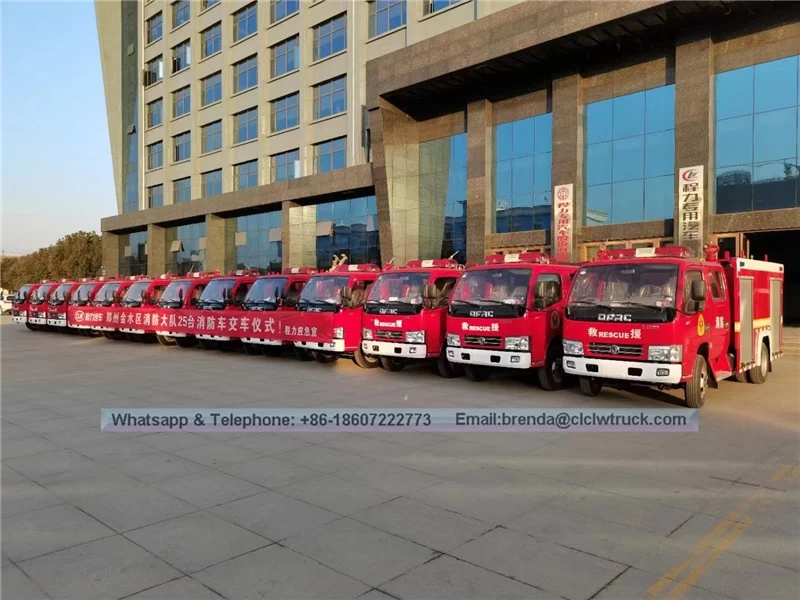

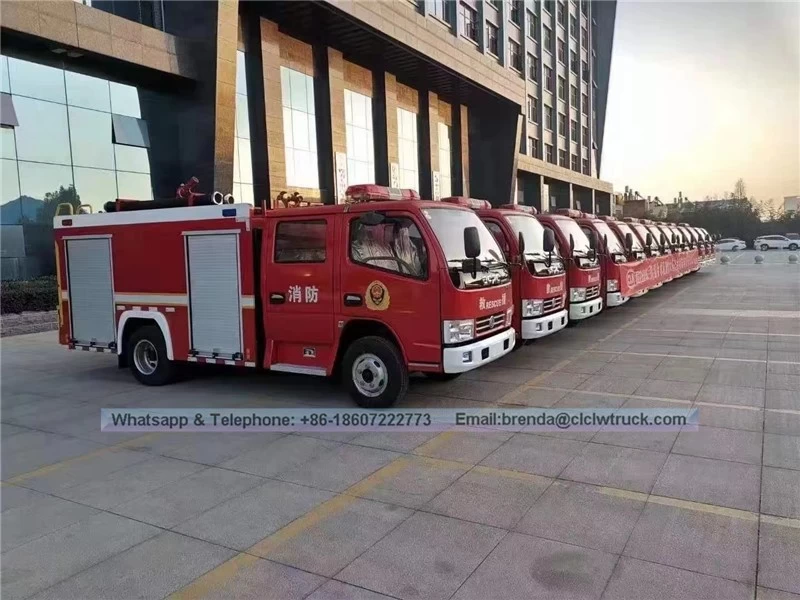

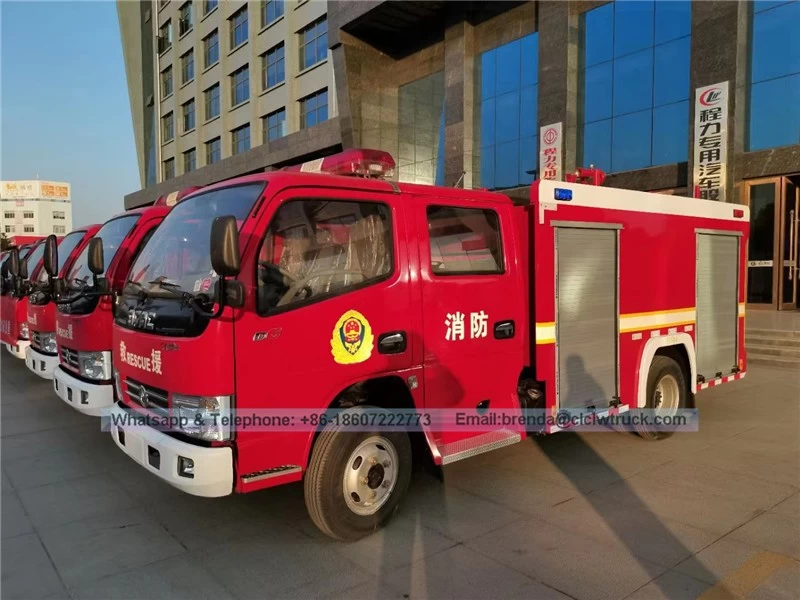

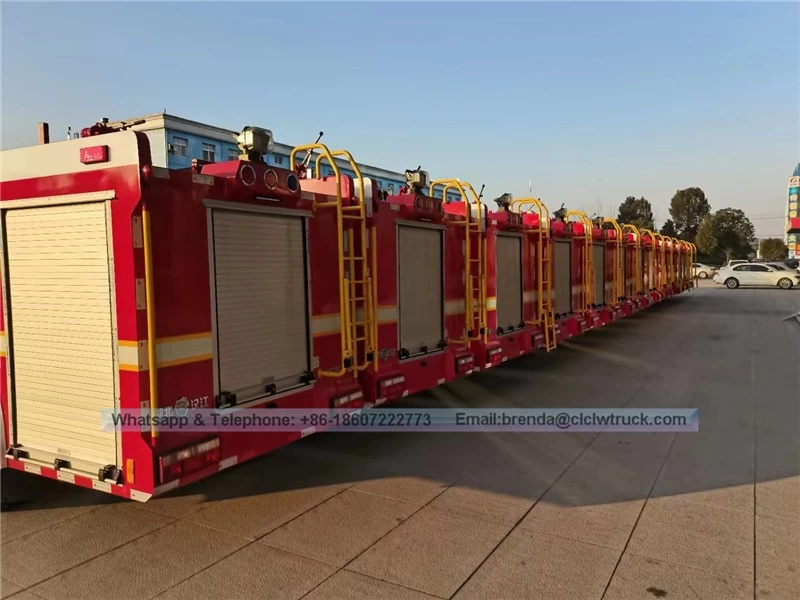

Dongfeng 4000Liter Fire Truck Image
