Cheap 4x2 road sweeper truck, road sweeper vehicles for sale
- 1).Product model、name: CLW5090TSL3 Road Sweeper truck
- 2).Overall dimension (mm):6700×2290×2500
- 3).Cabin:Luxury interior and Instrument bar, with air conditioning.
- 4).Main engine model:CY4102-E3C
- 5).Sweeping speed (km / h):3-20
- 6).Sweeping capacity（㎡/h）:9000- 60000
- 7).Maximum Grain size and quality (mm):100mm\±1.5kg
- 8).Cleaning Rate:96%
|
Main specifications |
|||
|
Product model、name |
CLW5090TSL3 Road Sweeper Truck |
||
|
Gross weight(Kg) |
9400 |
Drive type |
4 X 2 |
|
Payload (Kg) |
3500 |
Overall dimension (mm) |
6700×2290×2500 |
|
Curb weight(Kg) |
5705 |
cab seats (man) |
3 |
|
Approach / departure angle(°) |
22/12 |
Front/rear hang(mm) |
1180/1720 |
|
Number of axles |
2 |
Wheelbase(mm) |
3800 |
|
Axle load |
3460/5940 |
Max speed(Km/h) |
90 |
|
Chassis specifications |
|||
|
Chassis model |
EQ1090T9ADJ3AC |
Manufacturer |
DongFeng Motors Co., Ltd. |
|
Brand name |
DongFeng |
Overall dimension(mm) |
6695×2285×2480 |
|
Tire specification |
7.50R16 |
Tires No. |
6 |
|
Steel spring number |
11/9+7,8/10+7 |
Front track(mm) |
1831 |
|
Fuel type |
Diesel |
Rear track(mm) |
1640 |
|
Emission standard |
Euro III |
Transmission |
5 forward gear,1 reverse gear |
|
Cabin |
Car interiors, with the direction of power and USB interface, cassette player, with air conditioning, |
||
|
Engine model |
Engine manufacture |
Displacement(ml) |
Power(Kw) |
|
CY4102-E3C |
DongFeng Chaoyang Diesel Co.,Ltd |
3856 |
91 |
|
Road Sweeper Performance |
|||
|
Trash tank volume (m³) |
5 |
Water tank volume (m³) |
2.5 |
|
Material of trash tank |
Stainless steel |
Material of water tank |
Stainless steel |
|
Model of auxiliary engine |
JX493G |
Power of auxiliary engine(Kw) |
57KW |
|
Manufacturers of auxiliary engine |
JiangXi ISUZU Engine Co., Ltd. |
Max sweeping width(mm) |
3200 |
|
Sweeping speed (km / h) |
3-20 |
Sweeping capacity（㎡/h） |
9000- 60000 |
|
Maximum Grain size and quality (mm) |
100mm\±1.5kg |
Cleaning Rate |
96% |
|
Road Sweeper Features |
|||
|

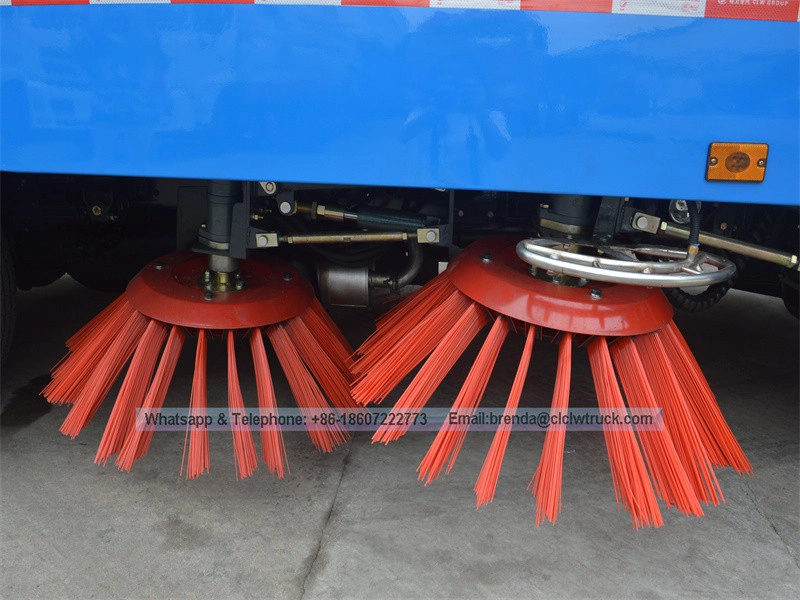

1.The control box is in the cab, all kinds of system electrical centralized to control, and easy to operate! 2, Four scan disk combinated with suction nozzle in working. according to a different cleaning conditions Scan disk speed can be controlled by choosing three gear-High, medium and low, which can make sure there be have a good cleaning results in a variety of pollution status. and when met the obstacle, the scan disk can be have a automatic avoidance protections and features automatic reset function, and retracted automaticly, then reseted automaticly after over some obstacles! 3.Both of side of the scan disk can be working altogether, or unilateral work independently. 4.The core components of hydraulic systems adopts the original import! |
|||

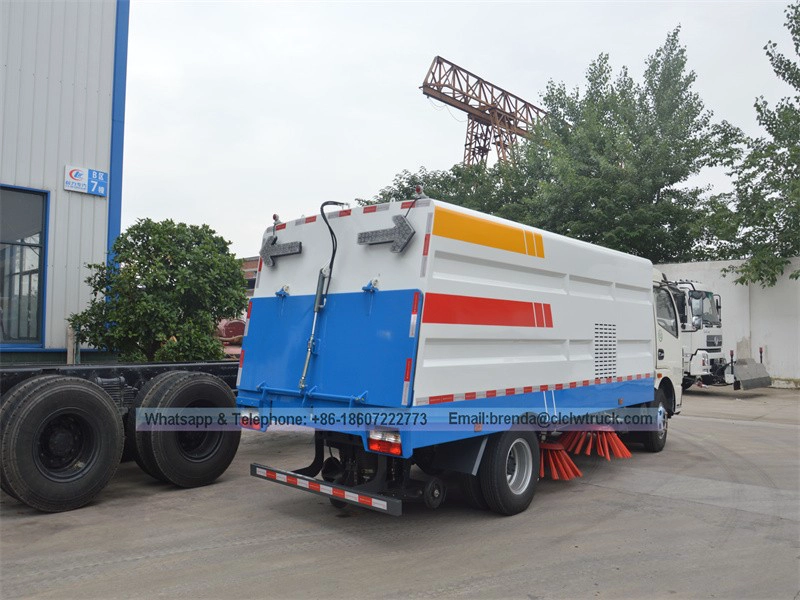

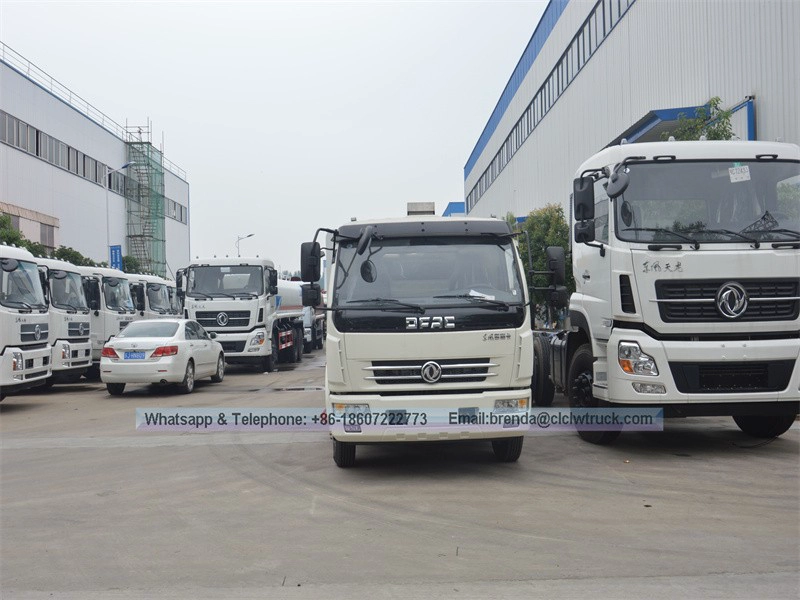

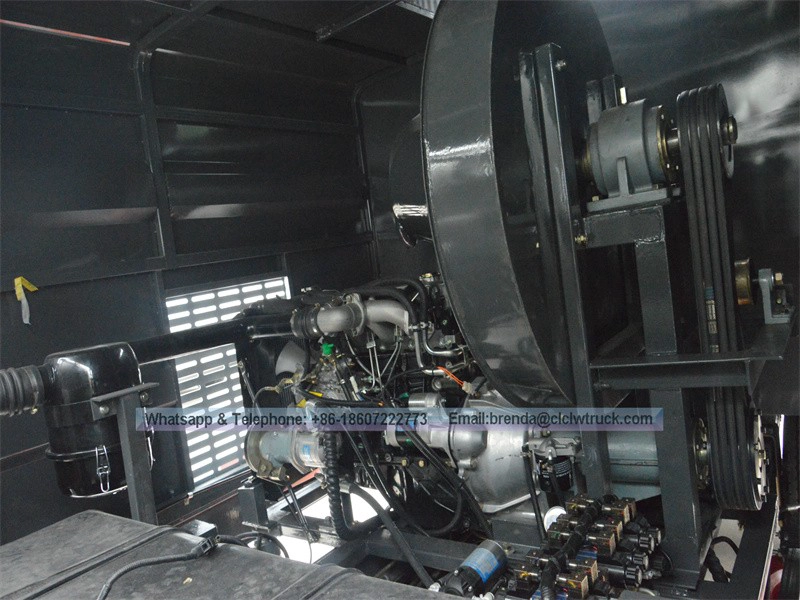

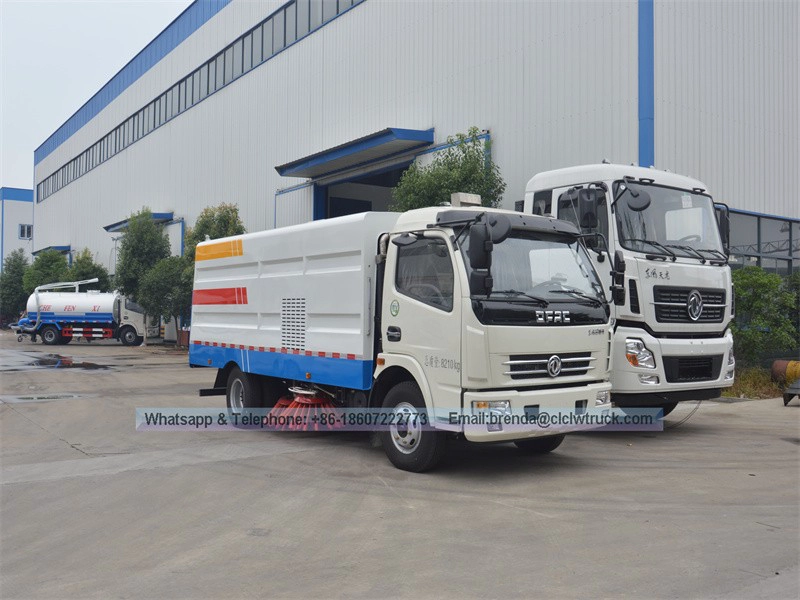

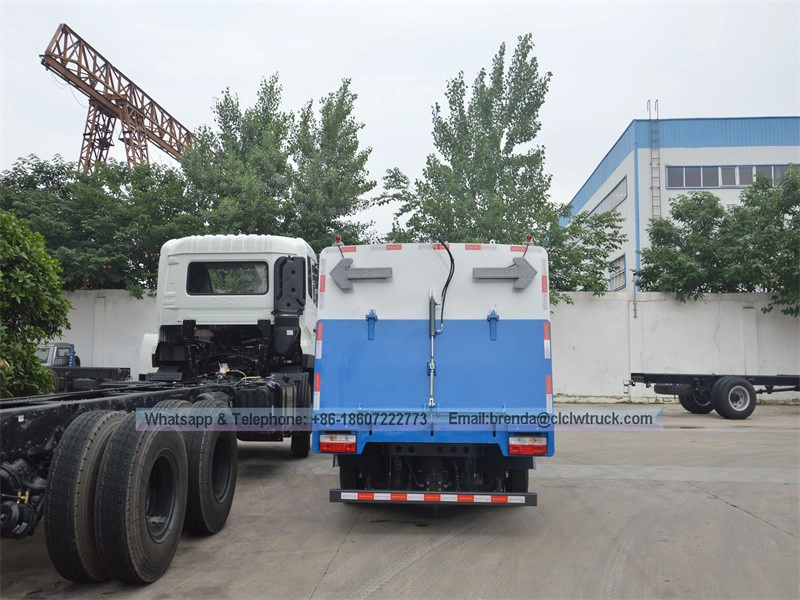

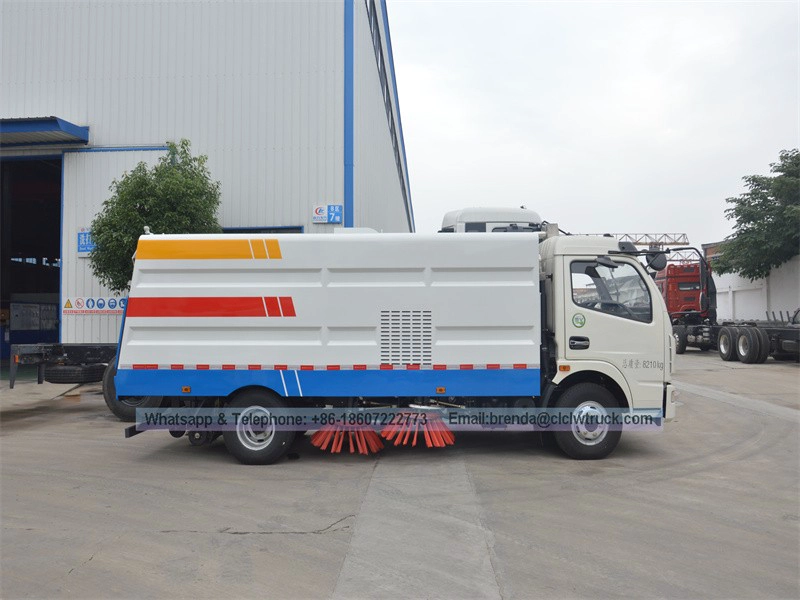

Image as below:
