I. Vehicle Parameter :

1.Model and name

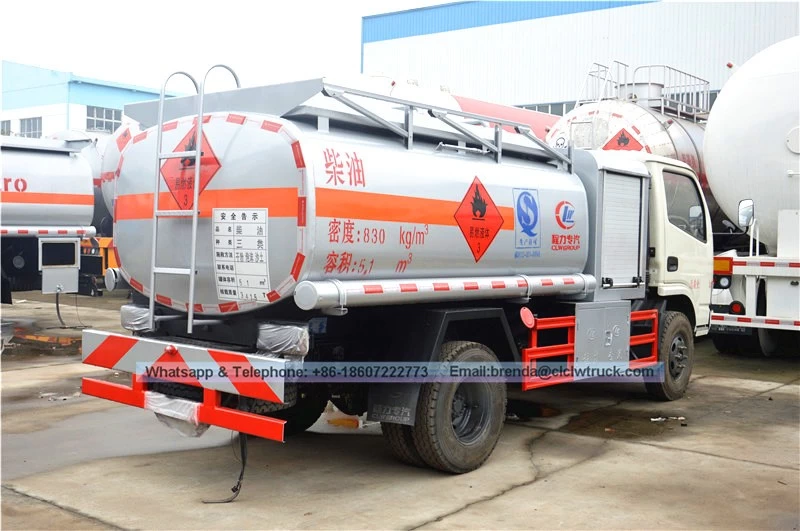

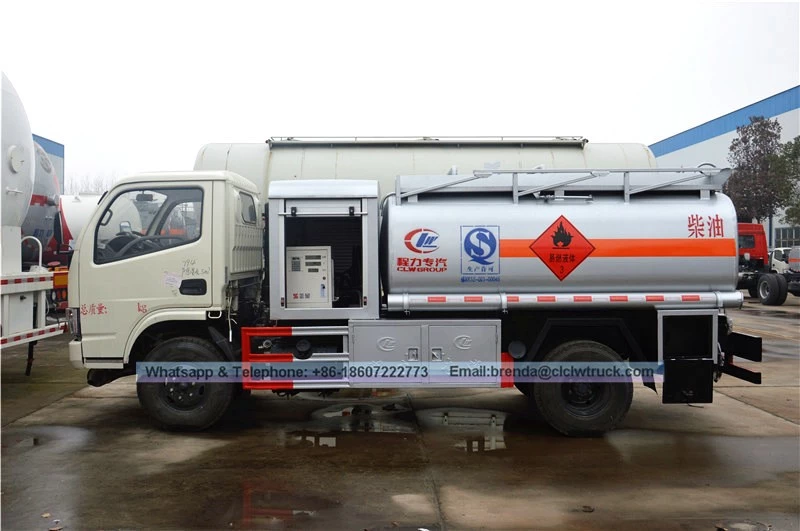

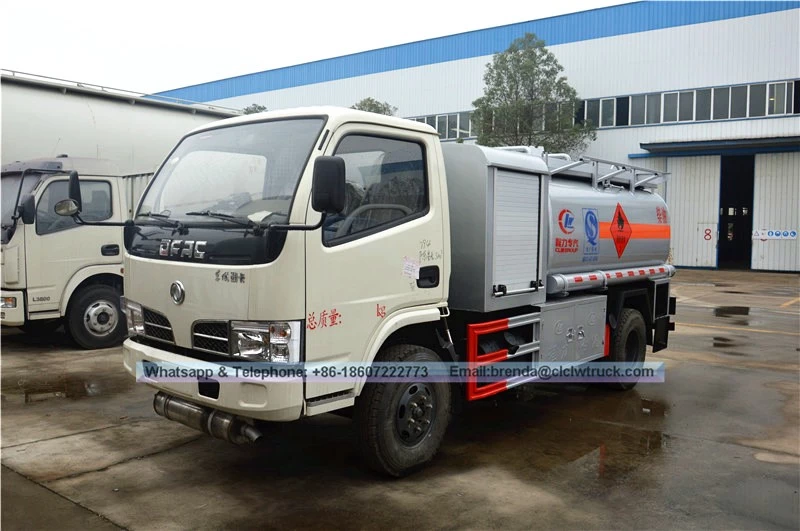

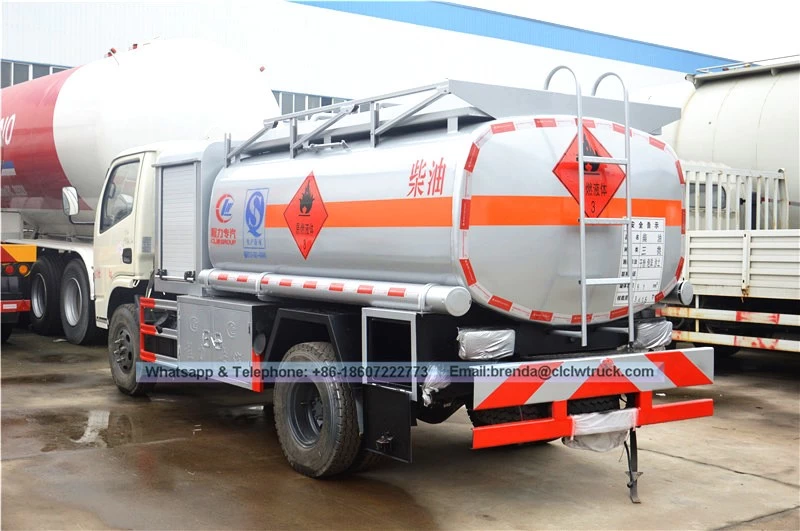

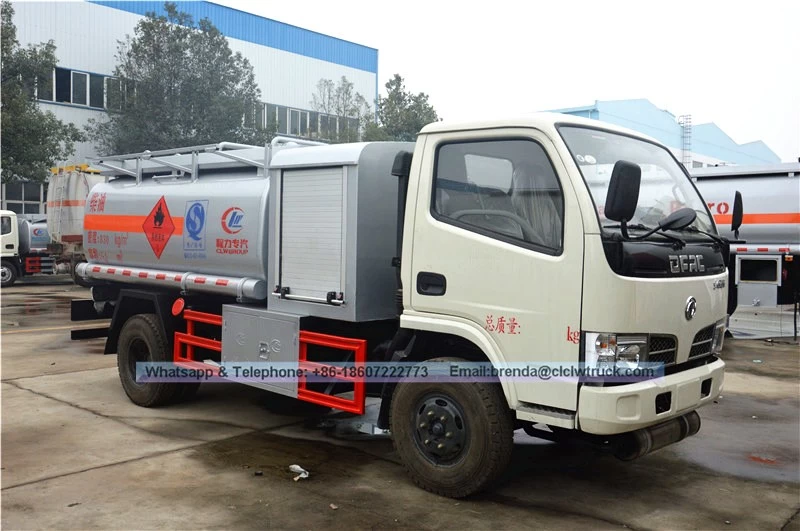

CLQ5060GJY3 fueling truck

2.manufacturer

Hubei  Chengli Ocean Auto Sales Co.,Ltd

3.Overall dimension(mm)

5990×2000×2350

4.curb weight

3300 Kg

5.tank  volume

5000 Liter

6.Tank material

carbon steel Q235

7.cab seats

3

8.Max speed

80 km/h

9.Transmission

5 forward gear,1 reverse gear

10.brake system

Air brake

11.Approach/

departure angle

17/12

12.front/rear hang(mm)

1032/1658

13.steering type

Left hand drive

14.cabin

White(other colors are available).Single row, cab can be tippable forwardly,with power steering.

Air condition is optional.

15.Performance characteristic

A, with multiple baffle plates in the tank, the tank has the advantages of high intensity, stability,

 transporting safety etc.

B, Oil pump is installed to suck or discharge oil, with high suction pressure and speed.

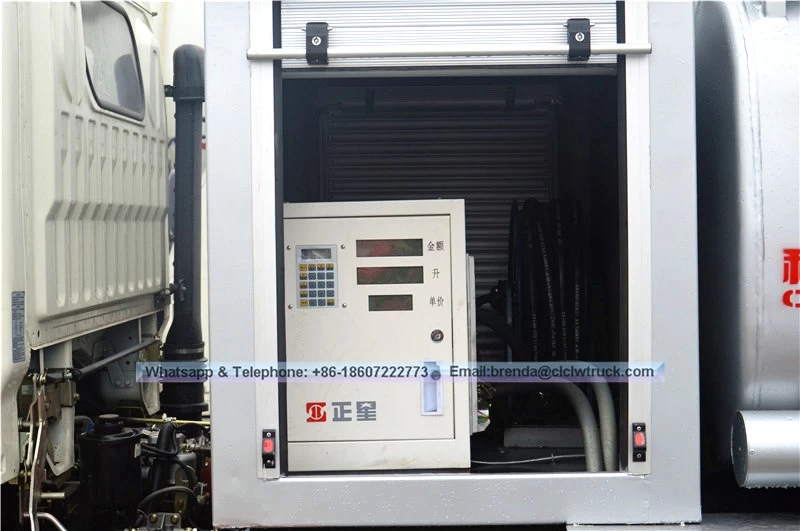

C, Computer refueling machine is installed, with a 15 meter automatic return oil pipe and refueling

 gun, achieving mobile refueling  function.

D, according to users’ needs, the tank can be designed as a single compartment or several

compartments to contain different oils.

E, according to users’ needs, the side or the rear of the tank can be installed 1 to 3 self-flowing valves

II. Chassis parameter :

1、 Chassis model

EQ1060TJ20D3

2、 Brand name

Dongfeng

3、manufacturer

Dongfeng Motor Co.,Ltd

4、Drive type

4 x 2

5、Wheel base

3300 mm

6、Front track base(mm)

1506

7.Rear track

base(mm)

1466

8、Tire specification

7.00R16

9、tyre number

6

10、axle load(Kg)

2275/4220

11、axle number

2

III. Engine parameter :

1.engine type(emission/power)

CY4102-C3F  (3856 ml / 70kw)

2、 Engine manufacturer

Dongfeng Chaoyang Chaochai Power Co.,Ltd

3、Fuel type

Diesel

4.Emissions standards

Euro 3
