Dongfeng 8 CBM Swing Arm Garbage Truck
- 1.Product model、name: CLW5100BZLT3 Swing Arm Garbage Truck
- 2.Gross weight(Kg):10990
- 3.Overall dimension (mm):7370x2470x3300
- 4.Chassis model:EQ1110GLJ (ADONGFENG)
- 5.bin capacity(m³):8
- 6.Bin material:Q235 carbon steel
- 7.Engine model:YC4E160-33( 4257ml/118kw )
- 8.Control system :Full hydraulic
Main specifications |
|||||||||
Product model,name |
CLW5100BZLT3 Swing Arm Garbage Truck |
||||||||
Gross weight(Kg) |
10990 |
Driving type |
4*2 |
||||||
Payload (Kg) |
4000 |
Overall dimension (mm) |
7370*2470*3300 |
||||||
Curb weight(Kg) |
6795 |
cab seats (man) |
3 |
||||||
Approach/departure angle (°) |
33/16 |
Front/rear hang(mm) |
1250/2170 |
||||||
Axle No. |
2 |
Wheelbase (mm) |
3950 |
||||||
Axle load(Kg) |
3970/7020 |
Max speed(Km/h) |
90 |
||||||
Chassis specifications |
|||||||||
Chassis model |
EQ1110GLJ |
Manufacture |
Dongfeng motor company |
||||||
Brand name |
Dongfeng |
Overall dimension (mm) |
7120*2462*2710 |
||||||
Tire specification |
9.00-20 |
Tires No. |
6+1 |
||||||
Steel spring number |
8/11+8 |
Front track(mm) |
1900 |
||||||
Fuel type |
Diesel |
Rear track(mm) |
1800 |
||||||
Emission standard |
Euro Ⅲ |
Gear box |
5 forward |
||||||
Cab |
|
||||||||
Engine model |
Engine manufacture |
displacement(ml) |
Power(Kw) |
||||||
YC4E160-33 |
Guangxi yuchai machinery co.,ltd |
4257 |
118 |
||||||
Performance |
|||||||||
The bin capacity(m³) |
8 |
Bin material |
Q235 carbon steel |
||||||
Control system |
Full hydraulic |
||||||||
Characteristic |
|||||||||
The characteristics of the truck is the bin can be separated from the body, by hydraulic lifting operation , the bin can hanging up and down, working cycle time for one swing arm is 60s or less, that can achieve a truck with multi-bins combination operate, cyclic transportation. The truck also with dump function, the garbage can dump out directly from the bin. In general, the bin can be installed in the pit, also can be placed on the ground, according to customers demand, you can choose to add a sealed lid, which can prevent the garbage leak float in the sky that pollute the environment. |
|||||||||
Dongfeng 8 CBM Swing Arm Garbage Truck

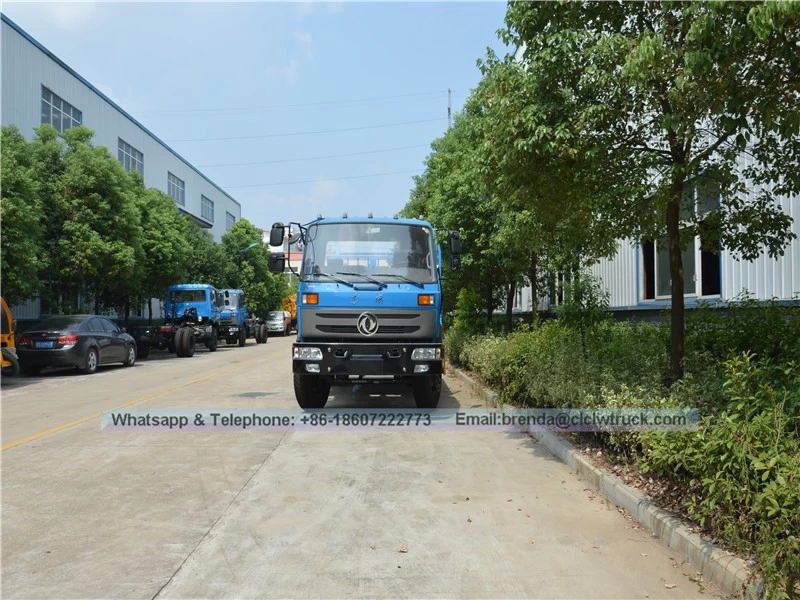

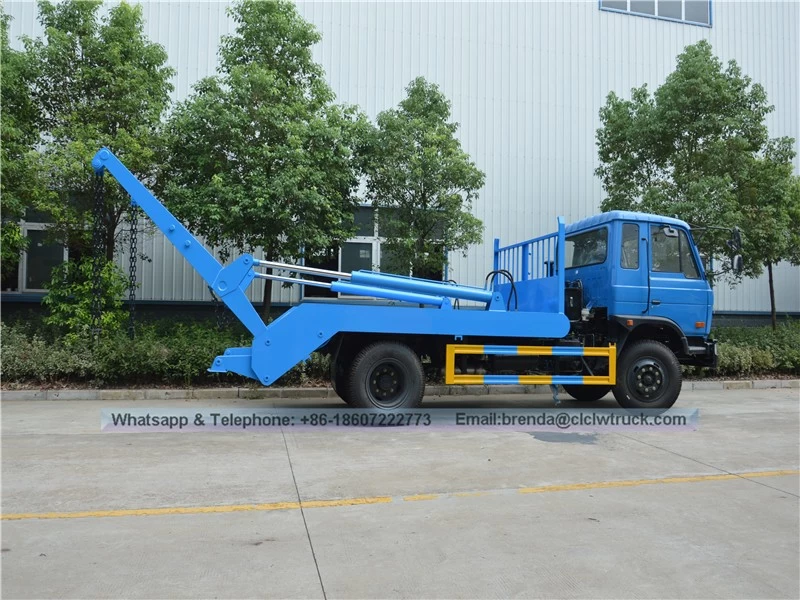

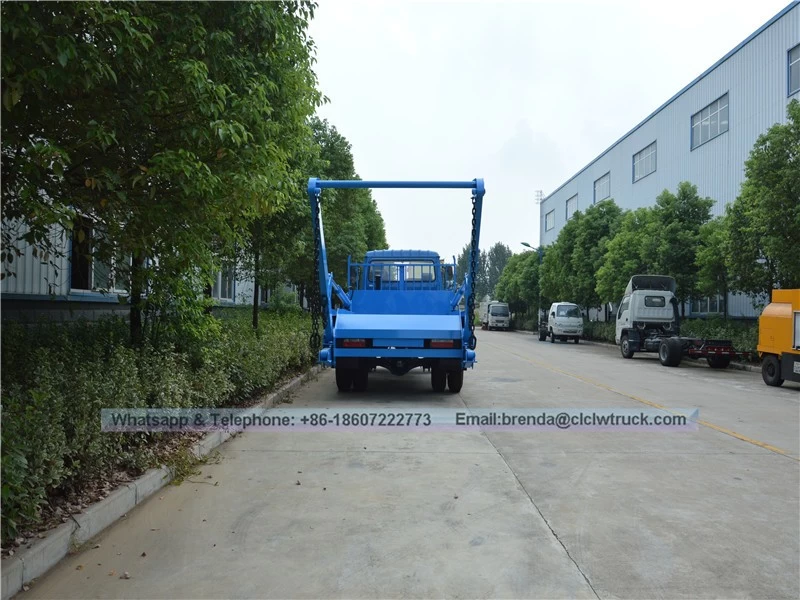

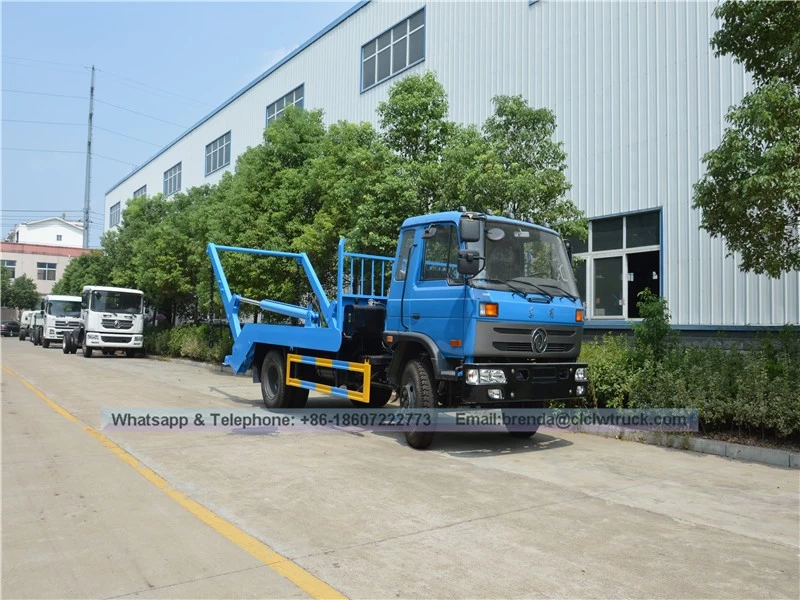

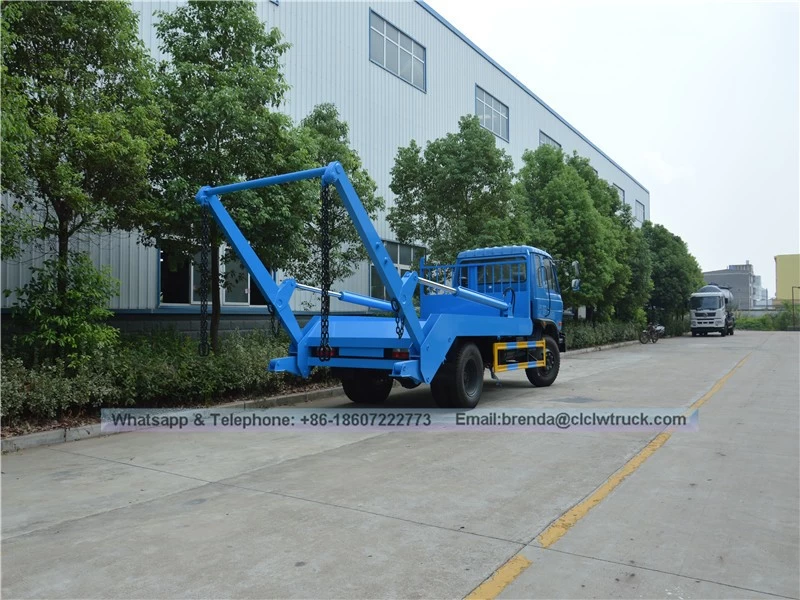

Product Image:
