Road Maintenance Truck
> Dongfeng Asphalt Sprayer Supplier, 4x2 Asphalt Road Maintainer China Manufacturer, 8-10 CBM Bitumen Distribution Truck
Dongfeng Asphalt Sprayer Supplier, 4x2 Asphalt Road Maintainer China Manufacturer, 8-10 CBM Bitumen Distribution Truck
- 1.Overall Dimension(mm):8950 x 2500 x 3250
- 2.Tank Volume (L):8000-10000
- 3.Curb Weight(kg):19500
- 4.Wheelbase(mm):3950
- 5.Engine Model:ISB170 40( 5900ml / 125kw)
- 6.Spray Width(mm):6000
- 7.Nozzle Quantity(pcs):48
Dongfeng Asphalt Sprayer Supplier, 4x2 Asphalt Road Maintainer China Manufacturer, 8-10 CBM Bitumen distribution truck
Technical Specification
|
No. |
Item |
Unit |
Specification |
|
1 |
Vehicle Name |
|
Semi-intelligent Bitumen Spray Truck |
|
2 |
Driving type |
|
4x2 |
|
3 |
Tank Volume |
M³（L） |
8-10 |
|
4 |
Overall Dimension |
mm |
8950 x 2500 x 3250 |
|
5 |
Gross Weight |
kg |
19500 |
|
6 |
Payload |
kg |
6005 |
|
7 |
Curb Weight |
kg |
9700 |
|
8 |
Axle No. |
|
2 |
|
9 |
Wheelbase |
mm |
3950 |
|
10 |
Max speed |
Km/h |
90 |
|
11 |
Chassis Model |
|
EQ1168VFJ1 |
|
12 |
Chassis Brand |
|
Dongfeng |
|
13 |
Chassis Manufacturer |
|
Dongfeng Motor Company |
|
14 |
Chassis Category |
|
Cargo truck chassis |
|
15 |
Engine Model |
|
ISB170 40 |
|
16 |
Engine Manufacturer |
|
Dongfeng Cummins Engine Co., Ltd |
|
17 |
Displacement / Power |
ml/kw |
5900 / 125 |
|
18 |
Emission Standard |
|
Euro IV |
|
19 |
Fuel Type |
|
Diesel |
|
20 |
Tire specification / Number |
|
9.00-20 / 6+1 |
|
21 |
Transmission |
|
6 forward gear, 1 reverse gear |
|
22 |
Cab Seats |
man |
3 |
|
23 |
Spray Width |
mm |
6000 |
|
24 |
Nozzle Quantity |
pcs |
48 |

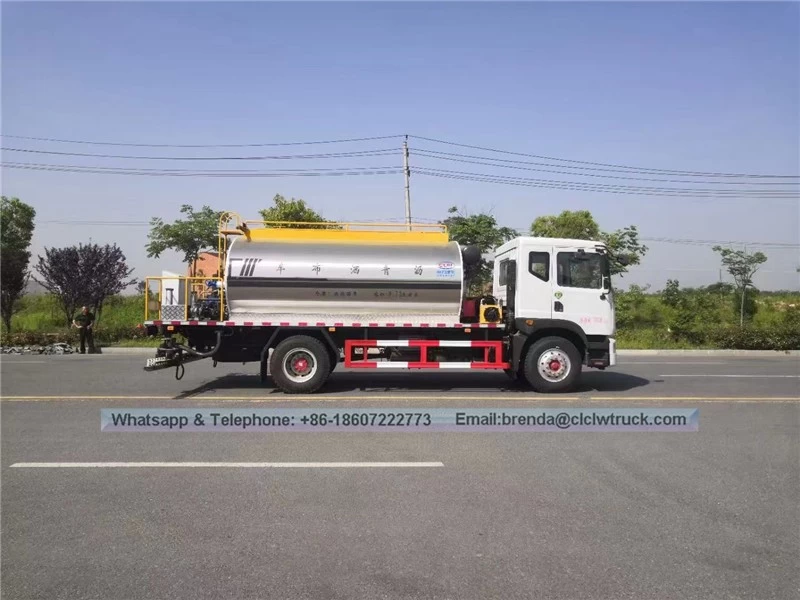

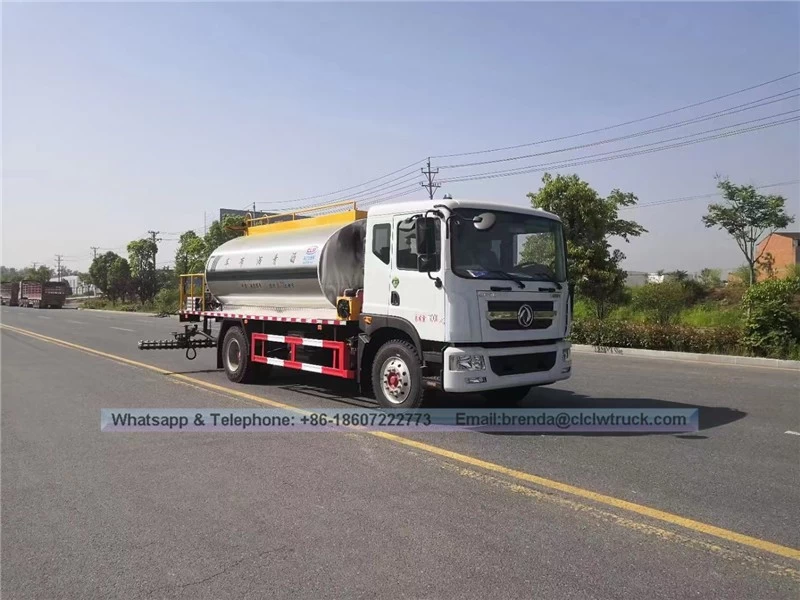

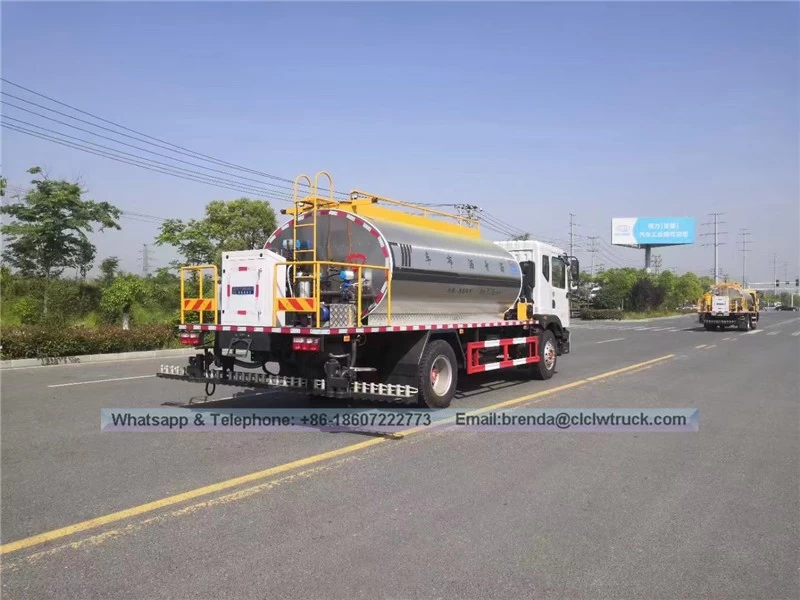

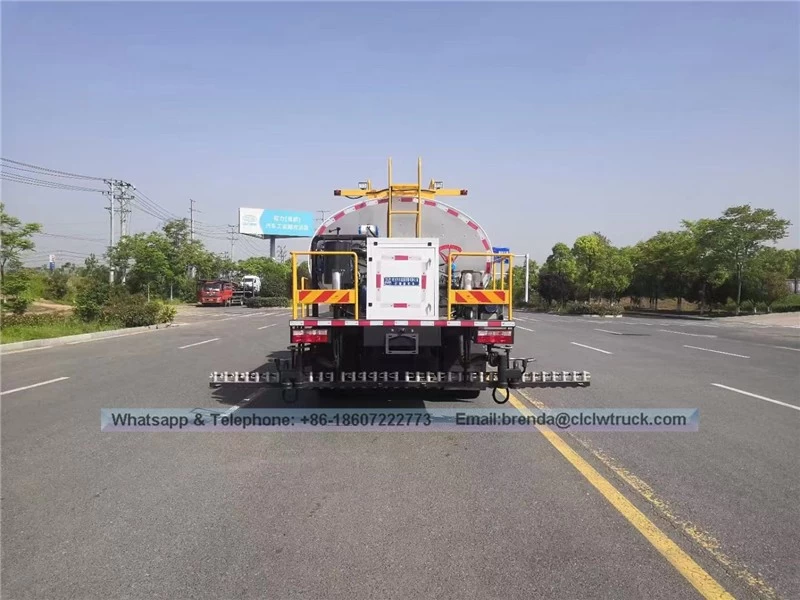

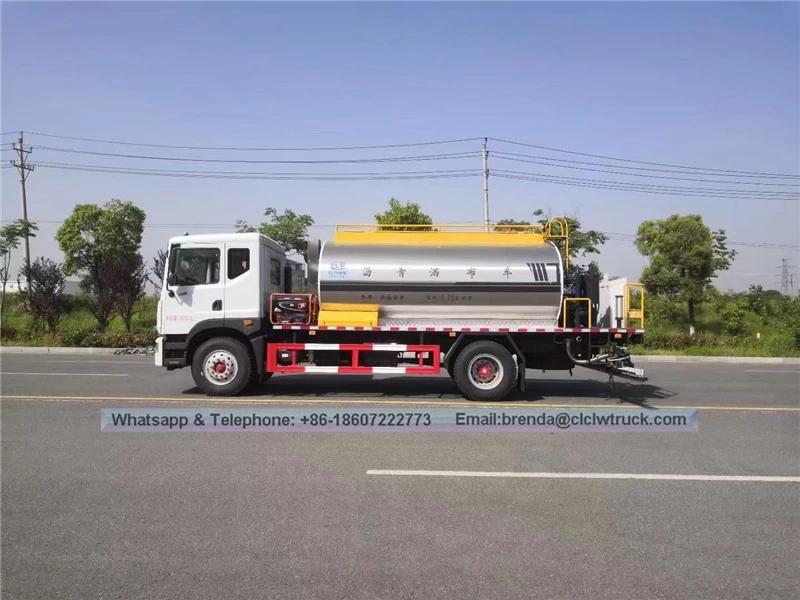

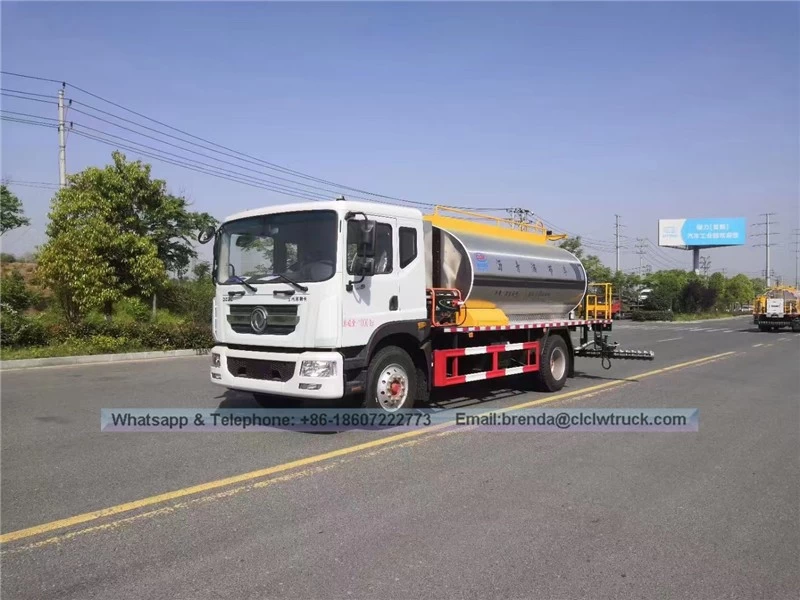

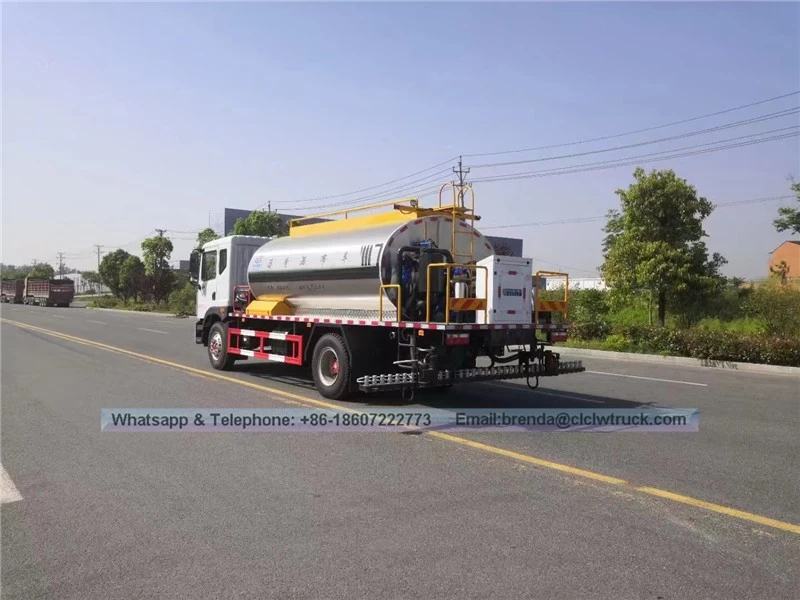

Product Image
Tag:
5000 - 10000 Liter
,5000 - 10000 Liter
,4 x 2
,4 x 2
,DongFeng Brand
,DongFeng Brand
,Diesel
,100 -200 HP
,Euro 3
,Euro 4
,Euro 5
,2 Axles
,new
