Dongfeng Kingrun 6300 Kgs Truck Mounted Crane with Basket
- 1.Product Model / Name: EQ5166JSQZM Truck With Crane
- 2.Overall dimension (mm):9000×2500×3850
- 3.Chassis model:DFL1160BX6A
- 4.Engine model: EQH160-40 ( 4752ml/ 118kw)
- 5.Crane Max lifting weigh(kg):6300
- 6.Crane Max ligting heigh(m): 11 / 12.8
- 7.Working radius(m): 9 / 11
Technical Specification:
[Main specifications] Product model,name EQ5166JSQZM Truck With Crane Gross vehicle weight(kg) 15800 Drive type 4 X 2 Payload(kg) 6555 cab seats (man) 3 Curb weight(Kg) 9050 Overall dimension (mm) 9000×2500×3850 Approach/departure angle (°) 18.5/9.5 Box internal dimension(mm) 5500×2300×550 Number of axles 2 Front/rear hang(mm) 1430/2570 Axle load(Kg) 5800/10000 Wheelbase(mm) 5000 Max speed(Km/h) 90 [Chassis
specifications] Chassis model DFL1160BX6A Brand name Dongfeng Manufacturer Dongfeng Motor Corporation Tires No. 6 Approach/departure angle (°) 18.5/12 Tire specification 9.00-20 16PR Steel spring number 8/9+7 Front track(mm) 1800 Fuel type Diesel Rear track(mm) 1680 Emission standard Euro IV Transmission 6 gears Cabin Flat cab, tiltable luxurious interior
trim, seat, and sleeper. with power steering, air conditioning can be equipped
if customer requires. Engine model Engine manufacturer Displacement(ml) Power(Kw) EQH160-40 Dongfeng commercial vehicle Co., LTD 4752 118 [Crane
specification] Crane
model SQS157 Crane
brand XCMG Type
of Crane Telescopic
boom crane Crane
weight (kg) 2102 Max
lifting weight(kg) 6300 Max
lift height(m) 11 /
12.8 Working
radius(m) 9 / 11 Operation
method High
seat control / Side control Number
of arms 3 / 4 Outrigger
(pcs) 2 / 4 [Functions] The
truck consists of chassis, box, power take-off and crane, achieving cargo
lifting and moving through hydraulic lifting and telescopic system. In
general, H-type outrigger is equipped to realize its stability. To be further
strengthened stability of the truck, rear outrigger also can be equipped if
the customer require. The truck can 360 ° continuously rotate. Special used
for cargo lifting and transportation of the larger wheel loaders or crawler
loaders. The Cargo platform can extend to 3m.

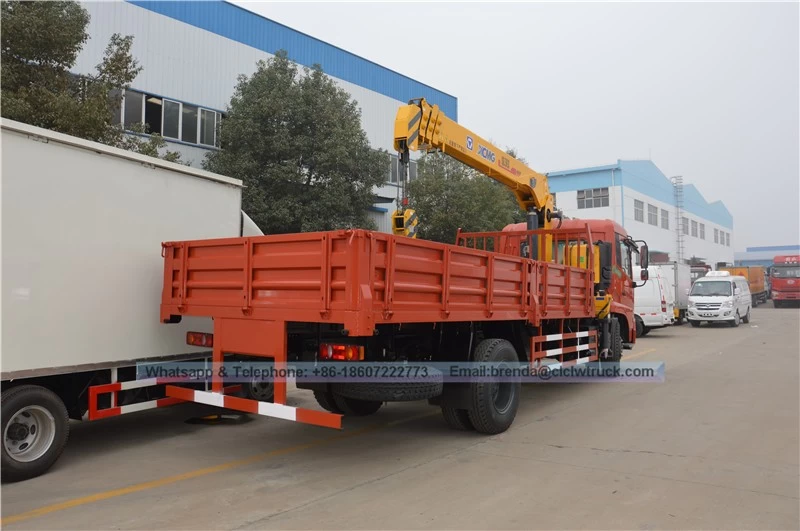

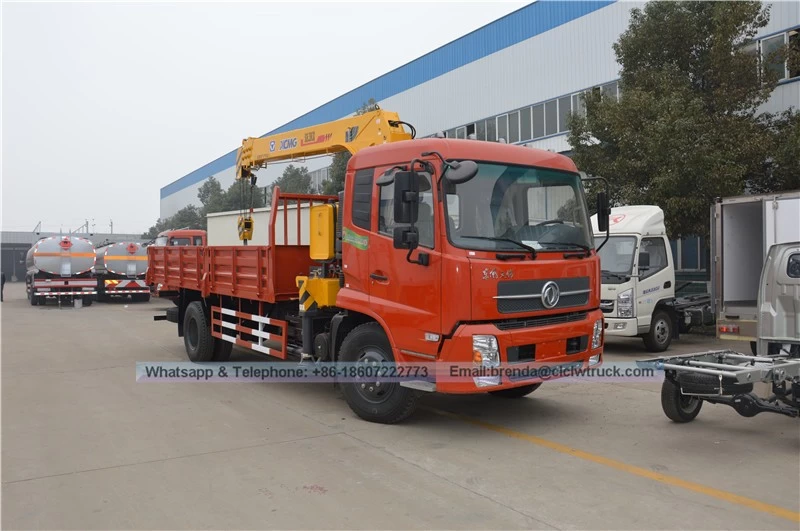

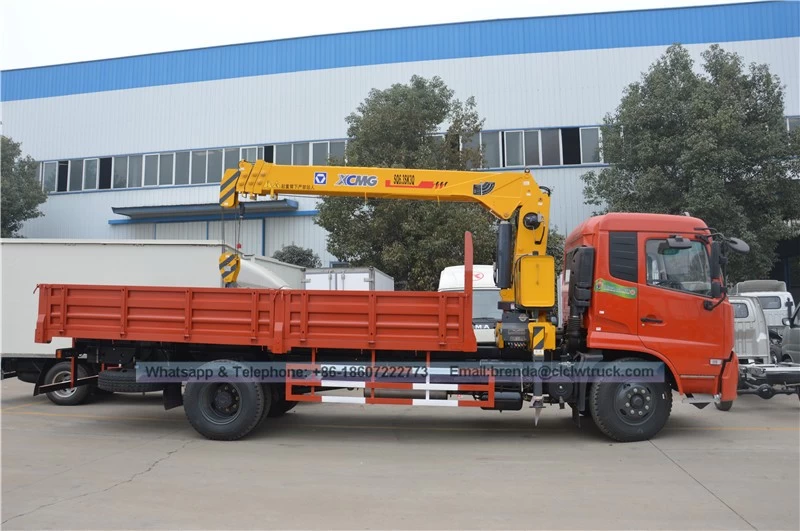

Product Image
