Dongfeng Kinland 6x4 20CBM Compression Garbage Truck
- 1.Product model、name: ALA5250ZYSDFL3 Compression Garbage Truck
- 2.Gross weight(Kg):25000
- 3.Overall dimension (mm):10000*2490*3400
- 4.Chassis model:DFL1250A8 (DONGFENG)
- 5.Body capacity(m3):20
- 6.Hopper capacity(m3):2.4
- 7.Engine model:C260 33 (8300ml/191kw)
- 8.Control system:Manual + Automatic
Technical Specification:
Main specifications Product model、name ALA5250ZYSDFL3 Compression Garbage Truck Gross weight(Kg) 25000 Driving type 6*4 Payload (Kg) 10500 Overall dimension (mm) 10000*2490*3400 Curb weight(Kg) 14370 Cab seats (man) 3 Approach/departure angle (°) 20/11 Front/rear hang(mm) 1460/2890 Axle No. 3 Wheelbase (mm) 4350+1350 Axle load(Kg) 7000/18000 (double axle) Max speed(Km/h) 90 Chassis specifications Chassis model DFL1250A8 Manufacture Dongfeng motor company Brand name Dongfeng Overall dimension (mm) 9460*2480*3030 Tire specification 11.00-20 Tires No. 10+1 Steel spring number 8/9,8/10 Front track(mm) 1986 Fuel type Diesel Rear track(mm) 1860 Emission standard Euro Ⅲ Gear box Shanchi 9JS119T-B 9 gearbox Cab D310 flat standard cab, airbag shock absorber driver seat, channel dashboard, with air conditioning Engine model Engine manufacture Displacement(ml) Power(Kw) C260 33 Dongfeng cummins engine co.,ltd 8300 191 Performance Body capacity（m3） 20 Hopper capacity（m3） 2.4 Compression cycle time（S） 30 Unload garbage time（S） 40 Control system Manual + Automatic Main Characteristic 1、Can choose 240L（single bin、double bins）or 360L、660L、1100L standard bin lifting and turnover mechanism，can also choose ground hopper and other kinds of loading mechanism. 2、With manual and automatic two sets of control method, the operator can control in the cabin, in the middle side or the back of the truck , very convenient and efficient. 3、With working device of emergency braking stop button。 4、Garbage body use frame design, elegant, strong structure, large effective capacity. 5、Equipped with special collection box, sewage directly into the sewage tank in the process of compression, that is effectively prevent second pollution caused by sewage leaks. 6、Through hydraulic system design, the truck achieve the function of two-way garbage compression, that is improve the compressibility ,make the compression ratio up to 1:2.5,the garbage can reach more then 600～800kg／m3 after compression.
Dongfeng Kinland 6x4 20CBM Compression Garbage Truck

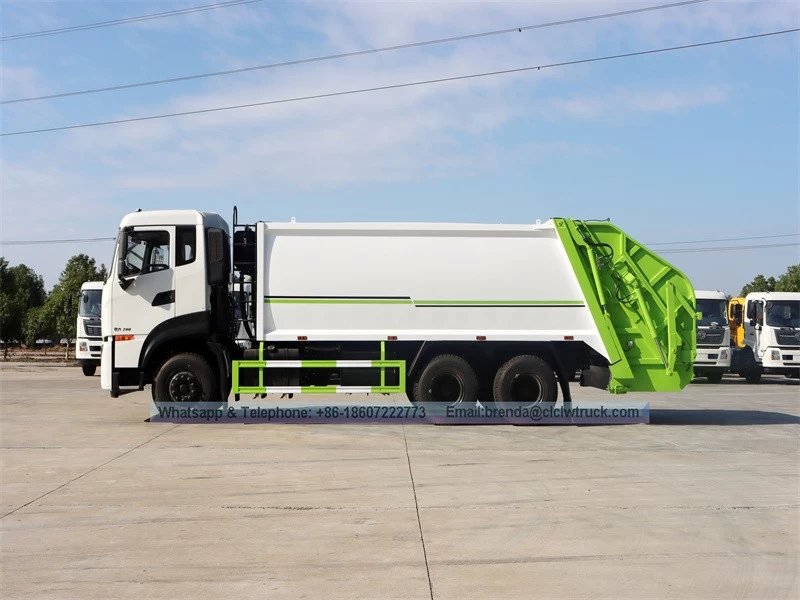

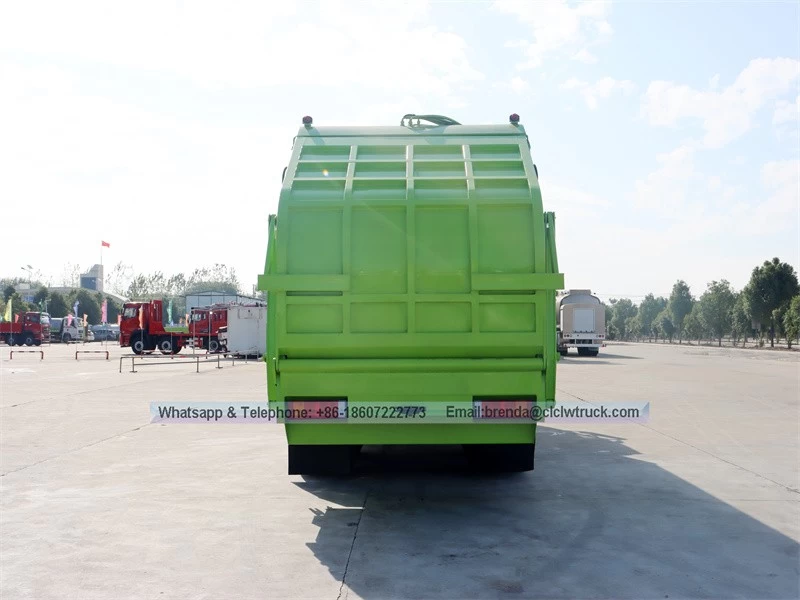

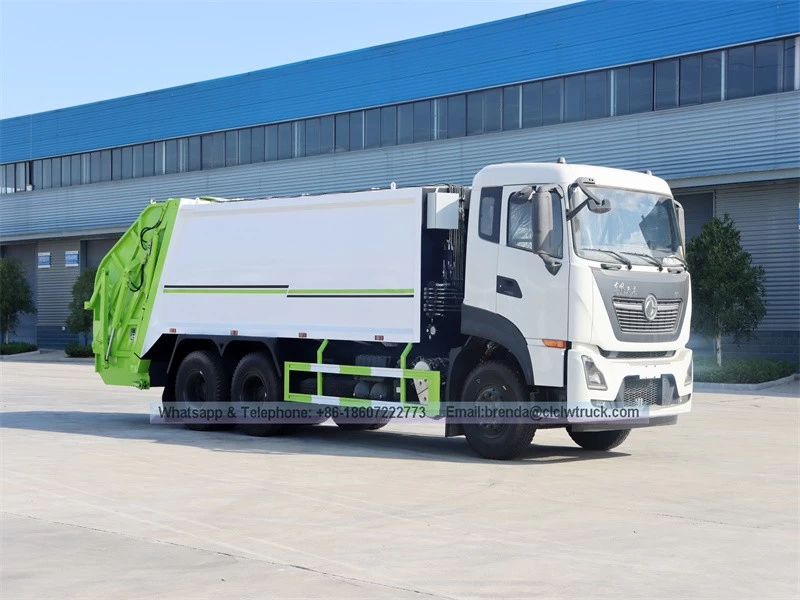

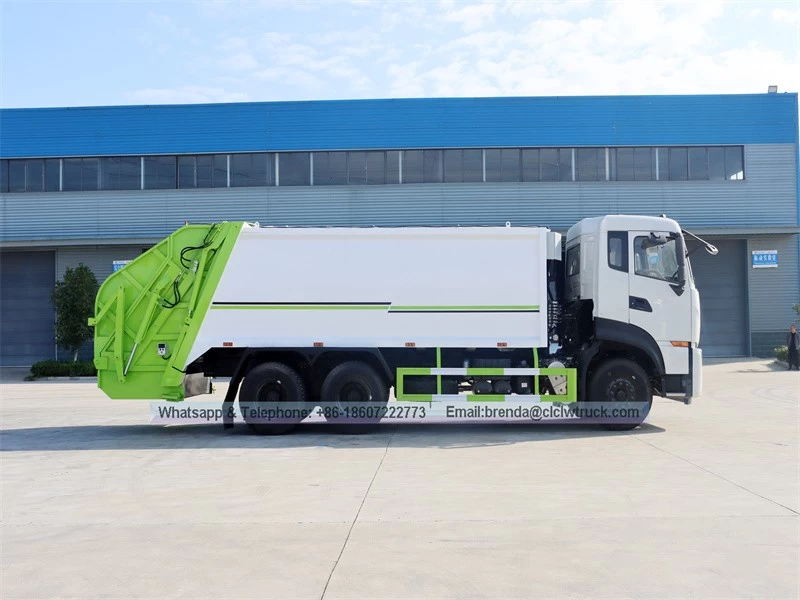

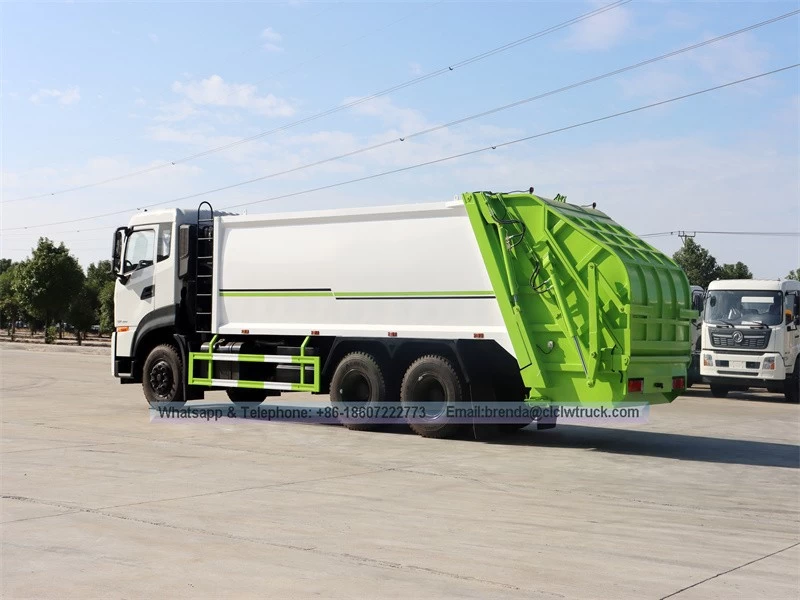

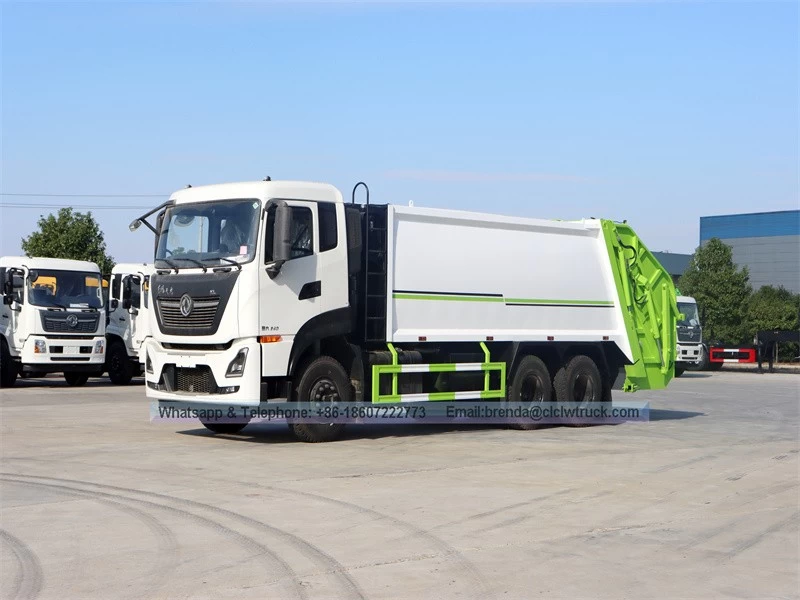

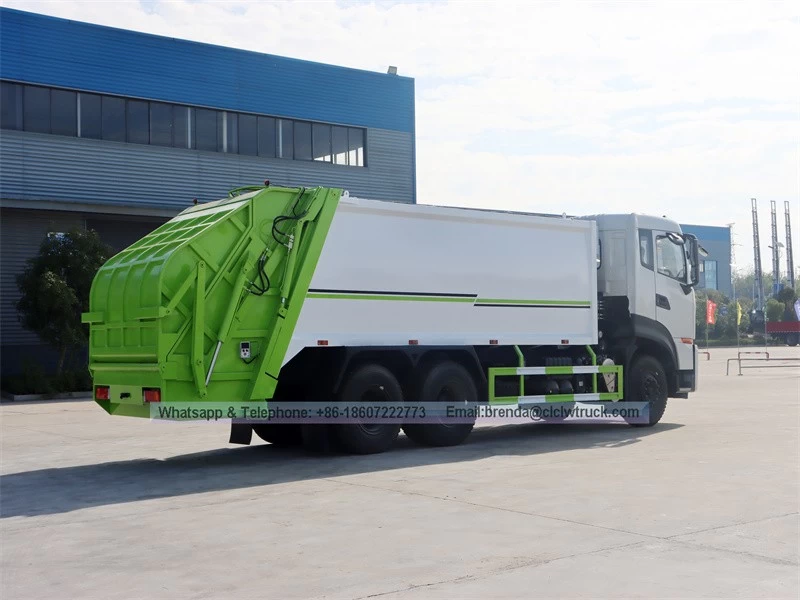

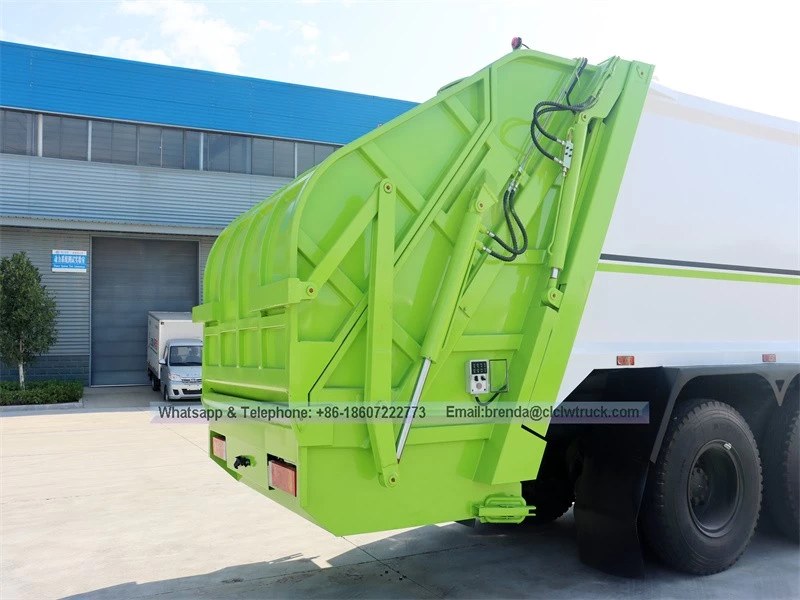

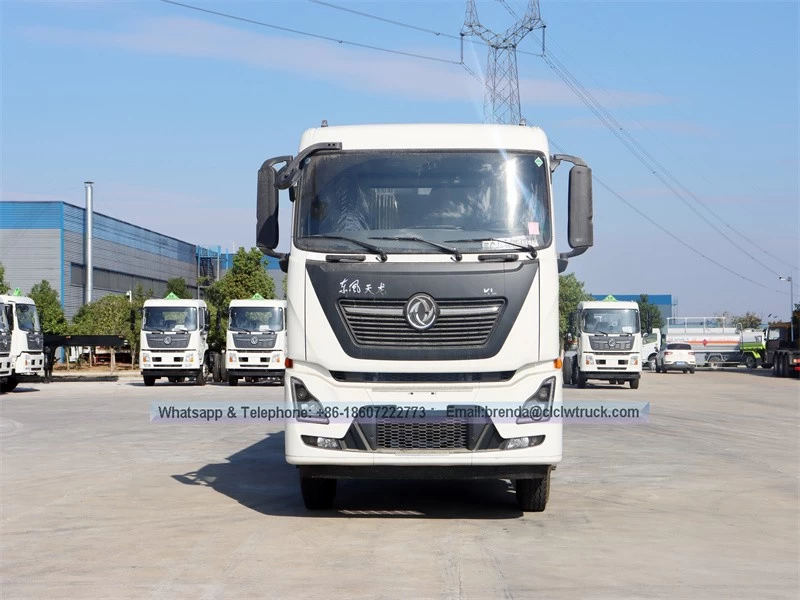

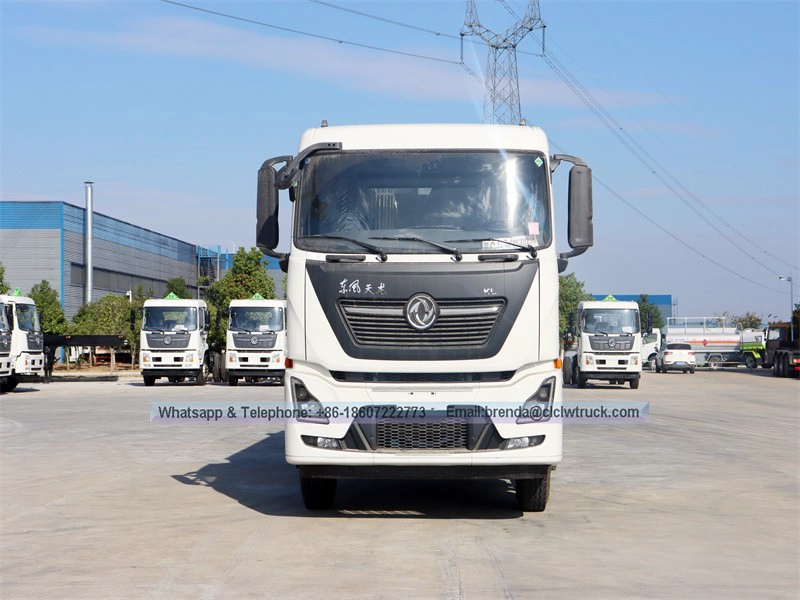

Product Image:
