Dongfeng Tianjin 12000L water truck supplier china,12CBM water tank truck manufacturer china
- Water tanker can also be equipped with front, side, rear sprinkler to clean the roads, streets for environmental sanitation, with rear working platform and high cannon, the water lorry can be used to water the plants, high trees even for fire fighting
- 1.Wheelbase(mm):4500
- 2.Tyre specification:10.00R20
- 3.Transmission:6 forward gear,1 reverse gear
- 4.Tank material:Carbon steel Q235
- 5.Water pump flow(m³/h):60
- 6.Watering width(M):≥14
- 7.Water cannon range (M):≥28
- 8.Horsepower(HP):190
|
Main specification |
||||||||||
|
Product model and name |
ALA5161GPSDFL3 water truck |
|||||||||
|
Gross weight(Kg) |
16000 |
Drive type |
4X2 |
|||||||
|
Payload(Kg) |
9200 |
Overall dimension(mm) |
8600,8350X2490X3100 |
|||||||
|
Curb weight(Kg) |
6605 |
Cab seats |
3 |
|||||||
|
Approach/departure angle(°) |
18/13,18/16 |
Front/rear hang(mm) |
1430/2470,1430/2220 |
|||||||
|
Axle No. |
2 |
Wheelbase(mm) |
4500 |
|||||||
|
Axle load(Kg) |
6000/10000 |
Max speed(Km/h) |
90 |
|||||||
|
Chassis specification |
||||||||||
|
Chassis model |
DFL1160BX |
Manufacturer |
Dongfeng Motor Co.,Ltd |
|||||||
|
Brand name |
Dongfeng |
Dimension(mm) |
8790,8290X2370X2760,2840 |
|||||||
|
Tyre specification |
10.00R20 |
Tyre No. |
6 |
|||||||
|
Steel spring number |
7/9+6,8/10+8 |
Front track base(mm) |
1880,1920,1940 |
|||||||
|
Fuel type |
Diesel |
Rear track base(mm) |
1800,1860 |
|||||||
|
Emission standard |
Euro 3 |
Transmission |
6 forward gear,1 reverse gear |
|||||||
|
Cab |
D530 flat.One and half row flat cab, electric window regulator, central control door lock and PXD-B dashboard with air condition. |
|||||||||
|
Engine model |
Engine manufacturer |
Displacement(ml) |
Power(Kw) |
|||||||
|
B190 33 |
Dongfeng Cummins Engine Co.,Ltd |
5900 |
140 |
|||||||
|
Performance |
||||||||||
|
Tank volume(m³) |
12 |
Tank material |
Carbon steel Q235 |
|||||||
|
Water pump model |
80QZF-60/90N |
Water pump flow(m³/h) |
60 |
|||||||
|
Watering width(M) |
≥14 |
Water cannon range (M) |
≥28 |
|||||||
|
Feature and Application |
||||||||||
|

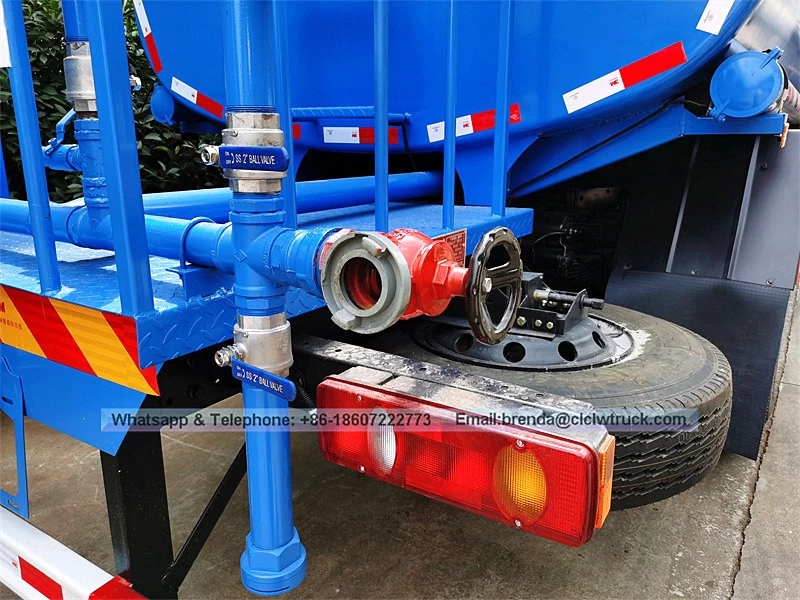

1).Equipped with high power self-suction water pump that characterized by high-pressure and fast speed suction. 2).Equipped with front, rear and side sprinklers and high position sprinkler, and rear working platform. 3).The water cannon which is installed on the working platform can rotate by 360 degree and the water flow can be adjusted into various rain shape. There are straight shape, heavy rain, moderate rain and drizzle etc. The max range can reach 30M. 4).Equipped with fire coupling, flow valves, filter screen and water level gauge. 5).According to customers’ request, the crane, high working platform and spraying machine also can be equipped. 6).Mainly used for washing on urban roads, watering and greening on trees, green belts and lawn and dust full of construction sites. And also used for drinking water delivery and fire fighting function etc. |
||||||||||

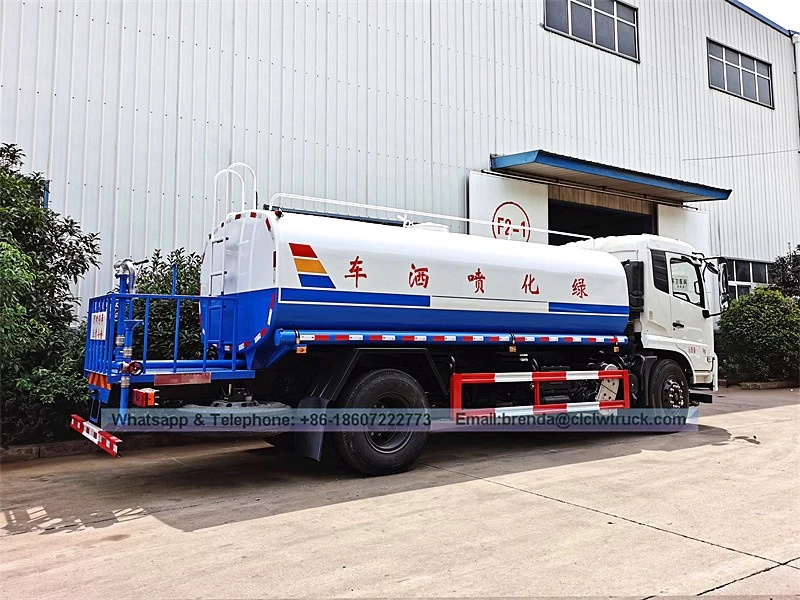

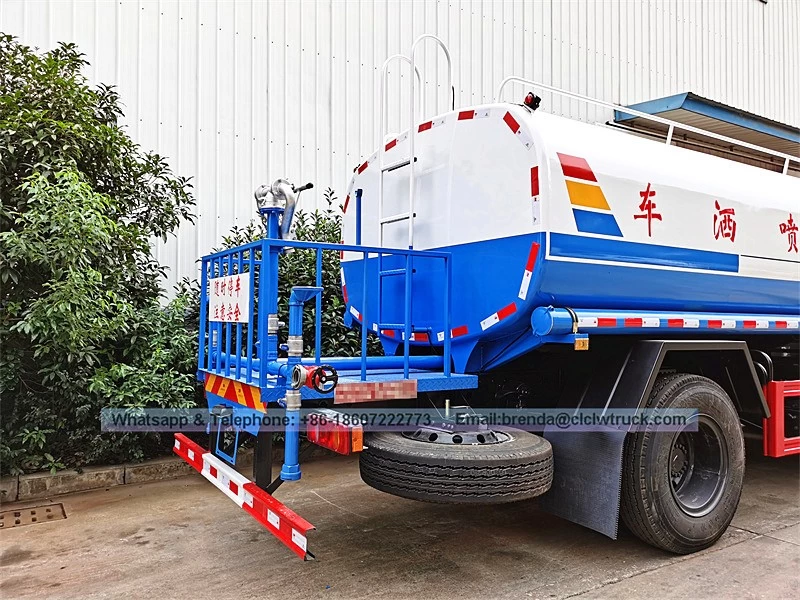

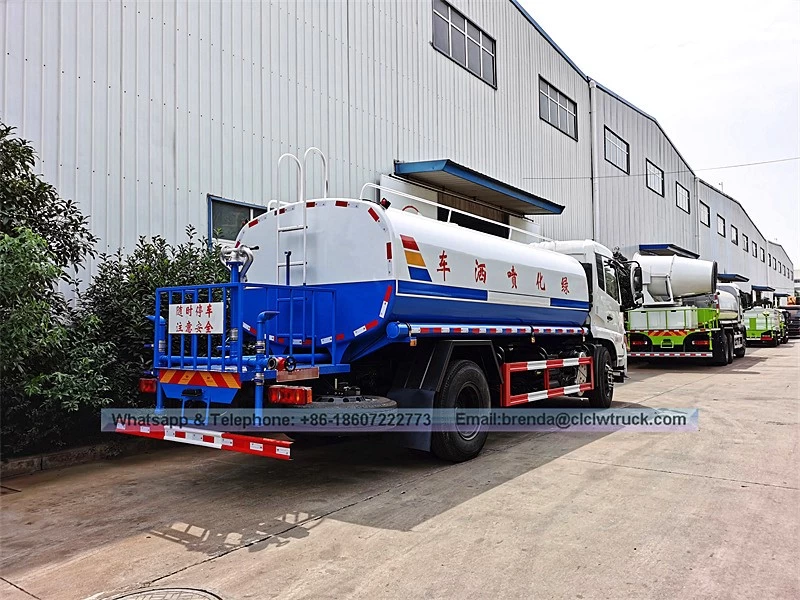

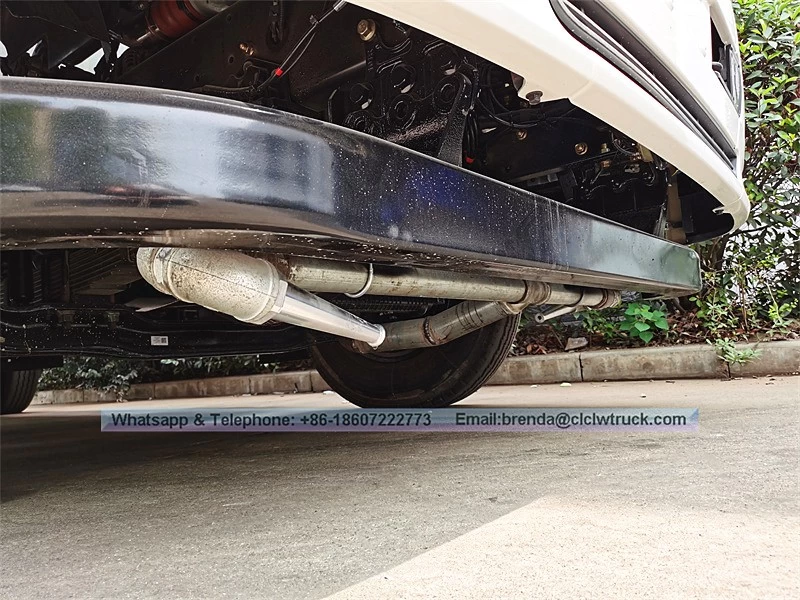

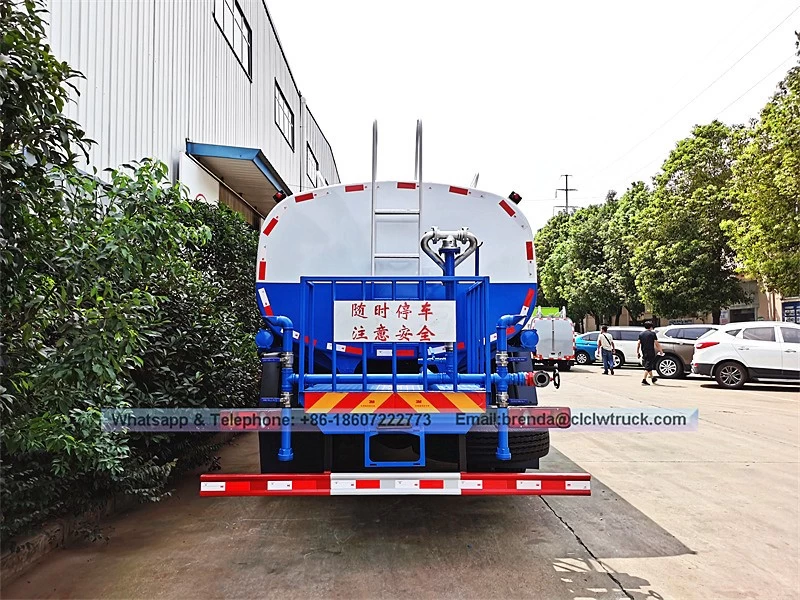

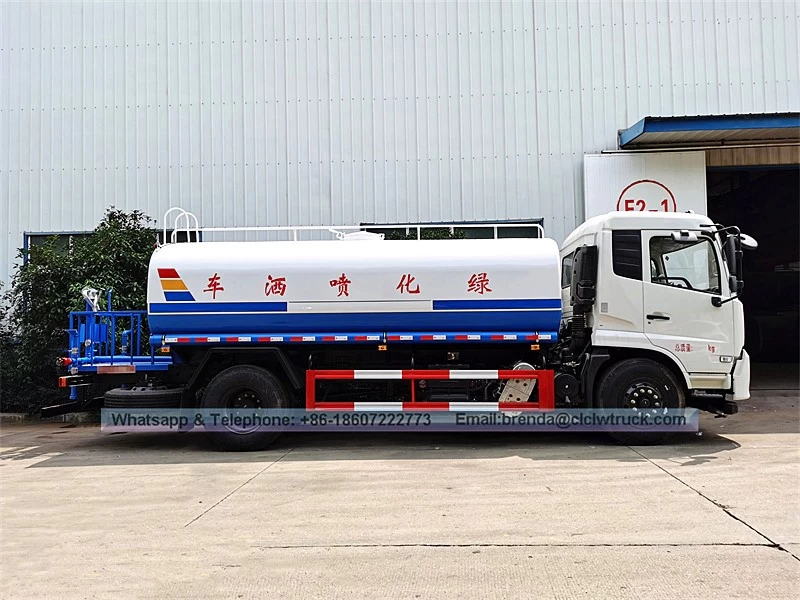

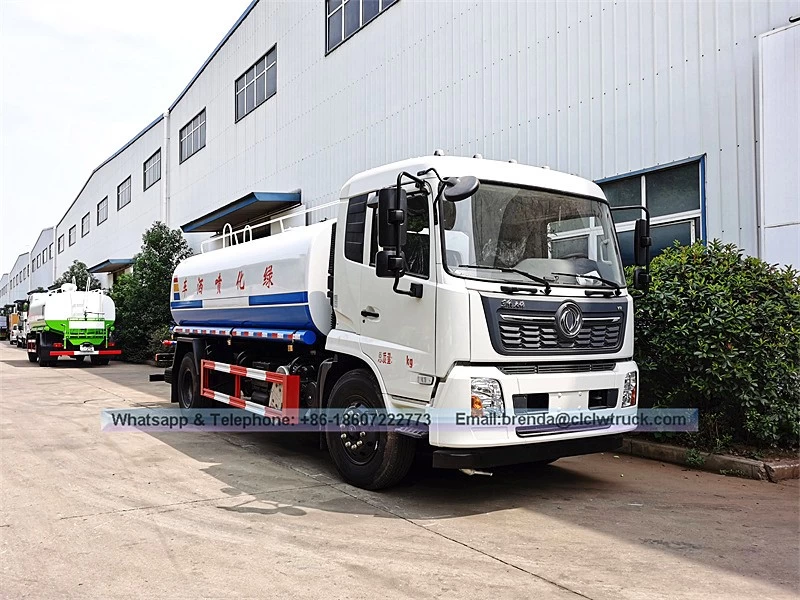

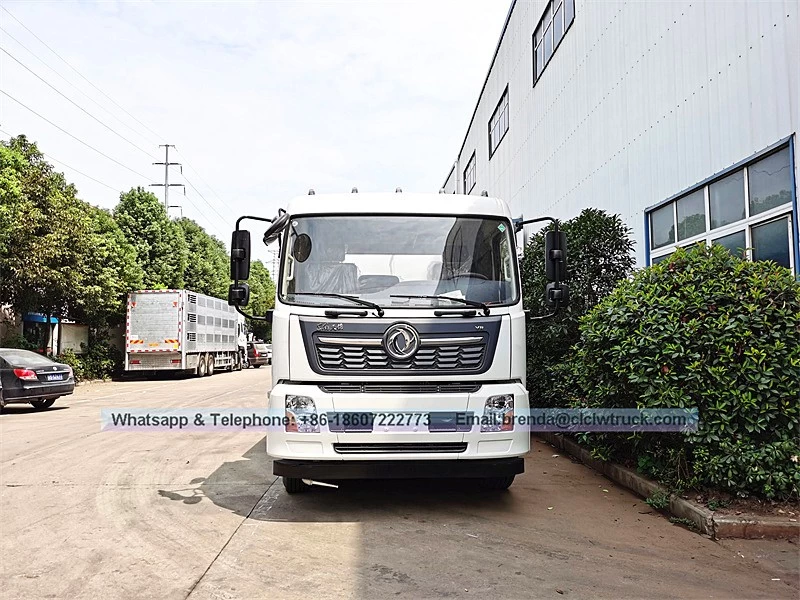

Dongfeng Tianjin 12000L Water Truck Image
