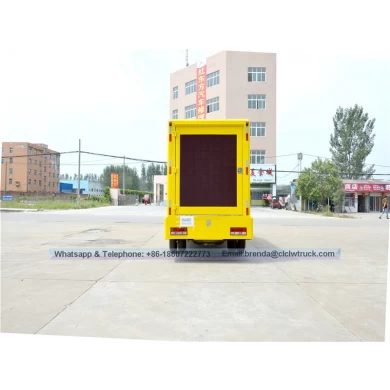

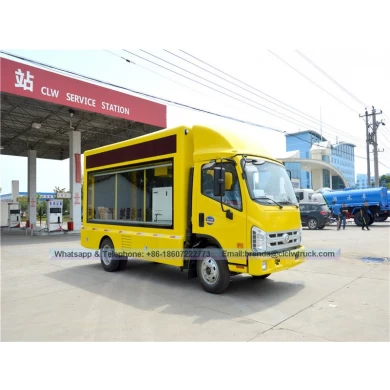

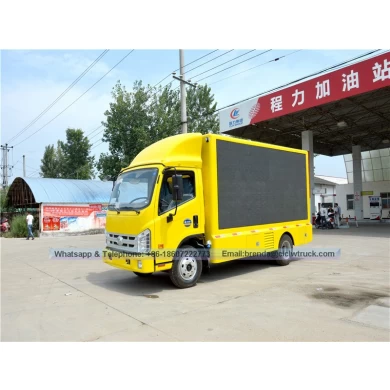

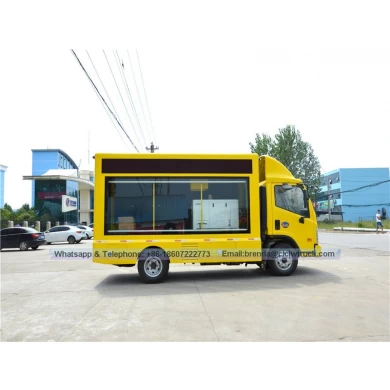

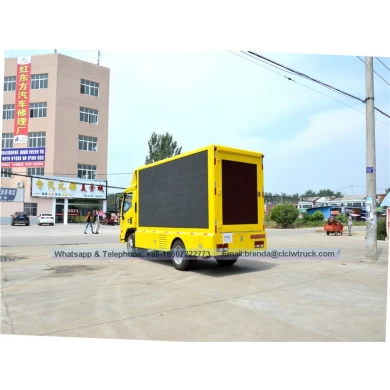

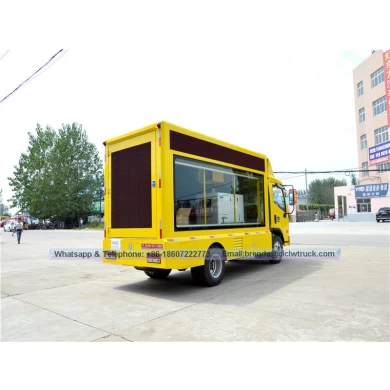

Forland 4x2 mobile LED truck with P5, P6, P4 screen for sale
- 1).Product model、name: BJ1039V3JD3-B Mobile LED Truck
- 2).Overall dimension (mm):5380×1930×2800
- 3).Transmission:ISUZU MSB 5 Forward Gear
- 4).Emission standard:Euro III
- 5).Optional:Can choose the stage, its size: 3600×3000mm。
|
Main specification |
||||||||
|
Product model、name |
BJ1039V3JD3-B Small Mobile LED Truck |
|||||||
|
Total weight(Kg) |
4145 |
Drive type |
4 x 2 |
|||||
|
Curb weight(Kg) |
2420 |
Overall dimension (mm) |
5380×1930×2800 |
|||||
|
Wheelbase(mm) |
2800 |
Cab seats (man) |
2 |
|||||
|
Approach / departure angle(°) |
23/18 |
Front/rear hang(mm) |
1100/1680 |
|||||
|
Axle load |
1575/2570 |
Max speed(Km/h) |
90 |
|||||
|
Chassis specification |
||||||||
|
Chassis model |
BJ1039V3JD3-B |
Manufacturer |
Beiqi Futian Motor Company Limited |
|||||
|
Brand name |
FOTON |
Number of axes |
2 |
|||||
|
Tire specification |
6.50-16 |
Tires No. |
6 |
|||||
|
Leaf spring |
7/7+4 |
Front track(mm) |
1530 |
|||||
|
Type of fuel |
Diesel |
Rear track(mm) |
1380 |
|||||
|
Emission standard |
Euro III |
Transmission |
5 Forward Gear |
|||||
|
Engine model |
Engine Manufacturer |
Displacement(ml) |
Power(KW) |
|||||
|
BJ493ZQ |
Beijing fukuda green power co., LTD |
2271 |
68 |
|||||
|
Mobile LED truck specification |
||||||||
|
LED screen size (length x high)(mm) |
2880X1660 |
Led side screen area (㎡) |
4.8 |
|||||
|
Roller Screen Size（㎡) |
4.8 |
LED screen’s pixel pitch（mm) |
10 |
|||||
|
Rear monochrome screen size(㎡) |
1.65 |
|||||||
|
Remark |
There be equipped the Silent generator, wooden floors, lighting, ventilation fans, skylights, computers, stereos, amplifiers and other facilities within the body , and 220V external power connector outside the body. According to customers' requirements, it can be equipped the LED screen lifting system and hydraulic extenstion stage, which will be a multi-purpose truck. |
|||||||
|
【The Main Features of LED truck】 |
||||||||
|
1. This truck is a special vehicle for advertising, generally used for the product promotion, brand promotion, draft activities , live shows sales, sporting events, vocal concerts, concerts and so on! 2. Can be showing at any time, communication, interaction, publicity coverage extensively. And meanwhile effectively get the best of advertising effect,, 3. According to own requirement. you can select the left and right sides and the back medium(include LED full color, Monochrome LED, Light box advertising) , Led full colour screen can be chose P10, P8, P7, P6,P5,P4. |
||||||||
