Main specifications

Product model、name

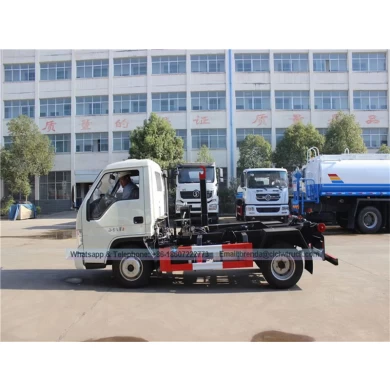

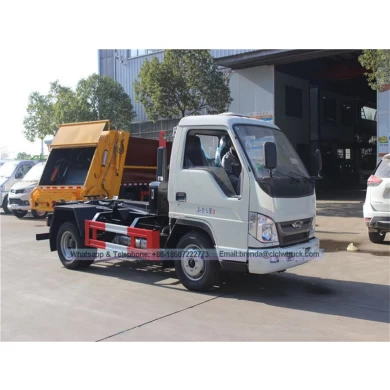

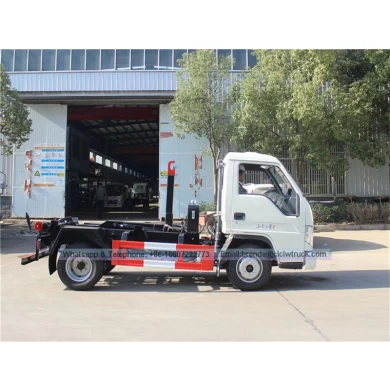

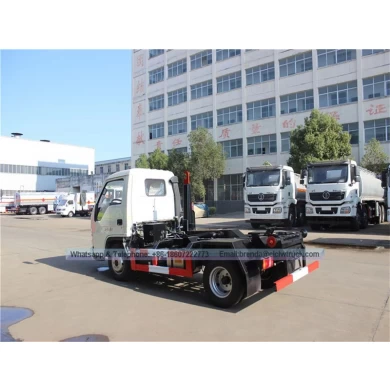

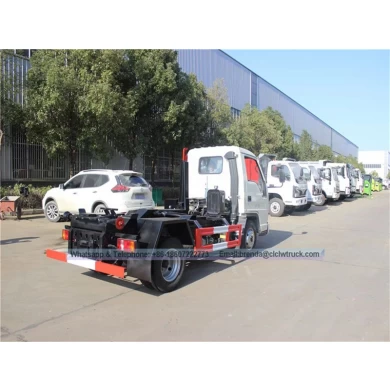

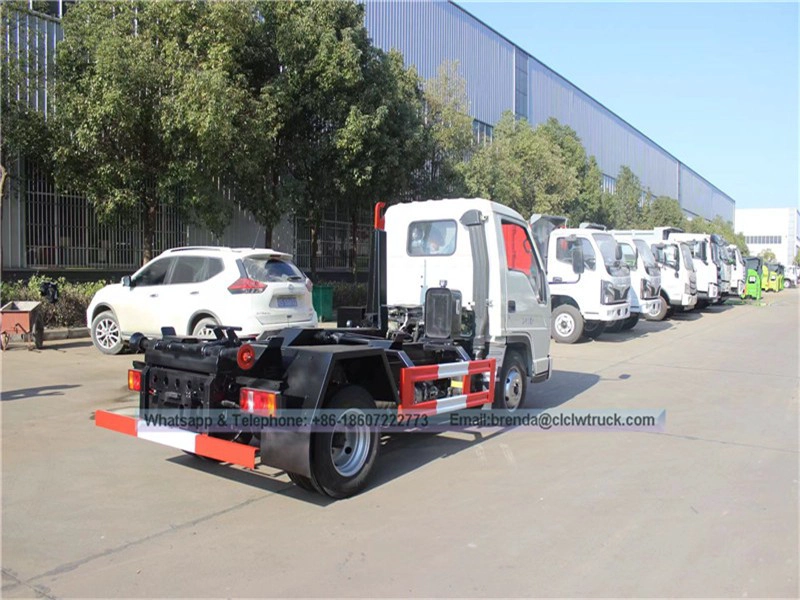

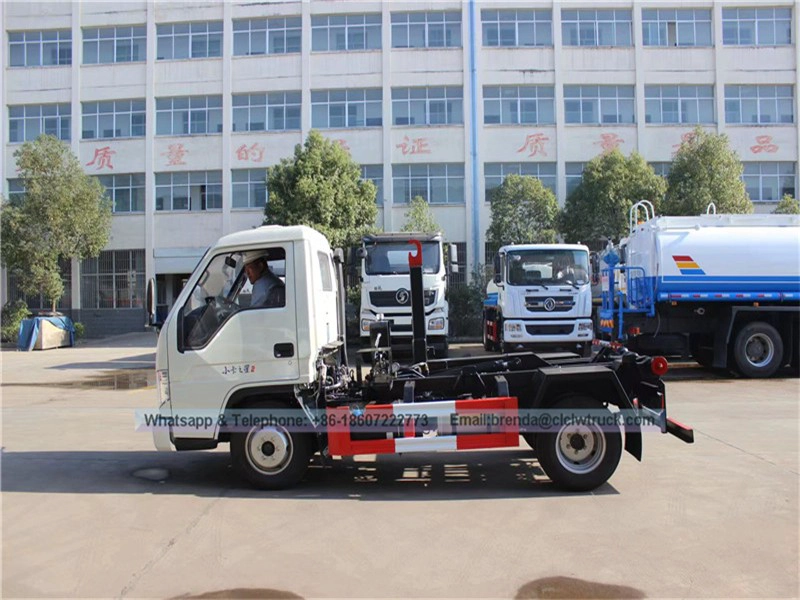

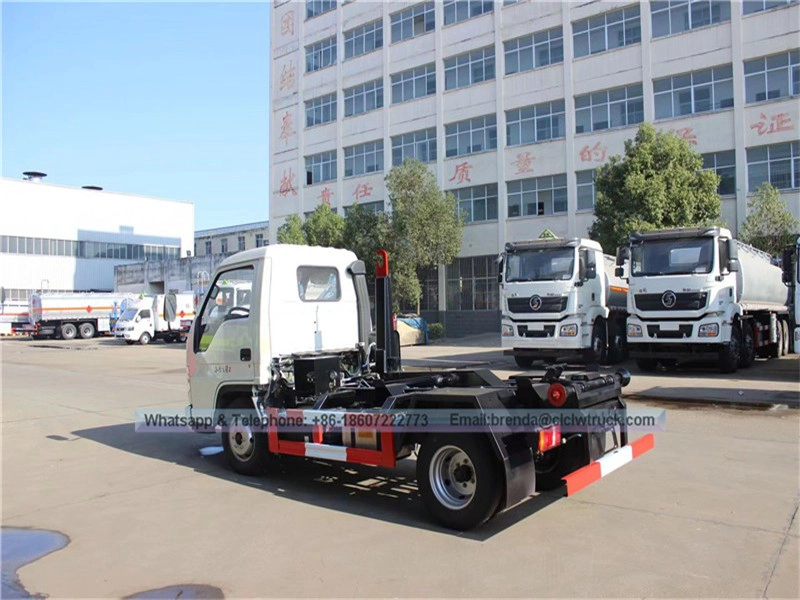

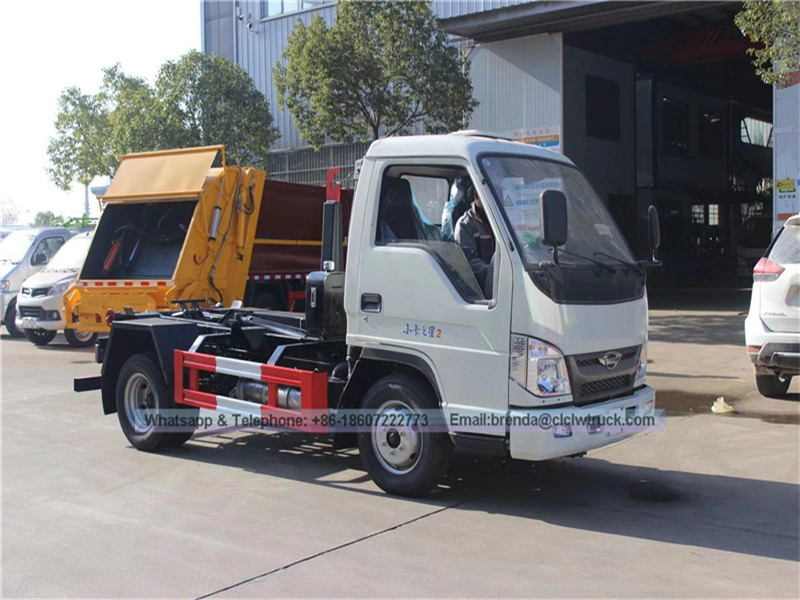

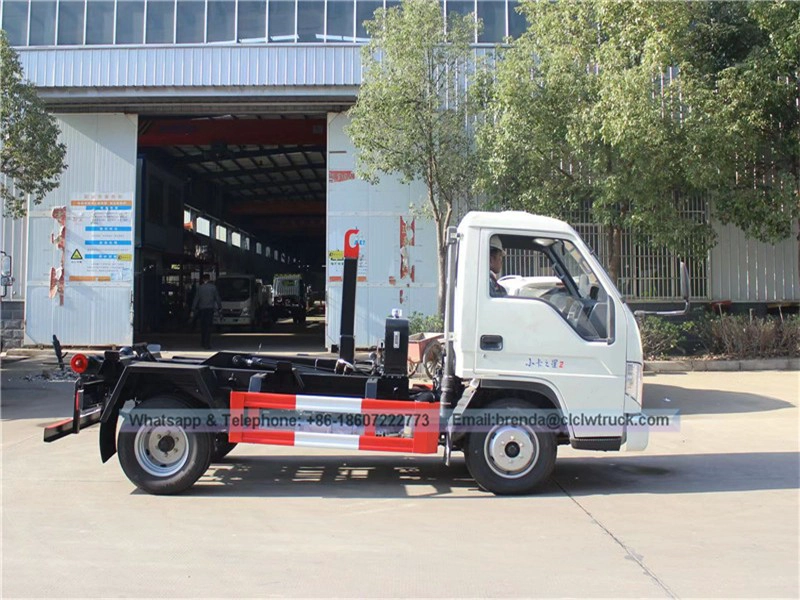

CLQ5040ZXX4BJ Garbage Truck With Removable Box

Gross weight(Kg)

4155

Driving type

4×2

Payload (Kg)

1300

Overall dimension (mm)

4560×1690×2080

Curb weight(Kg)

2725

cab seats (man)

2

Approach/departure angle (°)

18/22

Front/rear hang(mm)

1100/860

Axle No.

2

Wheelbase (mm)

2600

Axle load(Kg)

1580/2575

Max speed(Km/h)

90

Chassis specifications

Chassis model

BJ1042V9JB4-X1

Manufacture

Beiqi Foton motor co., LTD

Brand name

Foton

Overall dimension (mm)

48200×1690×2080

Tire specification

6.00-15 10PR

Tires No.

6+1(Spare tire)

Steel spring number

7/5+3

Front track(mm)

1345

Fuel type

Diesel

Rear track(mm)

1240

Emission standard

Euro III

Gear box

5 Forward gear, 1 reverse gear

Engine model

Engine manufacture

displacement(ml)

Power(Kw)

4A1-68C40

Anhui QuanChai power co., LTD

1809

50

Performance

Body capacity（m³）

3

Body material

Q235 carbon steel

Discharge Method

Rear dump

Operation control system

Manuel + electric

Characteristic

1、Detachable Container Garbage Truck also called pull arm garbage truck ；

2、Using full hydraulic control , the operator can do the waste bin lifting, discharging and dumping both in the driving room or out of the room, and all the operations can be performed by one driver in the cab；

3、The truck compartment using fully enclosed design,there is no water leakage while transportation, that is avoid the secondary pollution problem, make it more environmental friendly；

4、The truck can equipped with several garbage box, one truck can maintain multiple garbage collection point operation, high efficiency。
