Foton Forland Mini Boom Crane Truck 2000 kgs Telescopic Cargo Crane Truck
- 1.Product Model / Name: Foton Forland 2 ton Truck With Crane
- 2.Overall dimension (mm):5995×2165×2850
- 3.Chassis model: BJ3042DBJEA-G1 (Foton)
- 4.Engine model:YN33CRD2( 3298ml/ 75kw)
- 5.Crane Max lifting weigh(kg):2000
- 6.Crane Max ligting heigh(m):6.8 / 9
- 7. Crane Working Radiu(m):5.8 / 7.7
Technical Specification
|
【Main specifications】 |
|||||||
|
Product model、name |
Foton Forland 2 ton Truck With Crane |
||||||
|
Gross vehicle weight(kg) |
4275 |
Drive type |
4 X 2 |
||||
|
Payload(kg) |
1490 |
cab seats (man) |
3 |
||||
|
Curb weight(Kg) |
2590 |
Overall dimension (mm) |
5995×2165×2850 |
||||
|
Approach/departure angle (°) |
31/15 |
Box internal dimension(mm) |
3500×1900×360 |
||||
|
Number of axles |
2 |
Front/rear hang(mm) |
1115/1520 |
||||
|
Axle load(Kg) |
1625/2650 |
Wheelbase(mm) |
3360 |
||||
|
Max speed(Km/h) |
80 |
|
|
||||
|
【Chassis specifications】 |
|||||||
|
Chassis model |
BJ3042DBJEA-G1 |
Brand name |
Foton |
||||
|
Manufacturer |
Bei qi Foton Motor Co. , Ltd |
Tires No. |
6 |
||||
|
Approach/departure angle (°) |
31/21 |
Tire specification |
7.00-16 |
||||
|
Steel spring number |
8/9+8 |
Front track(mm) |
1510 |
||||
|
Fuel type |
Diesel |
Rear track(mm) |
1510 |
||||
|
Emission standard |
Euro IV |
Transmission |
5 forward gears,1 reverse gear |
||||
|
Cabin |
The cab can flip forward, with power steering, air conditioning can be equiped if customer requires. |
||||||
|
Engine model |
Engine manufacturer |
Displacement(ml) |
Power(Kw) |
||||
|
YN33CRD2 |
Kunming Yunnei Power Co., Ltd |
3298 |
75 |
||||
|
【Crane specification】 |
|||||||
|
Crane model |
SQS22 |
Crane brand |
XCMG |
||||
|
Type of Crane |
Telescopic boom crane |
Crane weight (kg) |
1000 |
||||
|
Max lifting weight（kg） |
2000 |
Max lift height（m） |
6.8 / 9 |
||||
|
Working radius(m) |
5.8 / 7.7 |
Operation method |
Side control |
||||
|
Number of arms |
2 / 3 |
Outrigger (pcs) |
2 / 4 |
||||
|
【Functions】 |
|||||||
|
The truck consists of chassis, box, power take-off and crane, achieving cargo lifting and moving through hydraulic lifting and telescopic system. In general, H-type outrigger is equipped to realize its stability. To be further strengthened stability of the truck, rear outrigger also can be equipped if the customer require. The truck can 360 ° continuously rotate. |
|||||||
Foton Forland Mini Boom Crane Truck 2000 kgs Telescopic Cargo Crane Truck

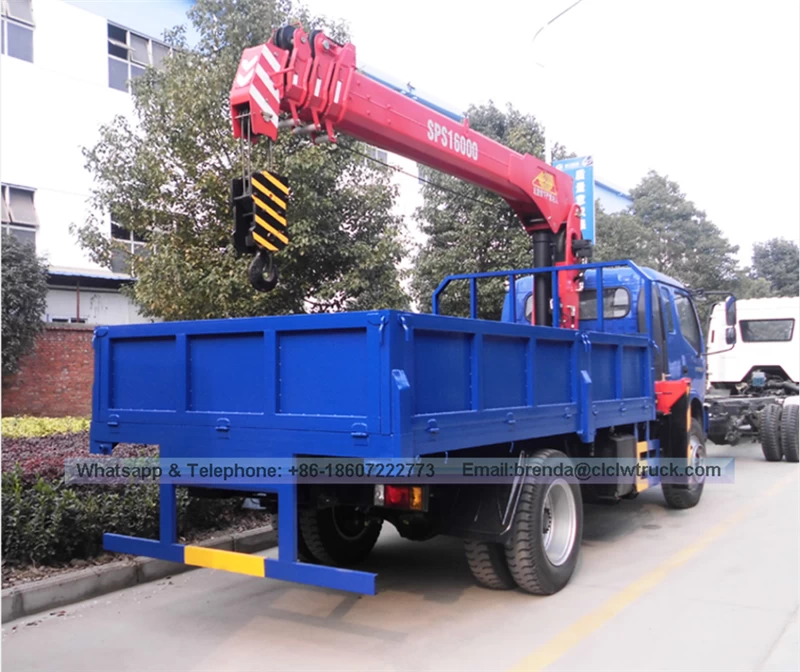

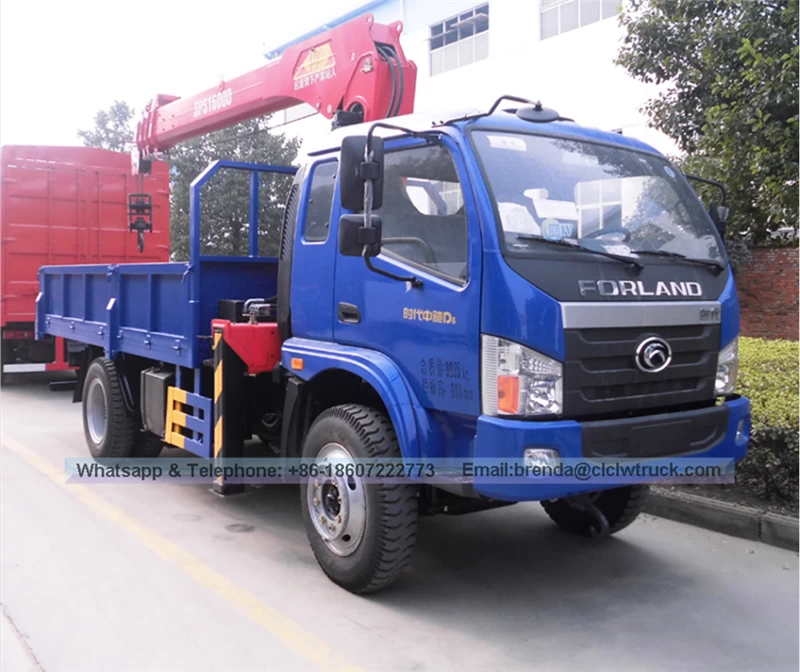

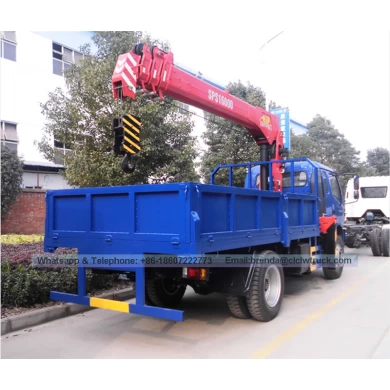

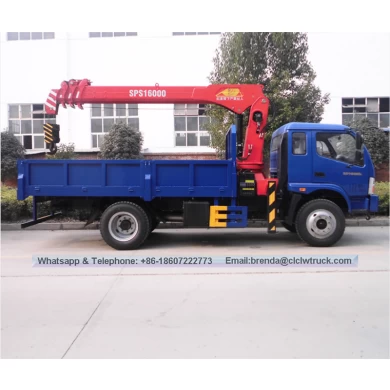

Product Image:
truck crane manufacturer china
