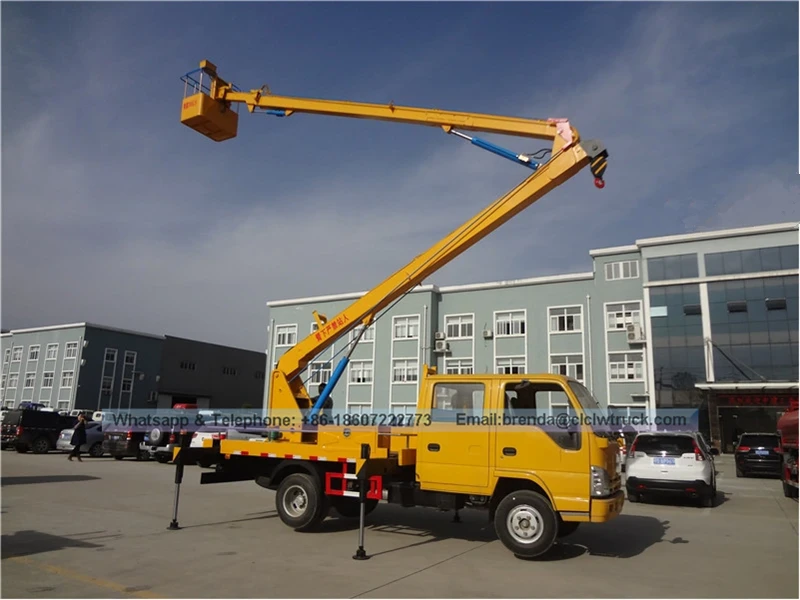

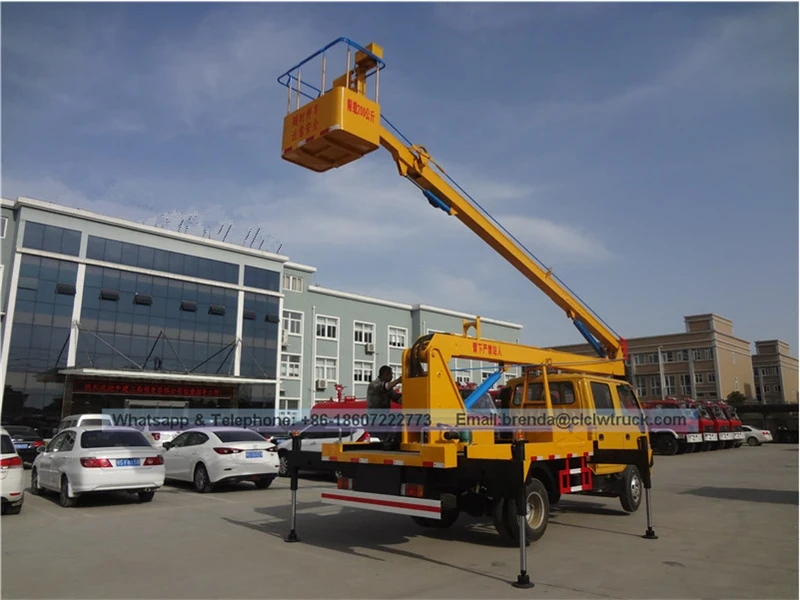

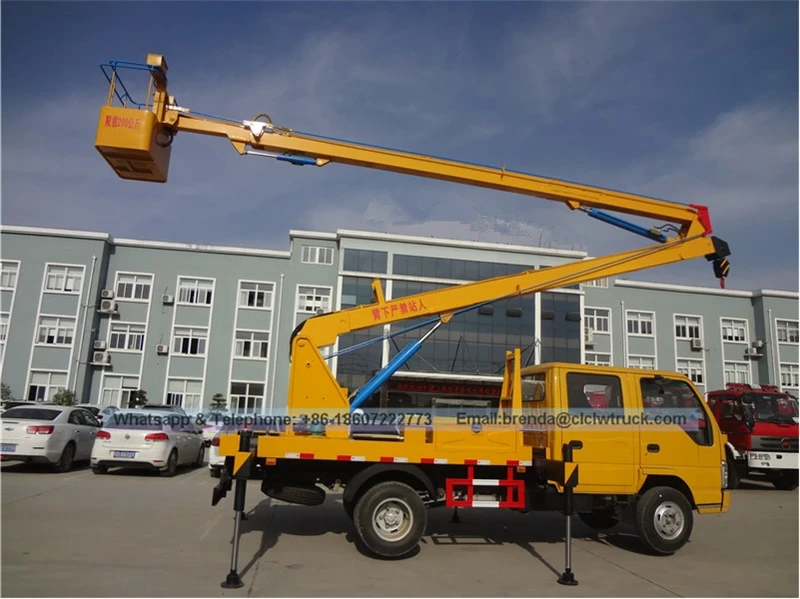

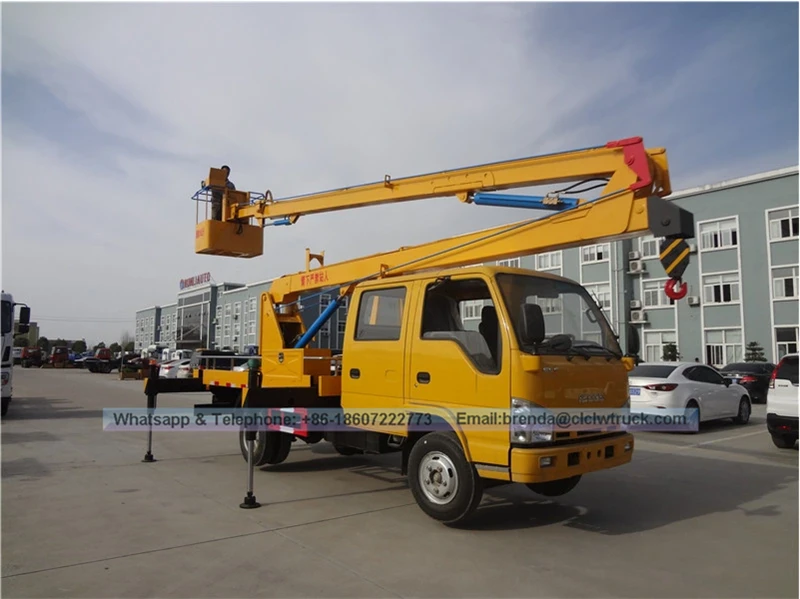

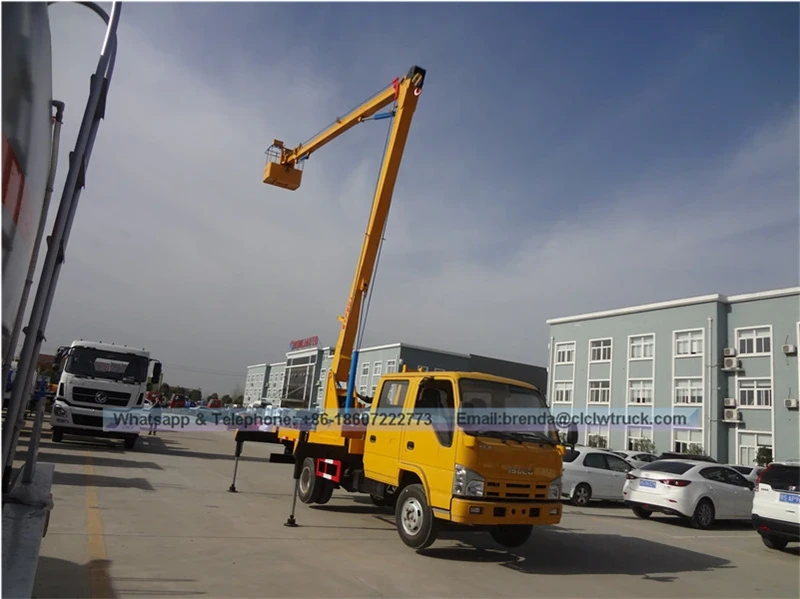

ISUZU 100P Double Cab 12-16m Aerial Platform Working Truck
- Aerial work truck, also known as aerial device, elevating work platform, bucket truck, mobile elevating work platform, aerial lift, high altitude operation truck, cherry picker or scissor lift.
- It refers to a special vehicle which work at high altitude (more than three meters), use a hydraulic or electric system multivessel hydraulic cylinders, can do up and down lifting operations, transport staff and equipment to the site, conduct high altitude operations, it is a modern advanced mechanical species equipment.
- Aerial work truck is specially designed and produced for aerial work or operation, such as repairing road lights, maintain high buildings, windows, hanging ad boards, power grid maintenance, etc.
- 1.Product name: JDF5051JGKQ41 High-altitude Operation Truck
- 2. Chassis Brand / Model: QL10703HWRY (ISUZU)
- 3. Engine Model: 4JB1CN( 2771ml / 72kw)
- 4. Tire Specification:7.00-16
- 5.Max Working height:12-16 meters
- 6.Emission Standard: Euro IV
- 7.Rated platform load: 200 kgs
|
【 Main specifications 】 |
|||
|
Product model、name |
JDF5051JGKQ41 High-altitude Operation Truck |
||
|
Gross vehicle weight(kg) |
5330 |
Drive type |
4 x 2 |
|
Curb weight(Kg) |
5005 |
Overall dimension (mm) |
6790×1990×3150 |
|
Approach/departure angle (°) |
24/13 |
cab seats (man) |
2+3 |
|
Number of axles |
2 |
Front/rear hang(mm) |
1015/1975 |
|
Axle load(Kg) |
1590/3740 |
Wheelbase(mm) |
3360 |
|
Max speed(Km/h) |
95 |
|
|
|
【 Chassis specifications 】 |
|||
|
Chassis model |
QL10703HWRY |
Manufacturer |
Qingling Motors Company Limited |
|
Brand name |
ISUZU |
Overall dimension (mm) |
5900 x 1880 x 2220 |
|
Tire specification |
7.00-16 |
Tires No. |
6+1(spare tire) |
|
Steel spring number |
8/6+5 |
Front track(mm) |
1504 |
|
Fuel type |
Diesel |
Rear track(mm) |
1425 |
|
Emission standard |
Euro IV |
Transmission |
MSB 5 forward gears, 1 reverse gear |
|

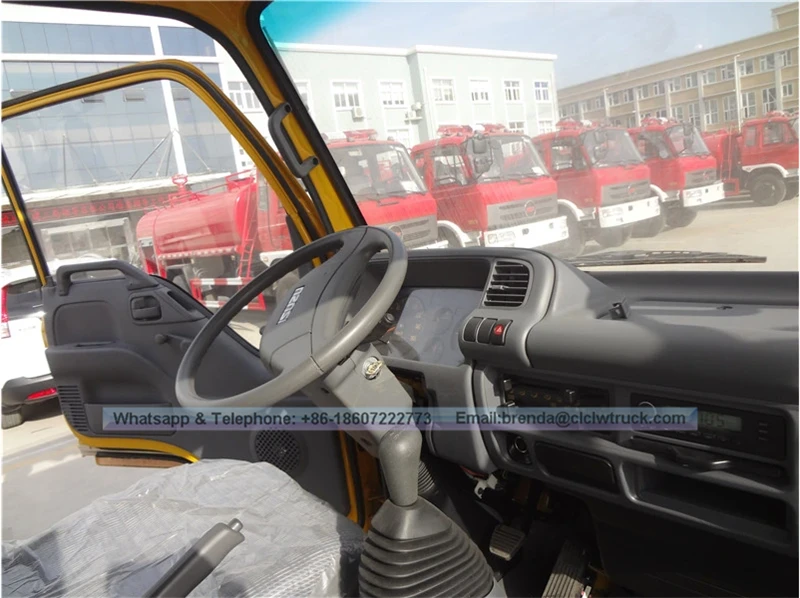

Cabin |
Double cab, luxurious interior trim and seat, with power steering,air conditioning, USB interface radio. |
||
|
Engine model |
Engine manufacturer |
Displacement(ml) |
Power(Kw) |
|
4JB1CN |
Qingling Isuzu (Chongqing) Engine Co., Ltd |
2771 |
72 (98 hp) |
|
【 High-altitude Operation Performance 】 |
|||
|
Max working height(mm) |
12-16 |
||
|
Rated platform load (Kg) |
200 |
||
|
Effective lifting weight (Kg) |
1000 |
||
|
【 High-altitude Operation Truck Functions 】 |
|||
|
High-altitude operation truck is one kind of special purpose vehicle which transport the workers and tools to aerial work. Equipped operational device both on the working platform and rotary seat, It can be remote control engine start / stop, high / low speed. Using the electro-hydraulic proportional valve to control lifting arm is good stability. The lifting arm can 360 ° continuously rotate. Through the link mechanism to make job groove level, steerable emergency pump fell job groove when the main pump fails, with night lighting, can lift heavy objects. The outrigger can separate and adjustable, to achieve vehicle leveling on uneven road. It is widely used in electricity, street lighting, municipal, landscape, communications, airports, making (repair) ship, transportation, advertising, photography and other aerial work areas. |
|||
