ISUZU 16 Meters High-altitude Operation Working Truck Supplier
- 1.Product name: CSC5070JGKW1 high-altitude truck
- 2. Chassis Brand / Model: ISUZU QL1070A1HWY
- 3. Engine Model:4KH1-TCG40 ( 2999ml / 88kw)
- 4. Tire Specification:7.00-16
- 5.Max Working height:16 meters
- 6.Emission Standard: Euro IV
|
Item |
Unit |
Specification |
|
Product name |
|
CSC5070JGKW1 high-altitude truck |
|
Chassis model |
|
QL1070A1HWY |
|
Gross weight |
kg |
6180 |
|
Curb weight |
kg |
5855 |
|
Overall dimension |
mm |
7650×1980×3100 |
|
wheelbase |
mm |
3360 |
|
Approach/departure angle |
° |
24/16 |
|
Engine model |
|
4KH1-TCG40 |
|
Engine manufacturer |
|
Jiangling Motors Corporation, Ltd |
|
Transmission |
|
5 gears |
|
Cabin |
|
Double cab, luxurious interior trim and seat, with power steering, air conditioning can be equiped if customer requires. |
|
Emission standard |
|
Euro IV |
|
Displacement / Power |
ml/kw |
2999 / 88 |
|
Tire specification / Number |
pcs |
7.00-16 / 6 |
|
Max speed |
km/h |
105 |
|
Max working height |
m |
16 |
|
Rated platform load |
kg |
200 |
|
Rated manned platform |
man |
2 |
|
Slewing angle（Left、Right） |
° |
360 |
|
Outrigger type / Q’ty |
pcs |
H-type, 4 pcs |
|
Remark |
The whole truck is operated through upper and lower hydraulic operation, equipped with hook. |
|
ISUZU 16 Meters High-altitude Operation Working Truck Supplier

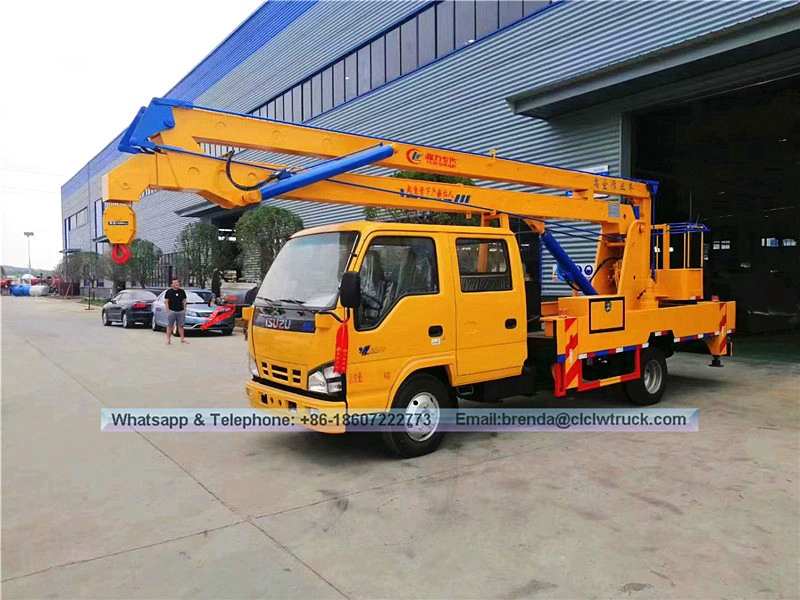

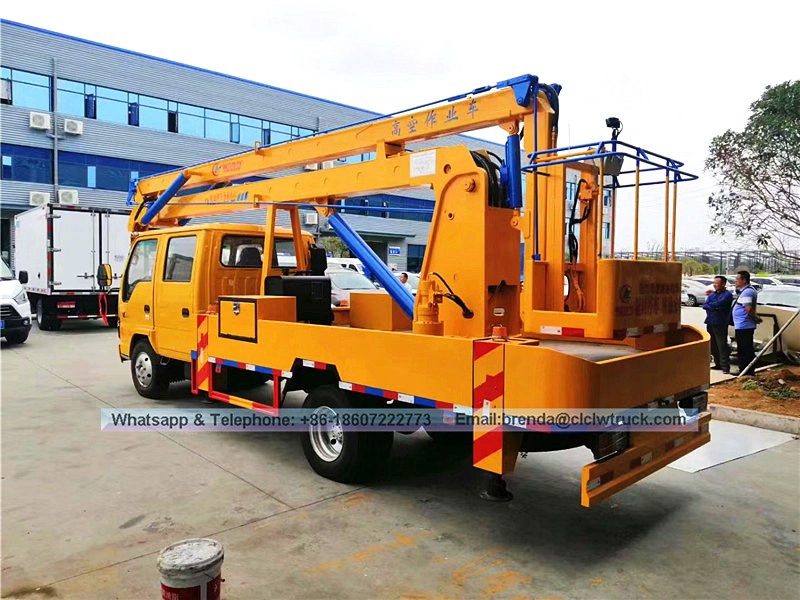

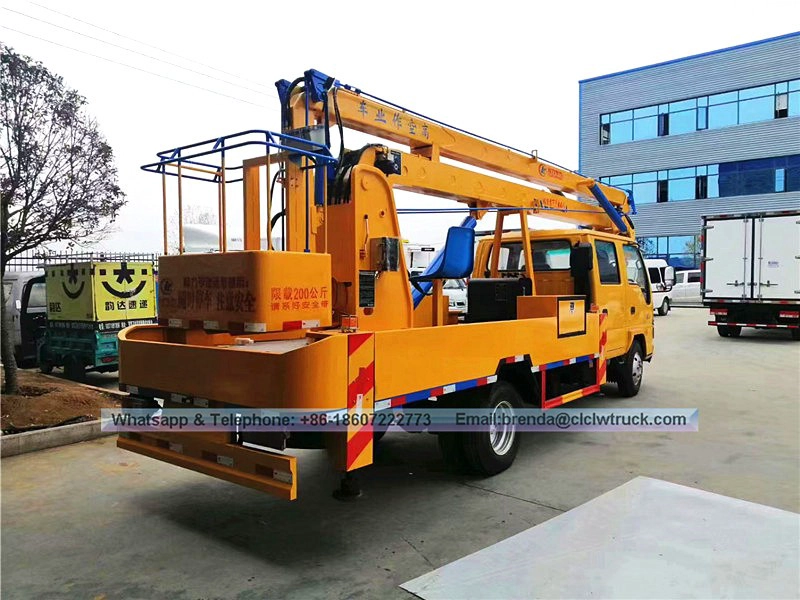

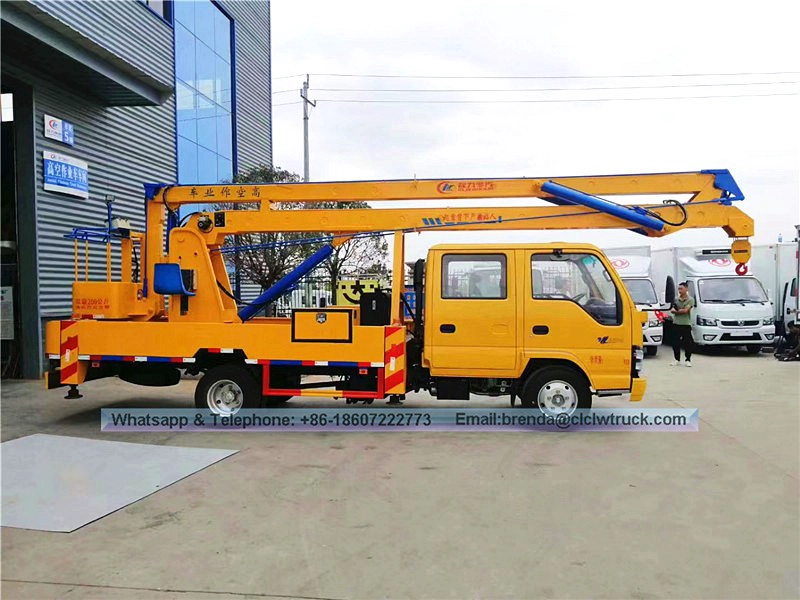

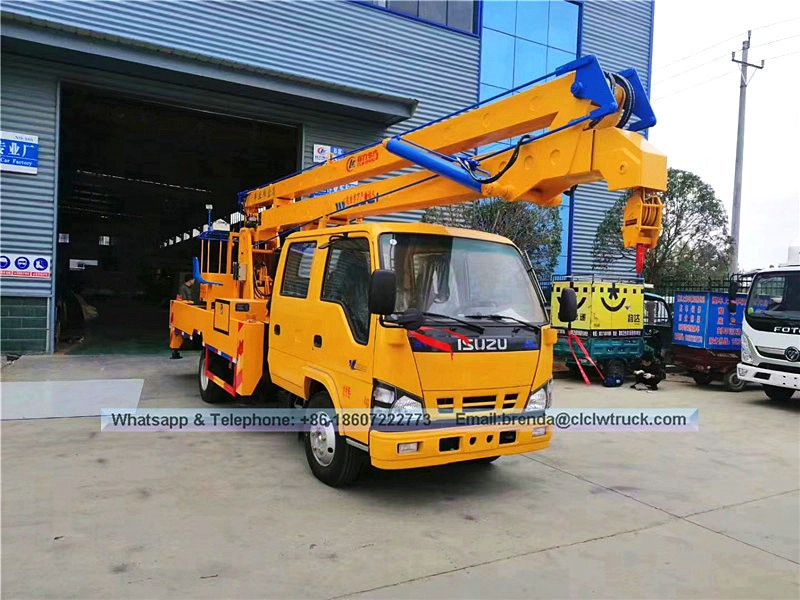

Product Image:
