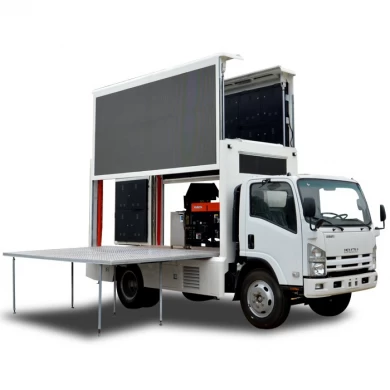

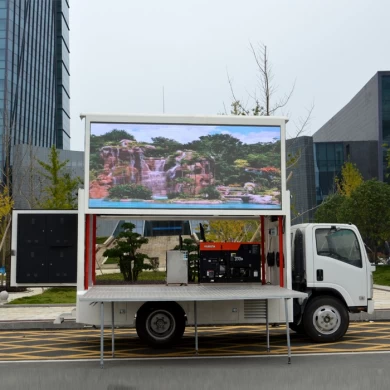

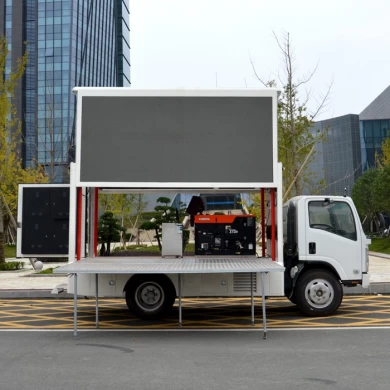

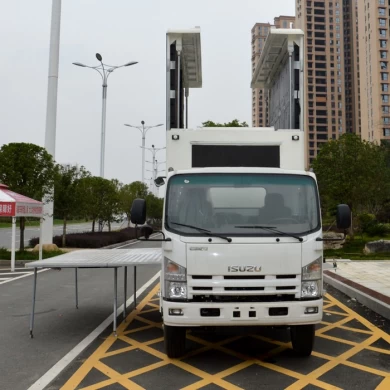

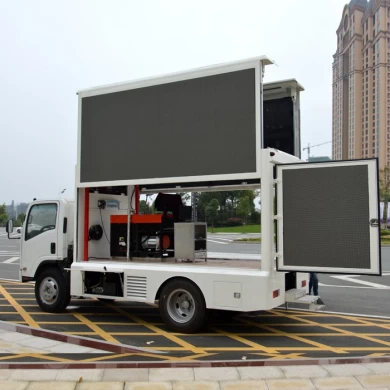

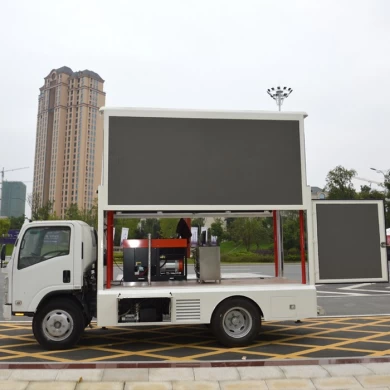

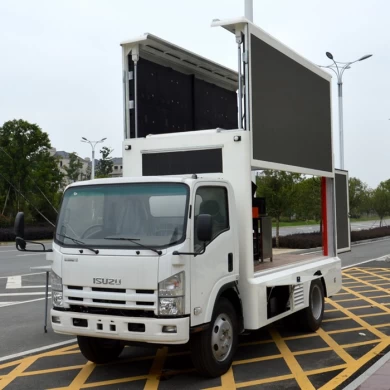

ISUZU BRAND Double screen with P4 screen model mobile led truck
- Product model、name:QL11009HARY (ISUZU brand Light LED truck)
- Gross weight(Kg):8000
- Drive type:4 x 2
- Curb weight(Kg):7805
- Overall dimension (mm):5990×2000×2900
- Wheelbase(mm):3360
- Cab seats (man):3
- Approach / departure angle(°):21/13
- Front/rear hang(mm):1110/2395
- Axle load:2680/5320
- Max speed(Km/h):110
ISUZU BRAND Double screen with P4 screen model mobile led truck
|
Main specification |
|||||||
|
Product model、name |
QL11009HARY (ISUZU brand Light LED truck) |
||||||
|
Gross weight(Kg) |
8000 |
Drive type |
4 x 2 |
||||
|
Curb weight(Kg) |
7805 |
Overall dimension (mm) |
5990×2000×2900 |
||||
|
Wheelbase(mm) |
3360 |
Cab seats (man) |
3 |
||||
|
Approach / departure angle(°) |
21/13 |
Front/rear hang(mm) |
1110/2395 |
||||
|
Axle load |
2680/5320 |
Max speed(Km/h) |
110 |
||||
|
Chassis specification |
|||||||
|
Chassis model |
QL11009HARY |
Manufacturer |
Qingling Motors Co., Ltd. |
||||
|
Brand name |
ISUZU (700P Series) |
Number of axes |
2 |
||||
|
Tire specification |
8.25-20 |
Tires No. |
6 |
||||
|
Leaf spring |
8/10+6 |
Front track(mm) |
1680 |
||||
|
Type of fuel |
Diesel |
Rear track(mm) |
1650 |
||||
|
Emission standard |
Euro IV |
Transmission |
MLD 6 Forward Gear and 1 Reverse |
||||
|
Driving cab |
MLD 6 gear transmission, air conditioning drive, oil brake vacuum pump, the bridge can be turned over the section of the frame |
||||||
|
Engine model |
Engine Manufacturer |
Displacement(ml) |
Power(KW) |
||||
|
4HK1-TCG40 |
Qingling Isuzu (Chongqing) Engine Co., Ltd. |
5193 |
139 |
||||
|
Mobile LED truck specification |
|||||||
|
LED screen size (length x high)(mm) |
3648*1728 (Left and Right side) |
Led side screen area (㎡) |
6.3 *2 = 12.6 |
||||
|
Screen Lift Height（m) |
1.5 (Left and Right side) |
LED screen’s pixel pitch（mm) |
6 |
||||
|
Rear P4 Full-color LED Screen size（Length ×Width）(mm) |
1280×1440 (P4 Screen) |
Generator – Kubota brand |
15 Kw |
||||
|
Control System of LED Screen |
LINSN |
Additional |
AC |
||||
|
Remark |
There be equipped the Silent generator, wooden floors, lighting, ventilation fans, skylights, computers, stereos, amplifiers and other facilities within the body , and 220V external power connector outside the body. |
||||||
|
Add a new configuration detail: |
|||||||
|
Configuration Name |
Quantity(pc) |
Remark |
|||||
|
P4 LED Modules(Plate) |
3 |
By free |
|||||
|
【The Main Features of LED truck】 |
|||||||
|
1. This truck is a special vehicle for advertising, generally used for the product promotion, brand promotion, draft activities , live shows sales, sporting events, vocal concerts, concerts and so on! 2. Can be showing at any time, communication, interaction, publicity coverage extensively. And meanwhile effectively get the best of advertising effect. |
|||||||
