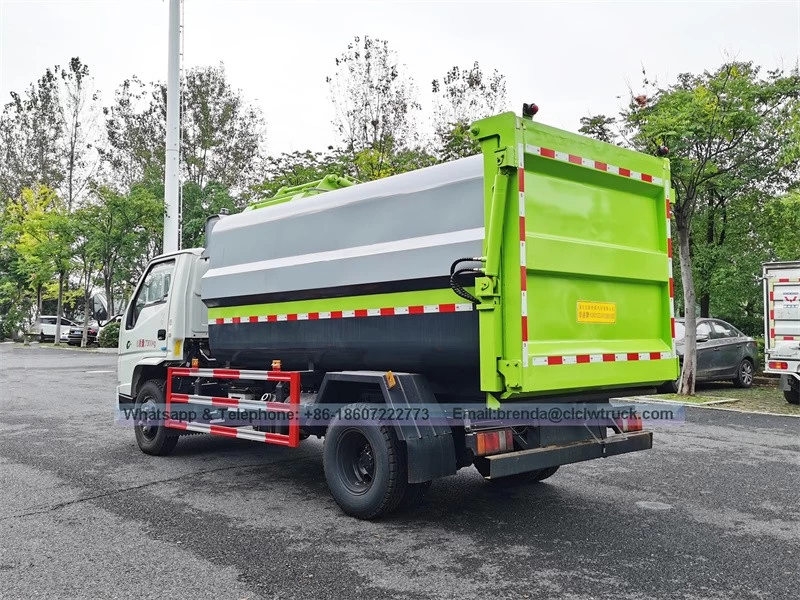

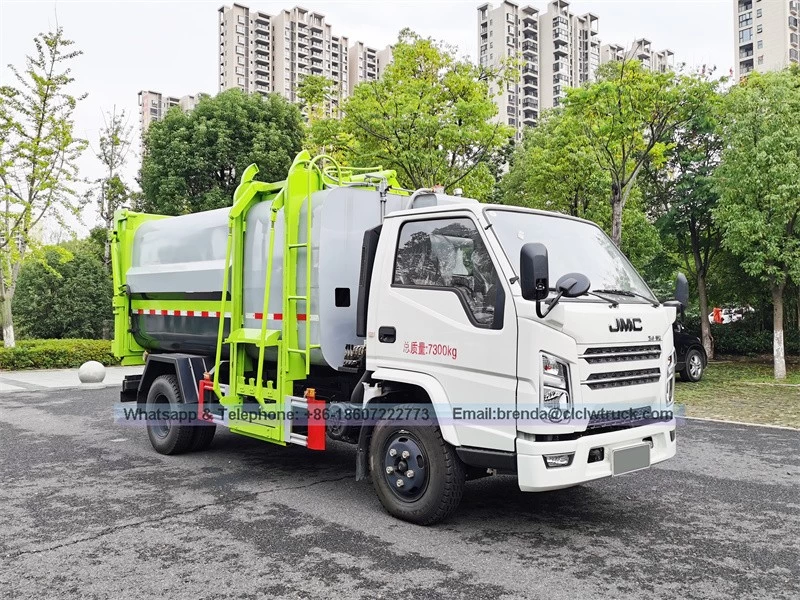

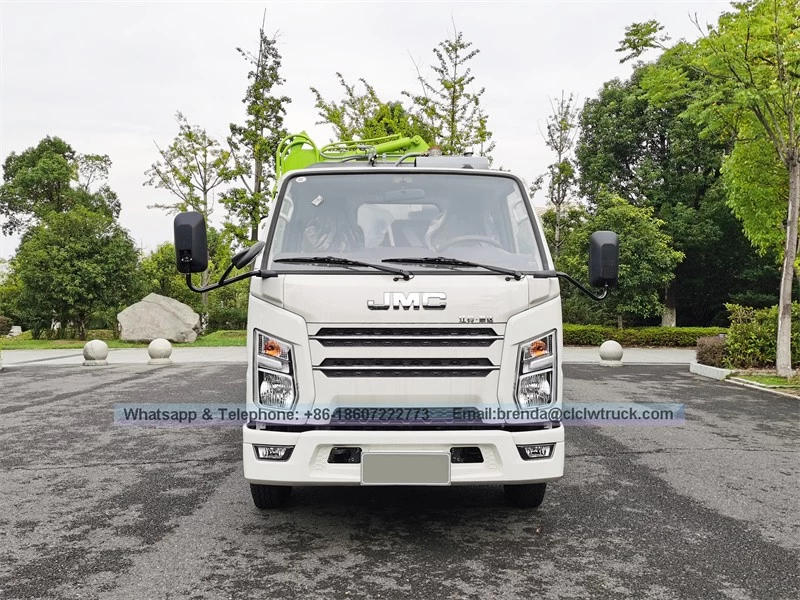

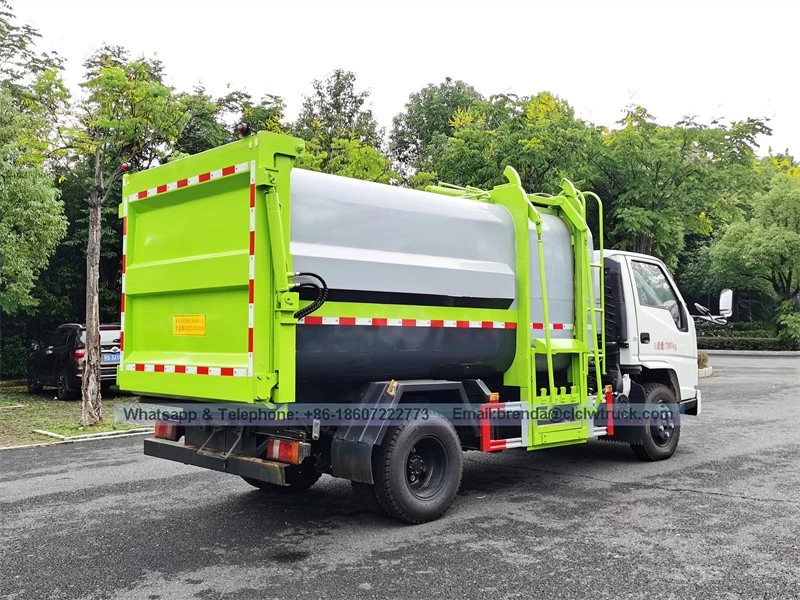

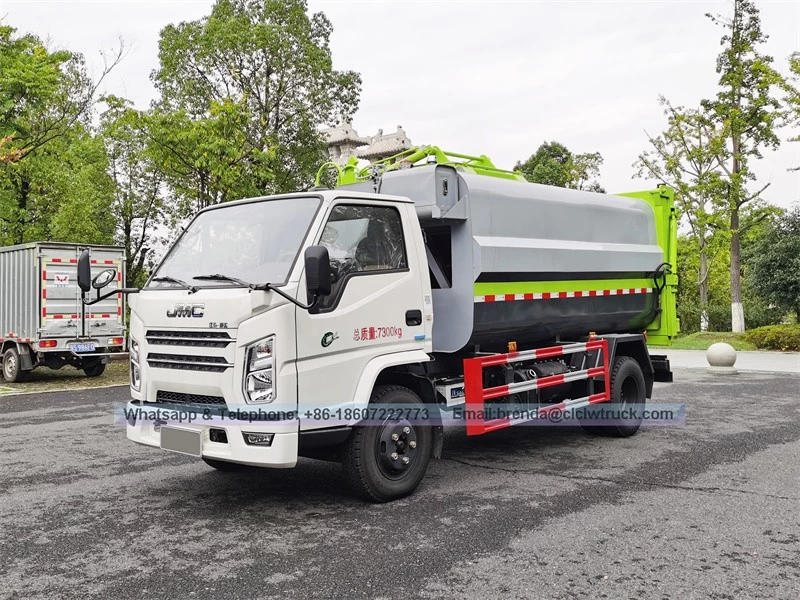

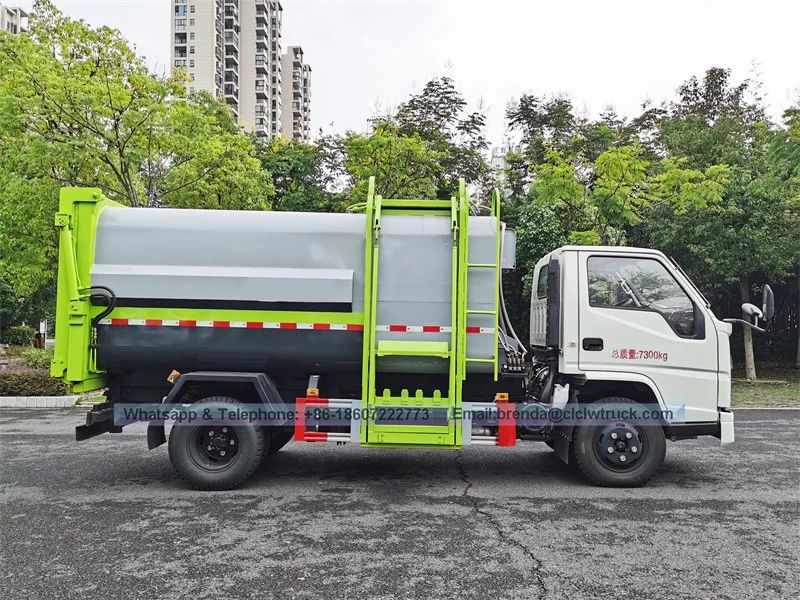

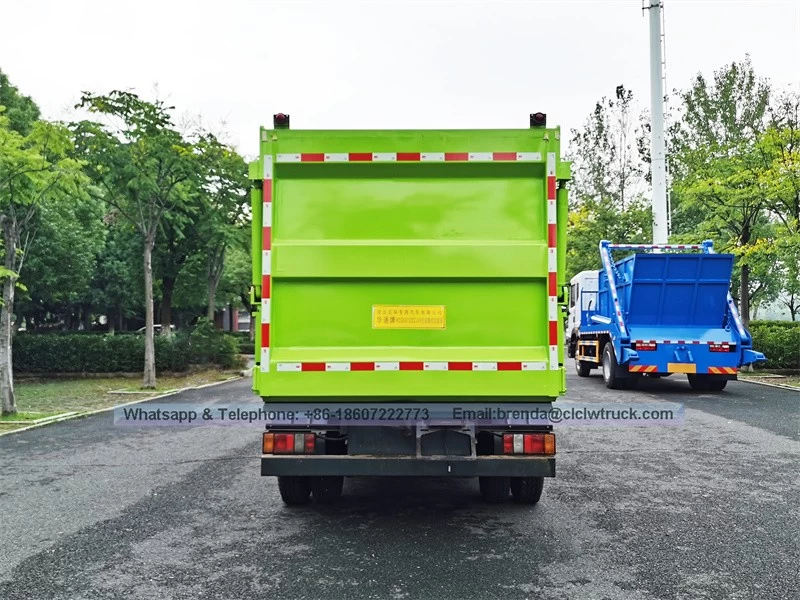

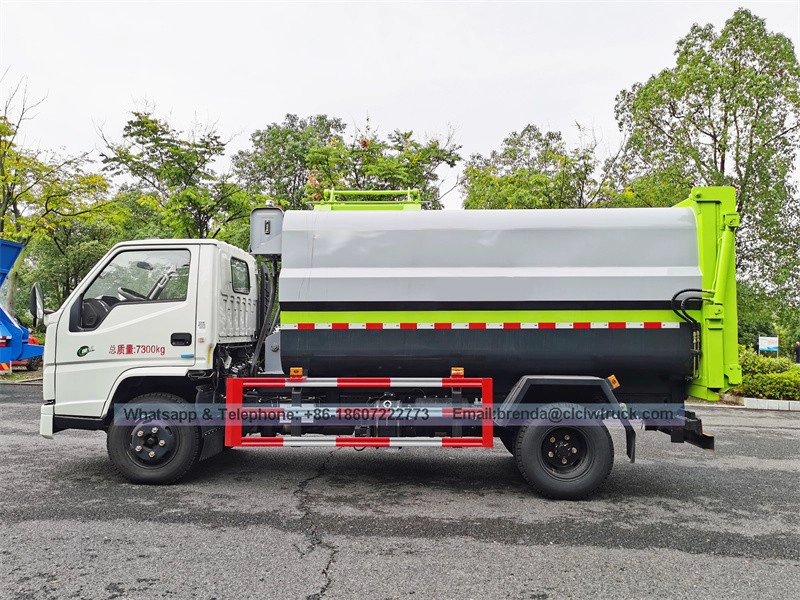

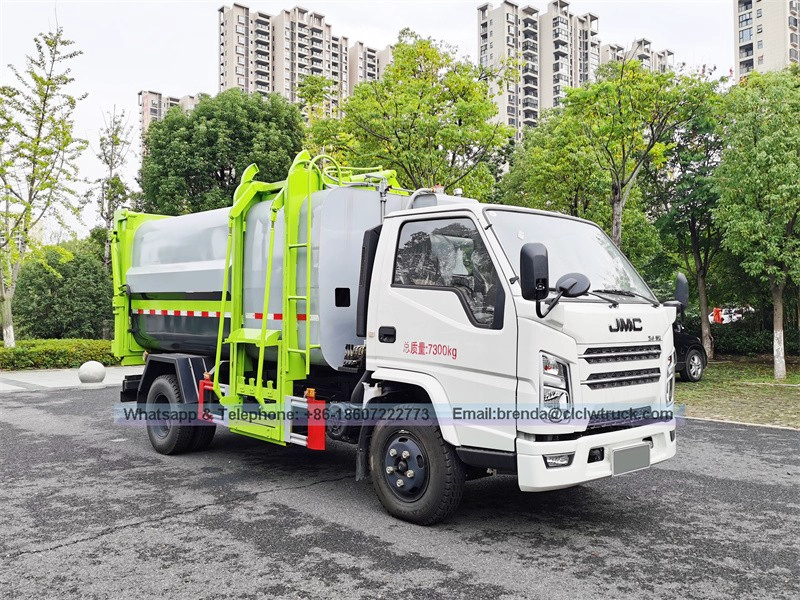

JMC 5 Ton Hydraulic Lifter Garbage Truck-Hydraulic garbage bin lifter 3m3 5m3 6m3 refuse collector truck
- This truck is a garbage collection and transportation equipment newly developed to meet the differentiated needs of users. This truck is suitable for areas where large vehicles cannot enter and areas that require low noise from sanitation vehicles, such as small streets, living quarters, factory and mine living areas, campuses, and other places, for front-end garbage collection and transportation.
|
ITEM |
UNIT |
DESCRIPTION |
|
Vehicle |
|
JMC refuse collector truck |
|
Overall dimensions |
mm |
5850X2150X2400 |
|
Garbage tank |
m3 |
5 |
|
GVW |
kg |
Appro×7300 |
|
Net weight |
Appro×4500 |
|
|
Loading |
Appro×2820 |
|
|
Wheel base |
mm |
3360 |
|
Front/Rear overhang |
1075/1215 |
|
|
Approach/departure angle |
° |
20/13 |
|
Max speed |
km/h |
80 |
|
Chassis Parameter |
||
|

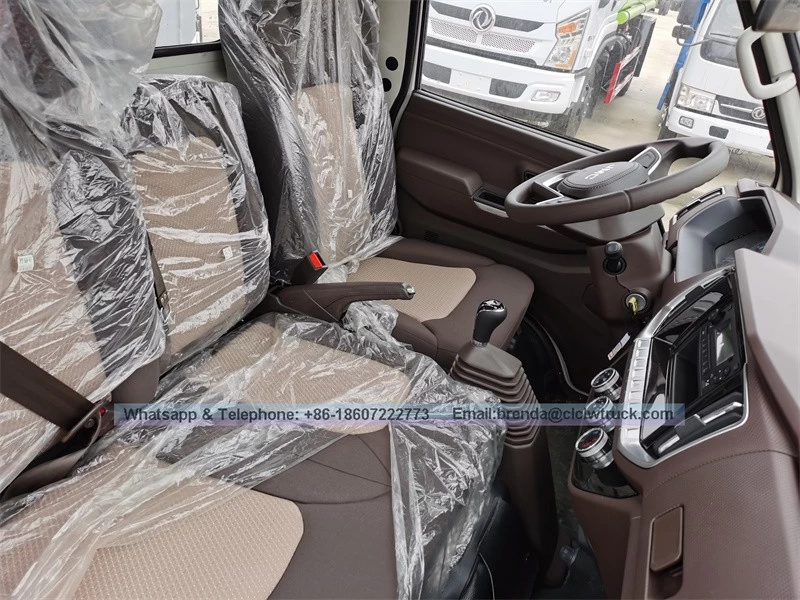

Cabin |
Single cabin,power steering,air conditioner,3 passenger |
|
|
Drive type |
4×2 |
|
|
Engine |
Brand : JMC JX1071TG26 Model : JX493ZLQ6C, 122hp Fuel type : diesel Displacement : 2771ml Emission standard : Euro 6 |
|
|
Transmission |
5 forward,1 rear,manual operated |
|
|
Tire model |
7.00R16 |
|
|
No.of tire |
6pcs |
|
|
|

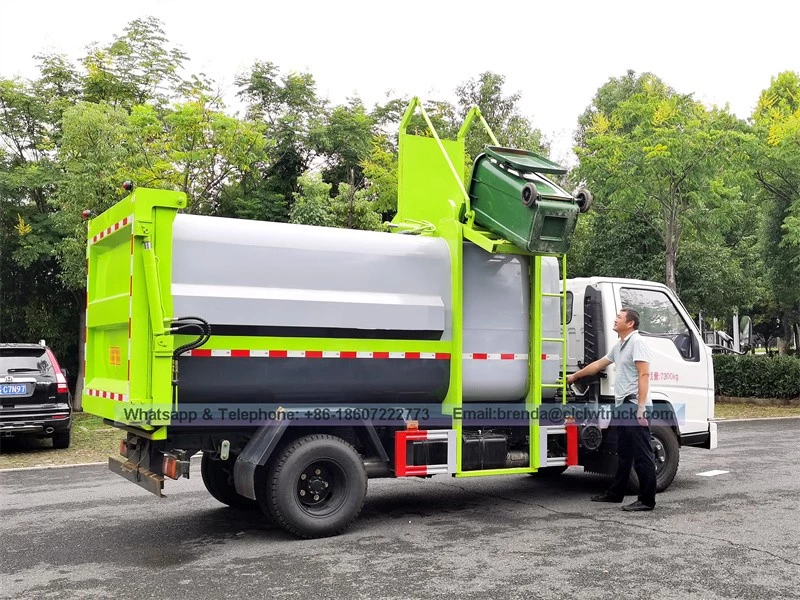

Hydraulic lifter garbage truck can be mechanized automatic loading and unloading garbage, it consists of sealed garbage box, hydraulic system and operating system, can work with dozens of dust bins which achieve one truck with multiple bins joint operation. The hydraulic lifting device can hang the dust bins up and down , one working cycle time is 50s. The sealed box is environmentally friendly and hygienic, can avoid secondary pollution. |
|
