Japanese 5TON ISUZU tow truck for sale,4x2 Japan ISUZU tow truck suppliers
- 1.Wheelbase(mm):3815
- 2.Tyre specification:8.25-16-14PR
- 3.Transmission:6 forward gear, 1reverse gear(ISUZU MLD)
- 4.Flat length(mm):5600
- 5.Flat width(mm):2300
- 6.Max flatbed carrying capacity(Ton):5
- 7.Max lift weight(Ton):3
- 8.Hydraulic parts:Imported
|
Main specification |
||||||||||
|
Product model and name |
JDF5071TQZQ4 Wrecker truck |
|||||||||
|
Gross weight(Kg) |
6900 |
Drive type |
4X2 |
|||||||
|
Curb weight(Kg) |
5505 |
Overall dimension(mm) |
7400X2300X2410,2600 |
|||||||
|
Approach/departure angle(°) |
21/10 |
Cab seats |
3 |
|||||||
|
Axle No. |
2 |
Front/rear hang(mm) |
1110/2475 |
|||||||
|
Axle load(Kg) |
2350/4550 |
Wheelbase(mm) |
3815 |
|||||||
|
Max speed(Km/h |
95 |
|
|
|||||||
|
Chassis specification |
||||||||||
|
Chassis model |
QL10909KARY |
Manufacturer |
Qingling Motor Co., Ltd |
|||||||
|
Brand name |
ISUZU |
Dimension(mm) |
6980x2170x2350 |
|||||||
|
Tyre specification |
8.25-16-14PR |
Tyre No. |
6 and 1(for the spare) |
|||||||
|
Steel spring number |
8/10+6 |
Front track base(mm) |
1680 |
|||||||
|
Fuel type |
Diesel |
Rear track base(mm) |
1650 |
|||||||
|
Emission standard |
Euro 4 |
Transmission |
6 forward gear, 1reverse gear(ISUZU MLD) |
|||||||
|
Cab |
Cab color: white red or other colors as your request. Single row, Luxurious interior trim with seats,Power steering with air condition. |
|||||||||
|
Engine model |
Engine manufacturer |
Displacement(ml) |
Power(Kw) |
|||||||
|
4HK1-TCG40 |
Qingling ISUZU Engine Co.,Ltd |
5193 |
139(190HP) |
|||||||
|
Performance |
||||||||||
|
Flat length(mm) |
5600 |
Flat width(mm) |
2300 |
|||||||
|
Max flat carrying weight(Ton) |
5 |
Max lift weight(Ton) |
3 |
|||||||
|
Vehicle accessories |
||||||||||
|
Training wheels, Steel wire rope,bandage, Alarm lamp, Tyre Covers,Jack, spare tyre ,drivers’ tools |
||||||||||

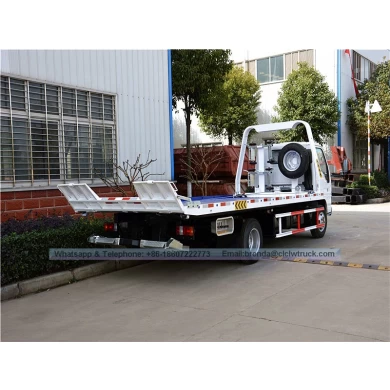

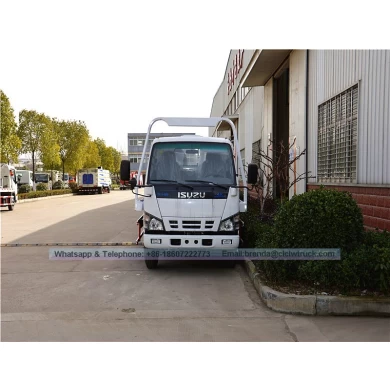

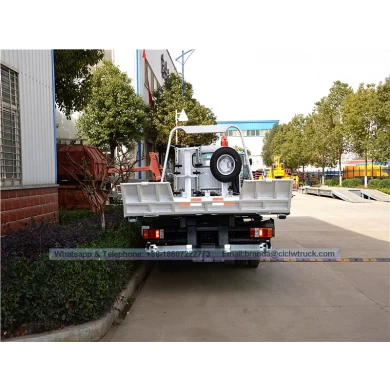

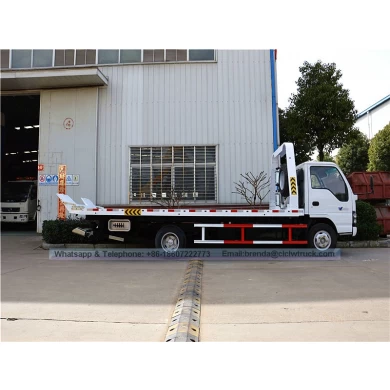

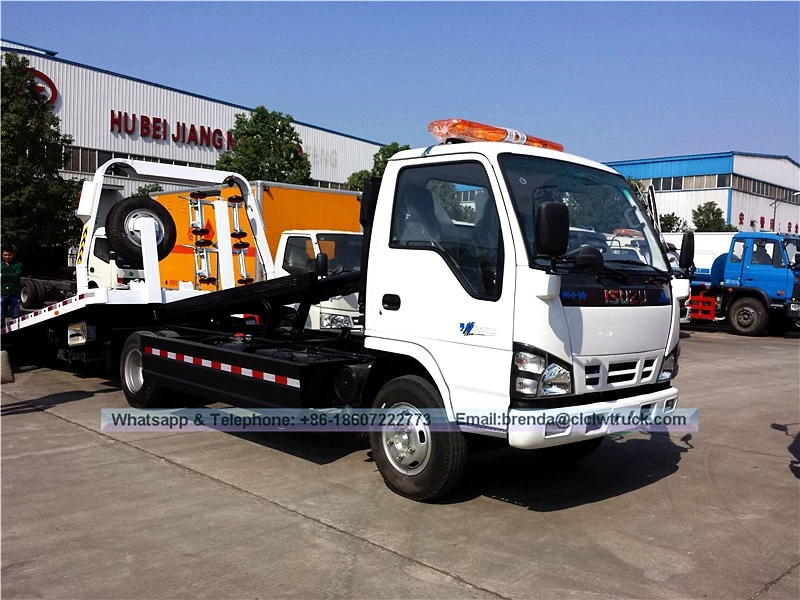

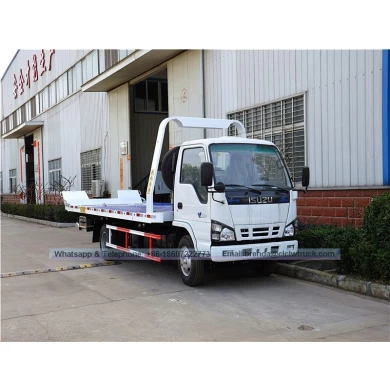

Japanese 5TON ISUZU Tow Truck Image
