Japanese ISUZU tow truck 4TON,Japan tow truck supplier,ISUZU tow truck for sale manufacturer
- 1.Wheelbase(mm):3815
- 2.Tyre specification:7.00-16 14PR
- 3.Transmission:5 forward gear,1 reverse gear(MSB)
- 4.Flat length(mm):5600
- 5.Flat width(mm):2300
- 6.Max flatbed carrying weight(Kg):4000
- 7.Max lift weight(Kg):3000
- 8.Horsepower(HP):120
|
Main specification |
|||||||||||
|
Product model and name |
QL1070A1KAY Wrecker truck |
||||||||||
|
Gross weight(Kg) |
7300 |
Drive type |
4X2 |
||||||||
|
Curb weight(Kg) |
4370 |
Overall dimension(mm) |
7300X2300X2460 |
||||||||
|
Approach/departure angle(°) |
24/14 |
Cab seats |
2 |
||||||||
|
Axle No. |
2 |
Front/rear hang(mm) |
1015/2470 |
||||||||
|
Axle load(Kg) |
2580/4720 |
Wheelbase(mm) |
3815 |
||||||||
|
Max speed(Km/h) |
105 |
|
|
||||||||
|
Chassis specification |
|||||||||||
|
Chassis model |
QL1070A1KAY |
Manufacturer |
Qingling Motor Co.,Ltd |
||||||||
|
Brand name |
ISUZU |
Dimension(mm) |
6645X1880X2160 |
||||||||
|
Tyre specification |
7.00-16 14PR |
Tyre No. |
6 and 1 for the spare |
||||||||
|
Steel spring number |
8/6+5 |
Front track base(mm) |
1504 |
||||||||
|
Fuel type |
Diesel |
Rear track base(mm) |
1425 |
||||||||
|
Emission standard |
Euro 4 |
Transmission |
MSB,5 forward gear,1 reverse gear |
||||||||
|
Cab |
Single row, luxurious interior trim with seats and power steering with air condition. |
||||||||||
|
Engine model |
Engine manufacturer |
Displacement(ml) |
Power(Kw) |
||||||||
|
4KH1-TCG40 |
Qingling ISUZU Engine Co.,Ltd |
2999 |
88 |
||||||||
|
Performance |
|||||||||||
|
Flat length(mm) |
5600 |
Flat width(mm) |
2300 |
||||||||
|
Max flatbed carrying weight(Kg) |
4000 |
Max lift weight(Kg) |
3000 |
||||||||
|
Vehicle accessories |
|||||||||||
|
Training wheels, Steel wire rope, Bandage, Alarm lamp, Tyre covers, Jack, Spare tyre, Drivers’ tools |
|||||||||||
|
Wrecker Truck Instruction |
|||||||||||
|
The full name of wrecker truck is named road wrecker truck, also called trailer and road rescue truck. It has the powerful function and can carry two cars at the same time. It is the ideal choice for road management department and automobile repair plat to proceed to the road repair and rescue. |
|||||||||||

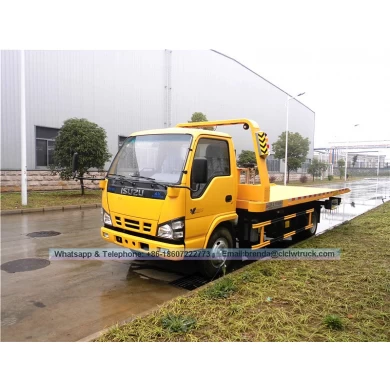

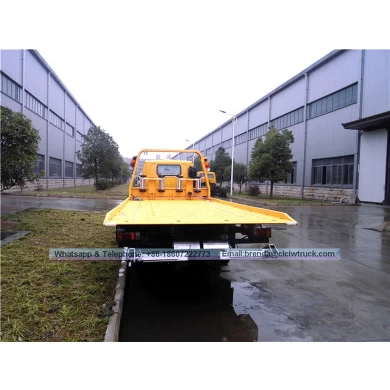

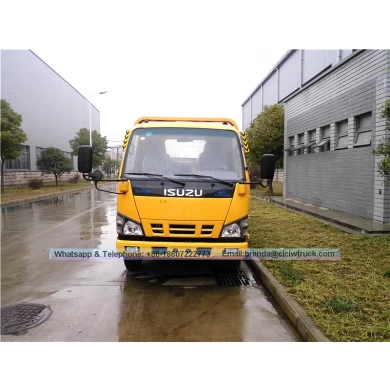

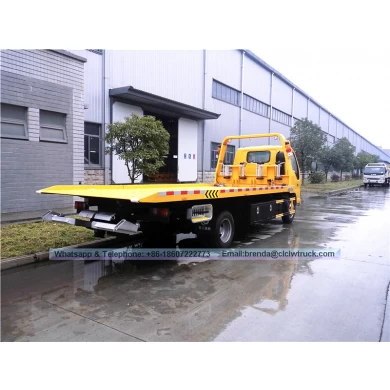

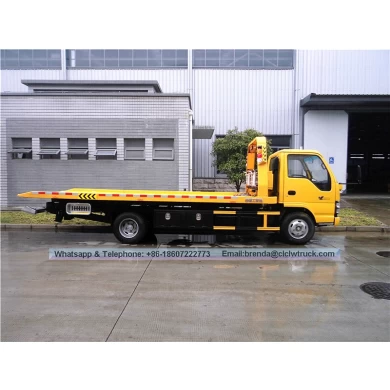

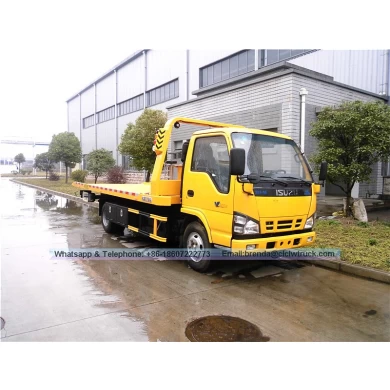

Japanese ISUZU tow truck Image
