New Condition Dongfeng 8000 kgs Knuckle Boom Crane Truck For Sale
- 1.Product Model / Name: EQ1168VFJ1 truck mounted crane
- 2.Overall dimension (mm):9000×2490×3750
- 3.Chassis model: EQ1168VFJ1 (Dongfeng)
- 4.Engine model: ISB170 40 ( 5900ml/ 125kw)
- 5.Crane Max lifting weigh(kg):8000
- 6.Crane Max ligting heigh(m):13.5
- 7. Crane Working Radiu(m):11.5
|
【Main specifications】 |
|||||||
|
Product model、name |
Truck With Crane |
||||||
|
Gross vehicle weight(kg) |
15900 |
Drive type |
4 X 2 |
||||
|
Payload(kg) |
7060 |
cab seats (man) |
3 |
||||
|
Curb weight(Kg) |
8645 |
Overall dimension (mm) |
9000×2490×3750 |
||||
|
Approach/departure angle (°) |
23/12 |
Box internal dimension(mm) |
5600×2294×550 |
||||
|
Number of axles |
2 |
Front/rear hang(mm) |
1450/2450 |
||||
|
Axle load(Kg) |
5950/9950 |
Wheelbase(mm) |
3950 |
||||
|
Max speed(Km/h) |
90 |
|
|
||||
|
【Chassis specifications】 |
|||||||
|
Chassis model |
EQ1168VFJ1 |
Brand name |
Dongfeng |
||||
|
Manufacturer |
Dongfeng Automobile Co,.Ltd |
Tires No. |
6 |
||||
|
Approach/departure angle (°) |
23/25 |
Tire specification |
9.00-20 |
||||
|
Steel spring number |
9/10+8 |
Front track(mm) |
1960 |
||||
|
Fuel type |
Diesel |
Rear track(mm) |
1860 |
||||
|
Emission standard |
Euro IV |
Transmission |
6 forward gear, 1 reverse gear |
||||
|
Engine model |
Engine manufacturer |
Displacement(ml) |
Power(Kw) |
||||
|
ISB170 40 |
Dongfeng engine co, Ltd |
5900 |
125 |
||||
|
【Crane specification】 |
|||||||
|
Crane model |
SQS200 |
Crane brand |
XCMG |
||||
|
Type of Crane |
Telescopic boom |
Crane weight (kg) |
3000 |
||||
|
Max lifting weight（kg） |
8000 |
Max lift height（m） |
13.5 |
||||
|
Working radius(m) |
11.5 |
Operation method |
High seat operation / floor operation |
||||
|
Number of arms |
4 |
Outrigger (pcs) |
2 / 4 |
||||
|
【Functions】 |
|||||||
|
The truck consists of chassis, box, power take-off and crane, achieving cargo lifting and moving through hydraulic lifting and telescopic system. In general, H-type outrigger is equipped to realize its stability. To be further strengthened stability of the truck, rear outrigger also can be equipped if the customer require. The truck can 360 ° continuously rotate. |
|||||||
New Condition Dongfeng 8000 kgs Knuckle Boom Crane Truck For Sale

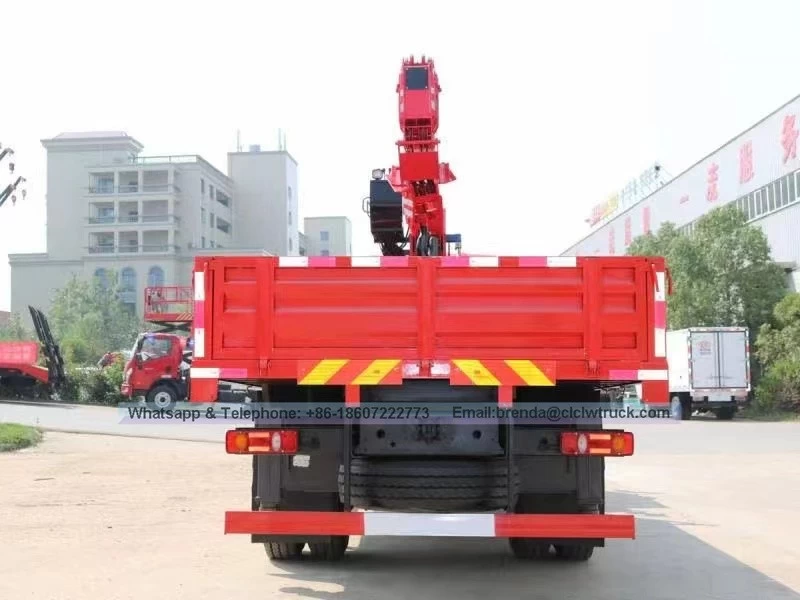

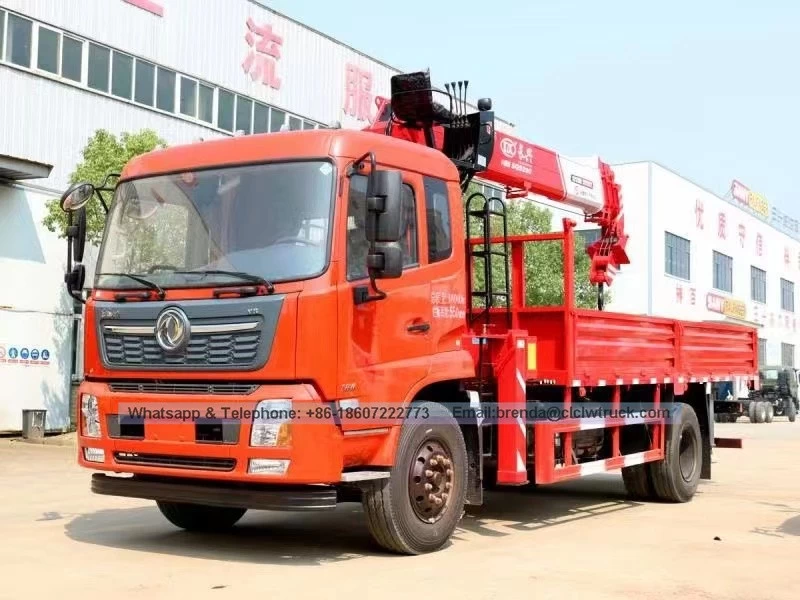

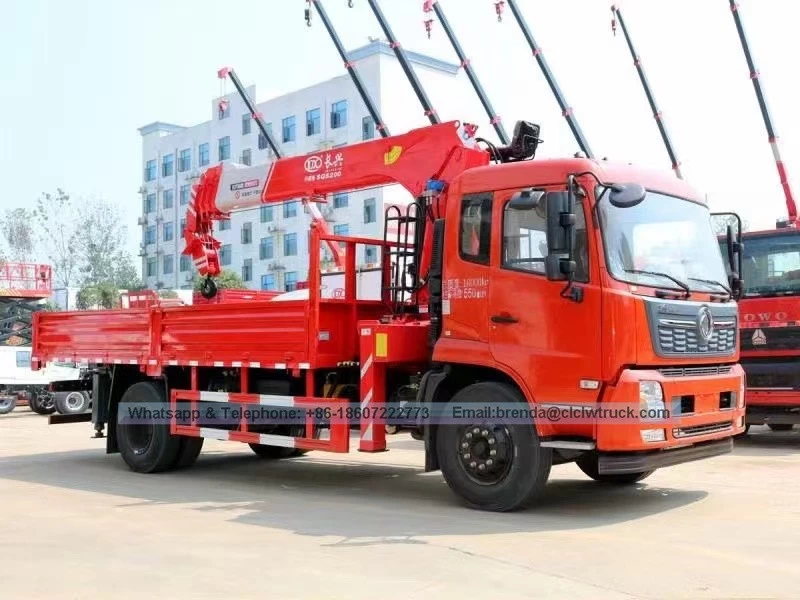

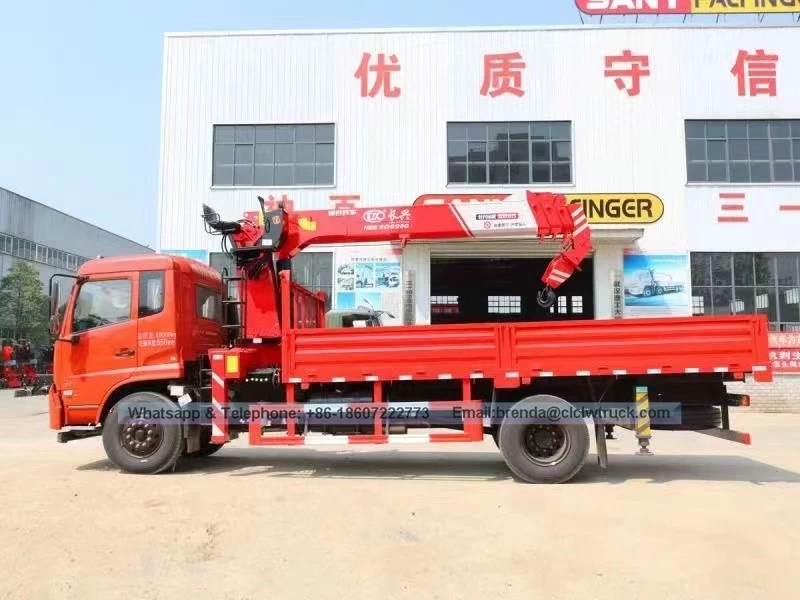

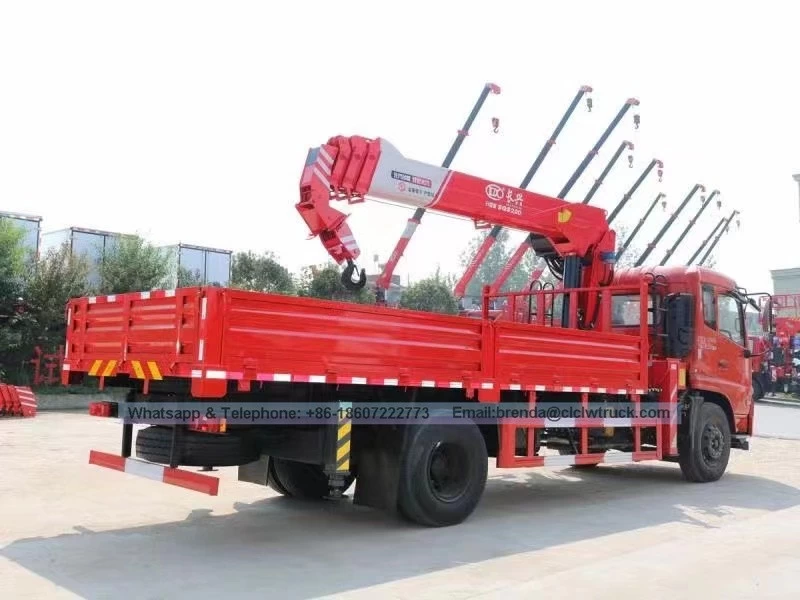

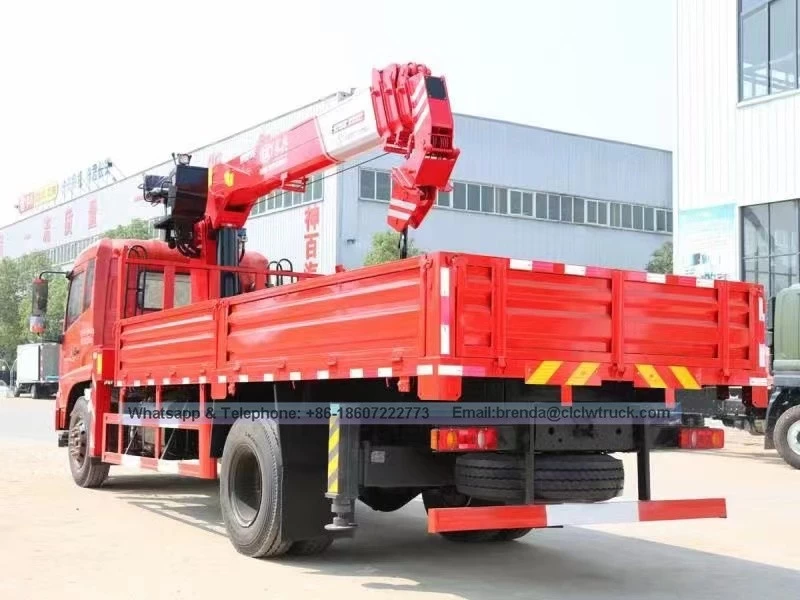

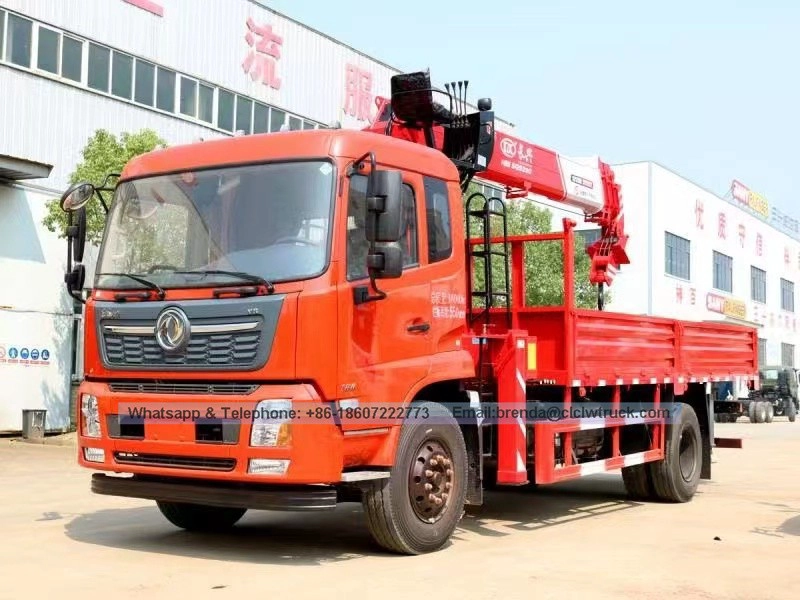

Product Image:
