SINOTRUK HOWO 4x2 2200 gallon 10000liters water tank truck
- Water browser (aslo called water spry truck, water transport truck, water hauling truck, clean water truck, truck tanker for drinkable water tanker, water tanker for truck) is used to transport and supply water, whatever industrial or agriculture water, widely used in conconstruction engineering, farm irrigation, draught relief, etc.
- Water bowser can be also eqquipped with pesticide spraying machine, to be used to spray pesticide in agriculture pest control field.
- 1.Wheelbase(mm):4600
- 2.Tyre specification:11.00R20
- 3.Transmission:HW15710CL(Manual transmission)
- 4.Tank material:Carbon steel Q235 or Stainless steel
- 5.Water pump flow(m³/h):60
- 6.Watering width(M):≥14
- 7.Water cannon range (M):≥28
- 8.Horsepower(HP):266
Technical Specification
|
Main specification |
|||||||||||
|
Product model and name |
SGZ5160GPSZZ3W water truck |
||||||||||
|
Gross weight(Kg) |
16000 |
Drive type |
4X2 |
||||||||
|
Payload(Kg) |
7570 |
Overall dimension(mm) |
8500,8150X2500X3300 |
||||||||
|
Curb weight(Kg) |
8300 |
Cab seats |
2 |
||||||||
|
Approach/departure angle(°) |
16/13,16/15 |
Front/rear hang(mm) |
1500/2400,1500/2050 |
||||||||
|
Axle No. |
2 |
Wheelbase(mm) |
4600 |
||||||||
|
Axle load(Kg) |
6000/10000 |
Max speed(Km/h) |
90 |
||||||||
|
Chassis specification |
|||||||||||
|
Chassis model |
ZZ1167M4617C |
Manufacturer |
China SINOTRUK Group Jinan Truck Co.,Ltd |
||||||||
|
Brand name |
SINOTRUK(HOWO) |
Dimension(mm) |
7990×2496×2958 |
||||||||
|
Tyre specification |
11.00R20 |
Tyre No. |
6 |
||||||||
|
Steel spring number |
10/9+6 |
Front track base(mm) |
2022,2041 |
||||||||
|
Fuel type |
Diesel |
Rear track base(mm) |
1830 |
||||||||
|
Emission standard |
Euro 3 |
Transmission |
HW15710CL(Manual transmission) |
||||||||
|
Cab |
HW76 medium cab, luxurious interior trim with seats,And power steering with air condition. |
||||||||||
|
Engine model |
Engine manufacturer |
Displacement(ml) |
Power(Kw) |
||||||||
|
WD615.92E |
China Heavy Duty Truck Group Co.,Ltd |
9726
|
196
|
||||||||
|
Performance |
|||||||||||
|
Tank volume(liter) |
10000 to 15000 |
Tank material |
Carbon steel Q235 or Stainless steel |
||||||||
|
Water pump model |
80QZF-60/90N |
Water pump flow(m³/h) |
60 |
||||||||
|
Watering width(M) |
≥14 |
Water cannon range (M) |
≥28 |
||||||||
|
Feature and Application |
|||||||||||
|
1).Equipped with high power self-suction water pump that characterized by high-pressure and fast speed suction. 2).Equipped with front, rear and side sprinklers and high position sprinkler, and rear working platform. 3).The water cannon which is installed on the working platform can rotate by 360 degree and the water flow can be adjusted into various rain shape. There are straight shape, heavy rain, moderate rain and drizzle etc. The max range can reach 30M. 4).Equipped with fire coupling, flow valves, filter screen and water level gauge. 5).According to customers’ request, the crane, high working platform and spraying machine also can be equipped. 6).Mainly used for washing on urban roads, watering and greening on trees, green belts and lawn and dust full of construction sites. And also used for drinking water delivery and fire fighting function etc. |
|||||||||||
SINOTRUK HOWO 4x2 2200 gallon 10000liters
water tank truck

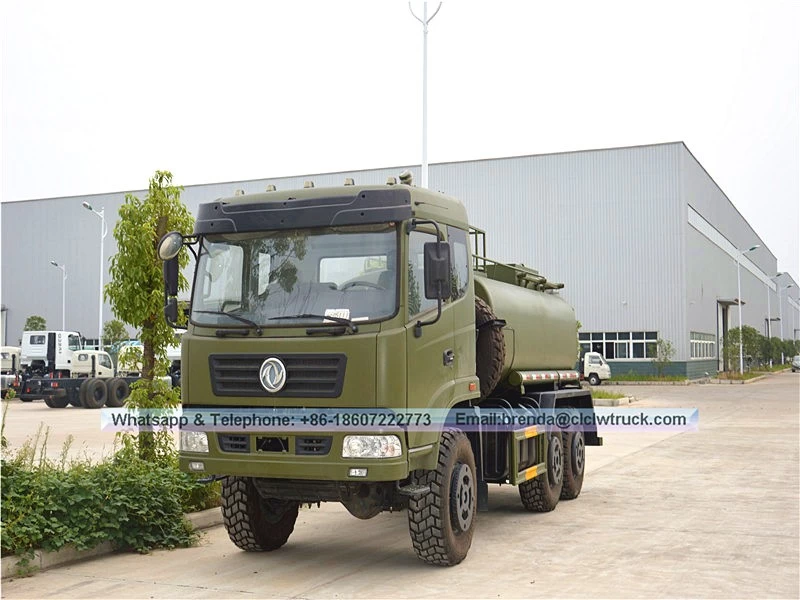

Water Tank Truck Image
