dongfeng road sweeper truck, road sweeper truck china supplier
- 1. Product model、name:HCQ5160TXSBX5 Road Sweeper Truck
- 2. Overall dimension (mm):8650 x 2500 x 3000
- 3. Trash tank volume (m³):7
- 4. Water tank volume (m³):3.5
- 5. Material of trash tank/water tank: Stainless steel
- 6. Max sweeping width(mm): 3200
- 7. Sweeping speed (km / h):3-20
- 8. Sweeping capacity（㎡/h）:9000- 60000
- 9. Maximum Grain size and quality (mm):100mm\±1.5kg
- 10.Cleaning Rate: 96%
|
Main specifications |
|||
|
Product model、name |
HCQ5160TXSBX5 Road Sweeper Vehicles |
||
|
Gross weight(Kg) |
16000 |
Drive type |
4 × 2 |
|
Payload (Kg) |
4500 |
Overall dimension (mm) |
8650 x 2500 x 3000 |
|
Curb weight(Kg) |
11305 |
cab seats (man) |
3 |
|
Approach / departure angle(°) |
20/13 |
Front/rear hang(mm) |
1430/2220 |
|
Number of axles |
2 |
Wheelbase(mm) |
4700 |
|
Axle load |
6000/10000 |
Max speed(Km/h) |
90 |
|
Chassis specifications |
|||
|
Chassis model |
DFL1160BX5 |
Manufacturer |
DFAC |
|
Brand name |
DongFeng |
Overall dimension(mm) |
8290×2370×2760 |
|
Tire specification |
9.00-20 |
Tires No. |
6 |
|
Steel spring number |
8/10+8,7/9+6 |
Front track(mm) |
1880 |
|
Fuel type |
Diesel |
Rear track(mm) |
1860 |
|
Emission standard |
Euro IV |
Transmission |
6 forward gear |
|
Cabin |
Luxury interior and Instrument bar, with air conditioning and sleeper. |
||
|
Main engine model |
Engine manufacture |
Displacement(ml) |
Power(Kw) |
|
ISB180 40 |
Dongfeng Cummins Engine Co., Ltd. |
5900 |
132 |
|
Road Sweeper Performance |
|||
|
Trash tank volume (m³) |
7 |
Water tank volume (m³) |
3.5 |
|
Material of trash tank |
Stainless steel |
Material of water tank |
Stainless steel |
|
Model of auxiliary engine |
EQB140-20 |
Power of auxiliary engine(Kw) |
103KW |
|
Manufacturers of auxiliary engine |
Dongfeng Cummins Engine Co., Ltd. |
Max sweeping width(mm) |
3200 |
|
Sweeping speed (km / h) |
3-20 |
Sweeping capacity（㎡/h） |
9000- 60000 |
|
Maximum Grain size and quality (mm) |
100mm\±1.5kg |
Cleaning Rate |
96% |
|
Road Sweeper Features |
|||
|
1.The control box is in the cab, all kinds of system electrical centralized to control, and easy to operate! 2, Four scan disk combinated with suction nozzle in working. according to a different cleaning conditions Scan disk speed can be controlled by choosing three gear-High, medium and low, which can make sure there be have a good cleaning results in a variety of pollution status. and when met the obstacle, the scan disk can be have a automatic avoidance protections and features automatic reset function, and retracted automaticly, then reseted automaticly after over some obstacles! 3.Both of side of the scan disk can be working altogether, or unilateral work independently. 4.The core components of hydraulic systems adopts the original import! |
|||

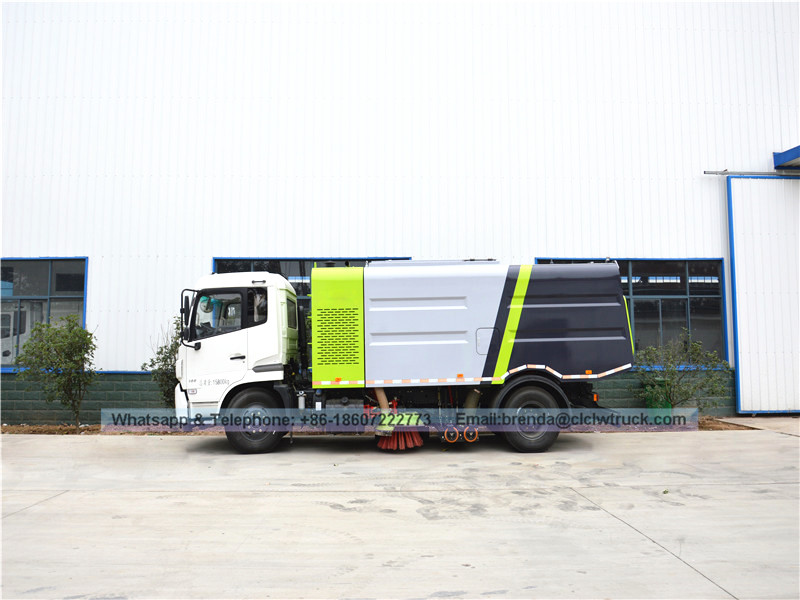

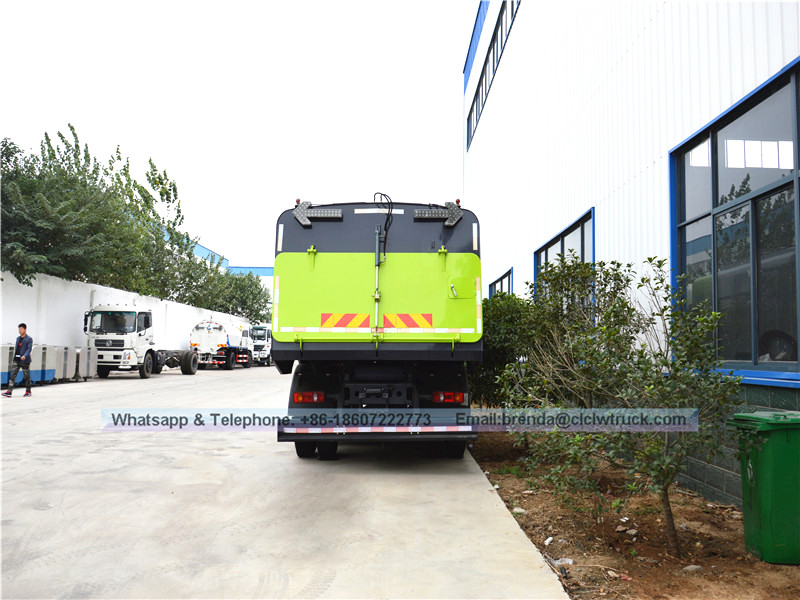

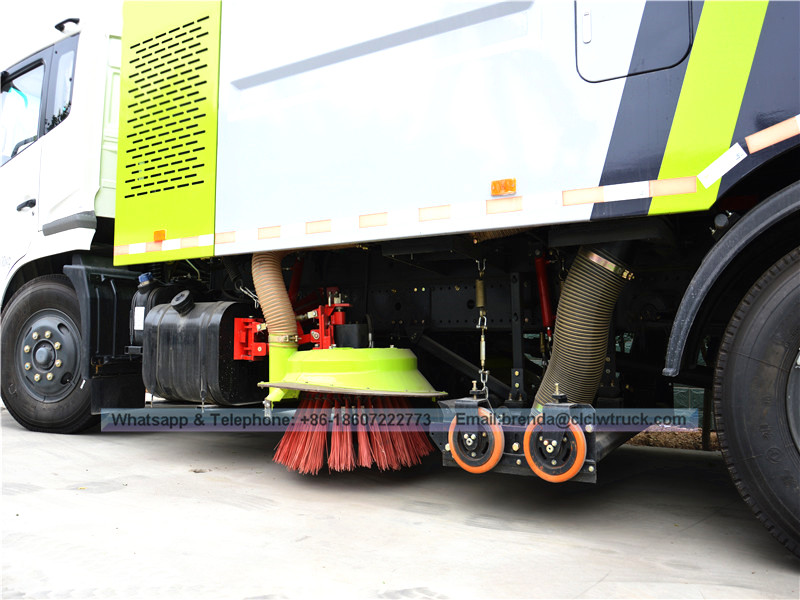

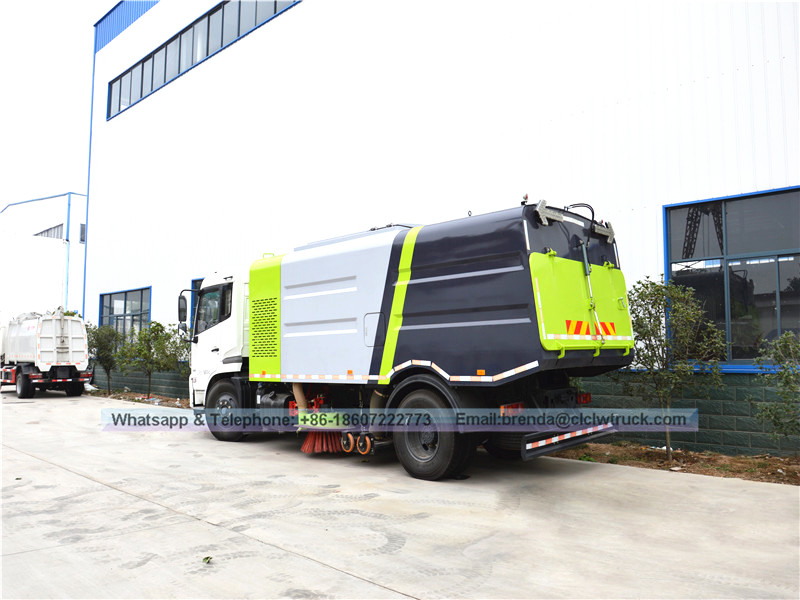

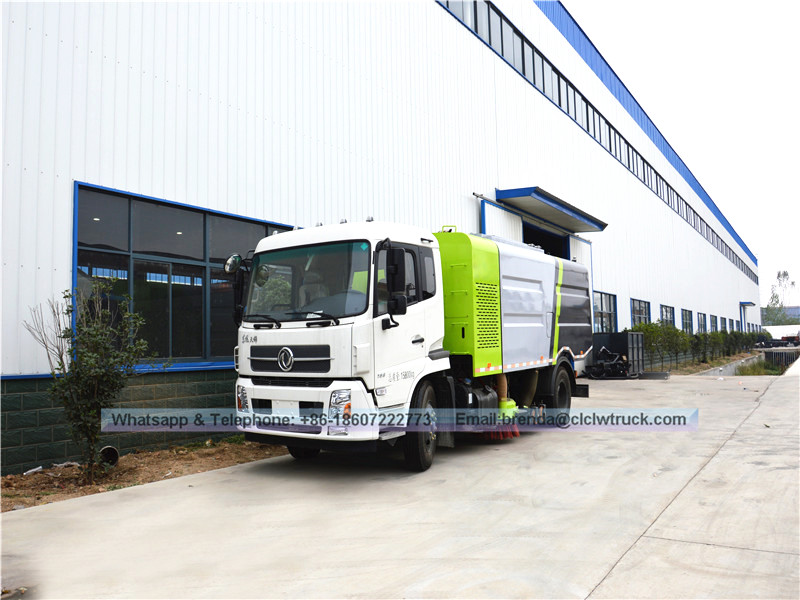

Image as below:
