Garbage delivery truck
> 5CBM garbage compactor truck with Japan ISUZU chassis compactor garbage truck Hot sale

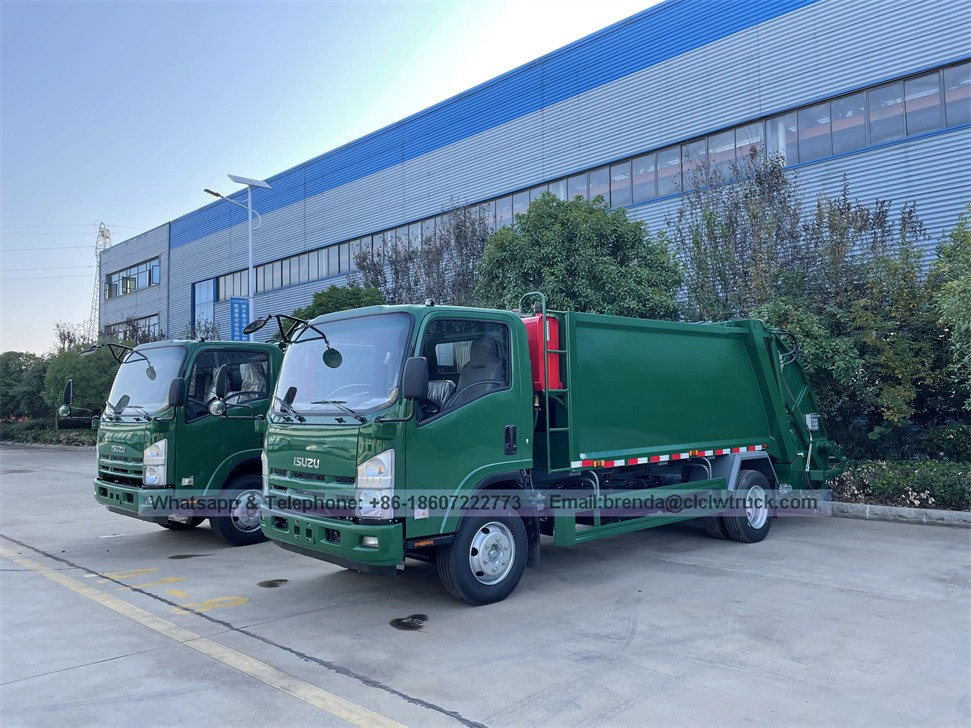

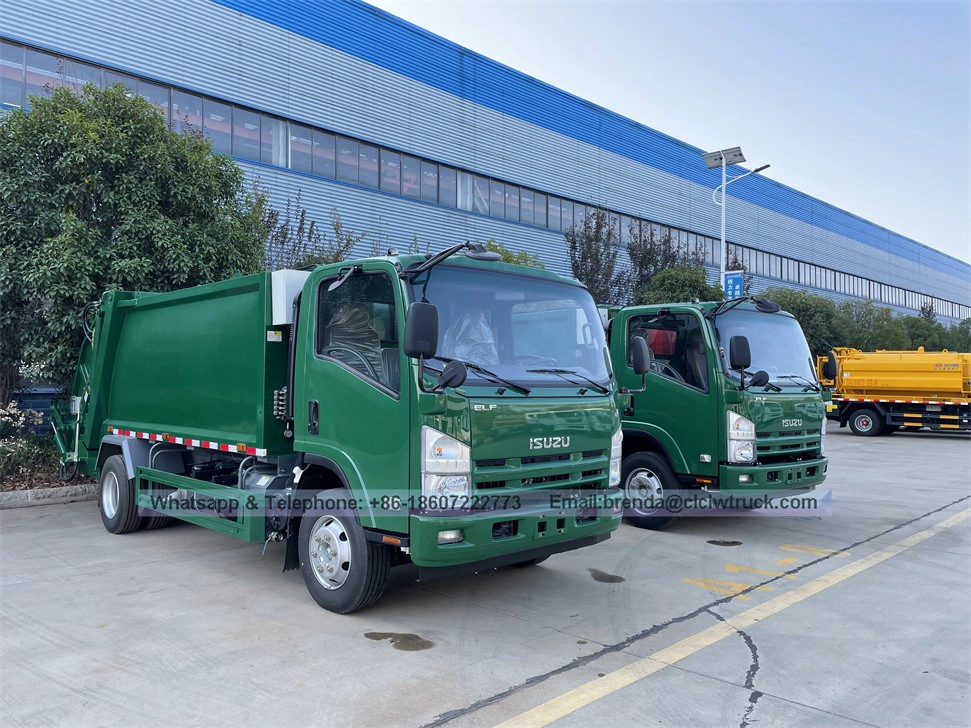

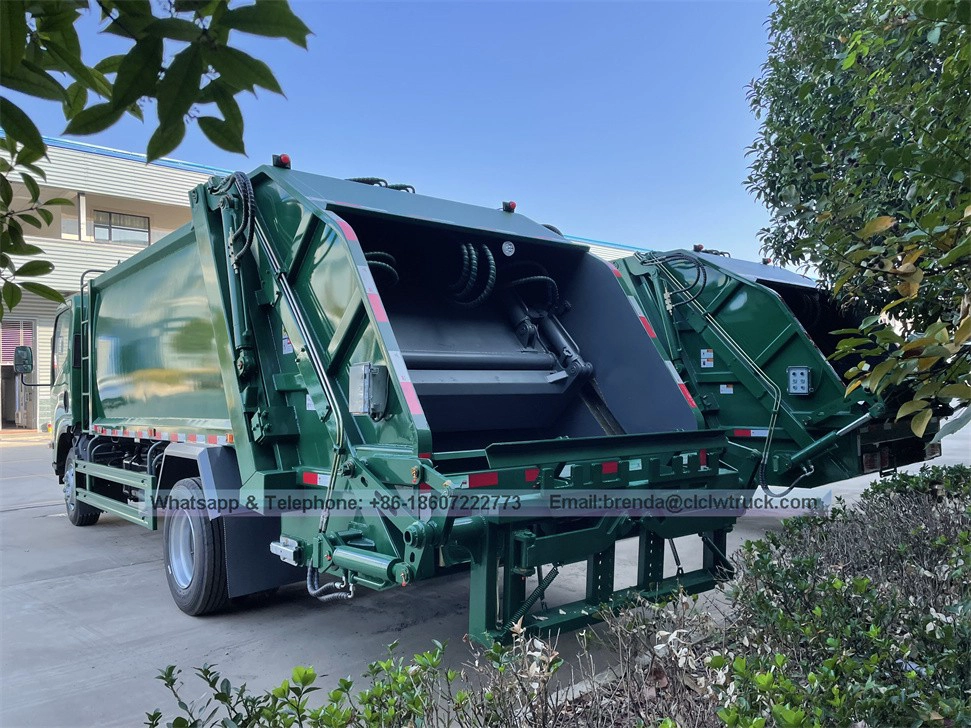

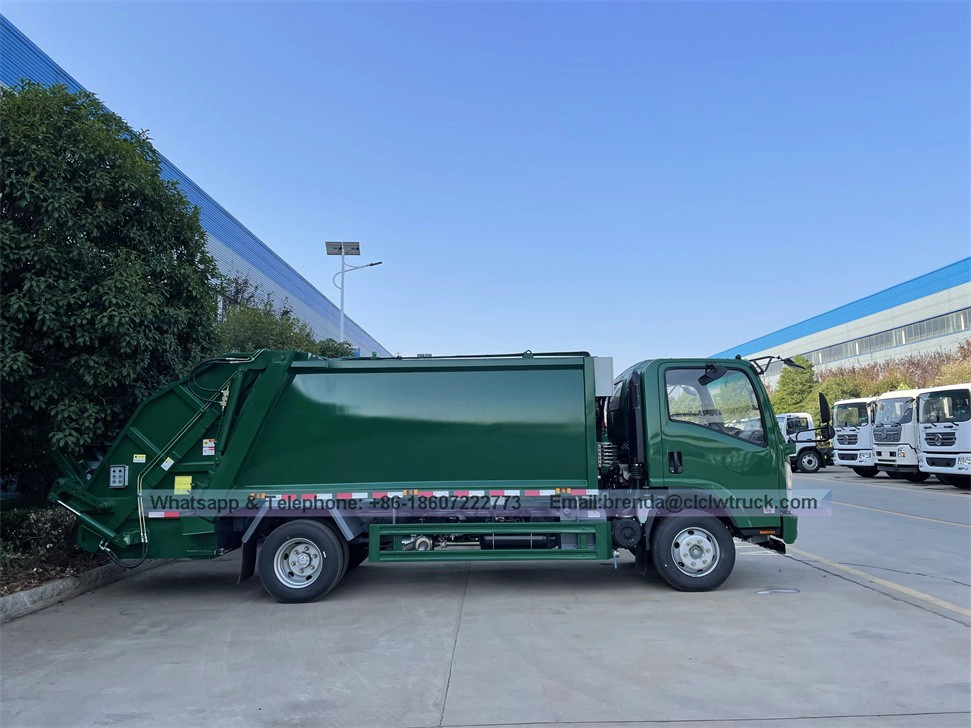

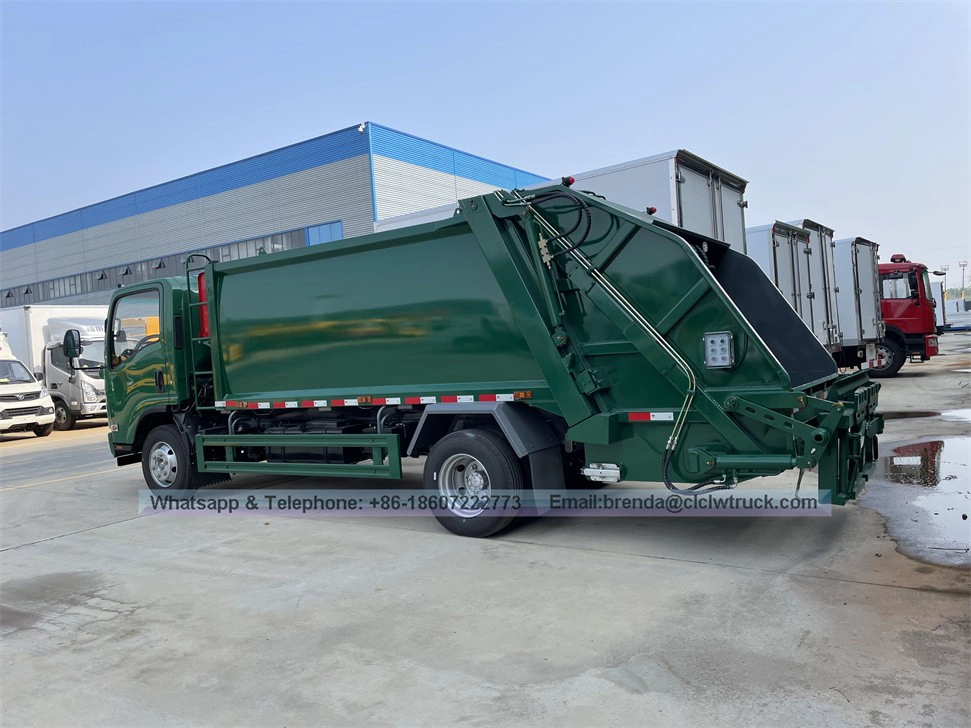

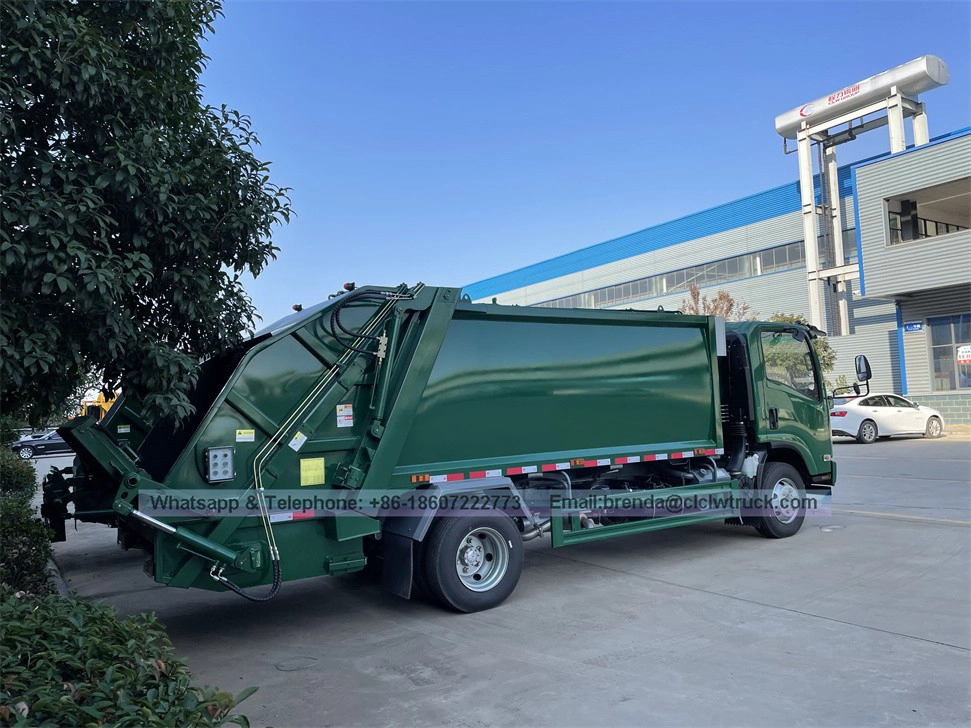

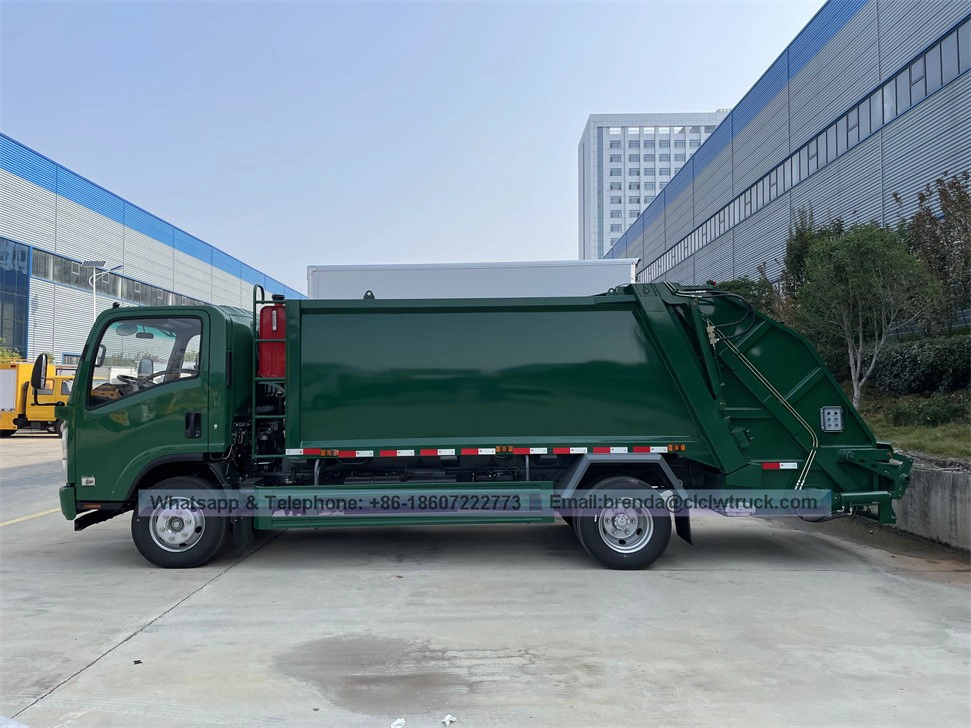

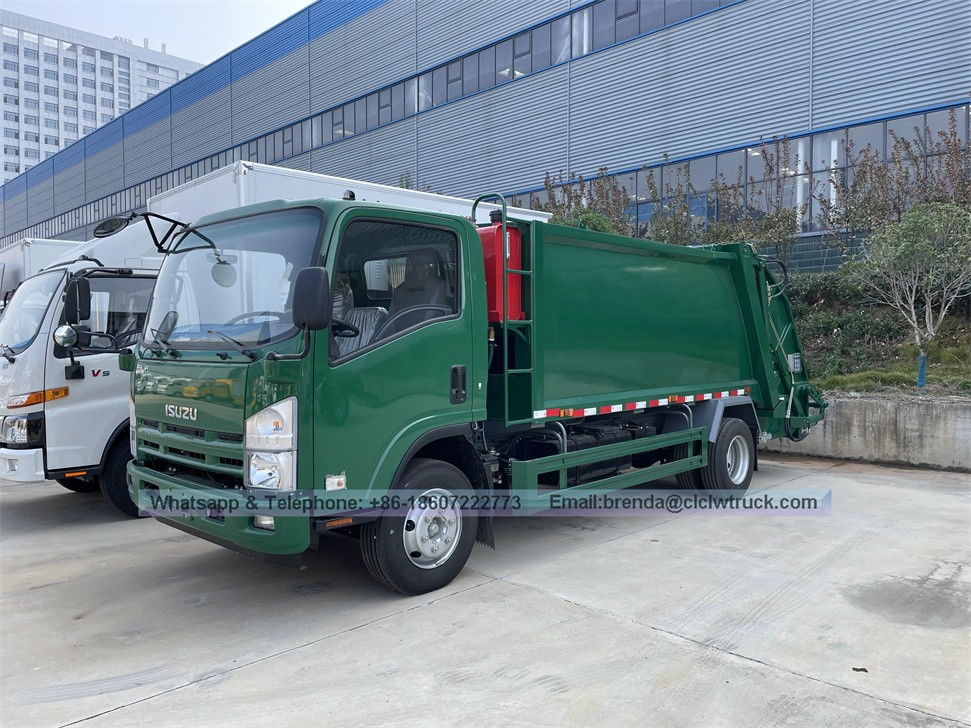

5CBM garbage compactor truck with Japan ISUZU chassis compactor garbage truck Hot sale
- 1. Compression box volume5000L; made by carbon steel plate; side plate is 4mm thickness, base plate is 5mm thickness;

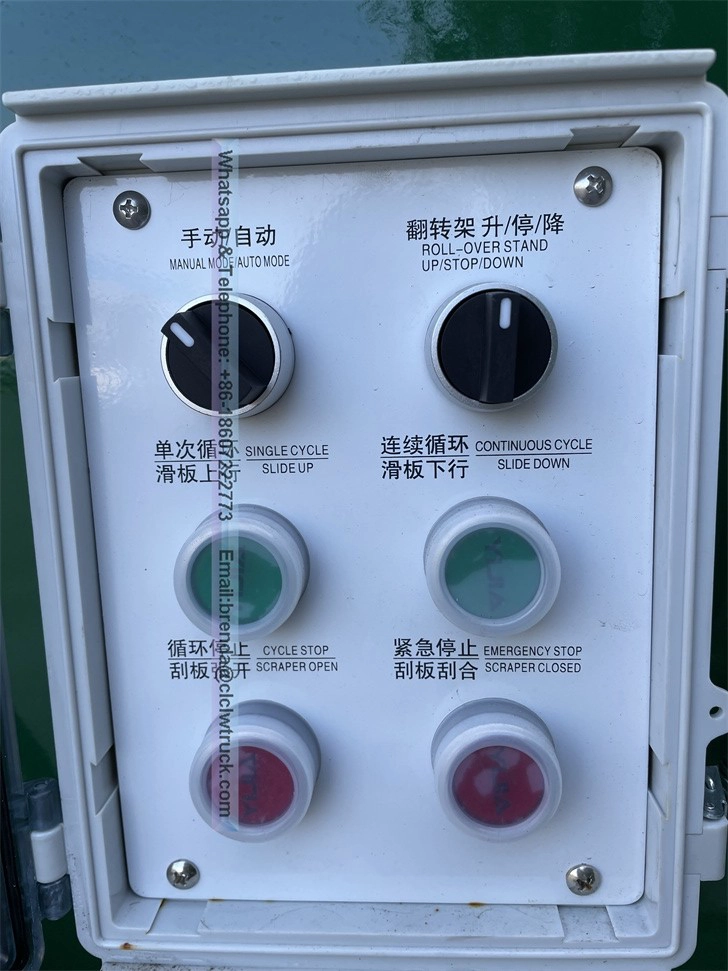

- 2. The hydraulic control operation system can be controlled by electric and manual, one operation system button installed in the cab, the other operation system button installed at the back of the box;
- 3. Truck equipped with one key loading operation cycle.
- 4. The compression ratio can achieve above1:2.5, living garbage after compression can reach more than 600~800Kg/m3;
- 5. The time of the load operation is less than 30 seconds, unloading operation time is less than 40 seconds;
- 6. Equipped with imported PLC integrated control. Vehicle electrical, hydraulic system of pipe fittings is imported components.
|
Vehicle Parameters |
|||
|
Vehicle model |
CLW51503ZYSQ |
Vehicle brand |
clw |
|
Vehicle dimension |
6783X1980X2470mm |
Curb weight |
5380kg |
|
Loading Capacity |
6m3 |
|
|
|
Chassis Parameters |
|||
|
Chassis model |
QL10503HARY |
Chassis brand |
ISUZU |
|
Overall dimensions |
5900x1860x2180mm |
Wheel base |
3360mm |
|
Cab |
100P ,single row cab,allowable 3 passengers,air conditioner, USB radio interface. |
||
|
Engine |
ISUZU 4JB1CN |
||
|
Horse power |
98hp |
||
|
Emission |
Euro 5 |
||
|
Displacement |
2771ml |
||
|
Tire |
7.00-15 10PR nylon tire |
Transmission |
5 speed forward 1 reverse |
|
Steering device |
Power assisted steering |
Steering wheel |
Left hand drive |
|
Remark: Other types of chassis as optional |
Dongfeng, Howo, Shacman, JAC |
||
|
Standard Configuration |
|||
|

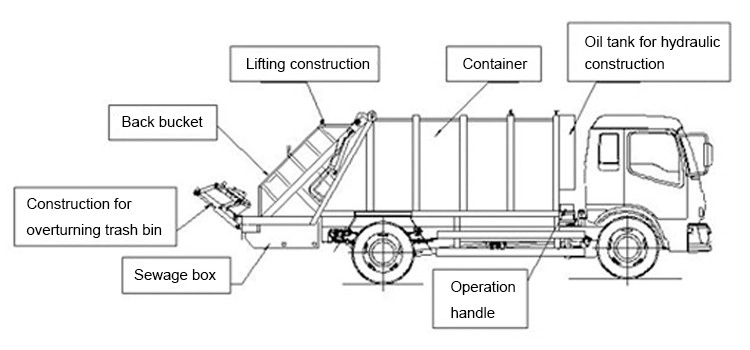

Body, sub frame, lifting rear part, the loading device, the pushing-out plate, hydraulic and electric systems |
|||
