China Folding Crane Truck Supplier, Folding Truck Mounted Crane Manufacturer In China, 4000kgs Truck Crane Manufacturer China
- 1.Product Model / Name: CLW5090JSQ4 Truck With Crane
- 2.Overall dimension (mm):7995×2320×3100
- 3.Chassis model:DFA1090SJ11D5
- 4.Engine model: CY4102-CE4C ( 3856ml/ 91kw)
- 5.Crane Max lifting weigh(kg):4000
- 6.Crane Max ligting heigh(m): 10.2
- 7.Working radius(m): 7.3
|
【Main specifications】 |
|||||||
|
Product model、name |
CLW5090JSQ4 Truck With Crane |
||||||
|
Gross vehicle weight(kg) |
9400 |
Drive type |
4 x 2 |
||||
|
Payload(kg) |
4170 |
cab seats (man) |
3 |
||||
|
Curb weight(Kg) |
5035 |
Overall dimension (mm) |
7995×2320×3100 |
||||
|
Approach/departure angle (°) |
25/12 |
Box internal dimension(mm) |
5100×2150×550 |
||||
|
Number of axles |
2 |
Front/rear hang(mm) |
1180/2415 |
||||
|
Axle load(Kg) |
3600/5800 |
Wheelbase(mm) |
4400 |
||||
|
Max speed(Km/h) |
90 |
|
|
||||
|
【Chassis specifications】 |
|||||||
|
Chassis model |
DFA1090SJ11D5 |
Brand name |
Dongfeng |
||||
|
Manufacturer |
Dongfeng Motor Corporation |
Tires No. |
6 |
||||
|
Approach/departure angle (°) |
25/12 |
Tire specification |
8.25-16 |
||||
|
Steel spring number |
11/13+8,8/10+7 |
Front track(mm) |
1835 |
||||
|
Fuel type |
Diesel |
Rear track(mm) |
1640 |
||||
|
Emission standard |
Euro IV |
Transmission |
5 forward gears,1 reverse gear |
||||
|
Cabin |
White（other colors are available）, Flat, luxurious interior trim and seat, air conditioning can be opt. |
||||||
|
Engine model |
Engine manufacturer |
Displacement(ml) |
Power(Kw) |
||||
|
CY4102-CE4C |
Dongfeng Chaoyang Diesel Co.,Ltd |
3856 |
91 |
||||
|
【Crane specification】 |
|||||||
|
Crane model |
SQZ84 |
Crane brand |
XCMG |
||||
|
Type of Crane |
Folding |
Crane weight (kg) |
1250 |
||||
|
Max lifting weight（kg） |
4000 |
Max lift height（m） |
10.2 |
||||
|
Working radius(m) |
7.3 |
Operation method |
High seat operation / floor operation |
||||
|
Number of arms |
3 |
Outrigger (pcs) |
2 / 4 |
||||
|
【Functions】 |
|||||||
|
The truck consists of chassis, box, power take-off and crane, achieving cargo lifting and moving through hydraulic lifting and telescopic system. In general, H-type outrigger is equipped to realize its stability. To be further strengthened stability of the truck, rear outrigger also can be equipped if the customer require. The truck can 360 ° continuously rotate. |
|||||||
China Folding Crane Truck Supplier, Folding Truck Mounted Crane Manufacturer In China, 4000kgs Truck Crane Manufacturer China

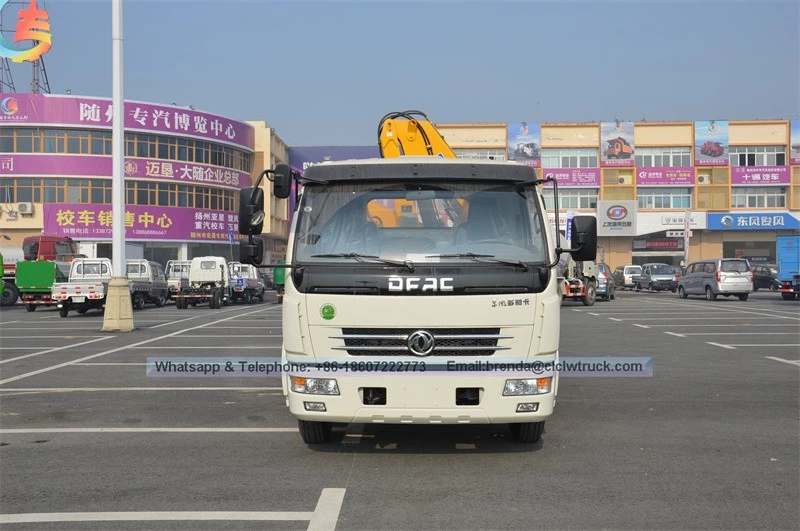

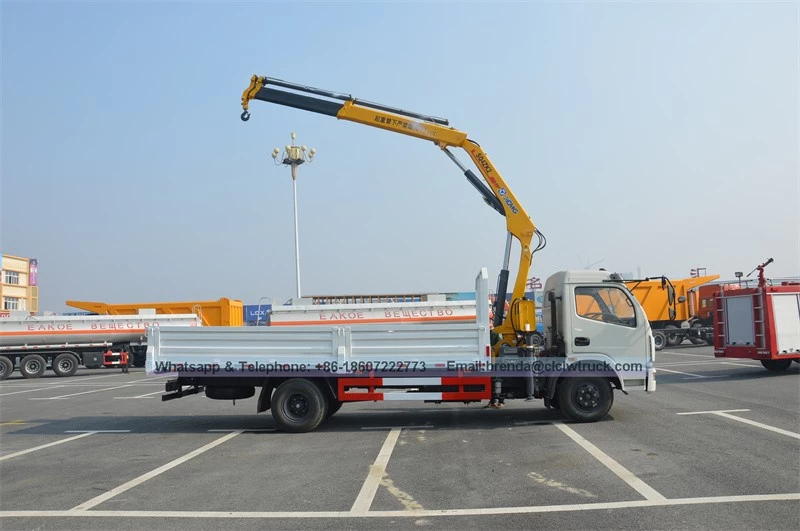

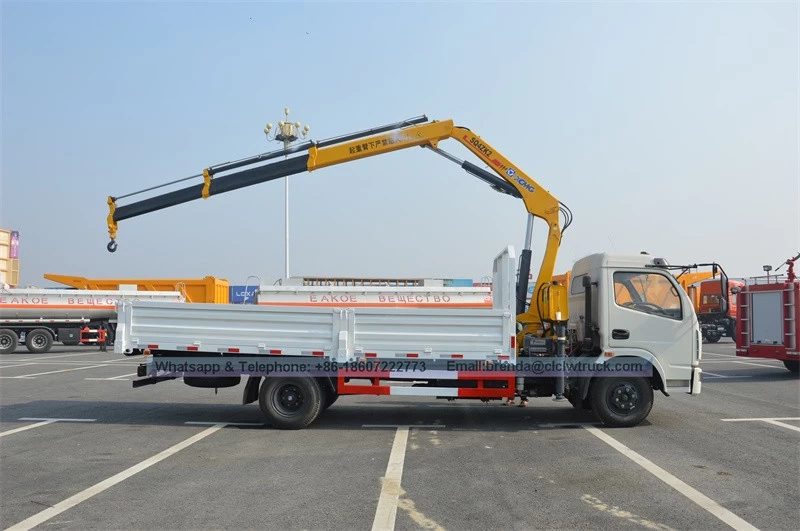

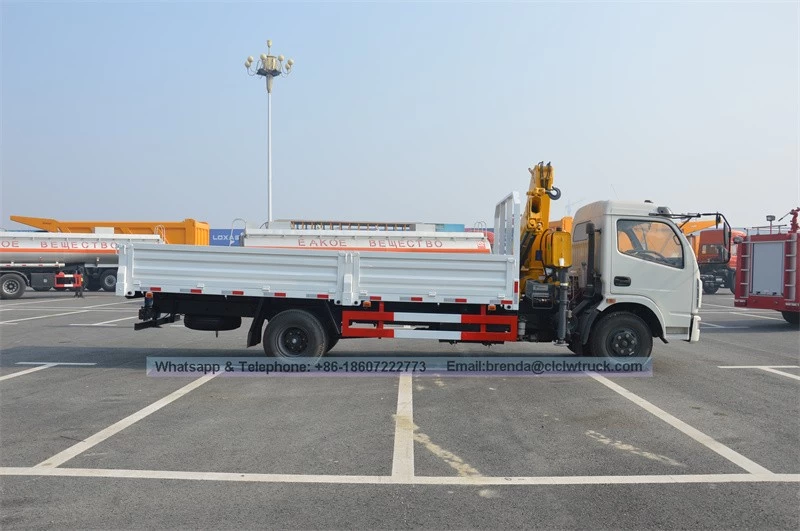

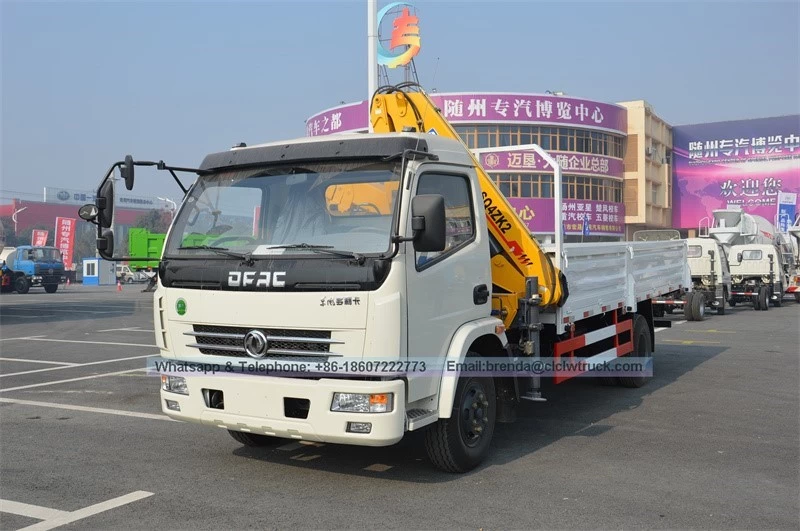

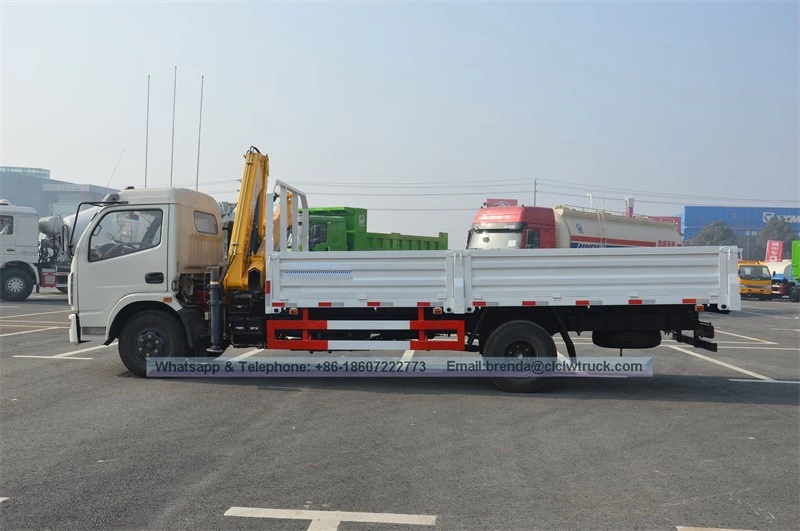

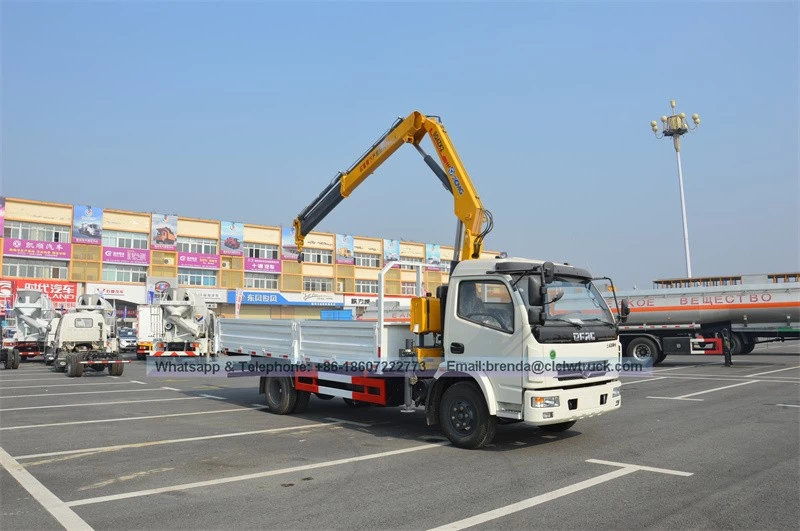

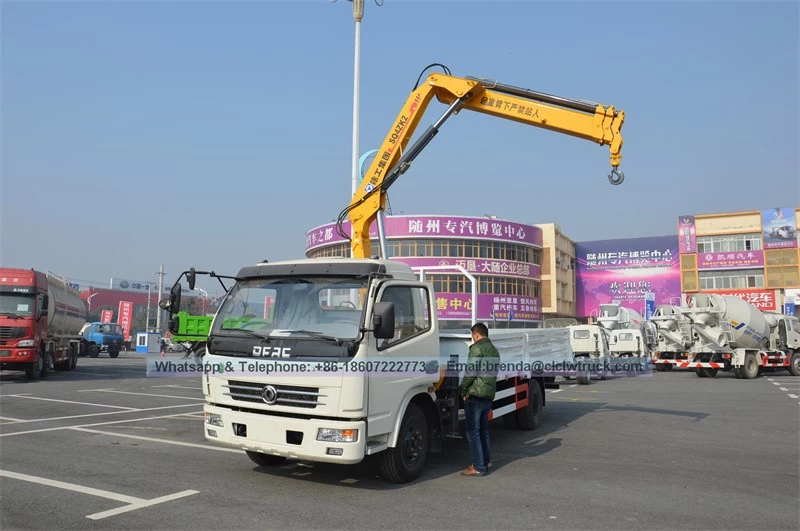

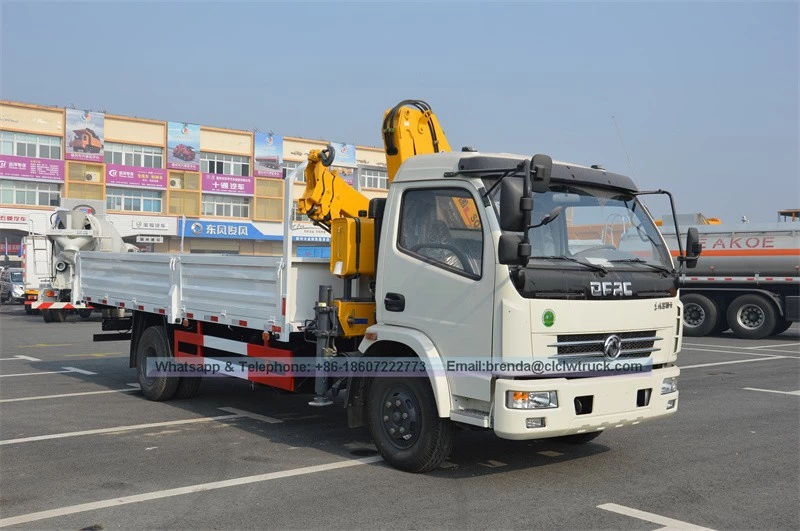

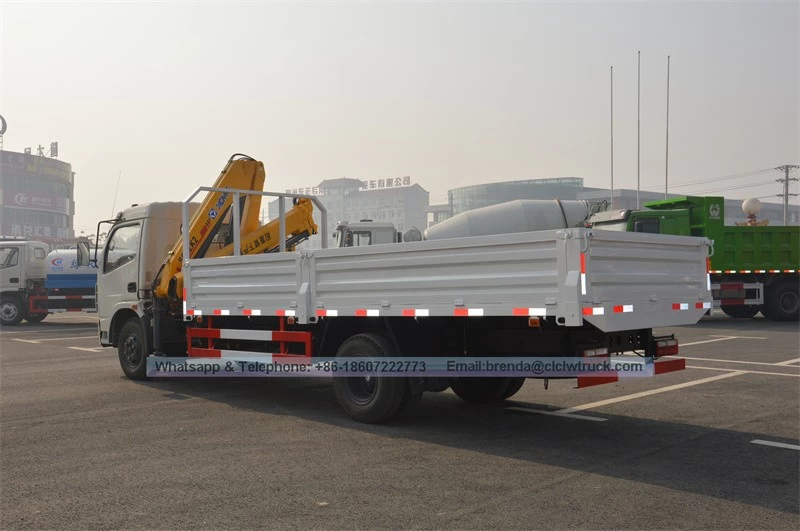

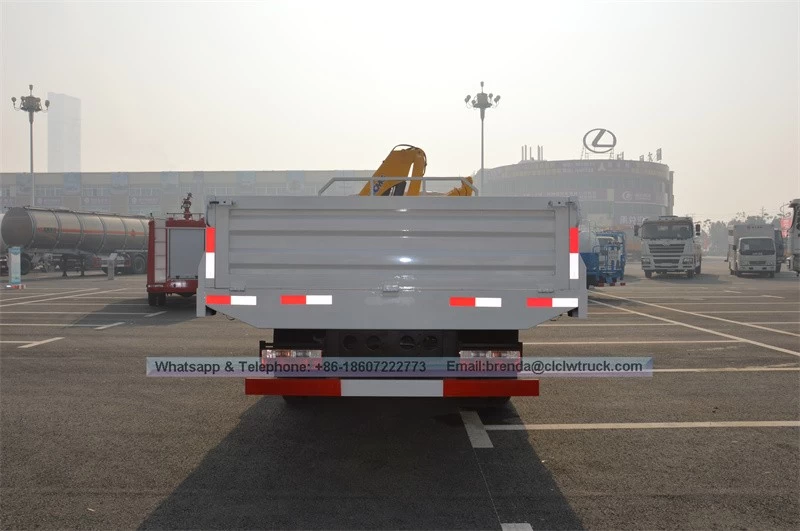

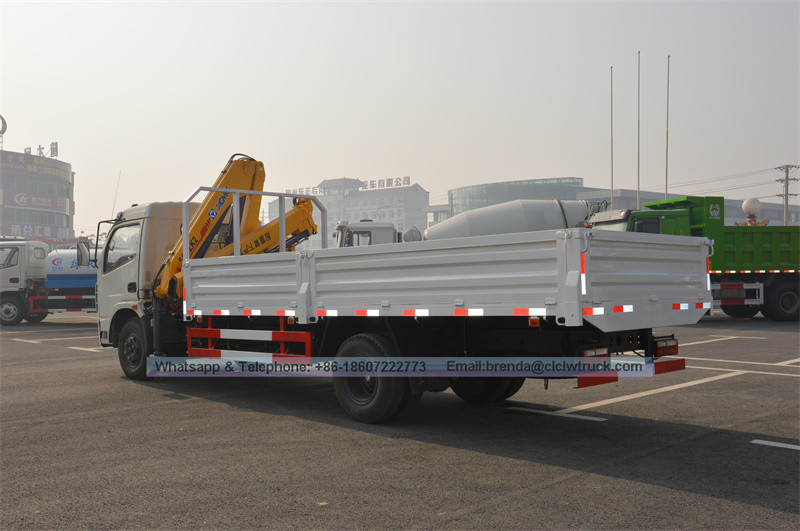

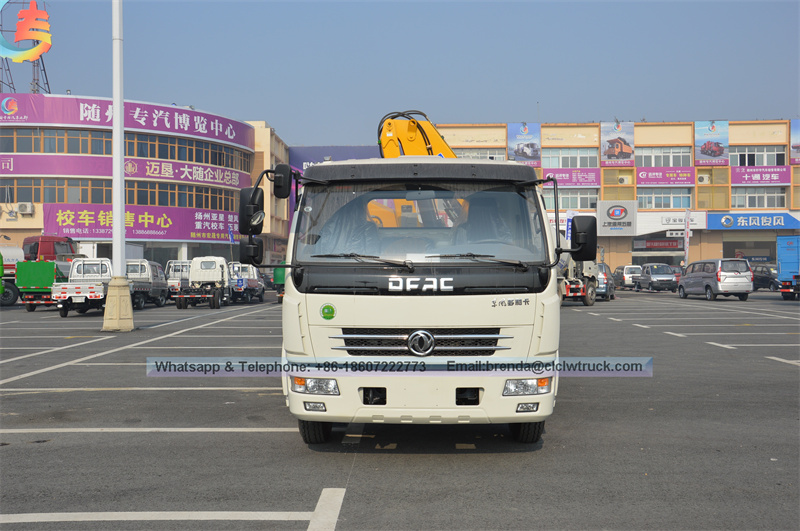

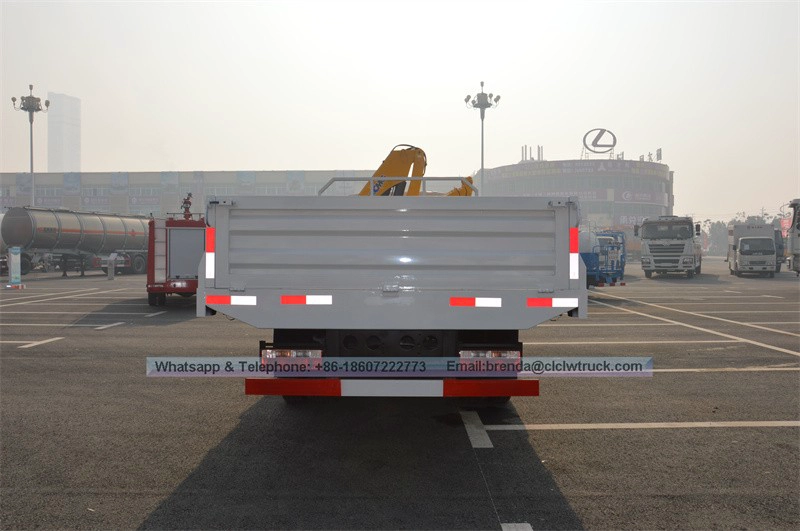

Product Inmage
