Home > Category > Product Categories > Water tanker truck  > Dongfeng 4x2 Dust Suppression Truck with Spray Machine
Dongfeng 4x2 Dust Suppression Truck with Spray MachineDongfeng 4x2 Dust Suppression Truck with Spray MachineDongfeng 4x2 Dust Suppression Truck with Spray MachineDongfeng 4x2 Dust Suppression Truck with Spray MachineDongfeng 4x2 Dust Suppression Truck with Spray MachineDongfeng 4x2 Dust Suppression Truck with Spray MachineDongfeng 4x2 Dust Suppression Truck with Spray Machine

Dongfeng 4x2 Dust Suppression Truck with Spray Machine

  • 1,Dongfeng 4x2 Dust Suppression Truck with Spray Machine
  • 2,Overall dimensions(mm):9280x2490x3800
  • 3,Gross weight : 16000
  • 4,Curb weight :11100
  • 5,Tire specifications :10.00R20
  • 6,Spray machine model :KCS400-60
  • 7,Engine model : Cummins B190-33

    Dongfeng 4x2 Dust Suppression Truck with Spray Machine

Item

Unit

Parameters

Model / Name



Dust Suppression Truck

Chassis model



DFL1160BX

Chassis manufacturer



Dongfeng Motor Co., Ltd.

Engine model



B190-33

Engine manufacturer



Dongfeng Cummins Engine Co.,Ltd

Displacement/

power

Ml/kw

5900ml / 140kw

Emission standard



Euro III

Overall dimensions(mm)

mm

9280x2490x3800

Wheel base(mm)

mm

4700

Gross weight

kg

16000

Rated loading weight



4705

Curb weight

kg

11100

Tank volume

m3

6.6

Fuel type

    Diesel

Chassis brand

DONGFENG

Air conditioner

With AC

Cab seats (man)

3

Front / Rear watering equipment

Optional

Tire specifications

10.00R20

Watering Performance

With pump , it has sucking and discharge function ;

With working platform ,  equiped with green watering high-pressure gun at the platform (the shape of gun spraying is adjustable : straight ,heavy rain , moderate rain, drizzle .It can be adjusted continuously , Max range to 30 meters ).

With fire joint and Self flow valve and filter mesh and water level gauge ,  with watering and fire fighting functions

Tank

The tank is made of high quality carbon steel plate, the thickness of the cylinder is 5mm, and the thickness of the head wall is 5mm











Spray machine performance

Horizontal range(m)

60

Model

KCS400-60

auxiliary power

Generator set (KW)

50

Fan motor rated power (KW)

18.5

Air pressure (Pa)

900

Air volume (m3/min)

900

Pump power (KW)

11

Drug pump flow (L/min)

50-150

size of spraying drops (um)

30-150

Horizontal rotation angle (º)

±360º

Pitching angle(º)

-10~55º

Control type

Manual , remote controller , automatic

Protection level

IP55

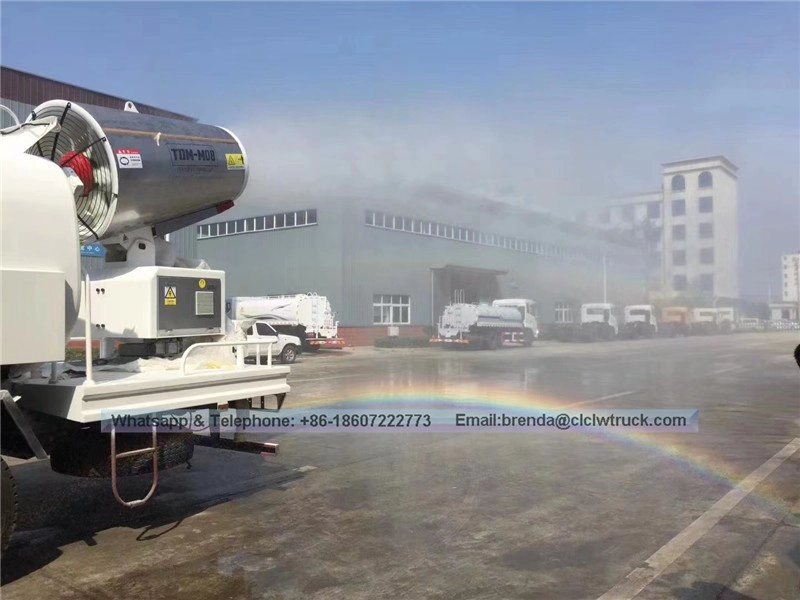

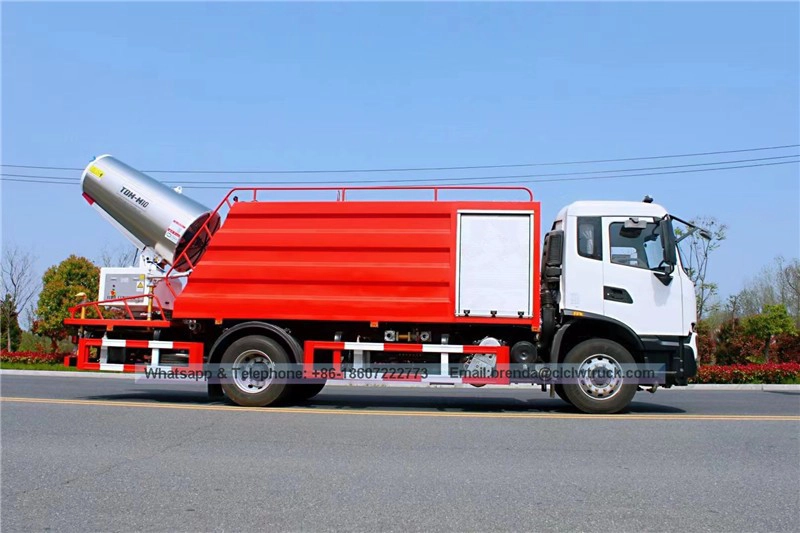

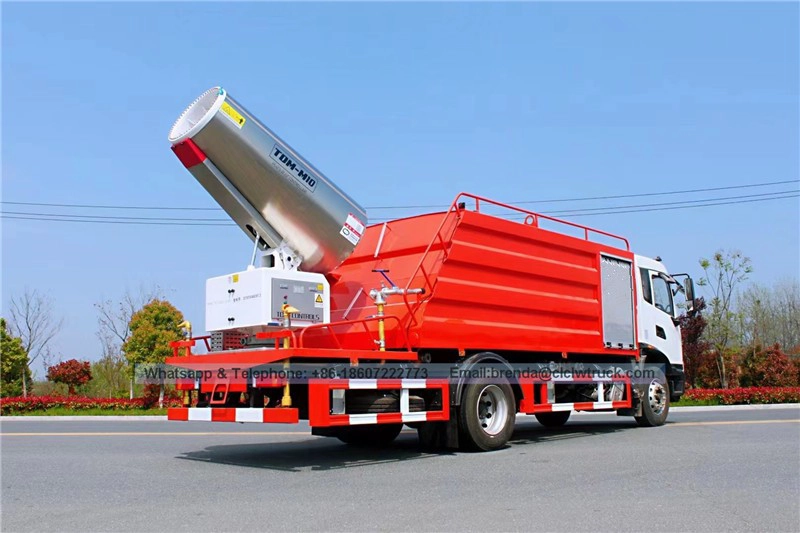

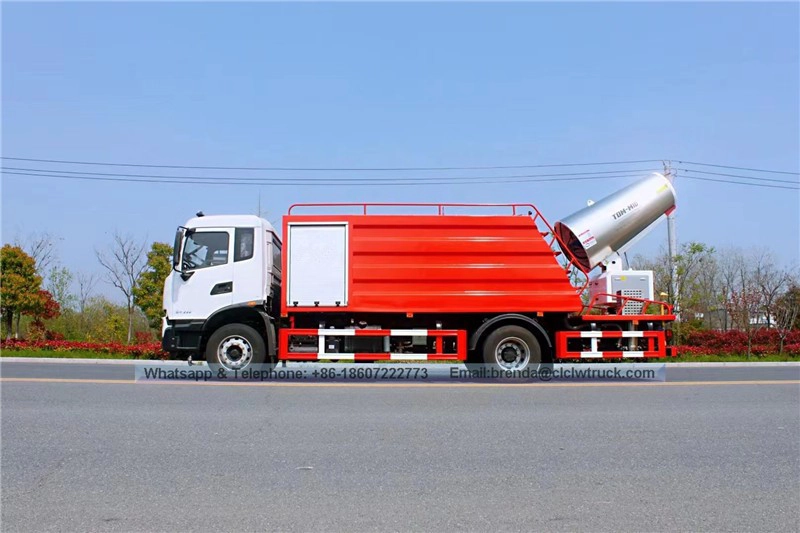

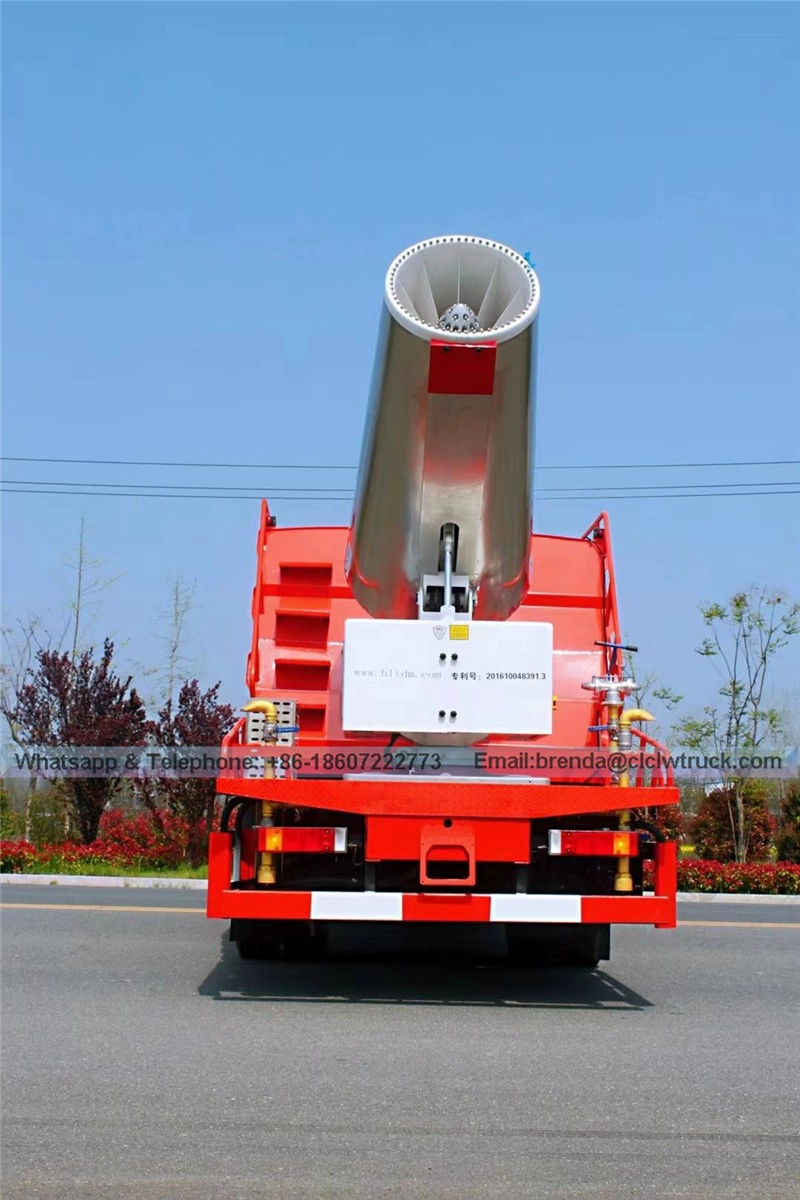

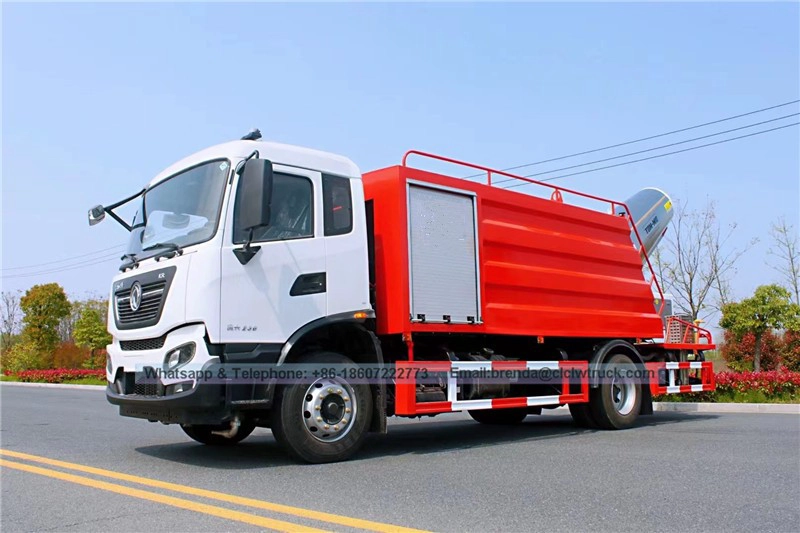

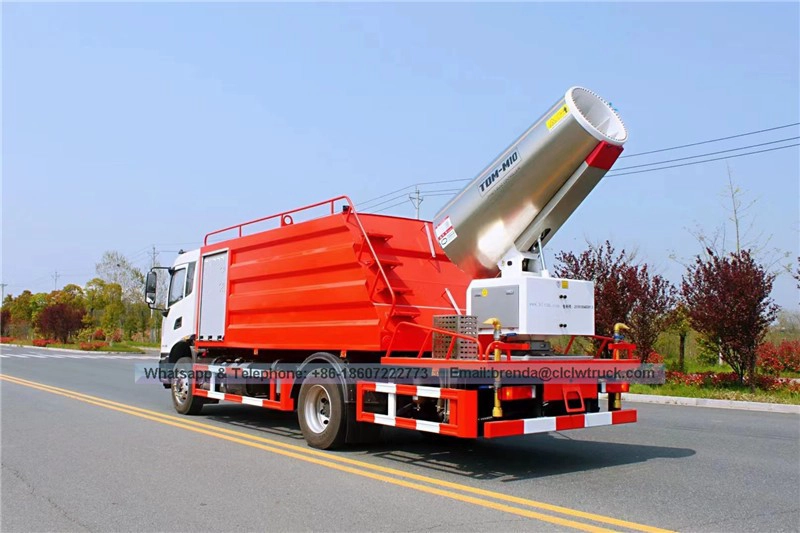

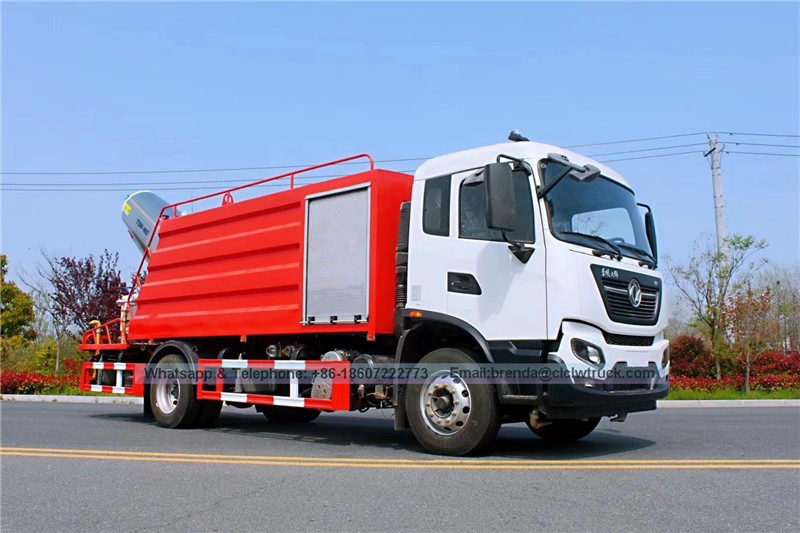

 Product pictures as below
