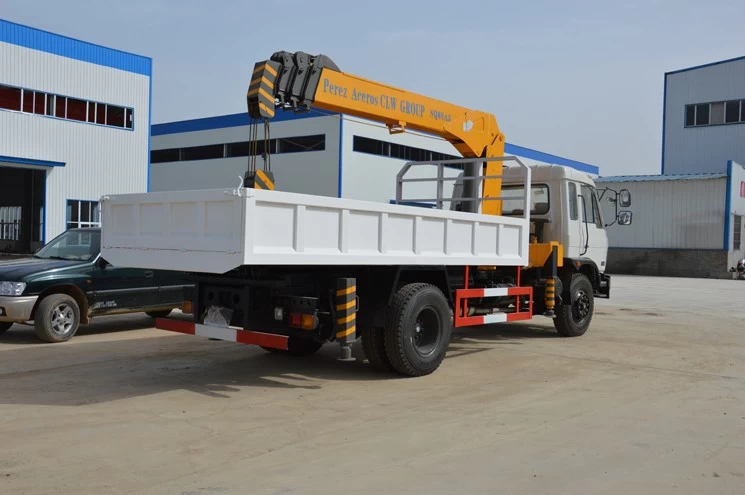

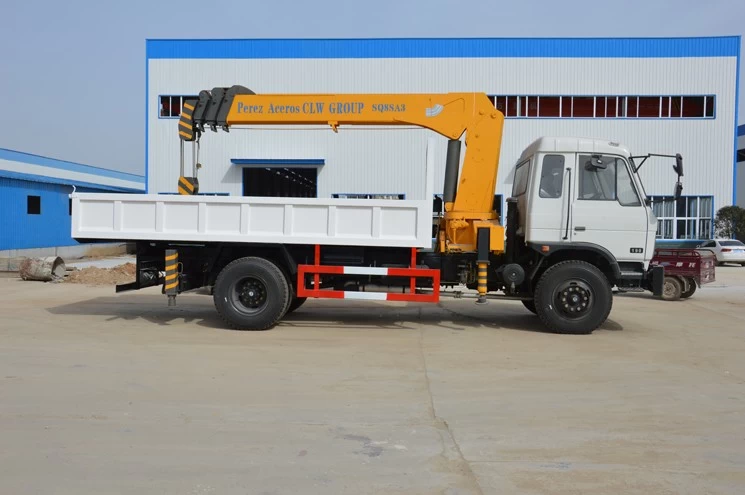

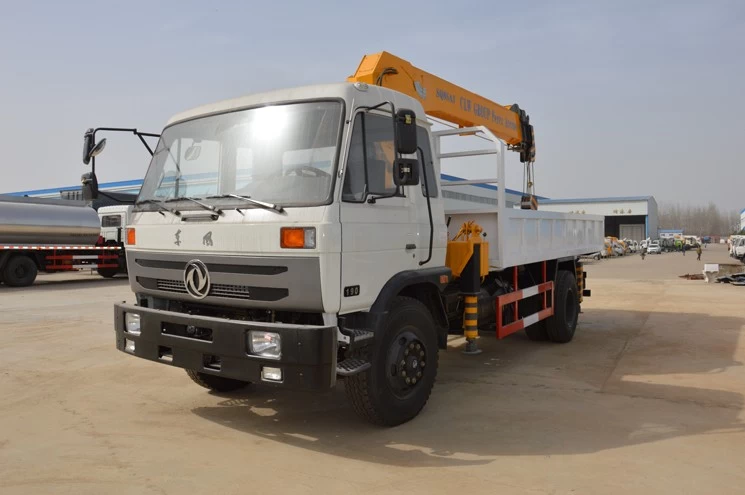

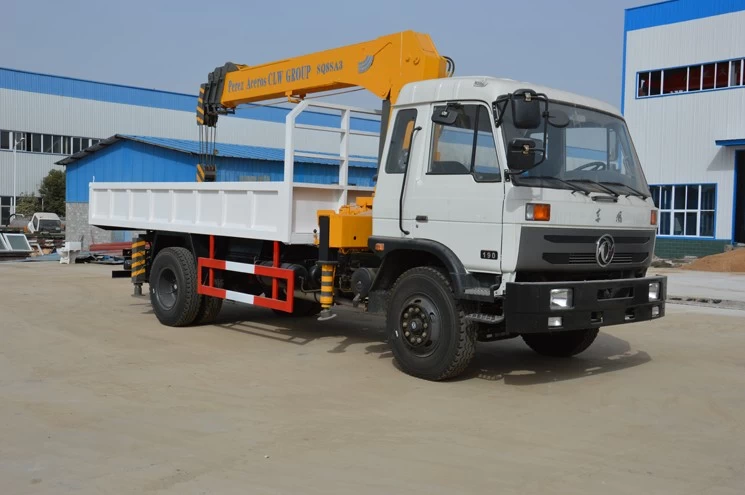

Dongfeng 8 Ton Telescopic Boom Crane Truck
- 1.Product Model / Name: CLW5161JSQT3 Truck With Crane
- 2.Gross vehicle weight(kg): 15800
- 3.Curb weight(Kg): 8755
- 4.Drive type: 4 x 2
- 5.Overall dimension (mm):9000×2490×3600
- 6.Box internal dimension(mm):5800×2294×550
- 7.Wheelbase(mm): 5100
- 8.Chassis model:EQ5160GKJ1
- 9.Chassis brand: Dongfeng
- 10.Tire specification:10.00R20
- 11.Engine model:B210 33
- 12.Displacement / Power(ml / kw):5900 / 155
- 13.Crane model:SQS200
- 14.Max lifting weigh(kg):8000
- 15.Max ligting heigh(m)13.5
- 16.Working radius(m):11.5
- 17.Outrigger (pcs):2 / 4
- 18.Operation method:High seat control / Side control
- 19.Emission standard: Euro III
|
【Main specifications】 |
|||||||
|
Product model、name |
CLW5161JSQT3 Truck With Crane |
||||||
|
Gross vehicle weight(kg) |
15800 |
Drive type |
4 X 2 |
||||
|
Payload(kg) |
6850 |
cab seats (man) |
3 |
||||
|
Curb weight(Kg) |
8755 |
Overall dimension (mm) |
9000×2490×3600 |
||||
|
Approach/departure angle (°) |
32/18 |
Box internal dimension(mm) |
5800×2294×550 |
||||
|
Number of axles |
2 |
Front/rear hang(mm) |
1250/2550 |
||||
|
Axle load(Kg) |
5900/9900 |
Wheelbase(mm) |
5100 |
||||
|
Max speed(Km/h) |
80 |
|
|
||||
|
【Chassis specifications】 |
|||||||
|
Chassis model |
EQ5160GKJ1 |
Brand name |
Dongfeng |
||||
|
Manufacturer |
Dongfeng Motor Corporation |
Tires No. |
6 |
||||
|
Approach/departure angle (°) |
32/22 |
Tire specification |
10.00R20 |
||||
|
Steel spring number |
9/10+8 |
Front track(mm) |
1940 |
||||
|
Fuel type |
Diesel |
Rear track(mm) |
1860 |
||||
|
Emission standard |
Euro III |
Transmission |
8 gears |
||||
|
Cabin |
Blue（other colors are available）, Flat, luxurious interior trim and seat, with air conditioning. |
||||||
|
Engine model |
Engine manufacturer |
Displacement(ml) |
Power(Kw) |
||||
|
B210 33 |
Dongfeng Cummins Engine Co., Ltd |
5900 |
155 |
||||
|
【Crane specification】 |
|||||||
|
Crane model |
SQS200 |
Crane brand |
XCMG |
||||
|
Type of Crane |
Telescopic boom |
Crane weight (kg) |
2700 |
||||
|
Max lifting weight（kg） |
8000 |
Max lift height（m） |
13.5 |
||||
|
Working radius(m) |
11.5 |
Operation method |
High seat control / Side control |
||||
|
Number of arms |
4 |
Outrigger (pcs) |
2 / 4 |
||||
|
【Functions】 |
|||||||
|
The truck consists of chassis, box, power take-off and crane, achieving cargo lifting and moving through hydraulic lifting and telescopic system. In general, H-type outrigger is equipped to realize its stability. To be further strengthened stability of the truck, rear outrigger also can be equipped if the customer require. The truck can 360 ° continuously rotate. |
|||||||
