Dongfeng water tank fire truck supplier in China, fire truck manufacturer, the airport fire fighting truck
- 1. Product model name: water tank fire fighting truck
- 2. Dimensions (mm): 6850mmX2285mmX2930mm
- 3. Tank volume 4000 liters -6000 liters
- 4. Fire monitor range: ≥55 m / 1.0MPA
- 5. Fire pump flow rate: 20L / S
- 6. Pressure: 1.0MPA
- 7. Horsepower (HP): 120
- 8. Transmission: 5 forward gears, 1 reverse gear (diesel type)
|
Main specification |
||||||||||
|
Product Model and name |
Water Tank fire truck |
|||||||||
|
Aggregate Weight (kg) |
7450 |
Drive type |
4X2 |
|||||||
|
Payload (kg) |
2000 |
complete Dimensions (mm) |
6850X2285X2930 |
|||||||
|
Kerbstone Weight (kg) |
Upto Rs |
the cab Seats |
Vi |
|||||||
|
Approach / Departure Angle (°) |
20/13 |
Front Back Hang (mm) |
1180/1815 |
|||||||
|
Axle No. |
2 |
Wheelbase (mm) |
3800 |
|||||||
|
Axle Load (kg) |
3050/4400 |
Max Speed (km / h) |
Ninety |
|||||||
|
Chassis Specifications |
||||||||||
|
tires of an Aeroplane Ideal |
Akl070TJ9AD3 |
Productive |
Dongfeng Motor Co., Ltd. |
|||||||
|
Brands Name |
Dongfeng |
Dimensions (mm) |
6695 × 2285 × 2350 |
|||||||
|
Tyre Specification |
7.50R16 |
Tyre No. |
Vi |
|||||||
|
Steel Spring No. |
11/9 + 7,8 / + seven X. |
Front Track base (mm) |
1835,1750 |
|||||||
|
Fuel type |
Diesel |
Rear Track base (mm) |
1640,1586 |
|||||||
|
Emissions standard |
Euro Three |
Transfer |
Five Forward gears, 1 reverse gear |
|||||||
|
Engine Ideal |
Engine Productive |
Displacement (ml) |
Power (KW) |
Horsepower (HP) |
||||||
|
Crya4102-C3c |
Dongfeng Chaoyang Chaochai Power Company Limited |
3856 |
Eighty-eight |
120 |
||||||
|
Water tank fire fighting truck performance |
||||||||||
|
Water Tank volume (L) |
4000 |
|||||||||
|
Fire Monitor |
Fire 360 º by model PS30, level monitor rotation, Max Height + 45 °, angle of depression Max -15º, Flow Rate: 30L / S, Range≥55m / 1.0MPA |
|||||||||
|
fire pump |
Model: CB10 / 20 Flow rate: 20L / S Pressure: 1.0MPA |
|||||||||
|
Water tank fire truck Feature |
||||||||||
|
A.The water tank fire fighting truck is mainly Taxi, water tank, water pump house, tool box, made of water pump, and Inlet and outlet water systems, fire monitoring, electronic alarm, alarm lamp Attkkparts. The delivery truck is divided b.The Room.The front passenger in the central part of the three parts is pumped The rear part of the house body.The front part of the car body is water truck Tank, the rear part toolbox. C.It feature high power, high speed Etc.It liquid carrying capacity and large have adopted enhanced cab.With seat Easy and centralized operation, easy maintenance, D.it widely used in public security fire Brigade, petroleum chemical industry, factories and mines, enterprises and Ports, terminals and other places to save big oil fires and general Large and medium-sized fire-stop material is large in cities.It Fire fighting equipment. |
||||||||||

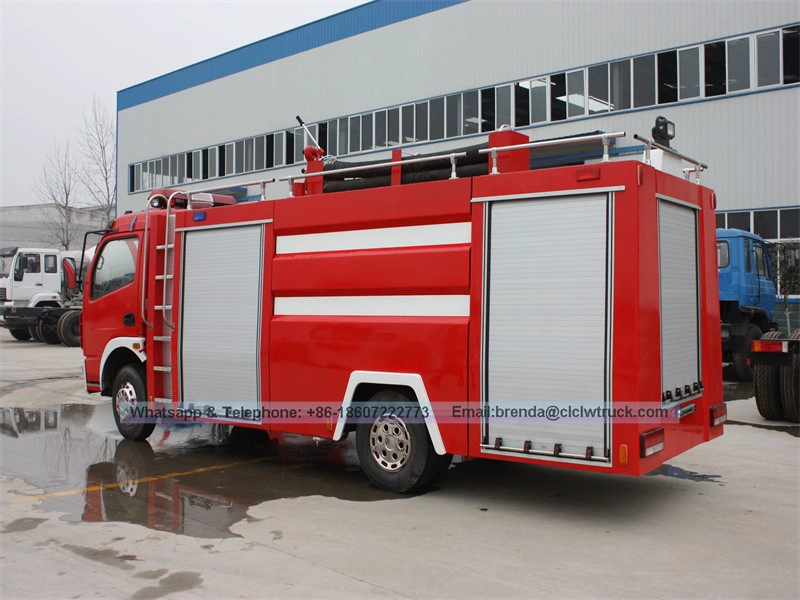

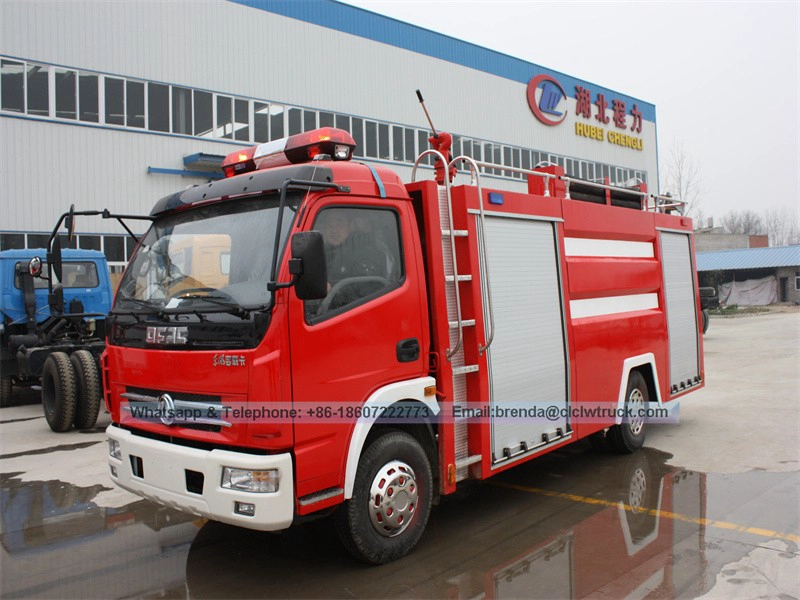

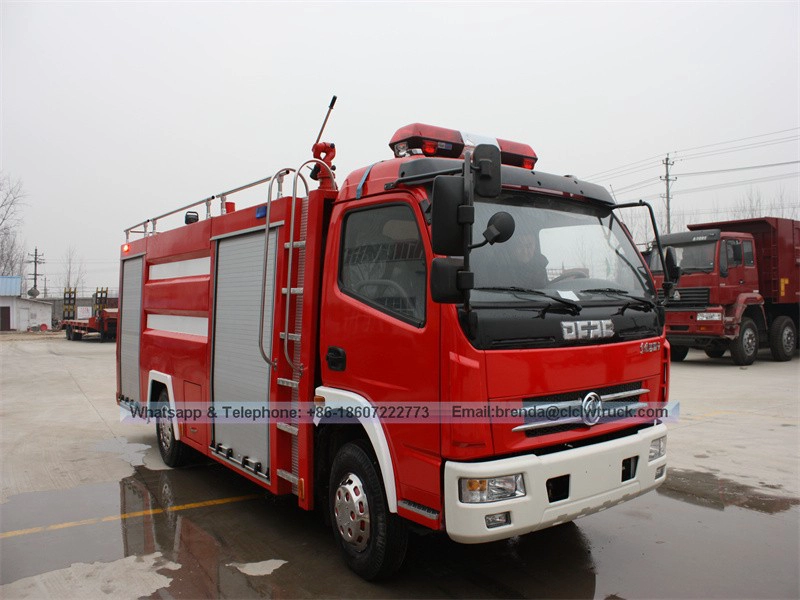

Dongfeng water tank fire fighting truck supplier in China
In the image below:
