FAW Truck Mounted Crane Supplier, 8000-10000 kgs Truck Crane, Truck Mounted Crane Manufacturer China
- 1.Product Model / Name: FAW 6X2 8/10 ton Truck With Crane
- 2.Overall dimension (mm):12000×2495×3750
- 3.Chassis model:CA5220JSQP62K1L7T3E4 (FAW)
- 4.Engine model: BF6M2012-22E4 ( 6060ml/ 165kw)
- 5.Crane Max lifting weigh(kg):8000 / 10000
- 6.Crane Max ligting heigh(m): 13.5 / 14
- 7.Working radius(m): 11.5 / 12
|
【Main specifications】 |
|||||||
|
Product model、name |
FAW 6X2 8/10 ton Truck With Crane |
||||||
|
Gross vehicle weight(kg) |
21600 |
Drive type |
6X2 |
||||
|
Payload(kg) |
9765,9415 |
cab seats (man) |
3 |
||||
|
Curb weight(Kg) |
11640,11990 |
Overall dimension (mm) |
12000×2495×3750 |
||||
|
Approach/departure angle (°) |
22/11 |
Box internal dimension(mm) |
8200×2300×600 |
||||
|
Number of axles |
3 |
Front/rear hang(mm) |
1400/3300 |
||||
|
Axle load(Kg) |
5800/5800/10000 |
Wheelbase(mm) |
2200+5100 |
||||
|
Max speed(Km/h) |
98 |
|
|
||||
|
【Chassis specifications】 |
|||||||
|
Chassis model |
CA5220JSQP62K1L7T3E4 |
Brand name |
Foton |
||||
|
Manufacturer |
China FAW Group Corp. |
Tires No. |
8 |
||||
|
Approach/departure angle (°) |
22/11 |
Tire specification |
10.00R20 |
||||
|
Steel spring number |
10/10/13+7 |
Front track(mm) |
1914/1914 |
||||
|
Fuel type |
Diesel |
Rear track(mm) |
1860 |
||||
|
Emission standard |
Euro IV |
Transmission |
8forward gears, 1reverse gear |
||||
|
Cabin |
J6 cab, with sleeper and air conditioning. |
||||||
|
Engine model |
Engine manufacturer |
Displacement(ml) |
Power(Kw) |
||||
|
BF6M2012-22E4 |
China FAW Group Corp. |
6060 |
165 |
||||
|
【Crane specification】 |
|||||||
|
Crane model |
SQS200 / SQS250 |
Crane brand |
XCMG |
||||
|
Type of Crane |
Telescopic boom crane |
Crane weight(kgs) |
3800 / 4800 |
||||
|
Max lifting weight（kg） |
8000 / 10000 |
Max lift height（m） |
13.5 / 14 |
||||
|
Working radius(m) |
11.5 / 12 |
Operation method |
High seat control / Side control |
||||
|
Number of arms |
4 |
Outrigger (pcs) |
2 / 4 |
||||
|
【Functions】 |
|||||||
|
The truck consists of chassis, box, power take-off and crane, achieving cargo lifting and moving through hydraulic lifting and telescopic system. In general, H-type outrigger is equipped to realize its stability. To be further strengthened stability of the truck, rear outrigger also can be equipped if the customer require. The truck can 360 ° continuously rotate. |
|||||||
FAW Truck Mounted Crane Supplier, 8000-10000 kgs Truck Crane, Truck Mounted Crane manufacturer china

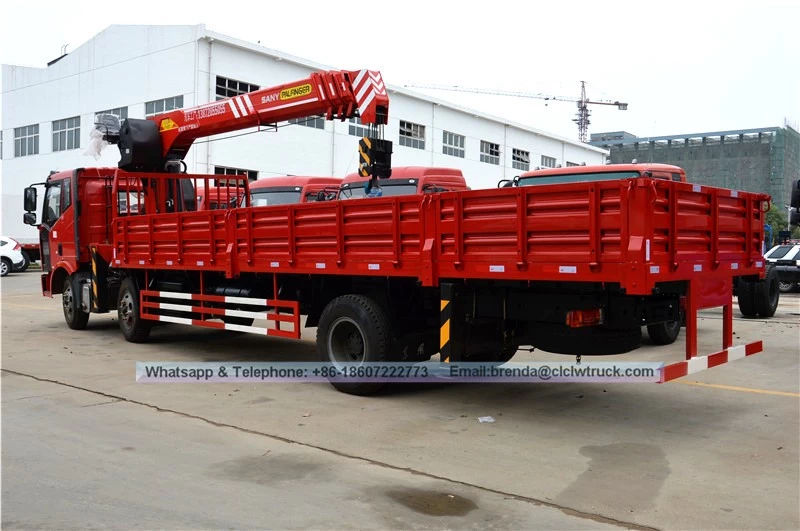

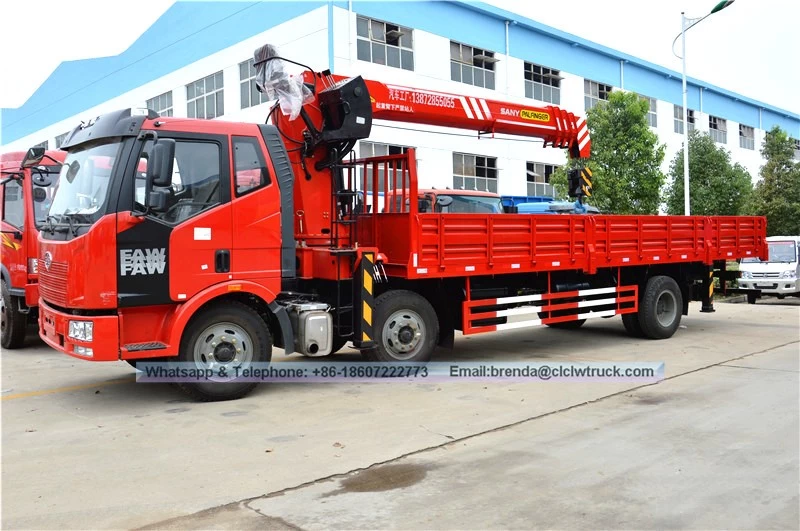

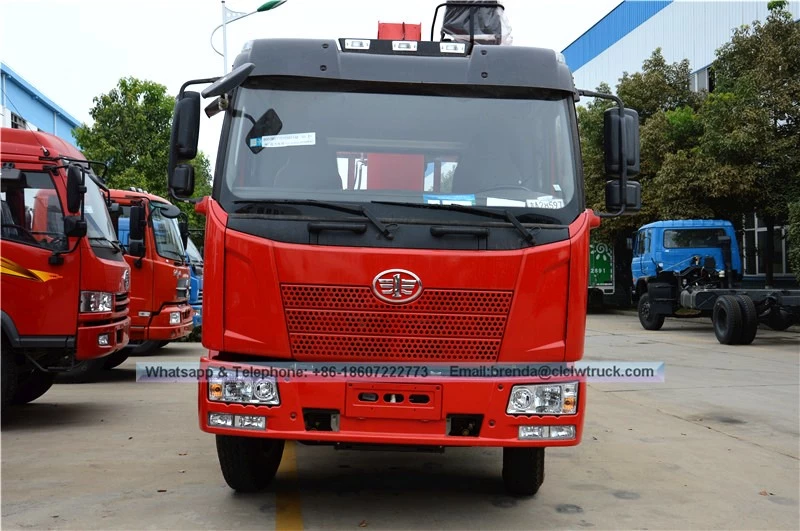

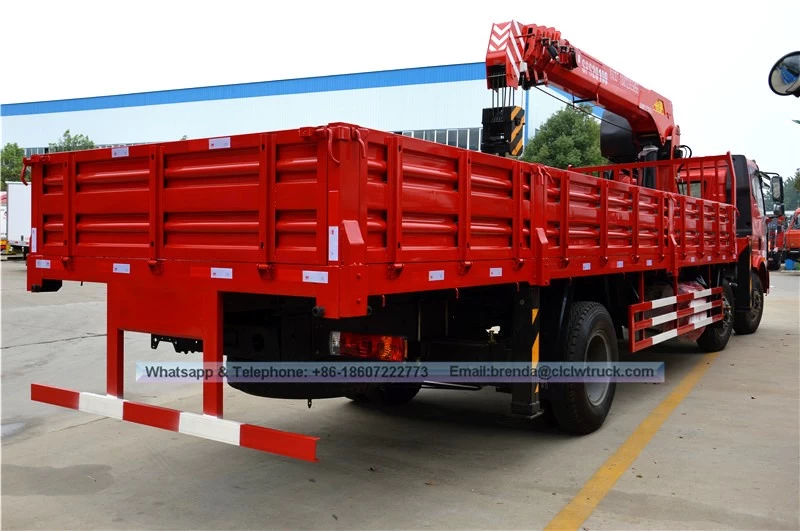

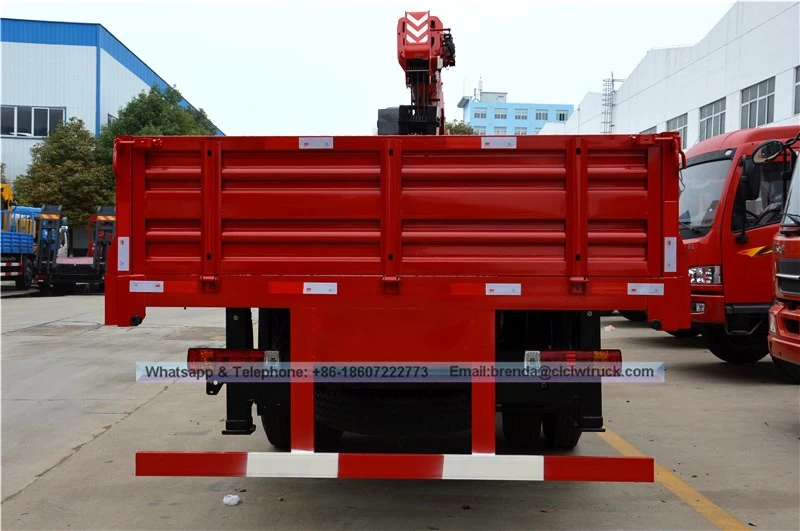

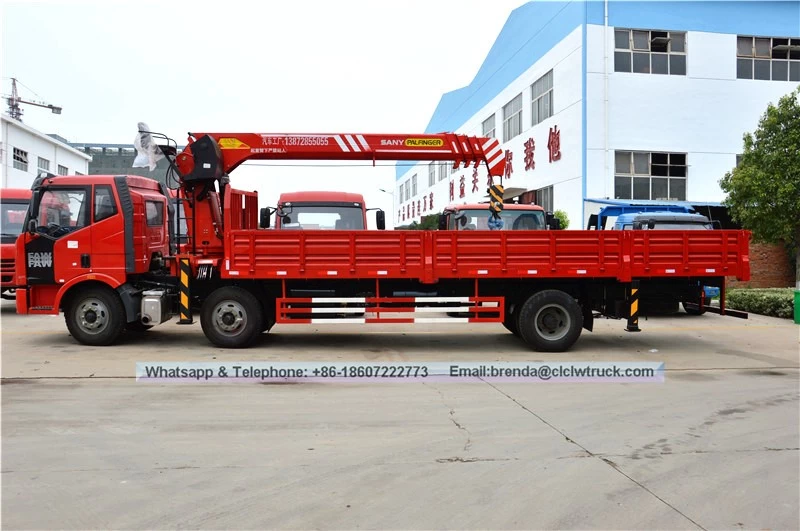

Product Image:
Kindly note we can provide straight boom crane and folding crane according to
