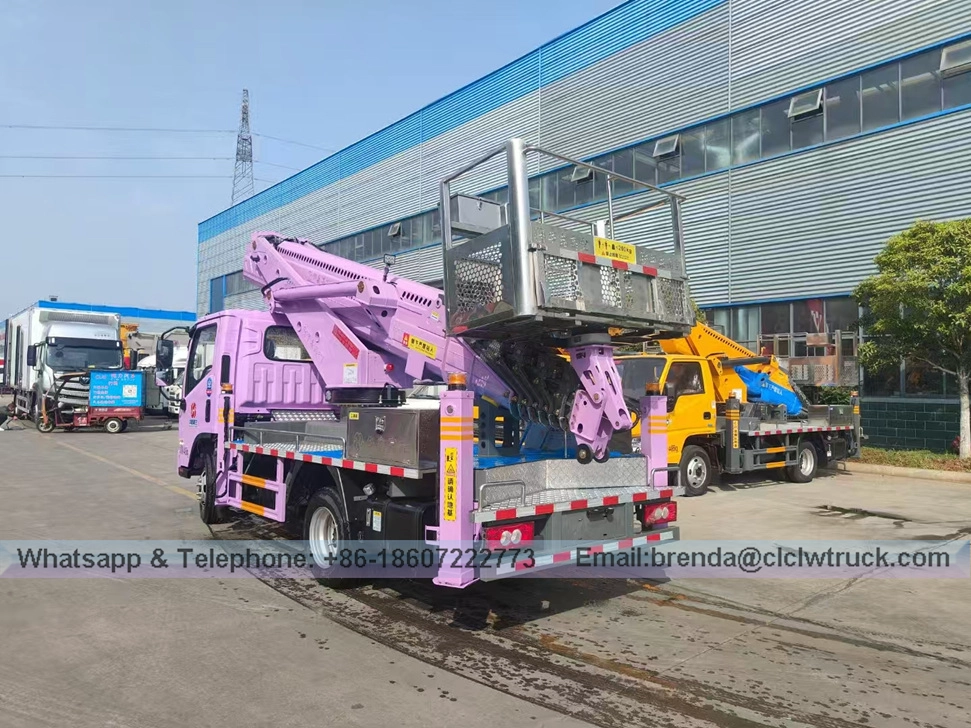

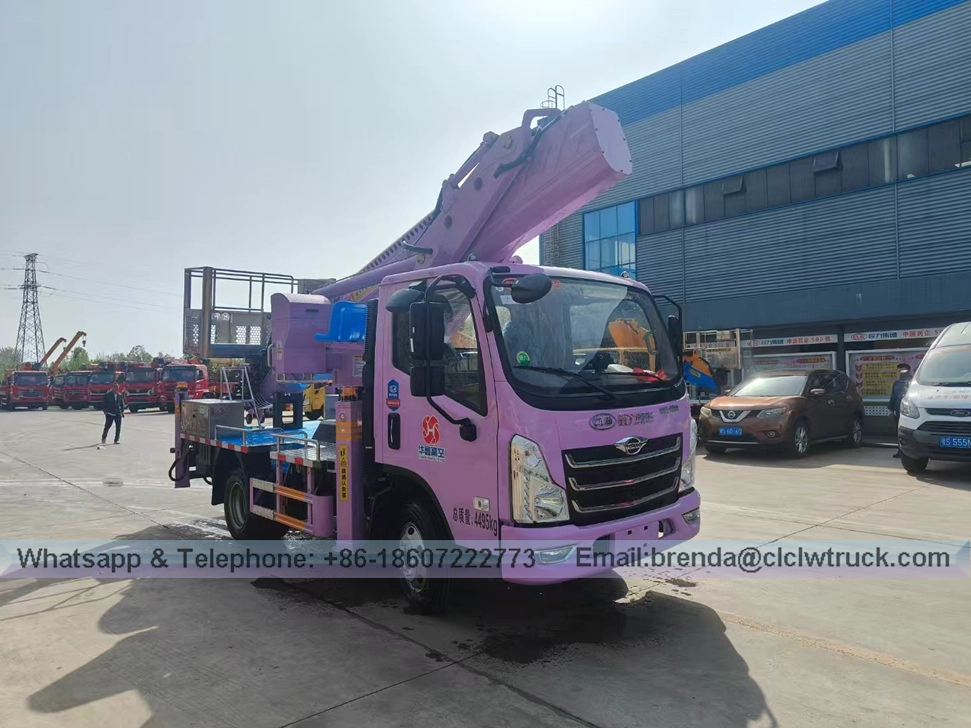

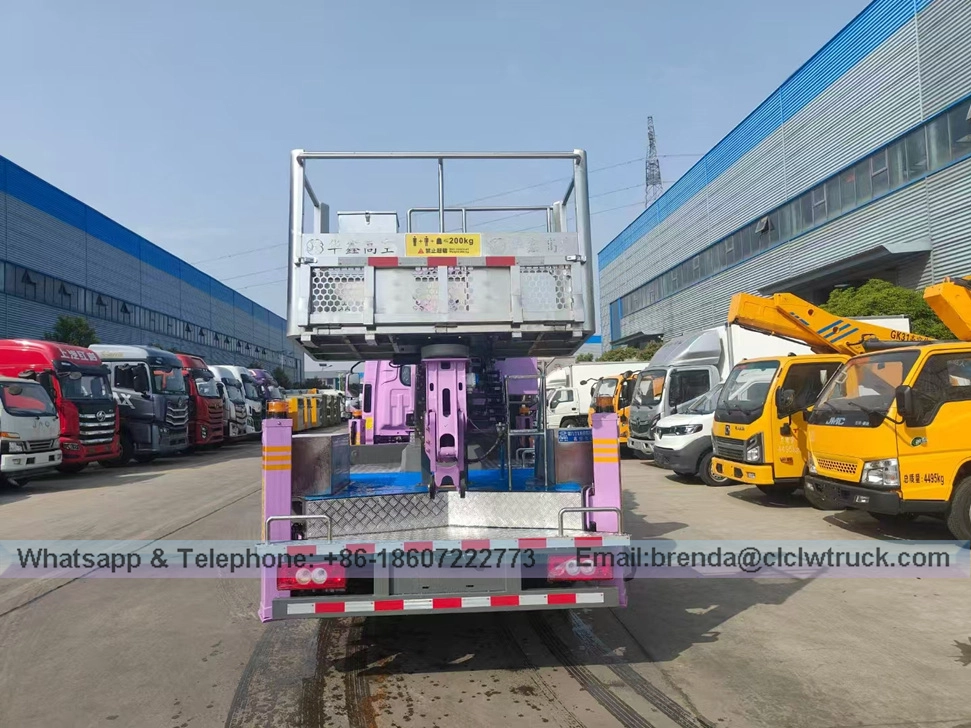

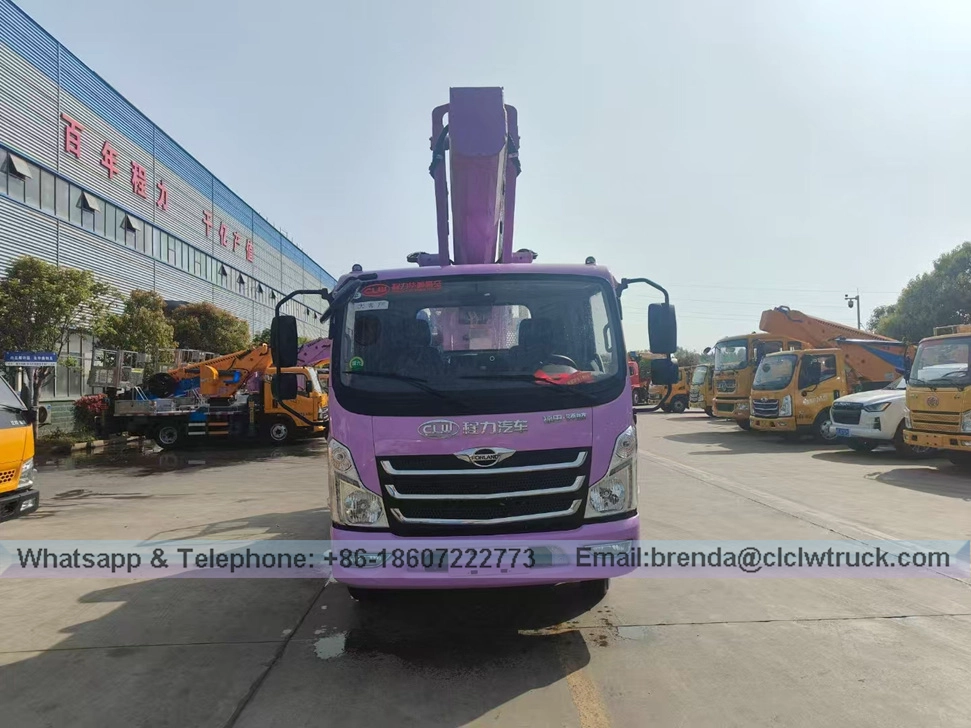

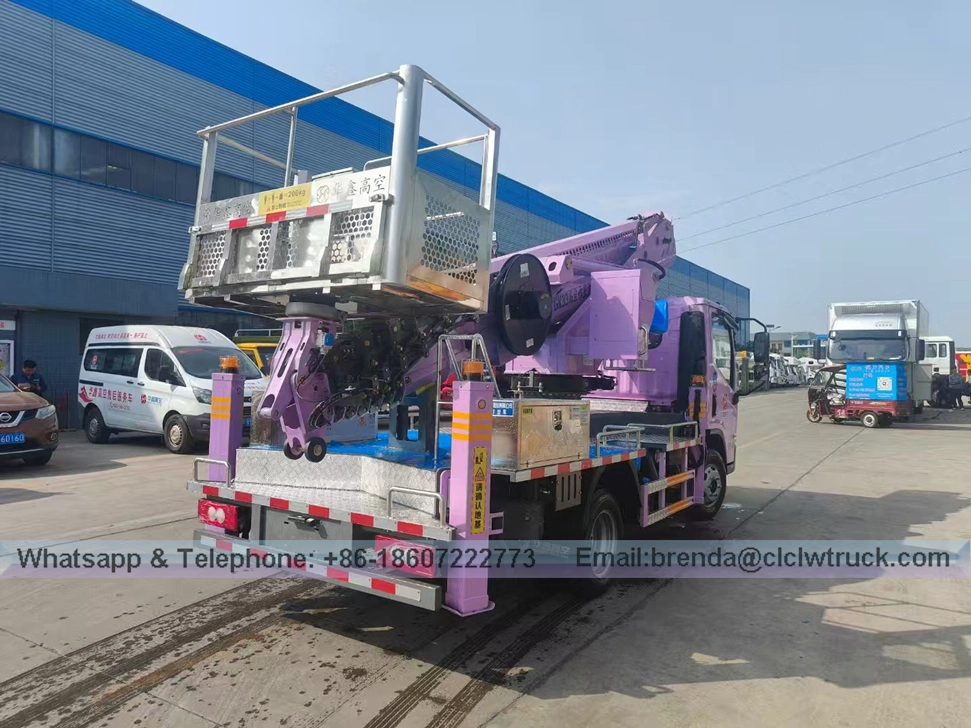

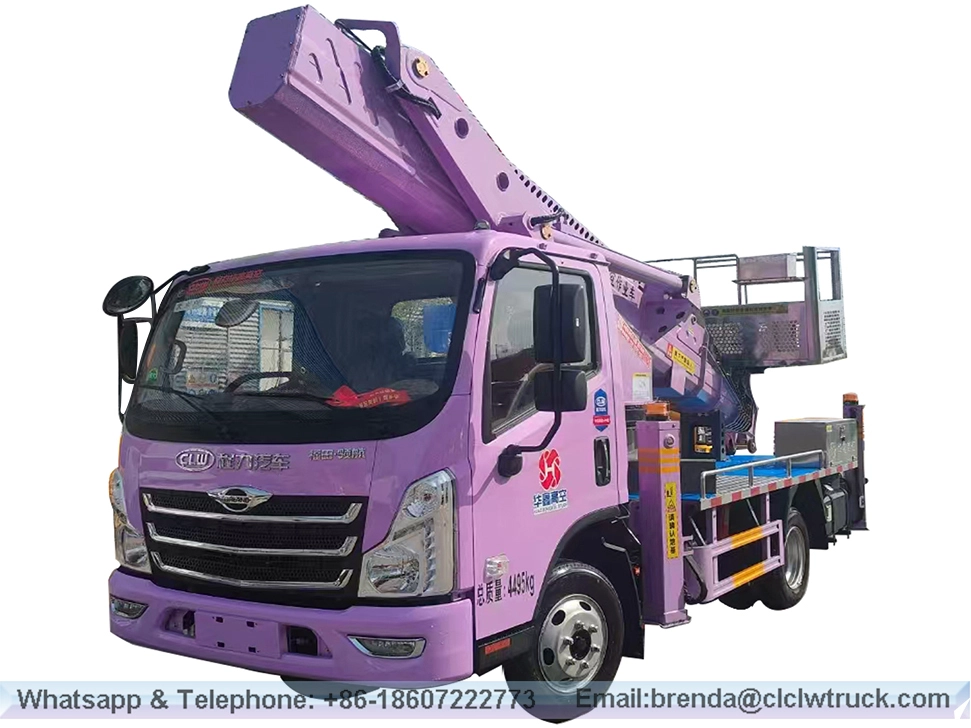

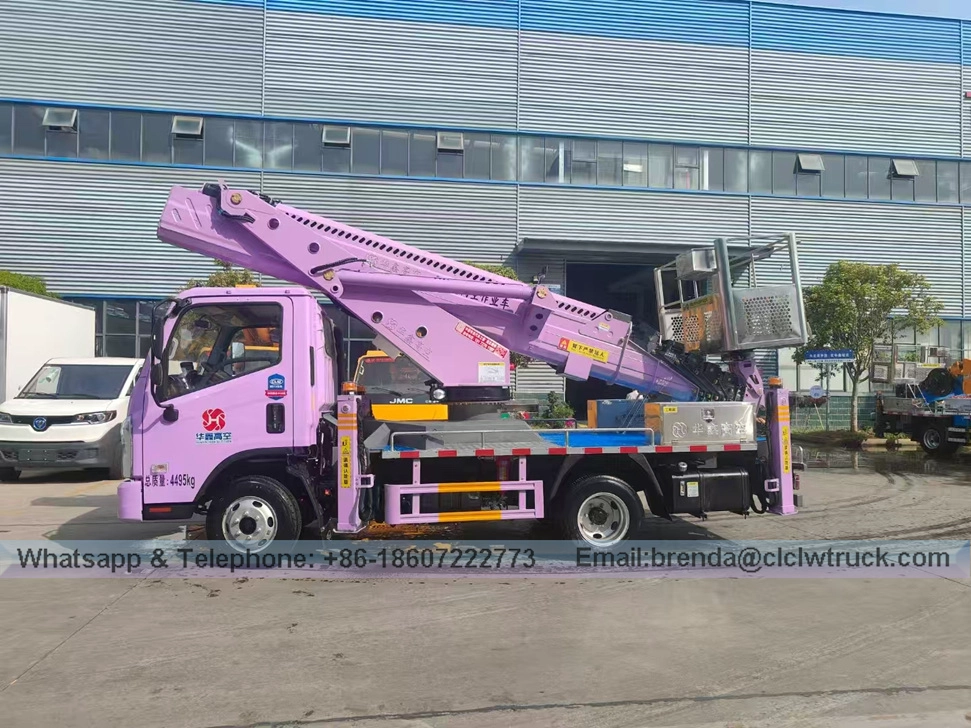

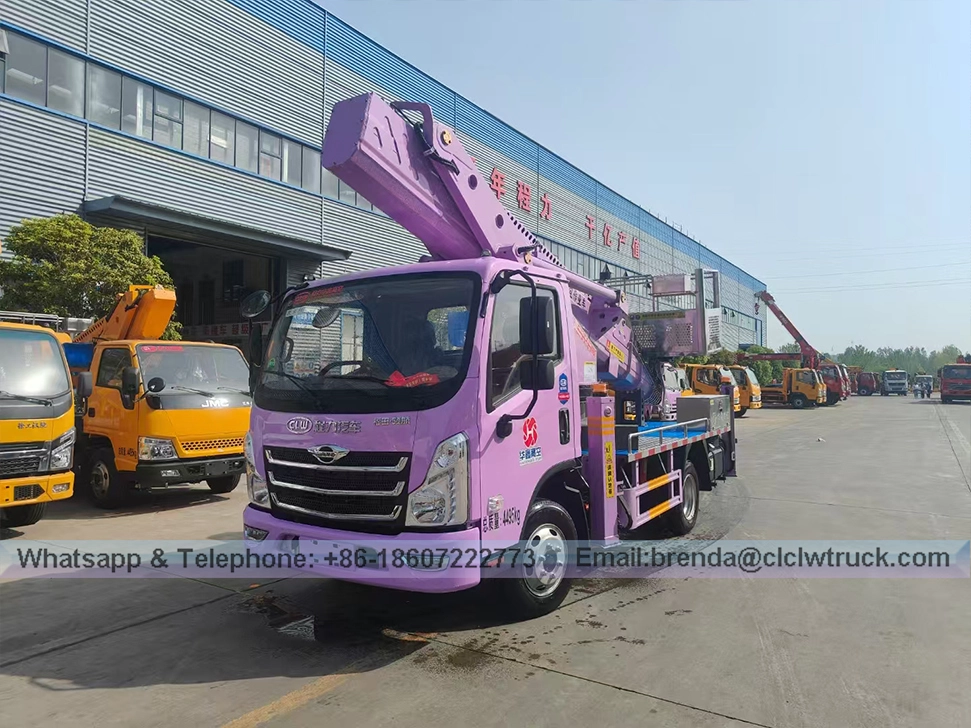

FOTON 33m High Working Truck for Sale
- 1.Maximum Working Height:Up to 33 meters.
- 2.Large Working Platform:Capacity 200kg (can carry up to 3 persons). The platform rotates 360 degrees.
- 3.High-Strength Steel Structure:All main structural components utilize high-strength steel, offering reduced dead weight, high strength, exceptional toughness, and enhanced reliability.
- 4.Electro-Hydraulic Proportional Control & CAN Bus:Features electro-hydraulic proportional valves integrated with an advanced CAN bus control system. Equipped with a wireless remote control for safer and more convenient operation.
- 5.Lower Vehicle LCD Display:A 5-inch LCD screen on the lower vehicle provides real-time monitoring of boom length, elevation angle, platform height, and working height.
- 6.Leading Boom Design:Equipped with a domestically advanced 7-section wire rope telescopic boom structure, ensuring safer and more stable operation.
- 7.V-Type Outriggers:Front and rear V-type outriggers provide a wider lateral spread for greater stability. Optional "soft leg" protection system. Outriggers can be operated simultaneously or individually for adaptability to various job site conditions.
- 8.Premium Hydraulic & Electrical Components:Core hydraulic and electrical components, including load-sensing proportional valves, counterbalance valves, and the CAN bus control system, are sourced from renowned domestic and international brands.
- 9.Chassis:Powered by a National VI compliant chassis. Equipped with air conditioning and hydraulic power steering.
- 10.High-Strength Platform Basket:The basket is constructed from high-strength stainless steel, offering superior durability, corrosion resistance, and a lightweight design for increased payload capacity.
- 11.Octadecagonal Boom with External Cylinders:Features an 18-sided boom profile and synchronous telescoping for a compact structure, high working efficiency, and an extensive working range. The external telescoping cylinders and wire rope mechanism facilitate easy visual inspection of potential faults and simplified maintenance.
- 12.CAN Bus Electrical System & Multiple Controls:The entire electrical system employs a CAN bus network, resulting in neat and simplified wiring. Operation can be performed from two locations: the control panel (computer operation) and via the wireless remote control. An optional basket-mounted control station provides safe, reliable, and highly efficient operation
High-altitude Operation Truck
|
【 Main specifications 】 |
|||
|
Product model、name |
33-meter high-altitude work vehicle |
||
|
Gross vehicle weight(kg) |
4495 |
Drive type |
mechanical drive |
|
Payload(kg) |
|
Overall dimension (mm) |
|
|
Curb weight(Kg) |
4365 |
cab seats (man) |
2,3 |
|
Approach/departure angle (°) |
20/15 |
Front/rear hang(mm) |
1100/1798,1130/1768 |
|
Number of axles |
2 |
Wheelbase(mm) |
3360 |
|
Axle load(Kg) |
1800/2695 |
Max speed(Km/h) |
115 |
|
【 Chassis specifications 】 |
|||
|
Chassis model |
BJ1045V9JBA-33 |
Manufacturer |
FOTON |
|
Brand name |
FOTON brand |
Overall dimension (mm) |
5998×2080×3300 |
|
Fuel type |
diesel |
Emission standard |
GB17691-2018 |
|
Engine model |
Engine manufacturer |
Displacement(ml) |
Power(Kw) |
|
Q25A-150E60 |
Quanchai Power Co., Ltd. |
2496 |
110 |
|
【 High-altitude Operation Performance 】 |
|||
|
Max working height(mm) |
3300 |
||
|
Rated platform load (Kg) |
200 |
||
|
Effective lifting weight (Kg) |
1000 |
||
|
【 High-altitude Operation Truck Functions 】 |
|||
|
High-altitude operation truck is one kind of special purpose vehicle which transport the workers and tools to aerial work. Equipped operational device both on the working platform and rotary seat, It can be remote control engine start / stop, high / low speed. Using the electro-hydraulic proportional valve to control lifting arm is good stability. The lifting arm can 360 ° continuously rotate. Through the link mechanism to make job groove level, steerable emergency pump fell job groove when the main pump fails, with night lighting, can lift heavy objects. The outrigger can separate and adjustable, to achieve vehicle leveling on uneven road. It is widely used in electricity, street lighting, municipal, landscape, communications, airports, making (repair) ship, transportation, advertising, photography and other aerial work areas. |
|||

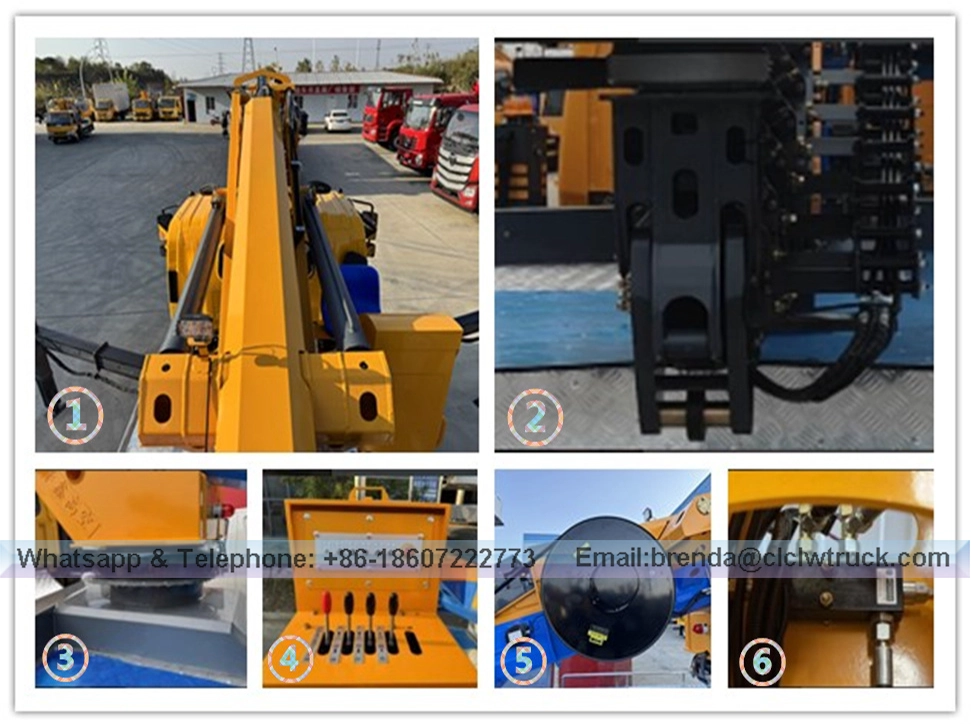

①. Balancing Valve:Ensures smooth and safe cylinder operation.
②. Slewing Mechanism:21-inch vortex slewing drive with a trapezoidal base platform provides a larger load-bearing surface for enhanced stability.
③. Reel:Integrated triple-combo reel (hydraulic + electric + hose) offers convenient and practical utility.
④. Boom Head:Fork-like boom head design features two extra support points compared to traditional designs, minimizing operational clearance for smoother movement.
⑤. Dual Lifting Cylinders:Oversized and reinforced cylinders ensure smoother lifting. Equipped with burst valves for enhanced safety during elevated operations.
⑥. Proportional Valve:Renowned brand proportional valve precisely controls the oil supply for all upper-structure movements, enabling speed adjustment and smooth, steady movements.
