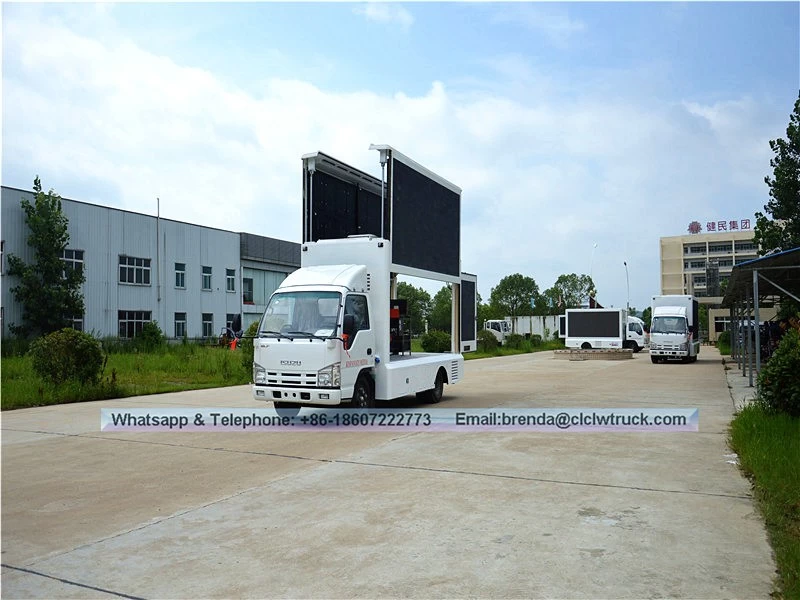

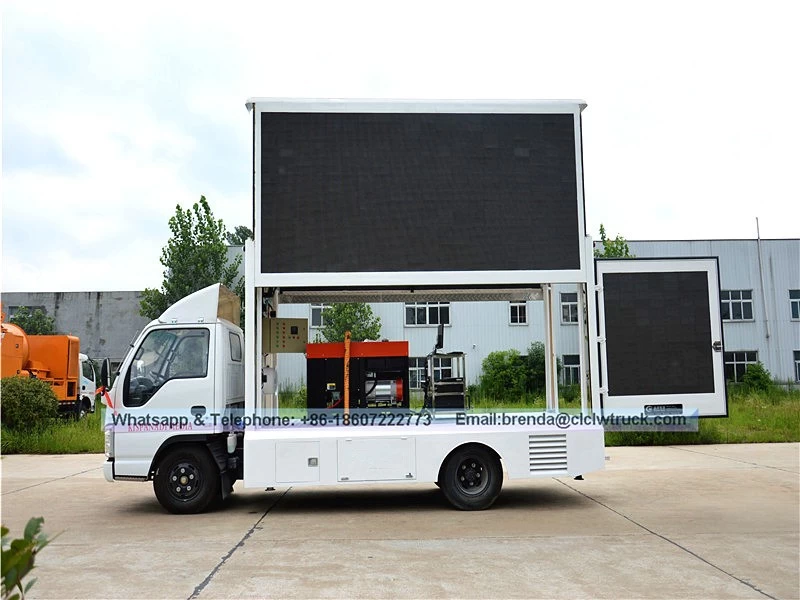

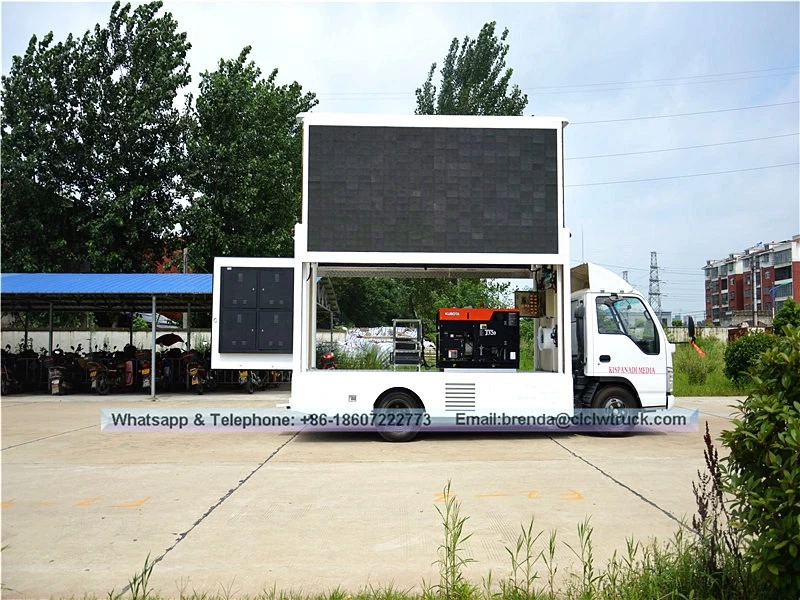

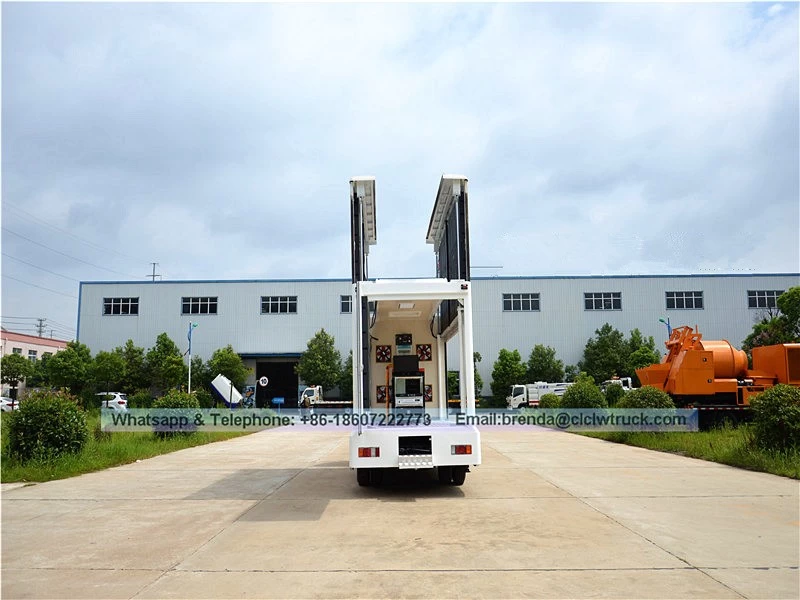

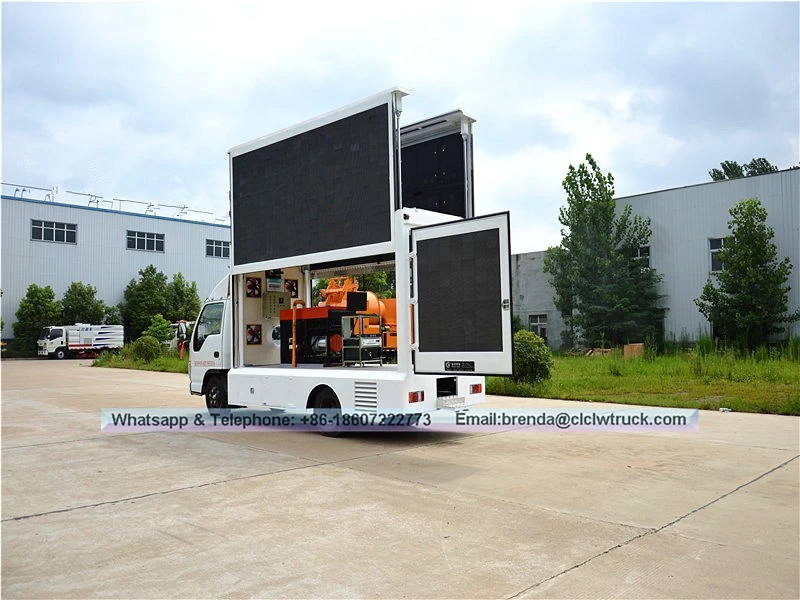

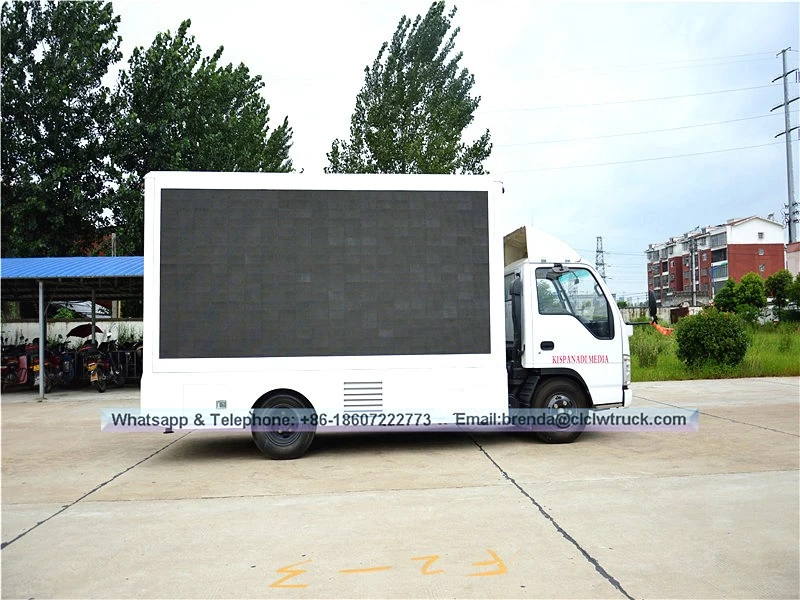

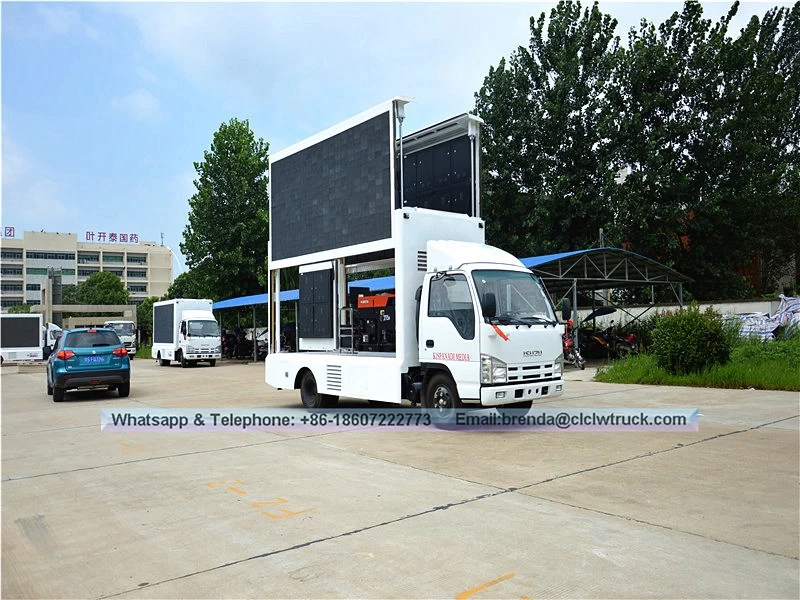

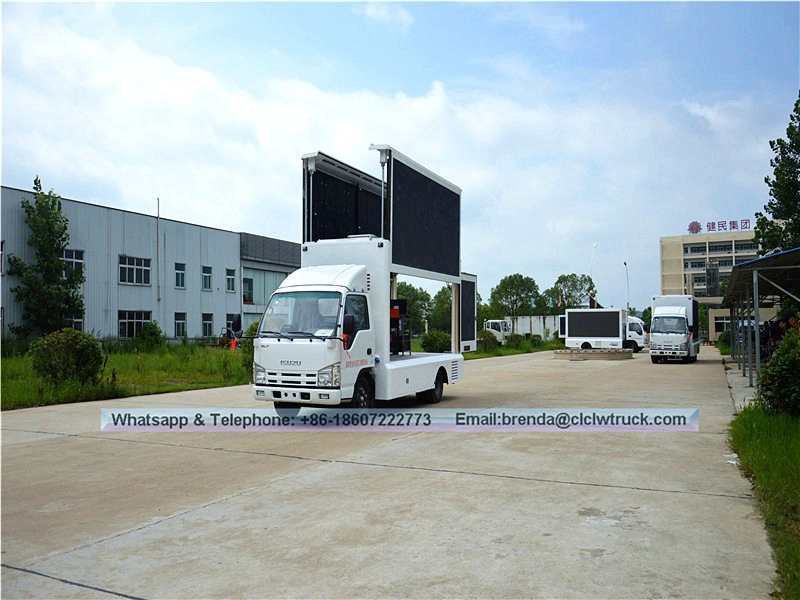

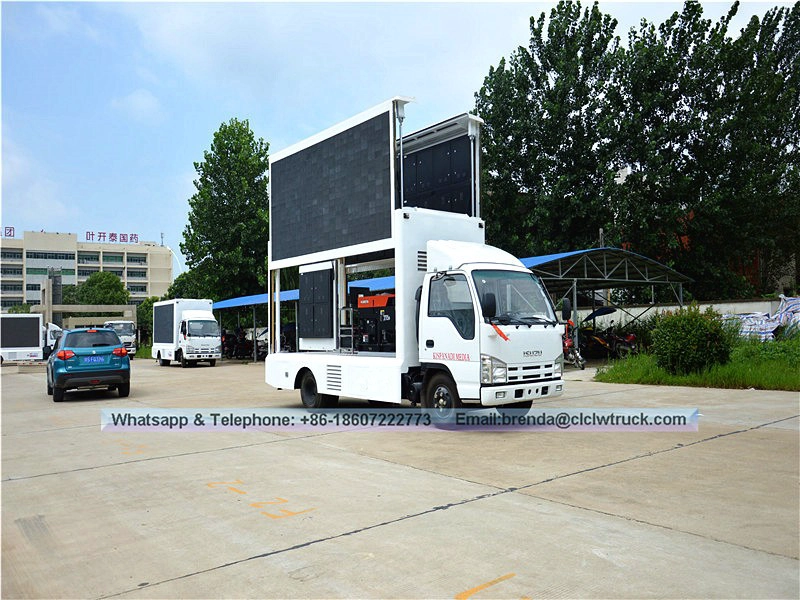

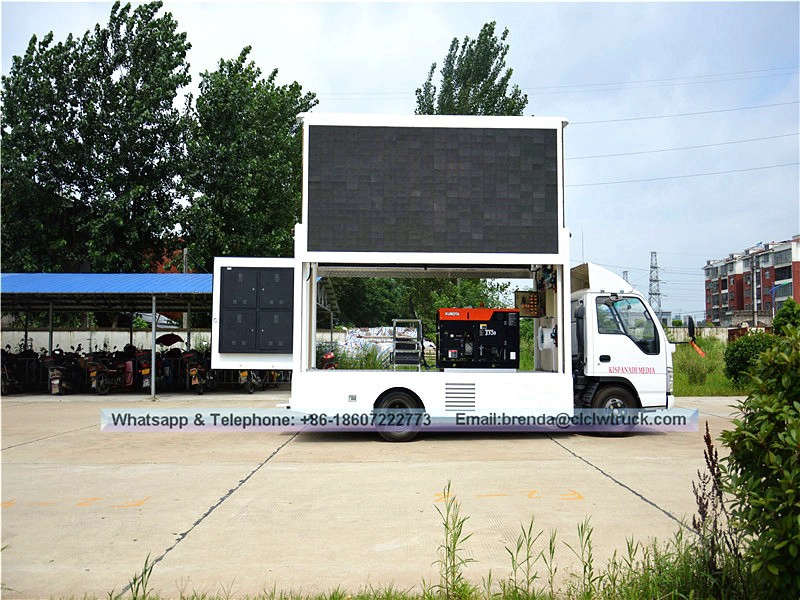

ISUZU BRAND 4*2 price of mobile LED truck
- Main specification
- Product model、name: CSC5040XXCW (ISUZU Light LED truck)
- Gross weight(Kg):4475
- Drive type:4 x 2
- Curb weight(Kg):4345
- Overall dimension (mm):5990×2000×2900
- Wheelbase(mm):3360
- Max speed(Km/h):98.00
|
Main specification |
||||||||
|
Product model、name |
QINGLING-ISUZU Mobile LED Truck |
|||||||
|
Total weight(Kg) |
4495 |
Drive type |
4 x 2 |
|||||
|
Curb weight(Kg) |
4200 |
Overall dimension (mm) |
5995 ×1950×2850 |
|||||
|
Wheelbase(mm) |
3360 |
Cab seats (man) |
3 |
|||||
|
Approach / departure angle(°) |
27/20 |
Front/rear hang(mm) |
1160/1475 |
|||||
|
Axle load |
2580/4720 |
Max speed(Km/h) |
95 |
|||||
|
Chassis specification |
||||||||
|
Chassis model |
QL10703HARY |
Manufacturer |
Qingling Motors Co., Ltd. |
|||||
|
Brand name |
ISUZU |
Number of axes |
2 |
|||||
|
Tire specification |
7.00-16 |
Tires No. |
6 |
|||||
|
Leaf spring |
8/6+5 |
Front track(mm) |
1504 |
|||||
|
Type of fuel |
Diesel |
Rear track(mm) |
1425 |
|||||
|
Emission standard |
Euro IV |
Transmission |
ISUZU MSB 5 Forward Gear |
|||||
|
Driving cab |
The shrinking 700P Cab, luxury dashboard and seat with air conditioning, and the direction of power |
|||||||
|
Engine model |
Engine Manufacturer |
Displacement(ml) |
Power(KW) |
|||||
|
4JB1CN |
Qingling Isuzu (Chongqing) Engine Co., Ltd. |
2771 |
72 |
|||||
|
Mobile LED truck specification |
||||||||
|
LED screen size (length x high)(mm) |
3840 x 1760 |
Led side screen area (㎡) |
6.8 |
|||||
|
Screen Lift Height（m) |
1.5 |
LED screen’s pixel pitch（mm) |
10 |
|||||
|
Roller Screen Size（mm) |
3840×1460 |
Rear monochrome screen size（Length×heigh mm) |
1280×1440 |
|||||
|
Remark |

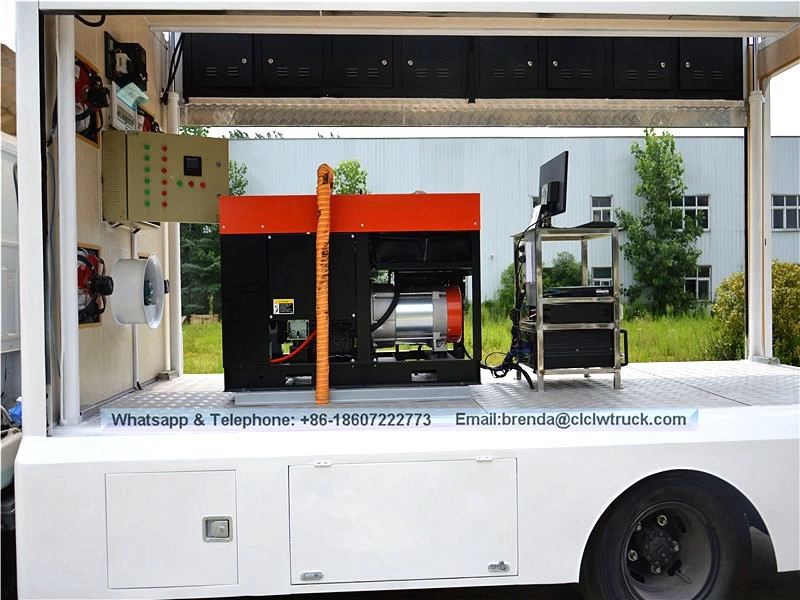

There be equipped the Silent generator, wooden floors, lighting, ventilation fans, skylights, computers, stereos, amplifiers and other facilities within the body , and 220V external power connector outside the body. |
|||||||
|
Optional |
Can choose the stage, its size: 3600×3000mm。 |
|||||||
|
【The Main Features of LED truck】 |
||||||||
|
1. This truck is a special vehicle for advertising, generally used for the product promotion, brand promotion, draft activities , live shows sales, sporting events, vocal concerts, concerts and so on! 2. Can be showing at any time, communication, interaction, publicity coverage extensively. And meanwhile effectively get the best of advertising effect,, 3. According to own requirement. you can select the left and right sides and the back medium(include LED full color, Monochrome LED, Light box advertising) , Led full colour screen can be chose P10, P8, P7, P6. |
||||||||
