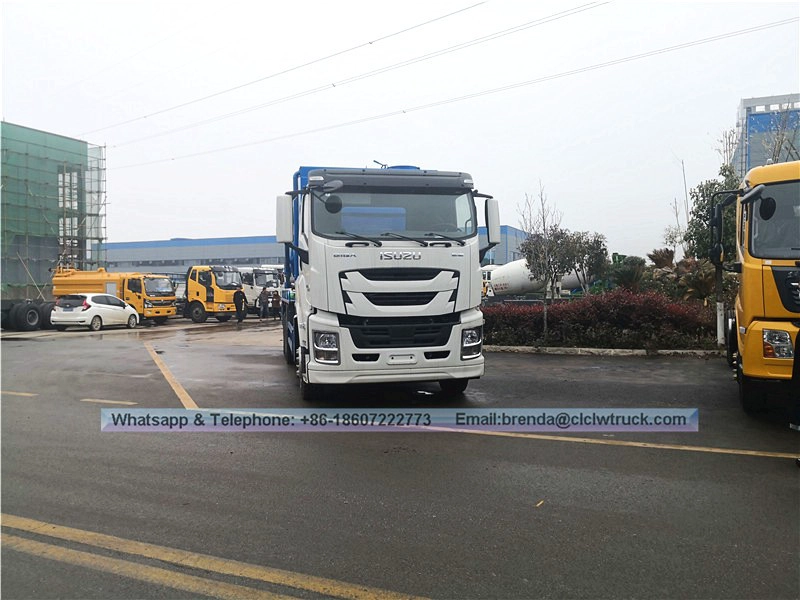

ISuzu 6X4 High Pressure Pump 20000L 20ton Sewer Cleaning Suction Truck- 18ton high-pressure clean pressure suction truck
- (1)Vacuum sewage suction truck (also called truck mounted sewage cleaner,vacuum cleaner truck ,vacuum suction truck ,vacuum suction tanker ,vacuum waste collection truck ,sewage suction truck,sewage vacuum truck ,waste vacuum truck ,sewer truck ,cesspit emptier ,gully emptier,etc.) is used to collect, transport and discharge liquid such as dirty water,sludge,septic,crude oil and solid stuff such as small stones,bricks as well.It is suitable for cleaning the sewer,cesspit,gully ,etc. It is widely used in environment and sanitation field.
- (2)Accessory of sewage suction function :Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.
- (3)vacuum tank capacity ranges from 3,000 Liters to 25,000 liters

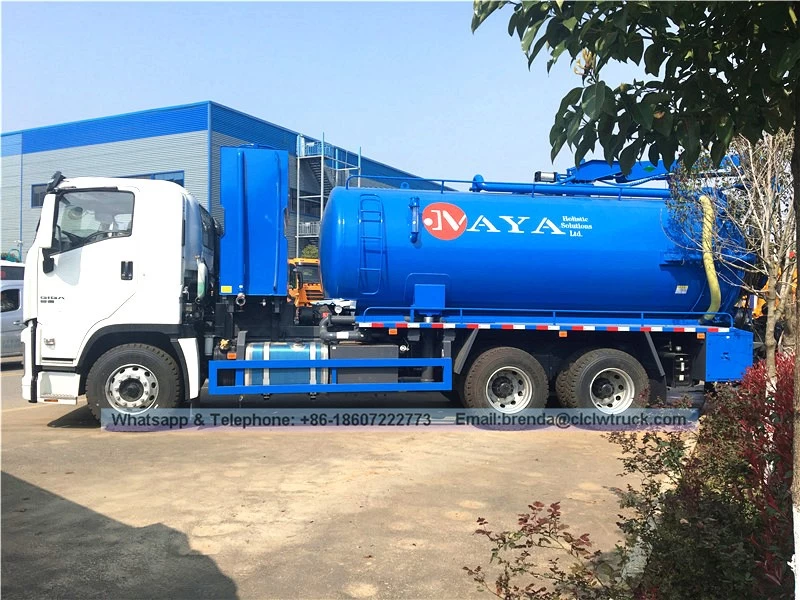

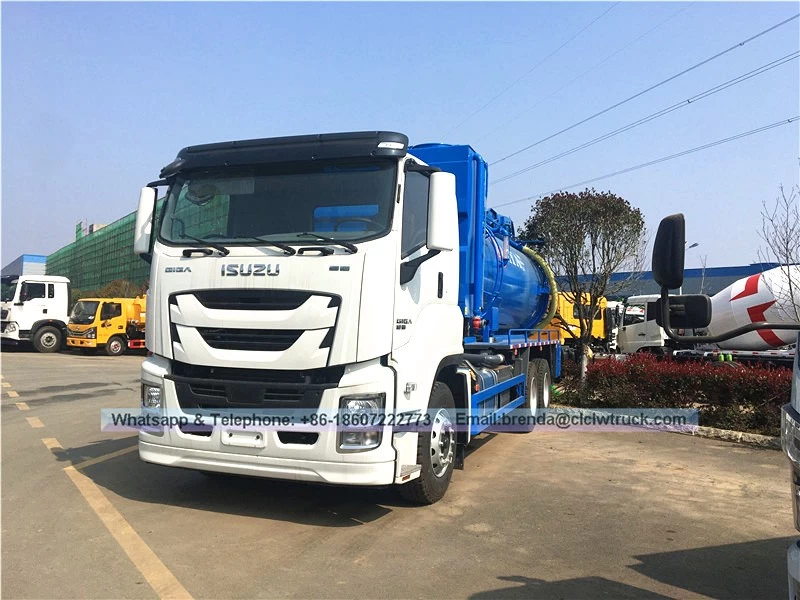

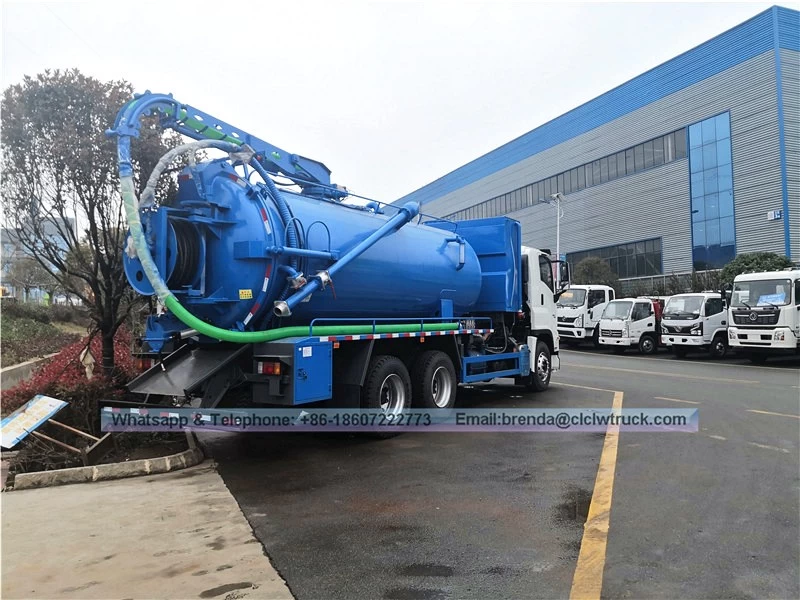

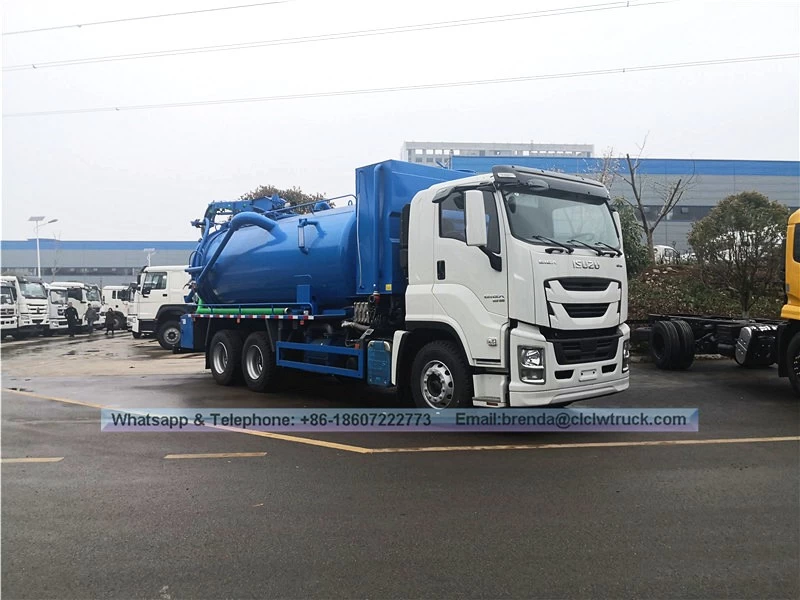

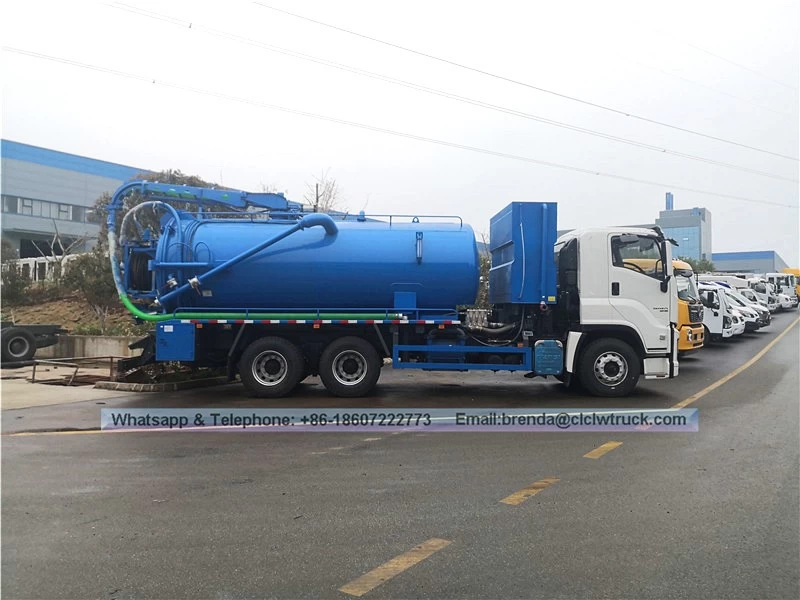

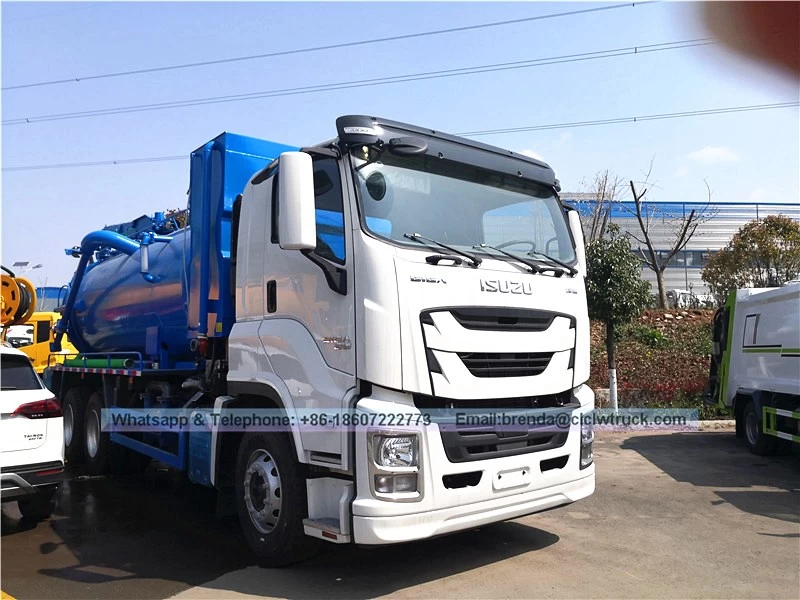

High Pressure ISUZU 6*4 clean truck
|
Vehicle name |
Japanese 6x4 ISUZU 20000 liter Sewer cleaning suction truck |
Volume (m3) |
20 |
|
Dimensions (mm) |
8150×2380×2920 |
Tank size (mm) |
5350×1800×1300 |
|
Tank material |
Carbon steel |
Tank thickness (mm) |
20 |
|
High pressure pump brand |
Tianjin Tongjie / Italy Import |
Pressure (Mpa) |
16-19 |
|
Washing water flow rate (L/min) |
120 |
Spray flow rate (L/min) |
120 |
|
Cleaning width (m) |
≥ 16 |
Washing water flow rate (L/min) |
500-800 |
|
Flow rate (m3/h) |
8 |
Water gun range (m) |
38 |
|
Total mass (kg) |
11450 |
Rated mass (kg) |
6305 |
|
Curing quality (kg) |
4950 |
Maximum speed (km/h) |
103 |
|
Fuel type |
Diesel |
Emission Standards |
Country five |
|
Wheelbase (mm) |
4600+1350 |
Tire specifications |
295/80R22.5 |
|
Chassis brand / model |
QL1250 |
Engine brand / model |
I-SUZU |
|
Power / horsepower (kW / ps) |
257 |
Displacement (mL) |
4500 |
|
Top loading configuration parameters |
|||
|
The standard configuration |
Install the sandwich power take-off, drive shaft, high-pressure cleaning pump, rated pressure 16Mpa, hydraulic reel, water level gauge, washing pipe, operation valve at the rear of the tank, equipped with a 60m 19mm high pressure pipe, 10 high pressure flushing heads . |
||
|
Optional configuration |
Sprinklers, green sprinklers, front and rear sprinklers, side sprays, snow shovels, hydraulic lifting platforms, guardrail cleaning brushes can be added to meet the needs of different users. |
||
